SKU: DR-70D

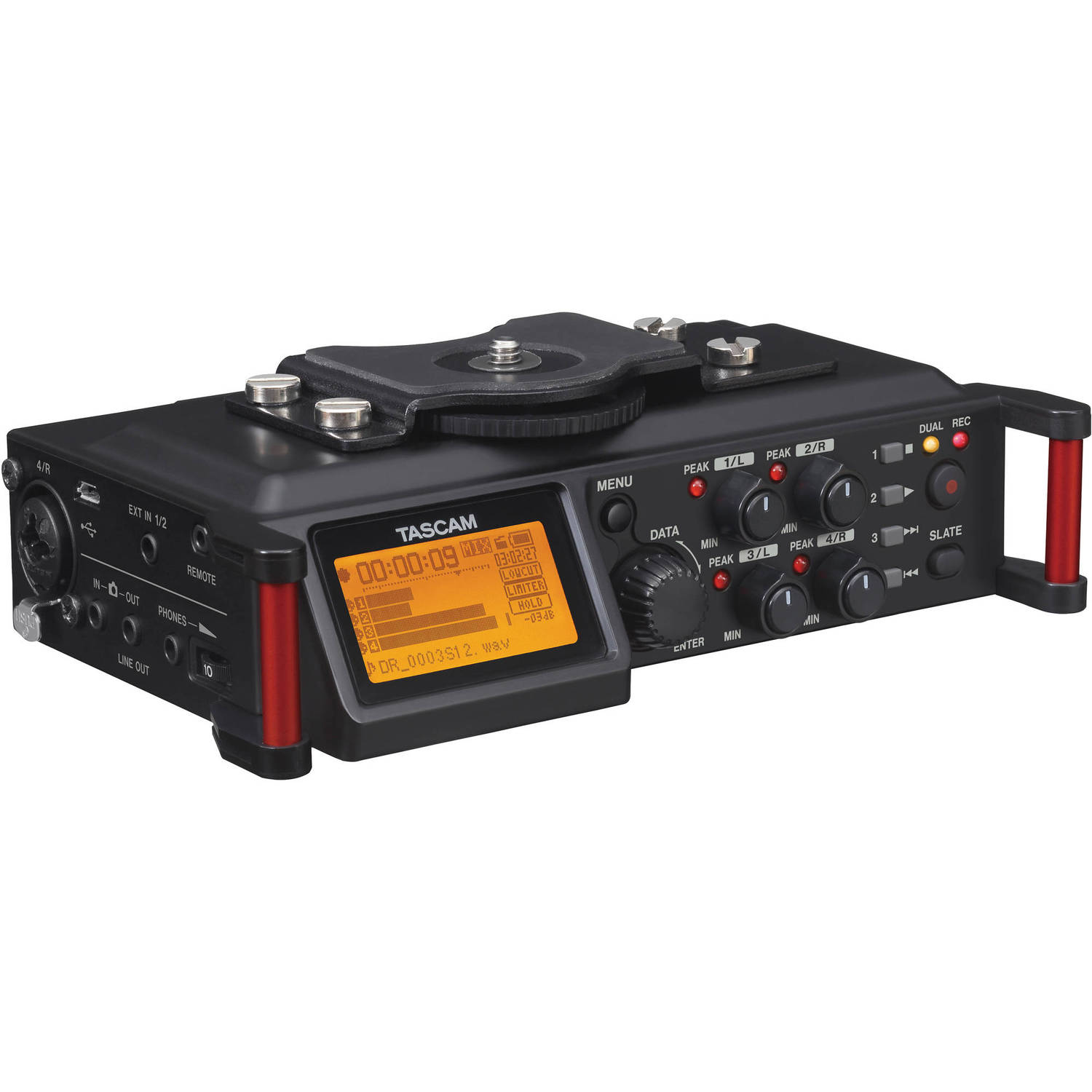

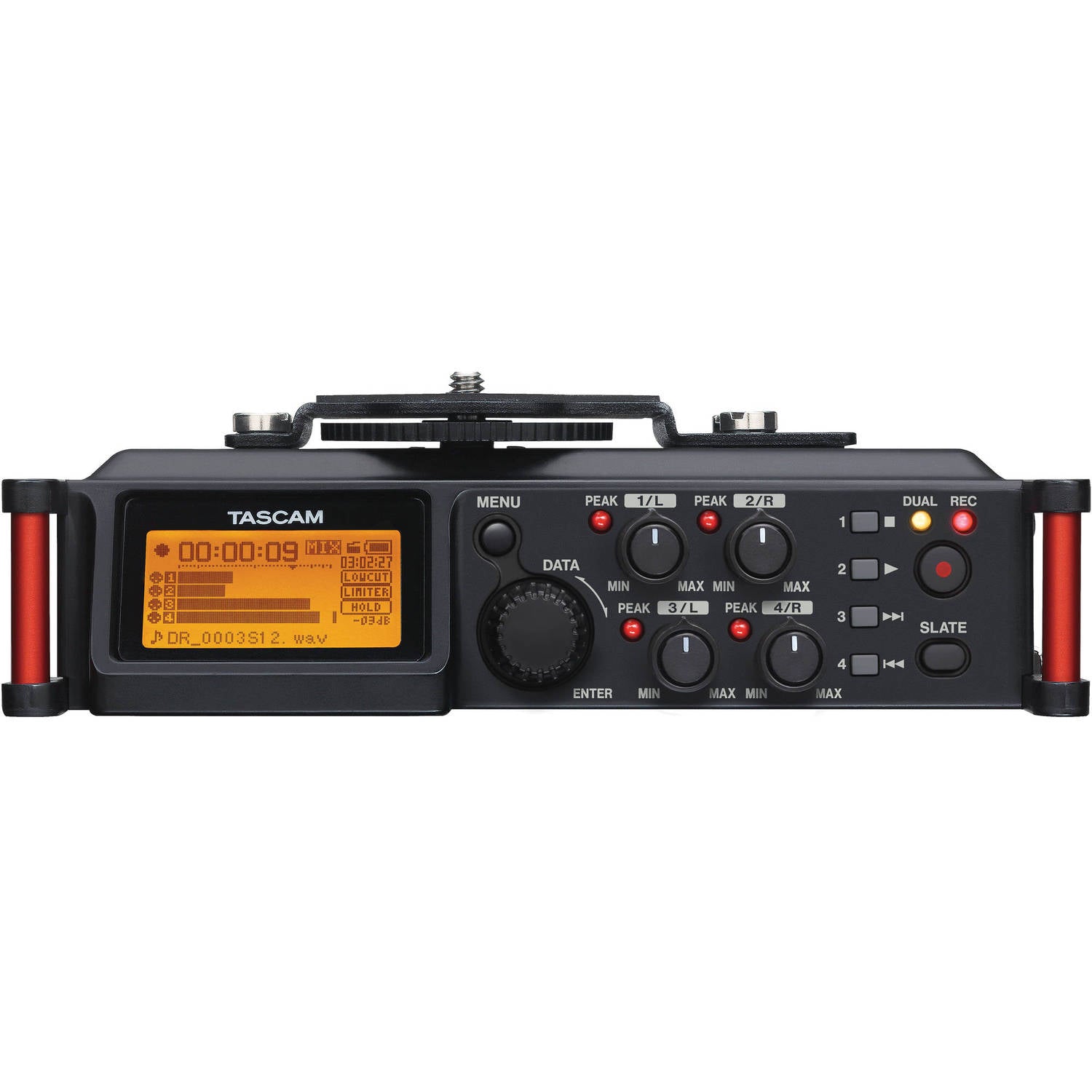

TASCAM DR-70D 6-Input / 4-Track Multi-Track Field Recorder with Onboard Omni Microphones

$279.00

Items Included

Item Notes

Condition: Fully Working 5 available
5 available View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window

Description

For filmmaking, television, and web broadcast applications where you want to record direct sound and ambience, the TASCAM DR-70D multi-track field recorder is an ideal companion for your DSLR. Capture up to four tracks of high-resolution audio from external sources and the onboard omnidirectional microphones, route audio to and from your camera, and conveniently monitor through headphones. With strap-friendly handles, a tripod mounting socket, and a camera-mount screw attachment, the DR-70D is compatible with a variety of setups and working styles. Versatile powering methods and remote-control options make the DR-70D ideal for location recording and extended video shoots. Its four balanced XLR-1/4" combo inputs handle mic- or line-level signals (even +4 dBu from high-end sound mixers) and can independently supply phantom power. A 3.5mm mic/line input with selectable plug-in power is provided for situations that require you to record a lavalier microphone or the output of a wireless receiver. Utilize settings such as stereo safety track recording, limiting, and low-cut filtering to achieve a clean, undistorted recording. Read more

Features

  • Filmmaking, TV & Web Broadcast
  • Optimized for DSLR Shooters

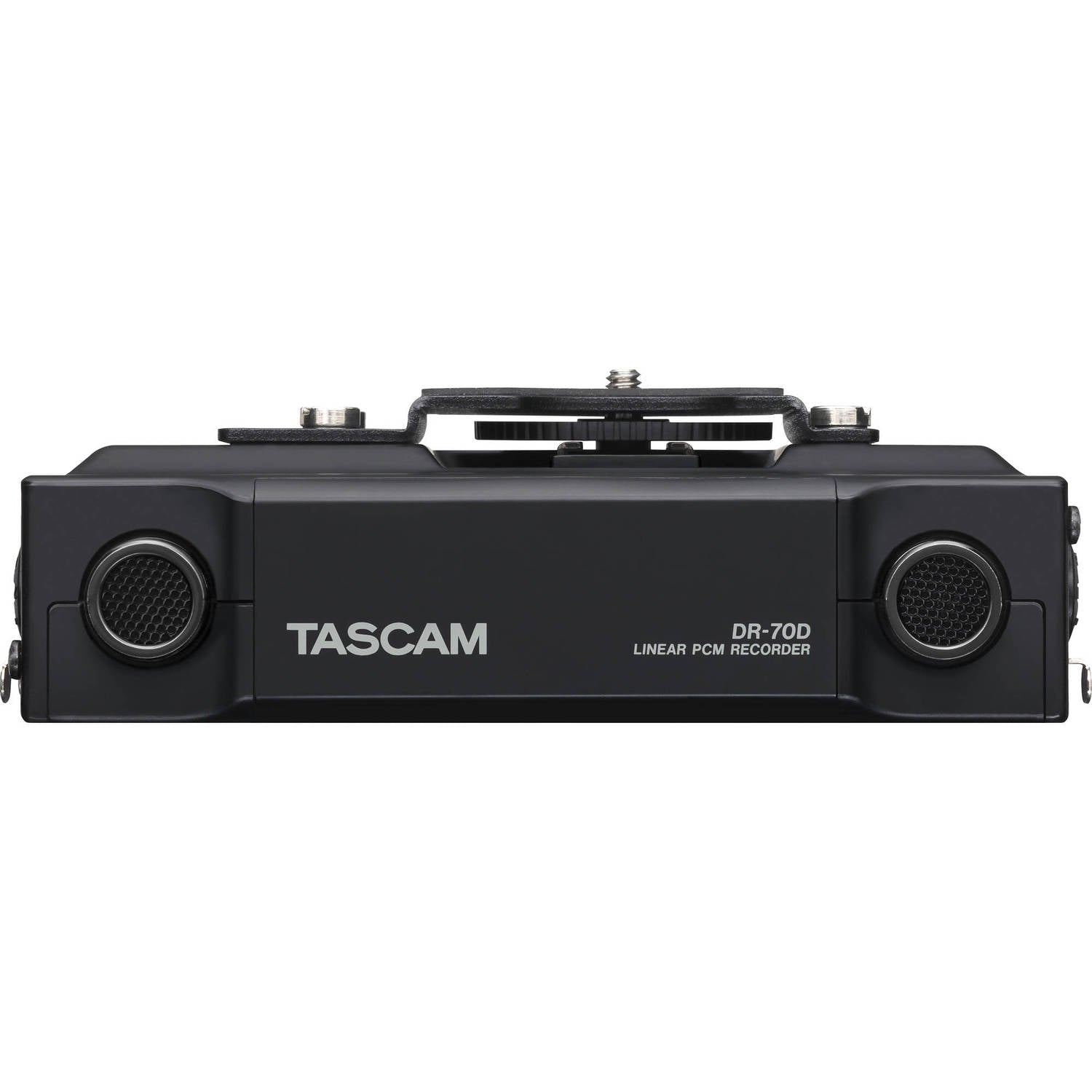

  • Dual Onboard Omnidirectional Microphones

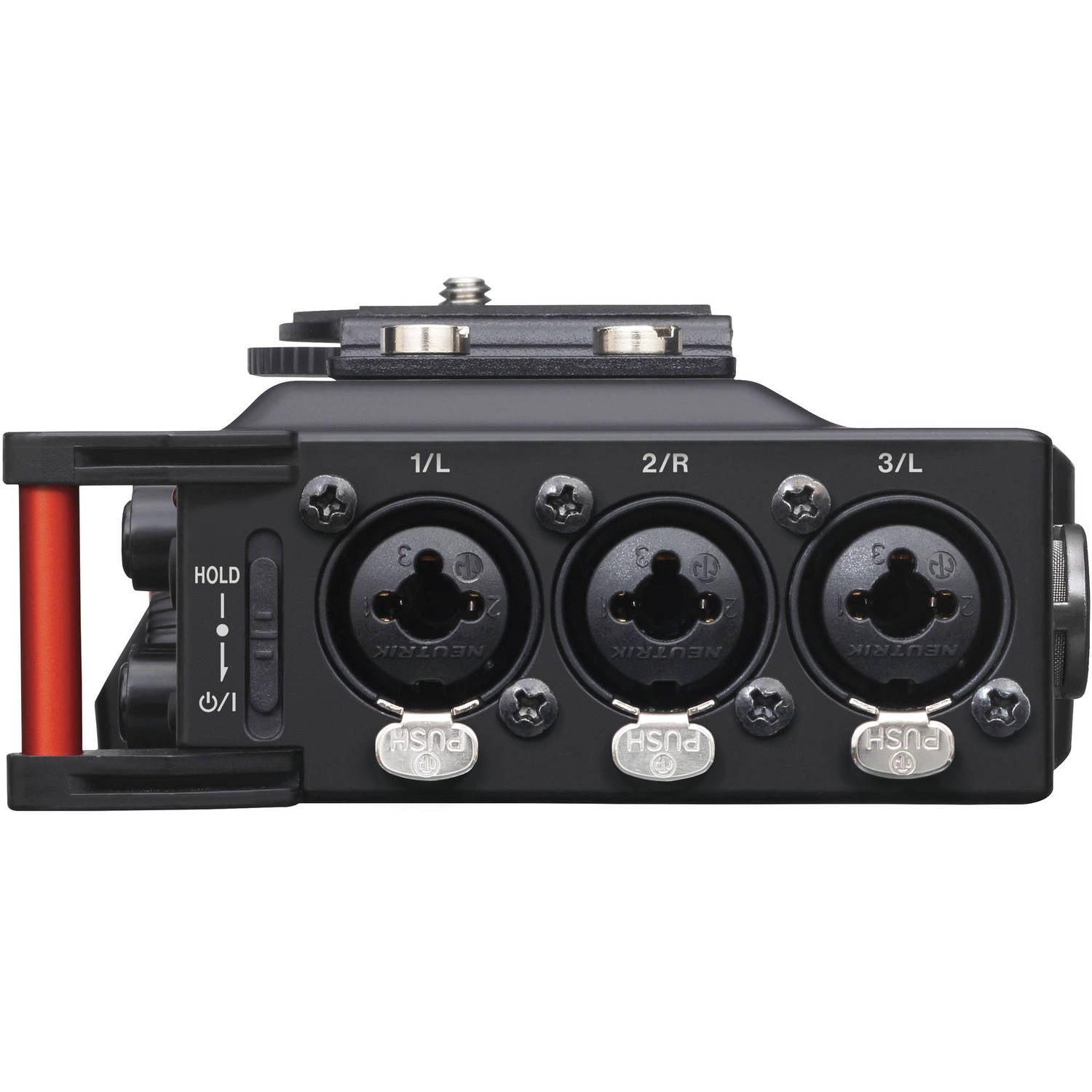

  • 4 x XLR-1/4" Inputs with Phantom Power
  • 3.5mm Mic/Line Input with Plug-In Power
  • Records in WAV up to 96 kHz
  • 3.5mm Camera/Line & Headphone Outputs
  • Supports Battery, AC, or USB Powering
  • Supports SDXC Cards up to 128GB
  • Limiter, Low-Cut Filter & Polarity

Business Financing Options Avaiable

For filmmaking, television, and web broadcast applications where you want to record direct sound and ambience, the TASCAM DR-70D multi-track field recorder is an ideal companion for your DSLR. Capture up to four tracks of high-resolution audio from external sources and the onboard omnidirectional microphones, route audio to and from your camera, and conveniently monitor through headphones. With strap-friendly handles, a tripod mounting socket, and a camera-mount screw attachment, the DR-70D is compatible with a variety of setups and working styles. Versatile powering methods and remote-control options make the DR-70D ideal for location recording and extended video shoots. Its four balanced XLR-1/4" combo inputs handle mic- or line-level signals (even +4 dBu from high-end sound mixers) and can independently supply phantom power. A 3.5mm mic/line input with selectable plug-in power is provided for situations that require you to record a lavalier microphone or the output of a wireless receiver. Utilize settings such as stereo safety track recording, limiting, and low-cut filtering to achieve a clean, undistorted recording. Read more

Features

  • Filmmaking, TV & Web Broadcast
  • Optimized for DSLR Shooters
  • Dual Onboard Omnidirectional Microphones
  • 4 x XLR-1/4" Inputs with Phantom Power
  • 3.5mm Mic/Line Input with Plug-In Power
  • Records in WAV up to 96 kHz
  • 3.5mm Camera/Line & Headphone Outputs
  • Supports Battery, AC, or USB Powering
  • Supports SDXC Cards up to 128GB
  • Limiter, Low-Cut Filter & Polarity

About the TASCAM DR-70D 6-Input / 4-Track Multi-Track Field Recorder with Onboard Omni Microphones

For filmmaking, television, and web broadcast applications where you want to record direct sound and ambience, the TASCAM DR-70D multi-track field recorder is an ideal companion for your DSLR. Capture up to four tracks of high-resolution audio from external sources and the onboard omnidirectional microphones, route audio to and from your camera, and conveniently monitor through headphones. With strap-friendly handles, a tripod mounting socket, and a camera-mount screw attachment, the DR-70D is compatible with a variety of setups and working styles.

Key Features

  • Filmmaking, TV & Web Broadcast
  • Optimized for DSLR Shooters
  • Dual Onboard Omnidirectional Microphones
  • 4 x XLR-1/4" Inputs with Phantom Power
  • 3.5mm Mic/Line Input with Plug-In Power
  • Records in WAV up to 96 kHz
  • 3.5mm Camera/Line & Headphone Outputs
  • Supports Battery, AC, or USB Powering
  • Supports SDXC Cards up to 128GB
  • Limiter, Low-Cut Filter & Polarity

TASCAM DR-70D 6-Input / 4-Track Multi-Track Field Recorder with Onboard Omni Microphones Specs

Form Factor
Field Recorder
Primary Use Applications
Audio-for-Video
Number of Input Channels
6
Number of Microphone Inputs
4
Number of Tracks
4
Maximum Sampling Rate
96 kHz / 24-Bit
Display
Backlit LCD
Built-In Speaker
No
Special Features
Slate Function
Microphone
Microphone
Built-In Stereo Pair
Mic Configuration
A/B
Polar Pattern
Omnidirectional
Recording
Audio File Formats
BWF, WAV
Sample Rates
44.1 to 96 kHz
Bit Depth
16/24-Bit
Audio Interface Capability
No: /
Signal Processing & FX
Delay, Limiter, Low-Cut Filter
Timecode
No Timecode Support
Media/Memory Card Slot
Single Slot: SD/SDHC/SDXC [128 GB Maximum]
Internal Storage
No
Connectivity
Analog Audio I/O

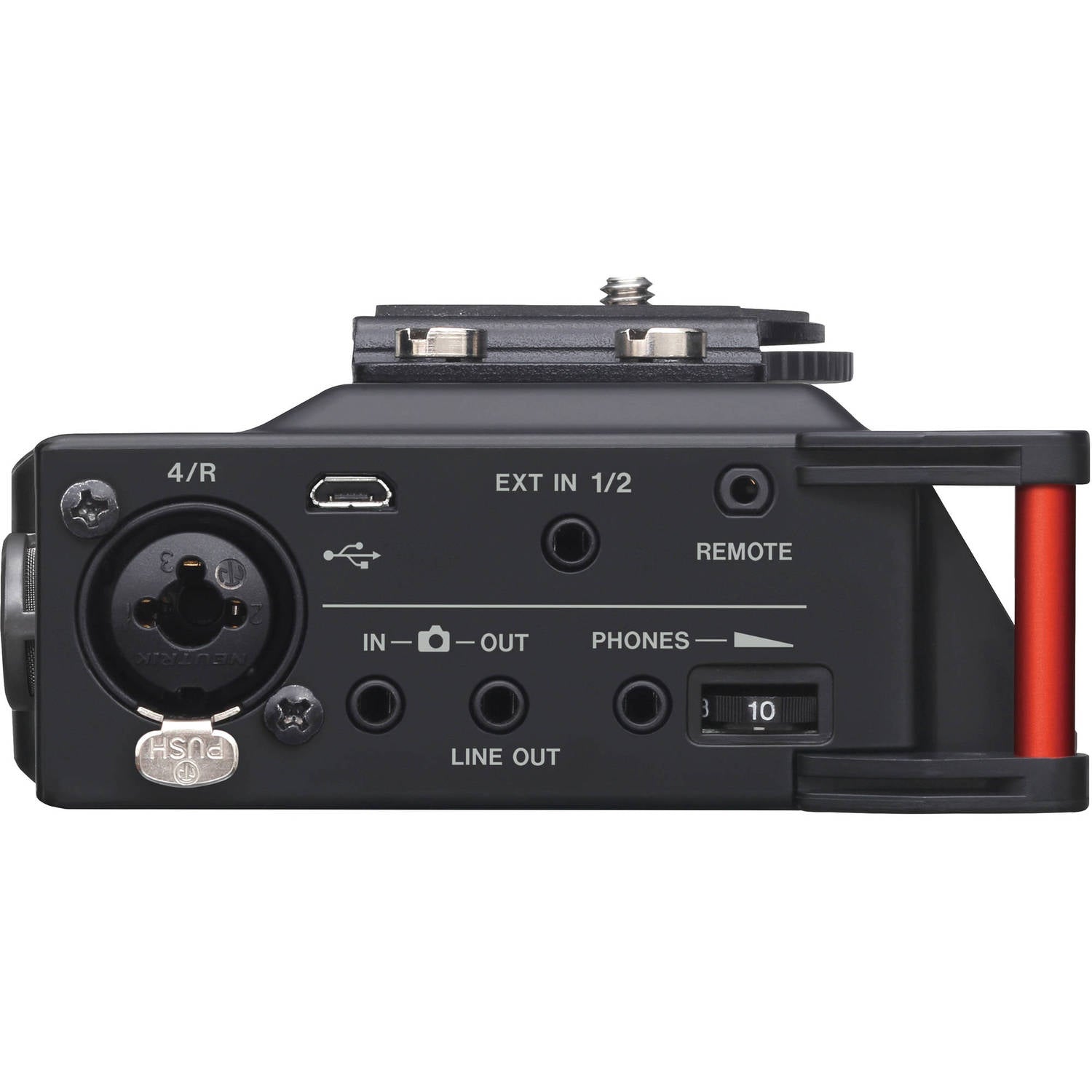

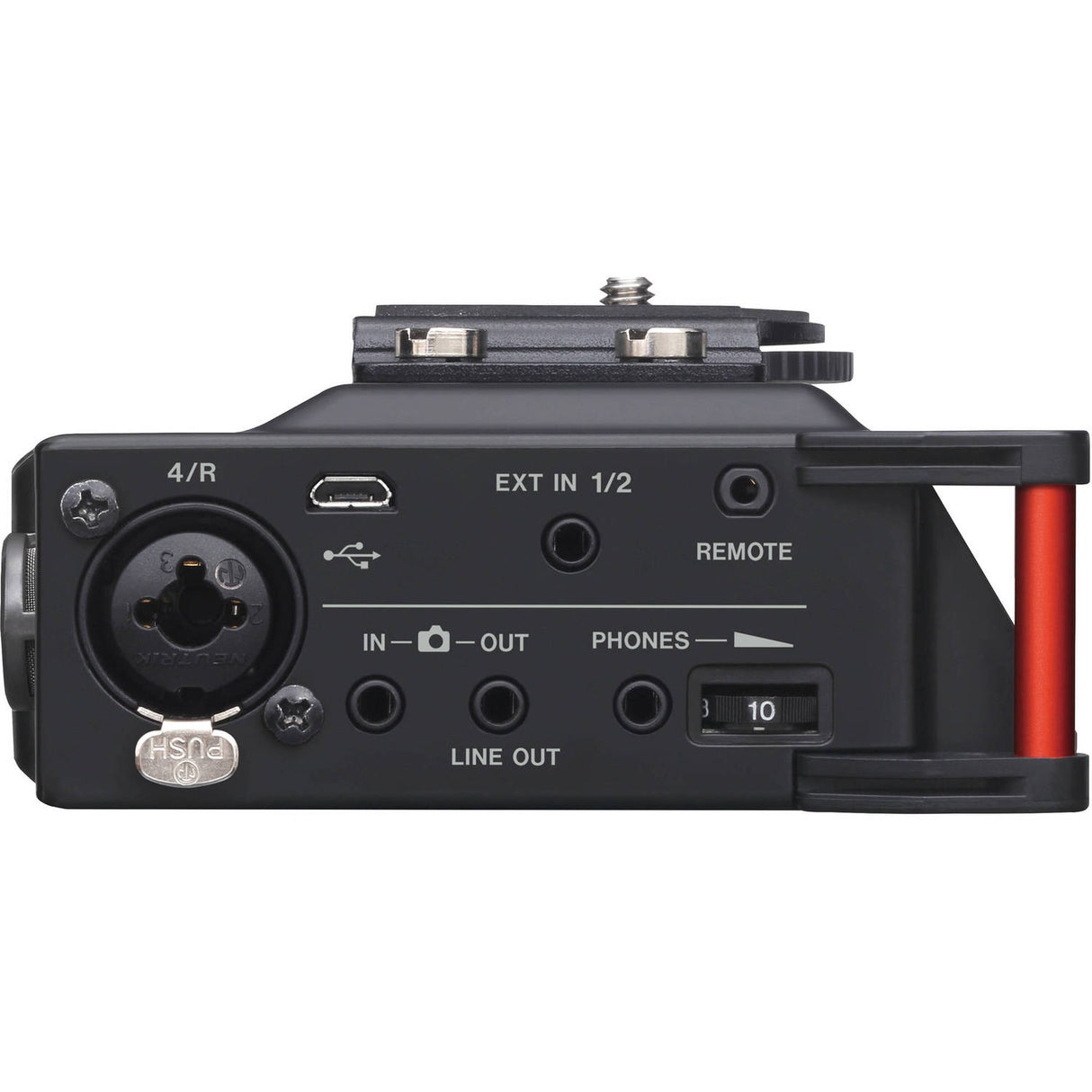

4x Combo XLR-1/4" TRS Mic/Line Input 1x 1/8" / 3.5 mm TRS Mic Input 1x 1/8" / 3.5 mm TRS Line/Camera Output 1x 1/8" / 3.5 mm TRS Camera Input 1x 1/8" / 3.5 mm TRS Headphone Output
Bias/Plug-In & Phantom Power
Has Bias/Plug-In Power: Voltage is Unspecified 24 / 48 V Phantom Power
Digital Audio I/O
No
Sync I/O
No
Other I/O
1x 2.5 mm TRS Remote Input
USB
1x Micro-USB
Wireless
No
Mobile App Compatible
No
Performance
Frequency Response
20 Hz to 20 kHz +0.5/-2 dB (at 48 kHz) 20 Hz to 40 kHz +0.5/-3 dB (at 96 kHz)
Gain
Up to 64 dB (Balanced Inputs) Up to 38 dB (Unbalanced Inputs)
Maximum Input Level
0 dBu (Mic Input) +20 dBu (Line Input) +10 dBV (1/8" / 3.5 mm Input) +6 dBV (Camera Input)
Headphone Output Power
20 mW per Channel
THD/Distortion
≤ 0.02% THD
Power
Power Options
Battery, USB Bus Power, AC/DC Power Adapter
Battery Type
4x AA (Not Included)
Battery Runtime
3.25 to 11 Hours, Dependent on Settings and Battery Type
AC/DC Power Adapter
5 VDC at 1 A (Not Included)
Physical
Mounting Options
1/4"-20 Female, Shoe Mount
Operating Conditions
32 to 140°F / 0 to 40°C
Dimensions
6.7 x 2.2 x 4.2" / 169 x 55.2 x 106.5 mm
Weight
1.2 lb / 530 g (without Batteries) 1.4 lb / 625 g (with Batteries)

Key Features

  • Filmmaking, TV & Web Broadcast
  • Optimized for DSLR Shooters
  • Dual Onboard Omnidirectional Microphones
  • 4 x XLR-1/4" Inputs with Phantom Power
  • 3.5mm Mic/Line Input with Plug-In Power
  • Records in WAV up to 96 kHz
  • 3.5mm Camera/Line & Headphone Outputs
  • Supports Battery, AC, or USB Powering
  • Supports SDXC Cards up to 128GB
  • Limiter, Low-Cut Filter & Polarity
