TASCAM IF-AN16/OUT 16-Channel Analog Interface Card for DA-6400 64-Channel Recorder

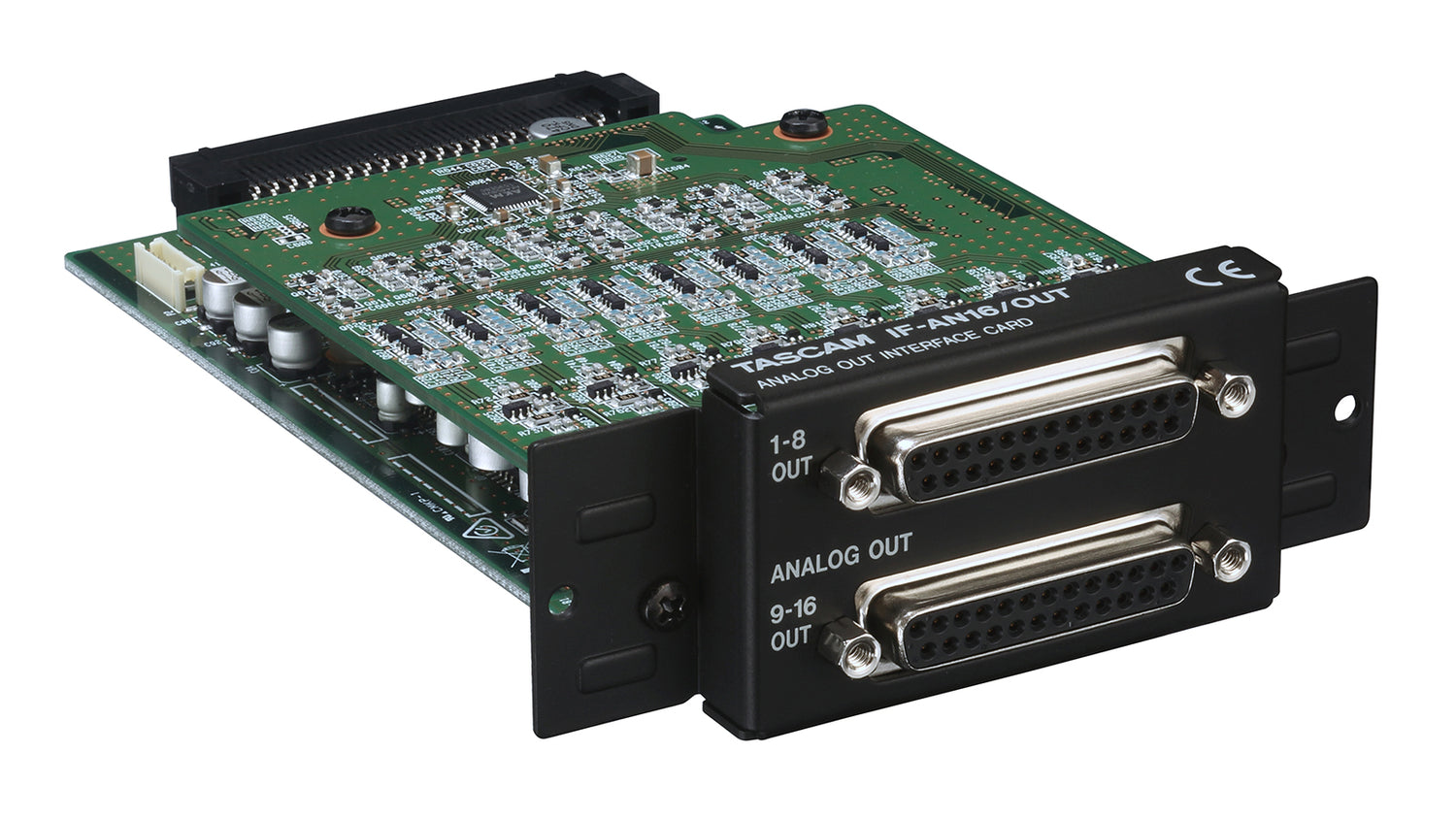

It is an expansion card that adds 16 channels of high-quality balanced analog line outputs to the TASCAM DA-6400 and DA-6400dp 64-channel digital multitrack recorders.

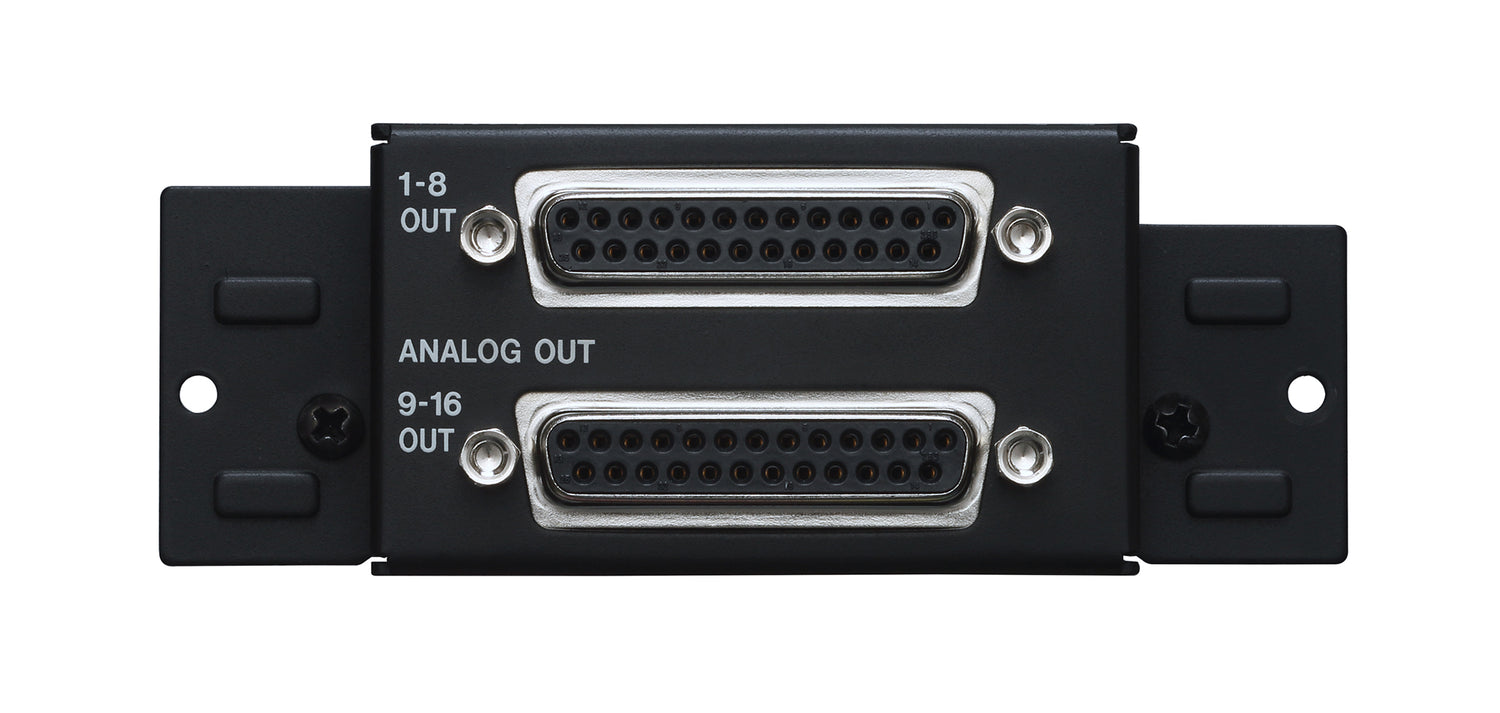

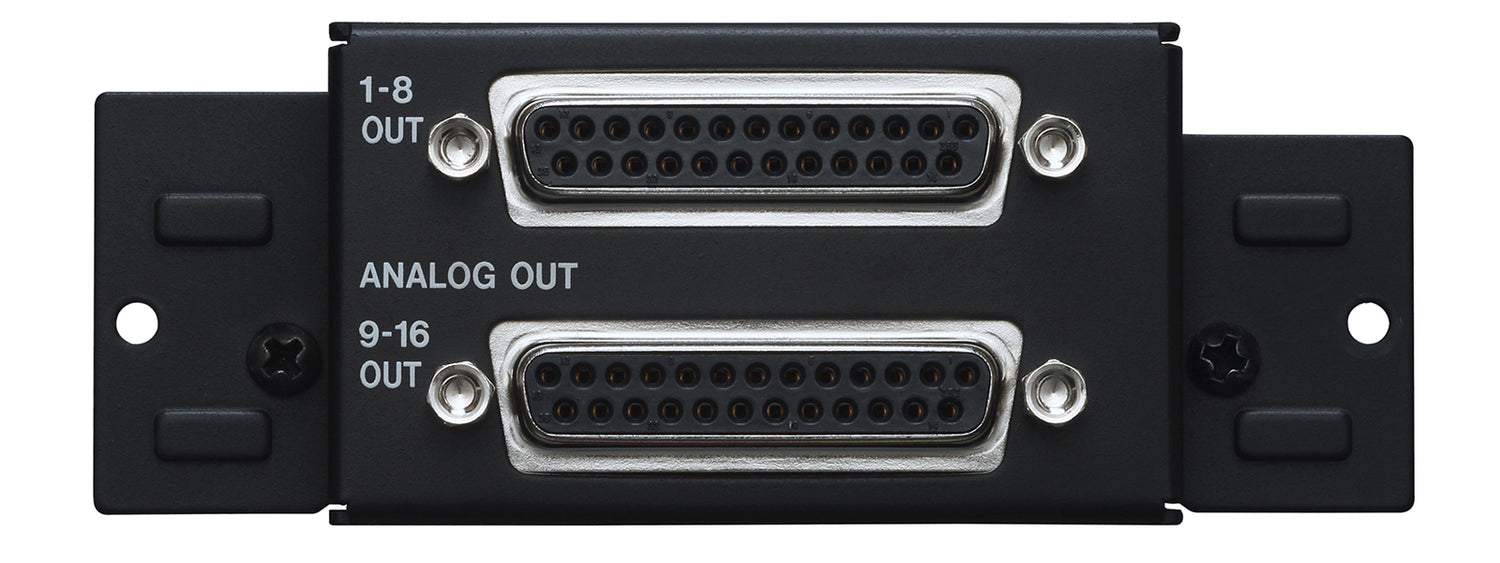

The card features two DB-25 (D-sub 25-pin) female connectors, with each port breaking out 8 channels of balanced analog output signals (Channels 1–8 and Channels 9–16) using standard TASCAM pinout configuration.

Yes, because the DA-6400 features two rear expansion slots, you can install two IF-AN16/OUT cards simultaneously to create a ultra-compact 1U player setup with up to 32 channels of analog line outputs.

The card supports high-resolution audio converting up to 24-bit resolution across standard sampling rates of 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz.

Yes, it includes digital output attenuation controls for each channel adjustable from 0 dB down to -14 dB (in 0.5 dB steps), allowing precise output level matching with connected analog mixing consoles or processors.

The card utilizes standard No. 4-40 UNC inch-type locking screws, making it fully compatible with standard DB-25 to XLR-M or DB-25 to 1/4" TRS balanced analog snake cables.

No, this specific card is strictly an analog output expansion card (/OUT) designed for playback, monitoring, or feeding analog consoles. Analog input requires dedicated input expansion cards or Dante/MADI options.

Yes, installation is quick and straightforward. You simply power down the DA-6400, remove the rear expansion slot cover plate, insert the card along the guide rails, and tighten the thumb/retaining screws into place.
