Tascam

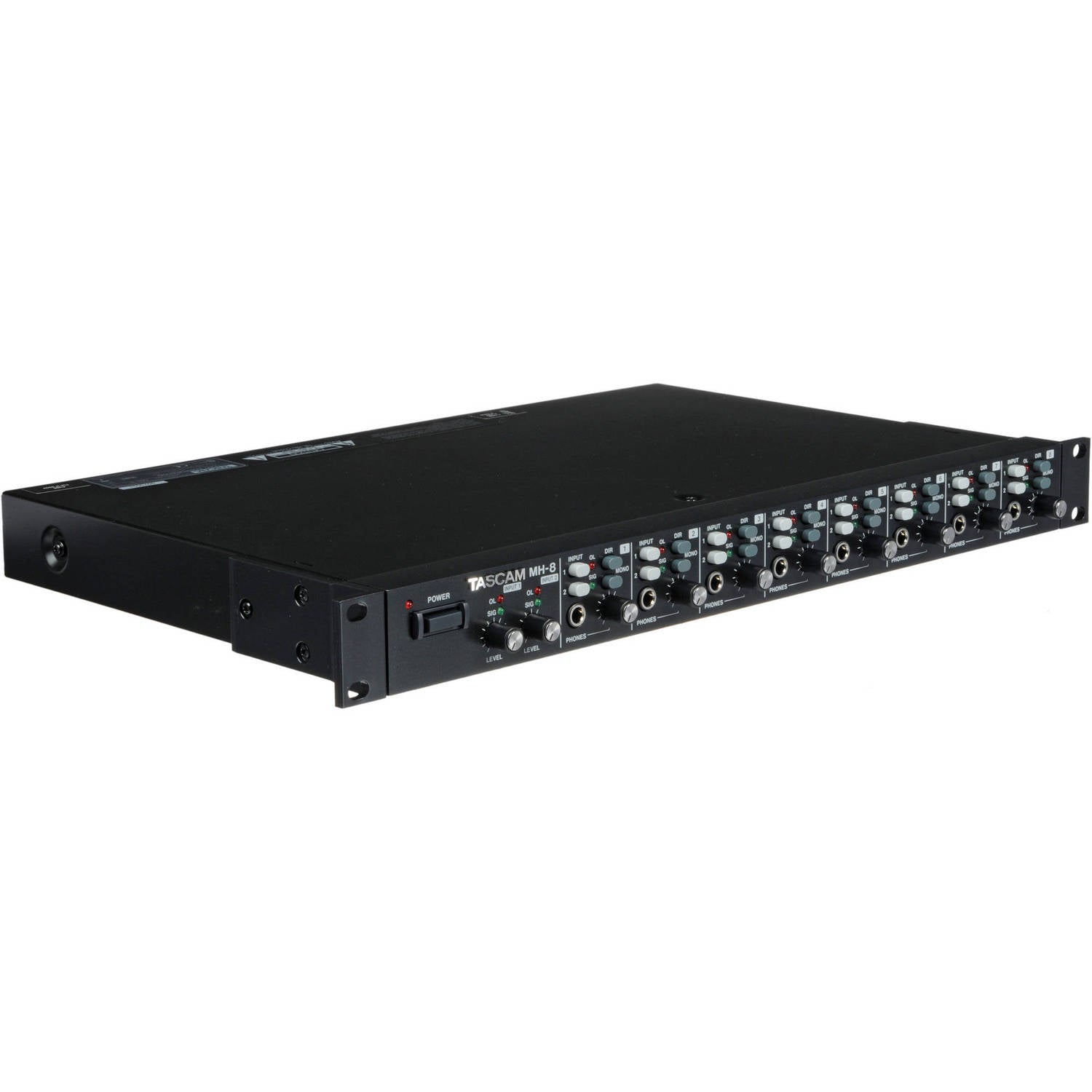

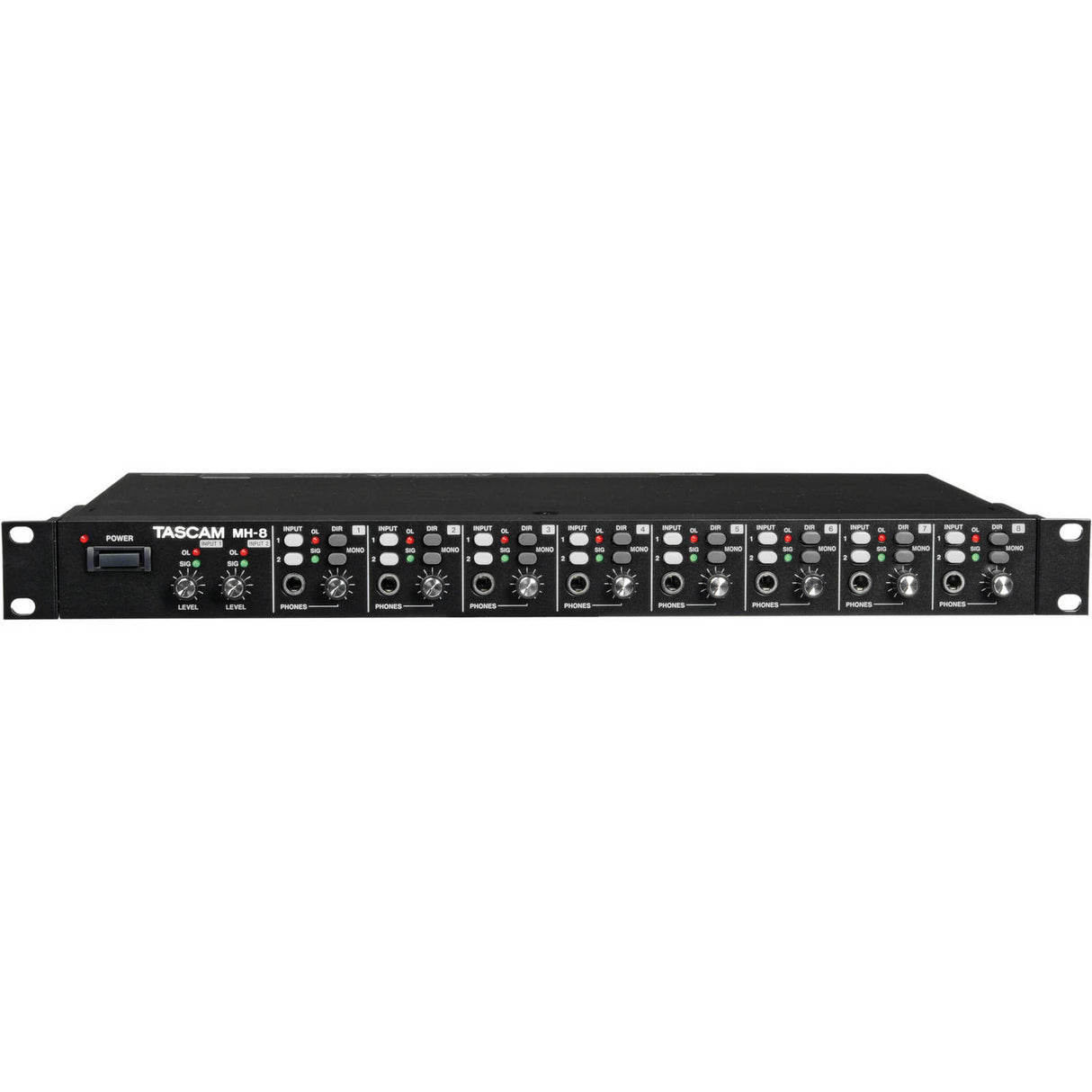

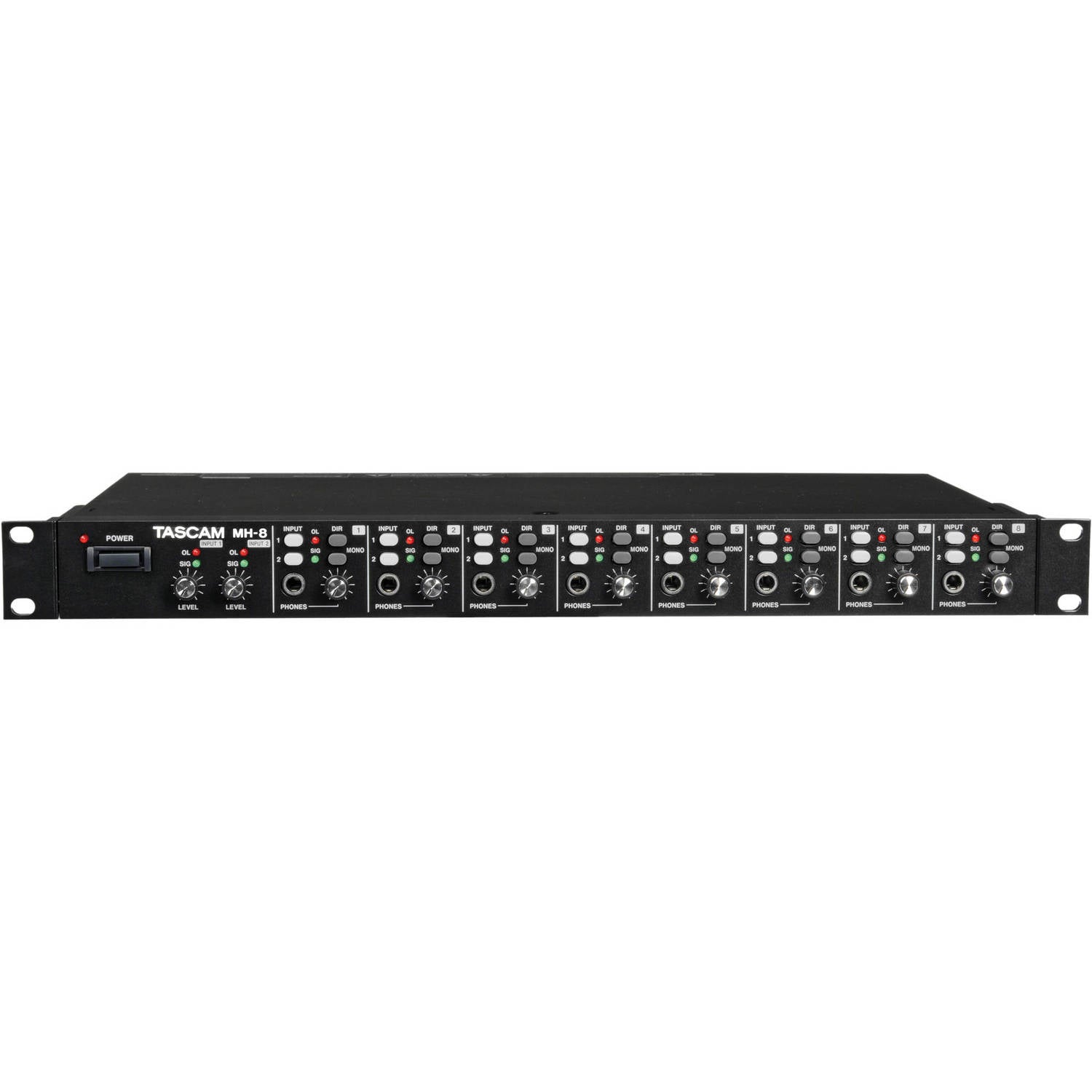

TASCAM MH-8 8-channel Headphone Amplifier
$599.00
Unit price
/
The MH-8 from TASCAM is a professional-quality rackmount headphone amplifier that allows 8 listeners to monitor a variety of sources. Each of the 8 channels has its own direct stereo input. There are also 2 stereo channels that can be shared to any of the outputs. Each 1/4" headphone output can select one input, or mix several together. All of the outputs have an individual level control, as well as input selector switches, a mono switch, and signal and overload LED indicators. A set of 4 TRS foldback outputs allow you to daisy-chain multiple units.
View Product Features
View Product Features
In stock
Scroll below to see our current inventory for this item.
In-Stock Inventory
-
New
-
About the TASCAM MH-8 8-channel Headphone Amplifier
Key Features
TASCAM MH-8 8-channel Headphone Amplifier Specs
Headphone Outputs
Number of Outputs
8 x stereo 1/4-inch TRS jacks
Maximum Output Power
250 mW + 250 mW at 32 Ohms
Frequency Response
20 Hz – 50 kHz ±3 dB (100 mW, 32 Ohms)
Signal-to-Noise Ratio
≥85 dB(A) (20 kHz LPF)
Total Harmonic Distortion
≤0.05% (100 mW + 100 mW, 32 Ohms)
Channel Separation
≥50 dB(A) (within channel)
Crosstalk
≥65 dB(A)
Channel Controls
Level knob, source select (1/2/DIRECT) switches, mono switch
Channel Indicators
Signal presence, overload (clip) LEDs
Global Stereo Input 1
Connectors
2 x XLR-3-31 (balanced), 2 x 1/4-inch TRS (balanced)
Nominal Input Level
+4 dBu
Maximum Input Level
+24 dBu
Input Impedance
56 kOhms
Front Panel Control
Master level knob with signal/overload LEDs
Global Stereo Input 2
Connectors
2 x XLR-3-31 (balanced), 2 x RCA (unbalanced)
Nominal Input Level (XLR)
+4 dBu
Nominal Input Level (RCA)
-10 dBu
Maximum Input Level (XLR)
+24 dBu
Maximum Input Level (RCA)
+10 dBu
Input Impedance (XLR)
56 kOhms
Input Impedance (RCA)
22 kOhms
Front Panel Control
Master level knob with signal/overload LEDs
Direct Inputs (Per Channel)
Connectors
16 x 1/4-inch TRS (balanced, pairs per channel)
Nominal Input Level
+4 dBu
Maximum Input Level
+24 dBu
Input Impedance
56 kOhms
Mono Operation
Left jack only feeds both channels
Foldback Outputs
Connectors
4 x 1/4-inch TRS (balanced, Input 1/2 pairs)
Nominal Output Level
+4 dBu
Maximum Output Level
+24 dBu
Output Impedance
94 Ohms
Frequency Response
10 Hz – 100 kHz ±3 dB
Signal-to-Noise Ratio
≥90 dB(A)
Total Harmonic Distortion
≤0.007%
Channel Separation
≥90 dB(A)
Audio Performance (Foldback)
Frequency Response
10 Hz – 100 kHz ±3 dB
Signal-to-Noise Ratio
≥90 dB(A)
Total Harmonic Distortion
≤0.007%
Channel Separation
≥90 dB(A)
