SKU: MM-2D-X

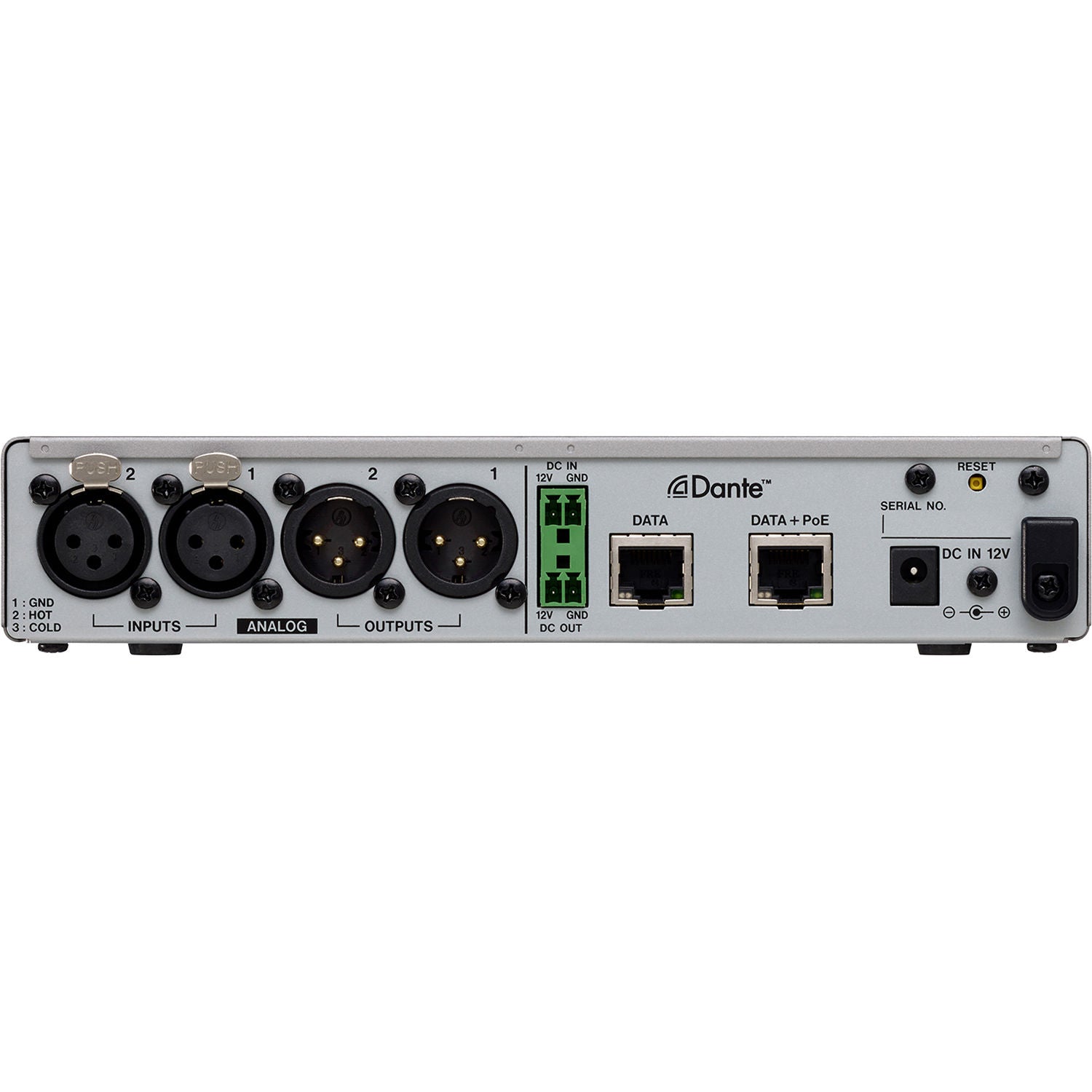

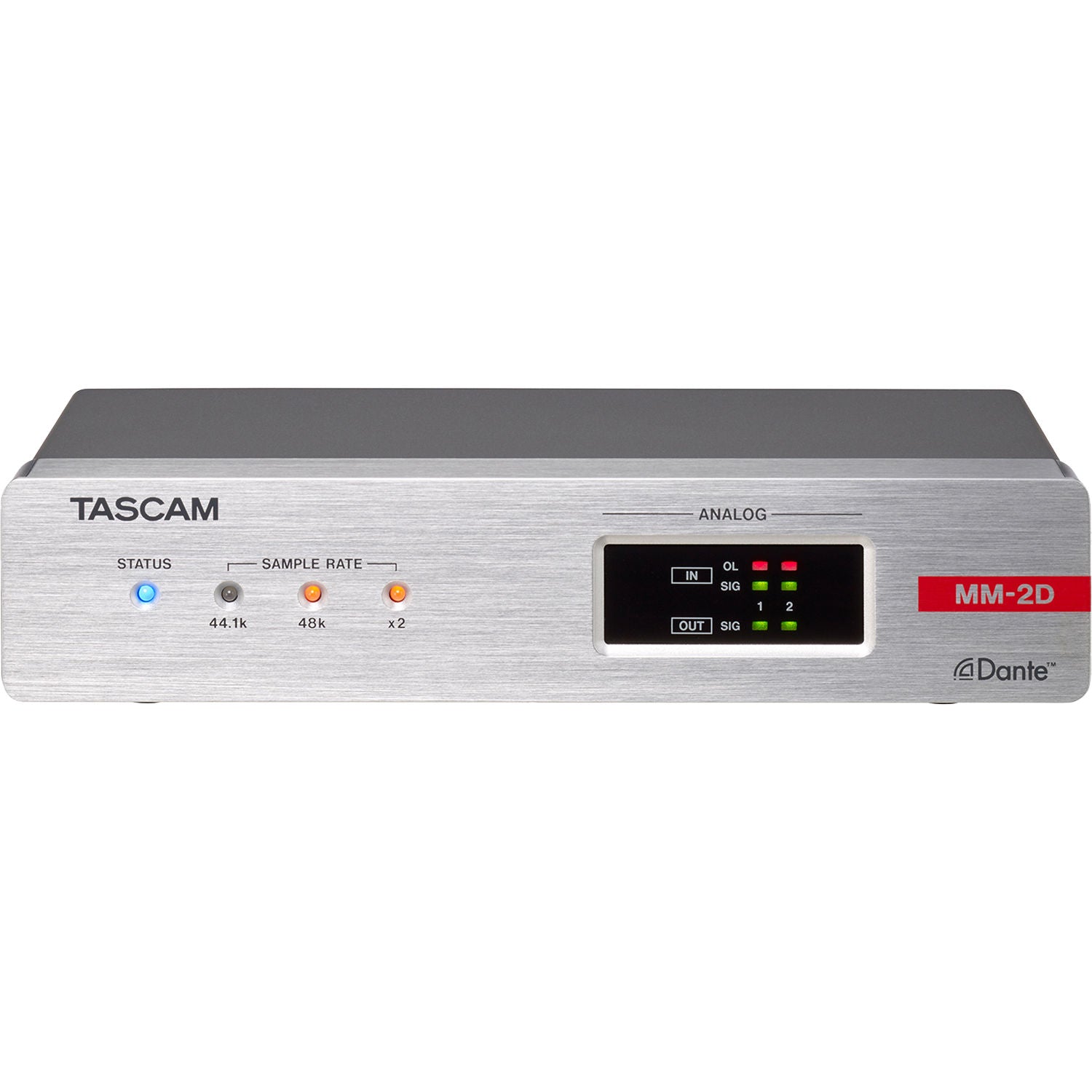

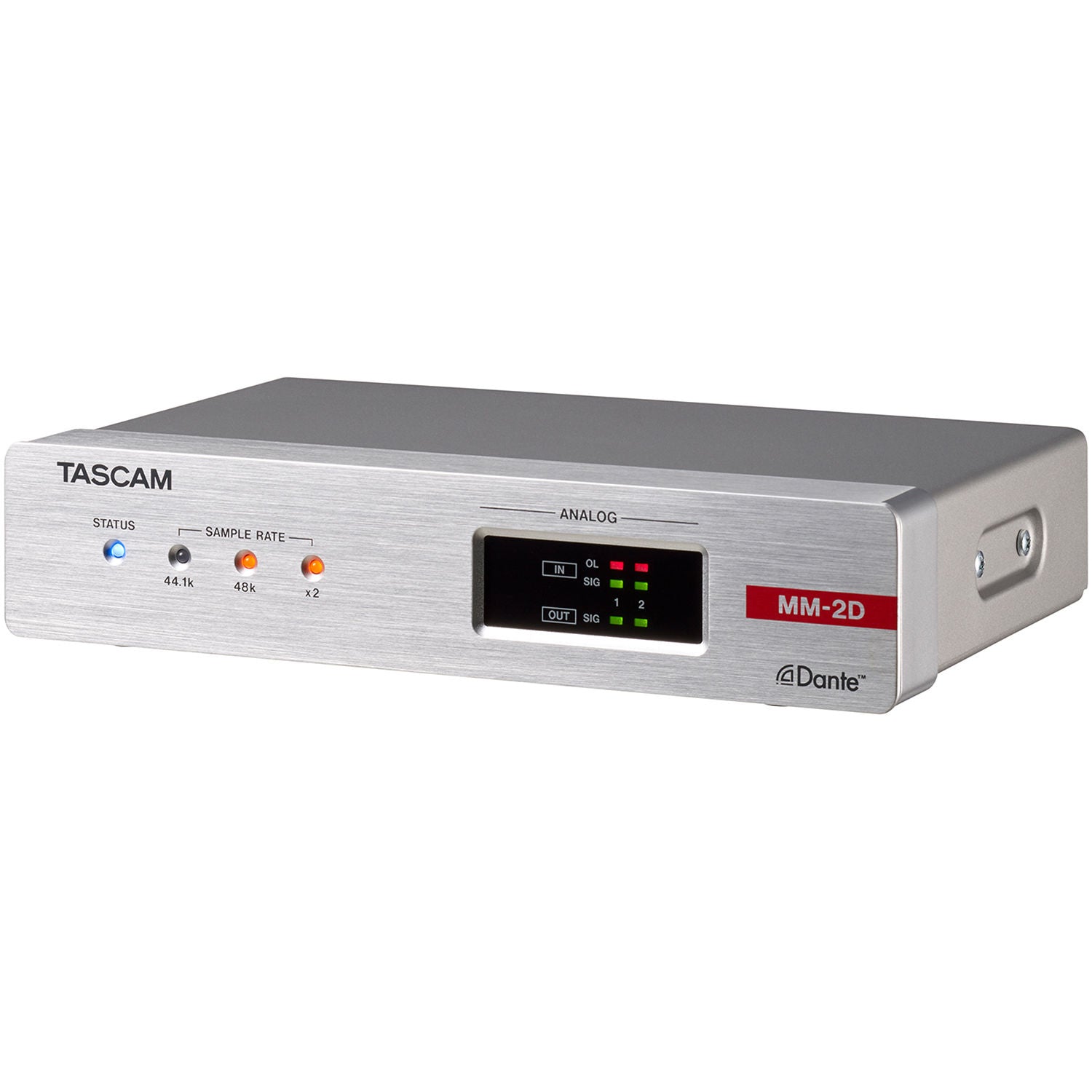

TASCAM MM-2D-X 2-Channel Mic/Line Input/Output Dante Converter with Built-In DSP Mixer

$749.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The MM-2D-X 2-Channel Mic/Line Input/Output Dante Converter with Built-In DSP Mixer from TASCAM is a compact half-rack converter that can be used to convert 2-channel mic/line input/output signals on 3-pin XLR connectors into 4 Dante channels or the other way around for pro-audio applications. The MM-2D-X Input/Output Dante Converter features level control and is compatible with Dante Domain Manager software, which offers security functions, enables the use of wide-area networks, and provides easy access to Dante systems using already established network infrastructures. With AES67 mode, connection to AES67 network systems is also possible. Two installation brackets are included. Read more

Features

  • 2-channel mic/line input with phantom power (+48v) support (XLR)
  • Supports remote mic gain control
  • 2 line output
  • 4 Dante input/output
  • Supports PoE (Power over Ethernet)
  • Half-rack mountable size
  • Equipped with signal indicators that monitor line input/output signals

Business Financing Options Avaiable

View Available Financing

The MM-2D-X 2-Channel Mic/Line Input/Output Dante Converter with Built-In DSP Mixer from TASCAM is a compact half-rack converter that can be used to convert 2-channel mic/line input/output signals on 3-pin XLR connectors into 4 Dante channels or the other way around for pro-audio applications. The MM-2D-X Input/Output Dante Converter features level control and is compatible with Dante Domain Manager software, which offers security functions, enables the use of wide-area networks, and provides easy access to Dante systems using already established network infrastructures. With AES67 mode, connection to AES67 network systems is also possible. Two installation brackets are included. Read more

Features

  • 2-channel mic/line input with phantom power (+48v) support (XLR)
  • Supports remote mic gain control
  • 2 line output
  • 4 Dante input/output
  • Supports PoE (Power over Ethernet)
  • Half-rack mountable size
  • Equipped with signal indicators that monitor line input/output signals

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the TASCAM MM-2D-X 2-Channel Mic/Line Input/Output Dante Converter with Built-In DSP Mixer

The MM-2D-X 2-Channel Mic/Line Input/Output Dante Converter with Built-In DSP Mixer from TASCAM is a compact half-rack converter that can be used to convert 2-channel mic/line input/output signals on 3-pin XLR connectors into 4 Dante channels or the other way around for pro-audio applications.

The MM-2D-X Input/Output Dante Converter features level control and is compatible with Dante Domain Manager software, which offers security functions, enables the use of wide-area networks, and provides easy access to Dante systems using already established network infrastructures. With AES67 mode, connection to AES67 network systems is also possible. Two installation brackets are included.

Key Features

  • 2-channel mic/line input with phantom power (+48v) support (XLR)
  • Supports remote mic gain control
  • 2 line output
  • 4 Dante input/output
  • Supports PoE (Power over Ethernet)
  • Half-rack mountable size
  • Equipped with signal indicators that monitor line input/output signals

Already own this item and want to sell it?

Click here to sell your item

TASCAM MM-2D-X 2-Channel Mic/Line Input/Output Dante Converter with Built-In DSP Mixer Specs

General
Formats Supported
44.1/48/88.2/96 kHz, 16/24-Bit, 2 Channels
Input/Output
Connector
RJ-45
Transmission Protocol
Dante
Gigabit Ethernet
1000 BASE-T (IEEE 802.3ab)
Cable
Category 5e or Faster STP Cables
Analog Inputs
Connector
3-Pin XLR (1: Gnd, 2: Hot, 3: Cold)
Minimum Input Level
-74 dBu
Maximum Input Level
+26 dBu
Input Impedance
2.0 kOhms or Higher
Analog Outputs
Connector
3-Pin XLR (1: Gnd, 2: Hot, 3: Cold)
Nominal Output Levels
+4 dBu (when Ref. Level not −9 dBFS) +6 dBu (when Ref. Level set to −9 dBFS)
Maximum Output Level
Switchable: +15 dBu (Ref. Level: −9 dBFS) +18 dBu (Ref. Level: −14 dBFS) +20 dBu (Ref. Level: −16 dBFS) +22 dBu (Ref. Level: −18 dBFS) +24 dBu (Ref. Level: −20 dBFS)
Output Impedance
200 Ohms or Lower
Audio Performance
Mic In to Dante Out
Mic Amp EIN (Equivalent Input Noise): -125 dBu (150 Ohms, 22 kHz LPF+A, JEITA)
Frequency Response
±0.5 dB: 20 Hz to 20 kHz (44.1/48 kHz Sampling Frequency, JEITA) ±0.5 dB: 20 Hz to 40 kHz (88.2/96 kHz Sampling Frequency, JEITA)
Distortion
0.005 % (when −1 dBFS Input, 44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Signal to Noise Ratio
105 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Crosstalk
100 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Dynamic Range
105 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Frequency Response
Dante In / Line Out: ±0.5 dB: 20 Hz to 20 kHz (44.1/48 kHz Sampling Frequency, JEITA) ±0.5 dB: 20 Hz to 40 kHz (88.2/96 kHz Sampling Frequency, JEITA)
Distortion
0.005 % (when -1 dBFS Input, 44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Signal to Noise Ratio
105 dB (44.1/48/88.2/96 kHz Sampling frequency, JEITA)
Crosstalk
100 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Dynamic Range
105 dB (44.1/48/88.2/96 kHz Sampling Frequency, JEITA)
Other Features
Power
PoE Class 0 TASCAM PS-P1220E AC Adapter (Sold Separately)
Power Consumption
6 W
Operating Temperature
32 to 104°F / 0 to 40°C
Dimensions
8.4 x 1.8 x 5.4" / 21.4 x 4.4 x 13.6 cm
Weight
31.0 oz / 878.0 g

Key Features

  • 2-channel mic/line input with phantom power (+48v) support (XLR)
  • Supports remote mic gain control
  • 2 line output
  • 4 Dante input/output
  • Supports PoE (Power over Ethernet)
  • Half-rack mountable size
  • Equipped with signal indicators that monitor line input/output signals
