SKU: MODEL 12

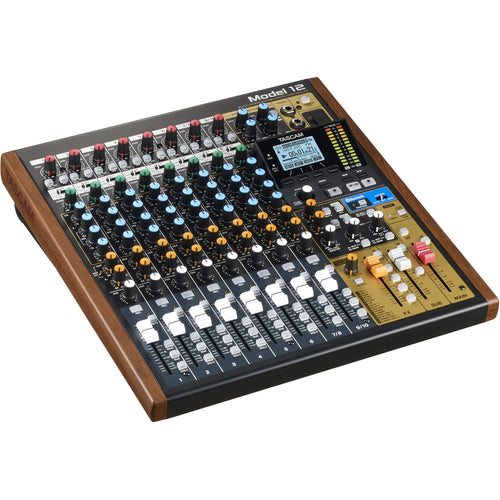

TASCAM Model 12 Integrated Production Suite Mixer/Recorder/USB Interface

$599.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

Building upon the success of the Model 24 and Model 16, the highly flexible TASCAM Model 12 is an all-in-one production mixer for music and multimedia creators, songwriters, and performers. This powerful, versatile hybrid mixer/recorder/audio interface is designed for both live and recording applications and is well suited for bands, studios, conferences, podcasts, houses of worship, and more.Updates to the Model 12 for the podcaster/internet streamer include mix-minus, Bluetooth pairing, smartphone input, multiple mic-ready channels, dual headphone monitoring, and internal multitrack recording, which allows the device to be used as a powerful live production recorder, USB audio interface, and live streaming tool. Other useful updates include an integrated MIDI I/O with a built-in metronome and separate click output. The 5-pin DIN connectors integrate with other outboard MIDI gear for synchronization and playback allowing for drum machines, synthesizers, and hardware sequencers to play nicely with the Model 12. Read more

Features

  • MIDI I/O, Metronome, and Click Output
  • 10 x Input Channels (8 Mic Preamps)
  • 10 x Line Inputs (6 Mono + 2 Stereo)
  • Single-Knob Compressor
  • 2 x Aux Sends + Built-In Multi-FX
  • Mix-Minus for Echo-Free Podcasts/Radio
  • 12-Track Recorder and Playback
  • External DAW Control - HUI/MCU Protocols
  • USB Audio Interface (12-In x 10-Out)
  • Wireless Bluetooth Connectivity

Business Financing Options Avaiable

View Available Financing

Building upon the success of the Model 24 and Model 16, the highly flexible TASCAM Model 12 is an all-in-one production mixer for music and multimedia creators, songwriters, and performers. This powerful, versatile hybrid mixer/recorder/audio interface is designed for both live and recording applications and is well suited for bands, studios, conferences, podcasts, houses of worship, and more.Updates to the Model 12 for the podcaster/internet streamer include mix-minus, Bluetooth pairing, smartphone input, multiple mic-ready channels, dual headphone monitoring, and internal multitrack recording, which allows the device to be used as a powerful live production recorder, USB audio interface, and live streaming tool. Other useful updates include an integrated MIDI I/O with a built-in metronome and separate click output. The 5-pin DIN connectors integrate with other outboard MIDI gear for synchronization and playback allowing for drum machines, synthesizers, and hardware sequencers to play nicely with the Model 12. Read more

Features

  • MIDI I/O, Metronome, and Click Output
  • 10 x Input Channels (8 Mic Preamps)
  • 10 x Line Inputs (6 Mono + 2 Stereo)
  • Single-Knob Compressor
  • 2 x Aux Sends + Built-In Multi-FX
  • Mix-Minus for Echo-Free Podcasts/Radio
  • 12-Track Recorder and Playback
  • External DAW Control - HUI/MCU Protocols
  • USB Audio Interface (12-In x 10-Out)
  • Wireless Bluetooth Connectivity

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the TASCAM Model 12 Integrated Production Suite Mixer/Recorder/USB Interface

The Model 12 offers basic external DAW control using HUI/MCU protocol emulations for integrated, tactile control of most major DAWs. Control parameters include faders, mutes, pans, solos, record arm, play record, stop, FF/Rew, and jog. The professional mixer offers 10 input channels including 8 microphone preamps with phantom power, eight 1/4" Hi-Z jacks, and 10 balanced 1/4" mono line inputs. Additionally, channels 9/10 stereo input also accepts signals from a variety of sources including Bluetooth, USB, or a 3.5mm stereo mini jack.

There is single-knob compression available on all input channels, while two auxiliary sends provide signal routing to dedicated outboard monitors or effect. Aux 2 also sends to one of 16 onboard multi-FX effects. The main and sub stereo buses offer simple grouping as well as a dedicated 2-band EQ for fine tuning your mix. The Model 12 offers 11 faders, with 60mm of throw for quick and immediate mixing moves. Each channel may be assigned to receive audio from the live inputs, the internal multitrack recorder, or the USB audio interface, allowing for versatility in any environment

Key Features

  • MIDI I/O, Metronome, and Click Output
  • 10 x Input Channels (8 Mic Preamps)
  • 10 x Line Inputs (6 Mono + 2 Stereo)
  • Single-Knob Compressor
  • 2 x Aux Sends + Built-In Multi-FX
  • Mix-Minus for Echo-Free Podcasts/Radio
  • 12-Track Recorder and Playback
  • External DAW Control - HUI/MCU Protocols
  • USB Audio Interface (12-In x 10-Out)
  • Wireless Bluetooth Connectivity

Already own this item and want to sell it?

Click here to sell your item

TASCAM Model 12 Integrated Production Suite Mixer/Recorder/USB Interface Specs

General
Form Factor
Desktop
Number of Tracks
12 (10 Inputs + Stereo Mix)
Maximum Simultaneous Tracks
10x Recording
Maximum Sampling Rate
48 kHz / 24-Bit
Number of Microphone Inputs
10
Built-In Microphone
No
Input Level Adjustment
8x Fader
Meters
2x 12-Segment VU
Number of Headphone Mixes
2x Assignable
Sample Pads
No
Signal Processing
Pad
No
Gain/Trim Range
-10 dB to +40 dB (Channels 1 to 6) -20 dB to +30 dB (Channels 7 to 10) Mic Inputs: Up to 50 dB Mic Inputs: Up to 79 dB USB, SD: 24 dB
High-Pass Filter
100 Hz, 12 dB/Octave
EQ
4-Band EQ
EQ Parameters
Mono Channels: High: ±15 dB at 10 kHz (Shelving) Mid: ±15 dB at 100 Hz, 0.5 Q (Semi-Parametric) Low: ±15 dB at 80 Hz (Shelving) Stereo Channels: High: ±15 dB at 10 kHz (Shelving) Mid: ±15 dB at 600 Hz, 0.5 Q (Notch/Peak) Low: ±15 dB at 80 Hz (Shelving) Master: High: ±15 dB at 10 kHz (Shelving) Mid: ±15 dB at 100 Hz to 8 kHz, 0.5 to 5 Q (Parametric) Low: ±15 dB at 60 Hz (Shelving)
Solo/Mute
Solo, Mute per Input Channel
Built-In Effects
7x Reverb 2x Mono Delay 1x Stereo Delay Chorus Flanger 2x Delay+Reverb 2x Chorus+Reverb
Connectivity
Analog Audio I/O
8x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 1x 1/4" TRS Click Input 1x 1/4" TRS Click Input 1x 1/8" / 3.5 mm TRRS Unbalanced Stereo Input 2x XLR 3-Pin Balanced Main Output 2x 1/4" TRS Aux Output 2x 1/4" TRS Headphone Output 2x 1/4" TRS Subgroup/Bus Output 2x 1/4" TRS Unbalanced Insert In/Out
Phantom Power
48 V
Host Connection / USB
1x USB-C (Class-Compliant)
Host Connection Protocol
USB 2.0
Network I/O
No
MIDI I/O
1x DIN 5-Pin Input 1x DIN 5-Pin Output
Other I/O
1x 1/4" TRS Footswitch Input
Wireless
Bluetooth
Performance
Frequency Response
20 Hz to 20 kHz ±0.5 dB
Maximum Input Level
1/8" / 3.5 mm Inputs: +8 dBV (Stereo) Mic Inputs: +10 dBu Line Inputs: +22 dBu Hi-Z Inputs: +19.8 dBu Insert Return: +18 dBu
Maximum Output Level
Aux/Click/Subgroup Outputs: +16 dBu XLR Main Outputs: +22 dBu
Headphone Output Power
45 mW per Channel into 32 Ohms
Impedance
1/8" / 3.5 mm Inputs: 10 Kilohms Mic Inputs: 1.8 Kilohms Line Inputs: 22 Kilohms (Balanced) Hi-Z Inputs: 1 Megohm Aux/Click/Subgroup Outputs: 200 Ohms Insert Return: 5 Kilohms Insert Send: 100 Ohms XLR Main Outputs: 200 Ohms
SNR
-103 dBu
THD
0.004% (Min Gain, +2 dBu Input, 1 kHz)
Crosstalk
-95 dB (1 kHz)
EIN
-128 dBu (150-Ohm Source, Max Gain)
Digital Audio
Audio File Formats
Recording: BWF, WAV Playback: BWF, WAV
Sample Rates
44.1 / 48 kHz
Bit Depths
16 / 24-Bit
Audio Storage & Playback
Supported Media
SD Card
Media/Memory Card Slot
Single Slot: SD/SDHC/SDXC
Supported Media Capacity
SD: 512 MB Minimum to 2 GB Maximum SDHC: 4 GB Minimum to 32 GB Maximum SDXC: 64 GB Minimum to 512 GB Maximum
File System Support
SD: FAT16 SDHC: FAT32 SDXC: exFAT
Compatibility
Processor Requirement
2 GHz or Better
RAM Requirements
2 GB
Mobile Device Compatibility
iPhone (with USB-C)
Required Hardware
USB-A Port
Power
Power Requirements
AC/DC Power Adapter (Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
16 W
Physical
Dimensions
13.5 x 14.2 x 3.96" / 343 x 360 x 98.5 mm (Including Controls and Protrusions)
Weight
9.5 lb / 4.3 kg

Key Features

  • MIDI I/O, Metronome, and Click Output
  • 10 x Input Channels (8 Mic Preamps)
  • 10 x Line Inputs (6 Mono + 2 Stereo)
  • Single-Knob Compressor
  • 2 x Aux Sends + Built-In Multi-FX
  • Mix-Minus for Echo-Free Podcasts/Radio
  • 12-Track Recorder and Playback
  • External DAW Control - HUI/MCU Protocols
  • USB Audio Interface (12-In x 10-Out)
  • Wireless Bluetooth Connectivity
