SKU: MZ-123BT

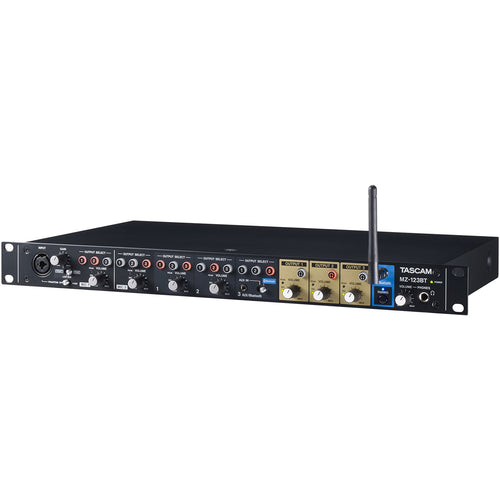

TASCAM MZ-123BT Multi-Zone Audio Mixer with Bluetooth

$629.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The MZ-123BT Multi-Zone Audio Mixer with Bluetooth from TASCAM is a compact 1 RU multichannel, multi-zone professional installation mixer designed for versatile routing, mixing, and distribution. It can be used for up to three zones of music and announcements in commercial applications such as retail venues, restaurants, bars, cafes, hotels, or any environment that requires independent audio routing and announcement capabilities. The TASCAM MZ-123BT offers a simple, intuitive layout for ease of operation. The Bluetooth-enabled device comes equipped with two versatile mic inputs and automatic attenuation of background music for superior intelligibility during announcements or paging. This mixer is built with a volume control for each input and zone routing buttons. In addition, it includes a power cord, eight Euroblock plugs, a cable band kit, a rackmount screw kit, and a Bluetooth antenna. Read more

Features

  • For Commercial Retail Applications
  • 3-Zone Music Distribution
  • Mono or Stereo Operation
  • 2 x Microphone and 2 x Line Inputs
  • Bluetooth and AUX 3.5mm Inputs
  • Independent Volume Controls
  • 3-Band EQ, HP Filter, and Phantom Power
  • 1/4" Headphone Jack

Business Financing Options Avaiable

View Available Financing

The MZ-123BT Multi-Zone Audio Mixer with Bluetooth from TASCAM is a compact 1 RU multichannel, multi-zone professional installation mixer designed for versatile routing, mixing, and distribution. It can be used for up to three zones of music and announcements in commercial applications such as retail venues, restaurants, bars, cafes, hotels, or any environment that requires independent audio routing and announcement capabilities. The TASCAM MZ-123BT offers a simple, intuitive layout for ease of operation. The Bluetooth-enabled device comes equipped with two versatile mic inputs and automatic attenuation of background music for superior intelligibility during announcements or paging. This mixer is built with a volume control for each input and zone routing buttons. In addition, it includes a power cord, eight Euroblock plugs, a cable band kit, a rackmount screw kit, and a Bluetooth antenna. Read more

Features

  • For Commercial Retail Applications
  • 3-Zone Music Distribution
  • Mono or Stereo Operation
  • 2 x Microphone and 2 x Line Inputs
  • Bluetooth and AUX 3.5mm Inputs
  • Independent Volume Controls
  • 3-Band EQ, HP Filter, and Phantom Power
  • 1/4" Headphone Jack

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the TASCAM MZ-123BT Multi-Zone Audio Mixer with Bluetooth

The MZ-123BT Multi-Zone Audio Mixer with Bluetooth from TASCAM is a compact 1 RU multichannel, multi-zone professional installation mixer designed for versatile routing, mixing, and distribution. It can be used for up to three zones of music and announcements in commercial applications such as retail venues, restaurants, bars, cafes, hotels, or any environment that requires independent audio routing and announcement capabilities.

The TASCAM MZ-123BT offers a simple, intuitive layout for ease of operation. The Bluetooth-enabled device comes equipped with two versatile mic inputs and automatic attenuation of background music for superior intelligibility during announcements or paging. This mixer is built with a volume control for each input and zone routing buttons. In addition, it includes a power cord, eight Euroblock plugs, a cable band kit, a rackmount screw kit, and a Bluetooth antenna.

Key Features

  • For Commercial Retail Applications
  • 3-Zone Music Distribution
  • Mono or Stereo Operation
  • 2 x Microphone and 2 x Line Inputs
  • Bluetooth and AUX 3.5mm Inputs
  • Independent Volume Controls
  • 3-Band EQ, HP Filter, and Phantom Power
  • 1/4" Headphone Jack

Already own this item and want to sell it?

Click here to sell your item

TASCAM MZ-123BT Multi-Zone Audio Mixer with Bluetooth Specs

Audio Input
Mic Input
Balanced Combo XLR-1/4" / 6.3mm Jack
Rated Input
Level: -26 dBu (0.039 Vrms, When Front High), -2 dBu (0.616 Vrms, When Front Low)
Maximum Input Level
-10 dBu (0.245 Vrms, When Front High), +14 dBu (3.884 Vrms, When Front Low)
Minimum Input Level
-65 dBu (0.0004 Vrms, When Front High), -41 dBu (0.007 Vrms, When Front Low)
Gain Adjustment Range
39 dB
Input Impedance
2.4 Kilohms
Mic In 1-2 Balanced Rear
Connectors
Euroblock (Balanced 3.81 mm Pitch)
Rated Input
Level: 26 dBu (0.039 Vrms, When PAD Switch Off), -2 dBu (0.616 Vrms, When PAD Switch On)
Maximum Input Level
-10 dBu (0.245 Vrms, When PAD Switch Off), +14 dBu (3.884 Vrms, When PAD Switch On)
Minimum Input Level
-65 dBu (0.0004 Vrms, When PAD Switch Off), -41 dBu (0.007 Vrms, When PAD Switch On)
Gain Adjustment Range
39 dB
Input Impedance
2.4 Kilohms
Line Inputs 1-2 (Unbalanced) Connectors (Rear)
Connectors
RCA
Nominal Input Level
-10 dBV (0.316 Vrms)
Maximum Input Level
+6 dBV (2.0 Vrms)
Gain Adjustment Range
-16 dB to +16 dB
Input Impedance
10 Kilohms or Higher
Aux Inputs (Unbalanced) Jack (Front)
Connectors (Front Panel)
1/8" / 3.5mm Stereo Mini-Jack
Nominal Input Level
-20 dBV (0.1 Vrms)
Maximum Input Level
-4 dBV (0.63 Vrms)
Input Impedance
10 Kilohms or Higher
Stereo Audio Outputs
Connector
Euroblock (Balanced) 3.81 mm Pitch
Output Level
Rated: +4 dBu (1.228 Vrms, When Volume Knob at 0 dB)
Maximum Output Level
+24 dBu (12.282 Vrms)
Output Impedance
200 Ohms
Headphones Output
1/4" / 6.3 mm Standard Stereo Jack Maximum Output: 80 mW + 80 mW or Higher (THD+N 0.1% or Less, into 32 Ohms Load)
Bluetooth
Version
4.2
Output Class
2 (About 32.8' / 10 m Unobstructed Transmission Distance) The Transmission Distance Is Only an Estimate and Might Vary Depending on the Surrounding Environment and Radio Wave Conditions.
Supported Profiles
A2DP A2DP Codecs: SBC, AAC, Qualcomm aptX audio A2DP Content Protection: SCMS-T
General
Power
100 to 240 VAC, 50/60 Hz
Power Consumption
25 W
Operating Temperature Range
32 to 104°F / 0 to 40°C
Dimensions
19.02 x 1.83 x 10.82" / 48.30 x 4.65 x 27.48 cm
Weight
6.6 lb / 3 kg

Key Features

  • For Commercial Retail Applications
  • 3-Zone Music Distribution
  • Mono or Stereo Operation
  • 2 x Microphone and 2 x Line Inputs
  • Bluetooth and AUX 3.5mm Inputs
  • Independent Volume Controls
  • 3-Band EQ, HP Filter, and Phantom Power
  • 1/4" Headphone Jack
