SKU: SERIES208I

TASCAM SERIES 208i USB Audio/MIDI Interface

$499.00 - $599.99

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The TASCAM SERIES 208i is a professional-quality, mid-grade audio/MIDI interface featuring internal and bundled effects processing, internal mixing, and external software control, well suited for studio, home, and live recording. The 208i sports a four classic TASCAM Ultra-HDDA (High Definition Discrete Amplifier) microphone preamps, which ensure a natural, transparent tone with low noise. The recording and playback engine deliver high-definition 24-bit / 192 kHz resolution and solid stability. The front panel offers four combo XLR-1/4" inputs which are switchable between instrument (Hi-Z) and mic/line selections, as well as independent +48V phantom power, as well as dual headphone outputs. The rear panel offers eight balanced, 1/4" line outputs, which enable multiple monitor mixes or up to 7.1 surround monitoring, a set of 5-pin DIN MIDI inputs and outputs, and a USB 2.0 Type-B computer connector. If two inputs aren't enough, the SERIES 208i offers two S/MUX optical (ADAT) inputs, which provide an additional 16 channels of expansion. Additionally, the BNC word clock in and out ensures correct synchronization with other digital audio devices. Read more

Features

  • 20 Inputs and 8 Outputs
  • Four Low-Noise HDDA Mic Preamplifers
  • 2 x Optical S/MUX, 16-Channel Expansion
  • Eight 1/4" Outputs + Dual Headphones Out
  • High Speed USB 2.0 Computer Interface
  • 24-bit / 192 kHz
  • Flexible DSP Input/Output Mixer with FX
  • BNC Word Clock I/O with Termination
  • Standard MIDI I/O Connectors
  • Steinberg and IK Multimedia Software

Business Financing Options Avaiable

View Available Financing

The TASCAM SERIES 208i is a professional-quality, mid-grade audio/MIDI interface featuring internal and bundled effects processing, internal mixing, and external software control, well suited for studio, home, and live recording. The 208i sports a four classic TASCAM Ultra-HDDA (High Definition Discrete Amplifier) microphone preamps, which ensure a natural, transparent tone with low noise. The recording and playback engine deliver high-definition 24-bit / 192 kHz resolution and solid stability. The front panel offers four combo XLR-1/4" inputs which are switchable between instrument (Hi-Z) and mic/line selections, as well as independent +48V phantom power, as well as dual headphone outputs. The rear panel offers eight balanced, 1/4" line outputs, which enable multiple monitor mixes or up to 7.1 surround monitoring, a set of 5-pin DIN MIDI inputs and outputs, and a USB 2.0 Type-B computer connector. If two inputs aren't enough, the SERIES 208i offers two S/MUX optical (ADAT) inputs, which provide an additional 16 channels of expansion. Additionally, the BNC word clock in and out ensures correct synchronization with other digital audio devices. Read more

Features

  • 20 Inputs and 8 Outputs
  • Four Low-Noise HDDA Mic Preamplifers
  • 2 x Optical S/MUX, 16-Channel Expansion
  • Eight 1/4" Outputs + Dual Headphones Out
  • High Speed USB 2.0 Computer Interface
  • 24-bit / 192 kHz
  • Flexible DSP Input/Output Mixer with FX
  • BNC Word Clock I/O with Termination
  • Standard MIDI I/O Connectors
  • Steinberg and IK Multimedia Software

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the TASCAM SERIES 208i USB Audio/MIDI Interface

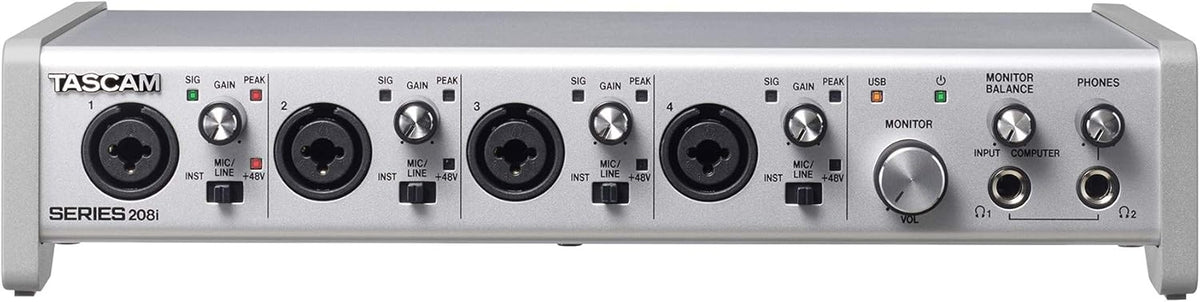

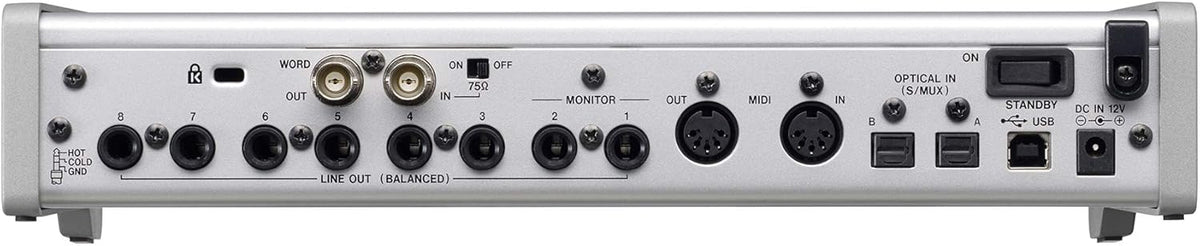

The front panel offers four combo XLR-1/4" inputs which are switchable between instrument (Hi-Z) and mic/line selections, as well as independent +48V phantom power, as well as dual headphone outputs. The rear panel offers eight balanced, 1/4" line outputs, which enable multiple monitor mixes or up to 7.1 surround monitoring, a set of 5-pin DIN MIDI inputs and outputs, and a USB 2.0 Type-B computer connector. If two inputs aren't enough, the SERIES 208i offers two S/MUX optical (ADAT) inputs, which provide an additional 16 channels of expansion. Additionally, the BNC word clock in and out ensures correct synchronization with other digital audio devices.

The angled tabletop design features large, easy-to-grab knobs including input gains, monitor volume, headphones level, and a handy monitor balance control that allows you to blend the live inputs with computer playback for zero-latency monitoring. The 208i includes a built-in DSP input and output mixer with integrated digital reverb, compression, phase invert, and a 4-band EQ on each channel. Control software is available for matrix mixing and effects processing, which offers the ability to route any audio input (analog, optical, USB) to any audio output.

Key Features

  • 20 Inputs and 8 Outputs
  • Four Low-Noise HDDA Mic Preamplifers
  • 2 x Optical S/MUX, 16-Channel Expansion
  • Eight 1/4" Outputs + Dual Headphones Out
  • High Speed USB 2.0 Computer Interface
  • 24-bit / 192 kHz
  • Flexible DSP Input/Output Mixer with FX
  • BNC Word Clock I/O with Termination
  • Standard MIDI I/O Connectors
  • Steinberg and IK Multimedia Software

Already own this item and want to sell it?

Click here to sell your item

TASCAM SERIES 208i USB Audio/MIDI Interface Specs

General
Display
No
Channels of I/O
Analog / Digital: 20 Input / 8 Output at 192 kHz
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
4 Preamps
Built-In Microphone
No
Input Level Adjustment
4x Knob
Expansion Slots
No
Signal Processing
Pad
No
Gain/Trim Range
58 dB
High-Pass Filter
No
Solo/Mute
No
Connectivity
Analog Audio I/O
4x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 8x 1/4" TRS Balanced Line Output 2x 1/4" TRS Unbalanced Headphone Output
Phantom Power
48 V (Selectable on Individual Inputs)
Digital Audio I/O
2x TOSLINK Optical ADAT Input (S/MUX Support)
Host Connection / USB
1x USB-B
Host Connection Protocol
USB 2.0
USB (Non-Host)
No
Sync I/O
No
Network I/O
No
MIDI I/O
1x DIN 5-Pin Input 1x DIN 5-Pin Output
Performance
Frequency Response
20 Hz to 20 kHz +0/-0.4 dB (at 44.1 kHz, JEITA) 20 Hz to 40 kHz +0/-0.8 dB (at 88.2 kHz, JEITA)
Maximum Input Level
Mic Inputs: +10 dBV Hi-Z Inputs: +10 dBV Line Inputs: +24 dBu
Maximum Output Level
Line/Monitor Outputs: +20 dBu
Headphone Output Power
45 mW per Channel into 32 Ohms
Impedance
Mic Inputs: 1.5 Kilohms Line Inputs: 10 Kilohms Line Outputs: 230 Ohms Hi-Z Inputs: ≥ 1 Megohm
SNR
Mic/Line Inputs: 109 dB Line Outputs: 110 dB
EIN
< -129 dB
Digital Audio
Sample Rates
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Sync Sources
Word Clock
Clocking
Internal:
Compatibility
OS Compatibility
Windows 7 Windows 8.1 Windows 10 MacOS 10.12 or Later
Included Software
No
Included Plug-Ins
No
Processor Requirement
2 GHz
RAM Requirements
2 GB
Mobile Device Compatibility
iPhone
Required Hardware
USB 2.0 Port, USB 3.0 / 3.1/3.2 Gen 1 Port
Power
Power Requirements
AC/DC Power Adapter (Included)
AC/DC Power Adapter
12 VDC (Included)
Power Consumption
14 W
Physical
Dimensions
11.65 x 6.3 x 2.56" / 295.91 x 160 x 65.02 mm
Weight
3.5 lb / 1.6 kg

Key Features

  • 20 Inputs and 8 Outputs
  • Four Low-Noise HDDA Mic Preamplifers
  • 2 x Optical S/MUX, 16-Channel Expansion
  • Eight 1/4" Outputs + Dual Headphones Out
  • High Speed USB 2.0 Computer Interface
  • 24-bit / 192 kHz
  • Flexible DSP Input/Output Mixer with FX
  • BNC Word Clock I/O with Termination
  • Standard MIDI I/O Connectors
  • Steinberg and IK Multimedia Software

Already own this item and want to sell it?

Click here to sell your item

FAQs about TASCAM SERIES 208i USB Audio/MIDI Interface

How many total inputs and outputs does the Tascam SERIES 208i provide?

The interface features 20 total inputs and 8 total outputs. On the physical chassis, it provides 8 analog XLR/TRS combo inputs and 8 balanced TRS line outputs. The remaining 12 digital inputs are accessed via dual optical expansion ports using ADAT or S/PDIF protocols.

What driver software is required to use the interface with Windows or Mac computers?

You need to download and install the official Tascam SERIES Software and Driver package. On macOS, the unit is Class-Compliant (CoreAudio), while on Windows, it uses custom low-latency ASIO drivers. The companion software also provides an internal digital routing mixer and DSP control interface.

Does the Tascam SERIES 208i work with iPad and iOS devices?

Yes. The interface supports standalone iOS mode. To connect to an iPad or iPhone, you need an Apple Lightning-to-USB Camera Adapter (or a standard USB-C to USB-C cable for USB-C iPads) along with the interface's included AC power adapter connected to mains power.

How do the optical digital inputs expand the input channel count?

The dual S/MUX optical ports allow you to connect external multi-channel mic preamps (like a Tascam SERIES 8p Dyne or similar ADAT units). At $44.1/48\text{ kHz}$ sample rates, both optical ports together provide up to 12 additional digital audio channels.

Can the Tascam SERIES 208i be used as a standalone microphone preamp without a computer?

Yes. You can configure and save internal mixer routings via the Tascam Control software while connected to a PC/Mac. Once saved, the SERIES 208i retains these DSP settings and operates in Standalone Mode as an independent 8-channel mic preamp and mixer unit when powered on without a computer connected.

What onboard DSP effects and processing features are available?

The built-in DSP chip handles zero-latency monitoring, input processing, and mixing directly on the hardware. Each channel includes a 4-band equalizer, a compressor, phase reverse, and a global studio-quality reverb module that can be assigned to monitor sends.

How do the dual headphone outputs on the front panel work?

The front panel features two independent $1/4$-inch headphone output jacks with individual volume controls. Through the Tascam Control Software, you can route separate custom headphone mixes (such as distinct performer vs. engineer mixes) to each jack using the internal routing bus.

Why is phantom power (+48V) not turning on for a specific microphone input?

Phantom power on the SERIES 208i is controlled in banks of 4 channels (+48V) switches for inputs 1–4 and inputs 5–8). Ensure the physical toggle switch for the corresponding input bank on the front panel is switched on, and verify you are using a balanced 3-pin XLR cable (phantom power does not supply through 1/4-inch TRS instrument inputs).

How do the MIDI In and Out ports function on the rear panel?

The 5-pin DIN MIDI ports act as a standard USB-MIDI interface for your DAW. Connecting vintage synthesizers, drum machines, or MIDI controllers directly to these ports passes MIDI note and clock data to and from your recording software over the single USB connection.
