Tascam

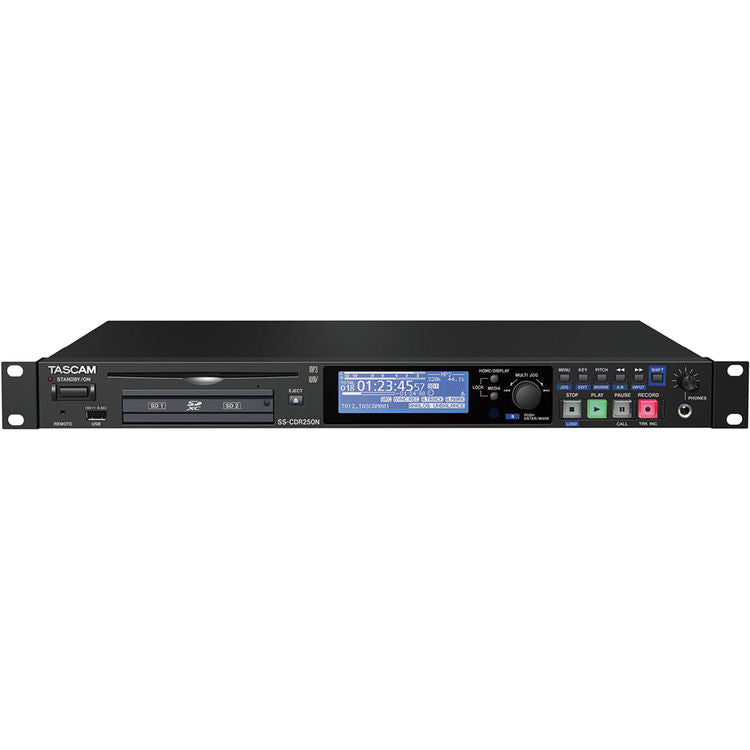

TASCAM SS-CDR250N Two-Channel Networking CD and Media Recorder
$1,350.00
Unit price
/
The SS-CDR250N Two-Channel Networking CD and Media Recorder from TASCAM is a solid-state recorder that features networking and can accept an optional IF-DA2 Dante card for integrating into any commercial environment. It can be used in broadcast and contractor installation markets, and records in WAV, MP3, SD/SDHC/SDXC, USB memory, and CD application formats.

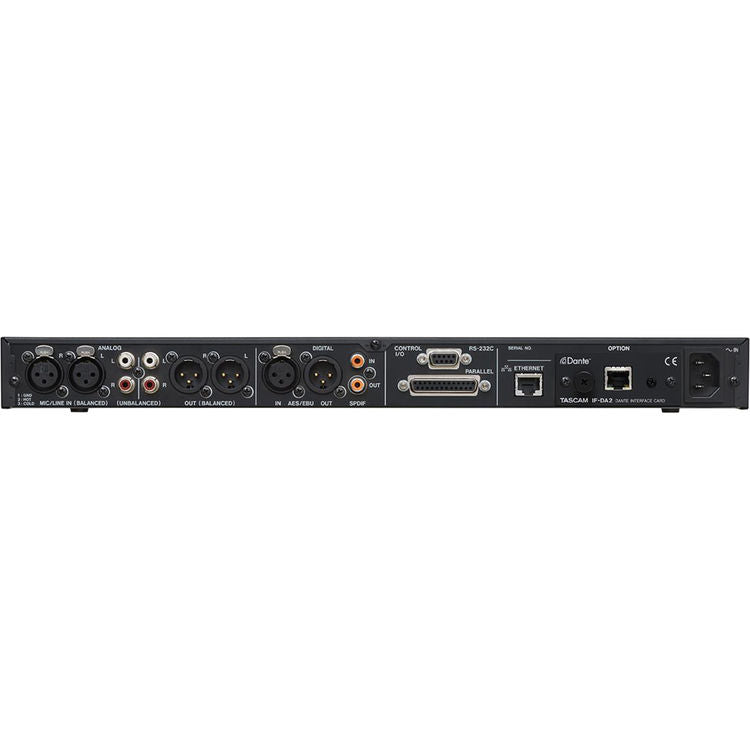

Built with parallel and RS-232C serial control, along with up to 20 tracks of flash start, the media recorder provides balanced and unbalanced I/O, and coaxial digital I/O. These unique features make the SS-CDR250N Two-Channel Networking CD and Media Recorder an ideal one rack-space media solution.
View Product Features
View Product Features
In stock
Scroll below to see our current inventory for this item.
In-Stock Inventory
-
New
-
About the TASCAM SS-CDR250N Two-Channel Networking CD and Media Recorder
Key Features
TASCAM SS-CDR250N Two-Channel Networking CD and Media Recorder Specs
General
Form Factor
Rackmount
Number of Tracks
2
Maximum Simultaneous Tracks
2x Recording
Maximum Sampling Rate
44.1 kHz / 16-Bit
Connectivity
Analog Audio I/O
1x 1/4" TRS Headphone Output 1x Stereo RCA Coaxial Unbalanced Line Input 1x Stereo RCA Coaxial Unbalanced Line Output 2x XLR 3-Pin Balanced Mic/Line Input 2x XLR 3-Pin Balanced Mic/Line Output
Digital Audio I/O
1x XLR 3-Pin AES3 Input 1x RCA Coaxial S/PDIF Input 1x XLR 3-Pin AES3 Output 1x RCA Coaxial S/PDIF Output
USB (Non-Host)
1x USB-A (USB 2.0)
Network I/O
1x RJ45 Ethernet (100BASE-TX)
Other I/O
1x 1/8" / 3.5 mm TRS Remote Input 1x DB-25 Parallel/Control 1x DE-9/DB-9 RS-232 1x 2.5 mm TRS Remote Input
Performance
Frequency Response
20 Hz to 20 kHz ±0.5 dB (JEITA)
Maximum Input Level
Analog Inputs: +20 dBu Control Inputs: +5.5 V Line Inputs: +6 dBV
Maximum Output Level
Analog Outputs: +20 dBu +6 dBV
Headphone Output Power
45 mW per Channel into 32 Ohms (Max, 0.1% THD)
Impedance
Analog Inputs: 22 Kilohms XLR Outputs: 100 Ohms RCA Outputs: 200 Ohms
Dynamic Range
95 dB (JEITA)
SNR
≥ 95 dB (JEITA)
THD
≤ 0.005% (JEITA)
Crosstalk
95 dB (JEITA)
Digital Audio
Audio File Formats
MP3, WAV
Sample Rates
44.1 / 48 / 96 kHz (WAV, Playback) 44.1 / 48 kHz (MP3, Playback) 44.1 / 48 / 96 kHz (WAV, Record) 44.1 / 48 kHz (MP3, Record)
Bit Depths
16 / 24-Bit (WAV)
Bit Rates
64 to 320 kb/s (MP3)
Audio Storage & Playback
Supported Media
SD Card, SDHC Card, SDXC Card, USB Flash Drive, CD-R, CD-R-DA, CD-RW, CD-RW-DA
Supported Media Capacity
SD: 512 MB Minimum to 2 GB Maximum SDHC: 4 GB Minimum to 32 GB Maximum SDXC: 128 GB Minimum USB Flash Drive: 512 MB Minimum to 64 GB Maximum
Power
Power Requirements
AC Input
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
23 W (Maximum)
Physical
Operating Temperature
41 to 95°F / 5 to 35°C
Dimensions
19 x 1.8 x 11.9" / 482.6 x 44.5 x 301 mm
Weight
6.4 lb / 2.9 kg
