Tascam

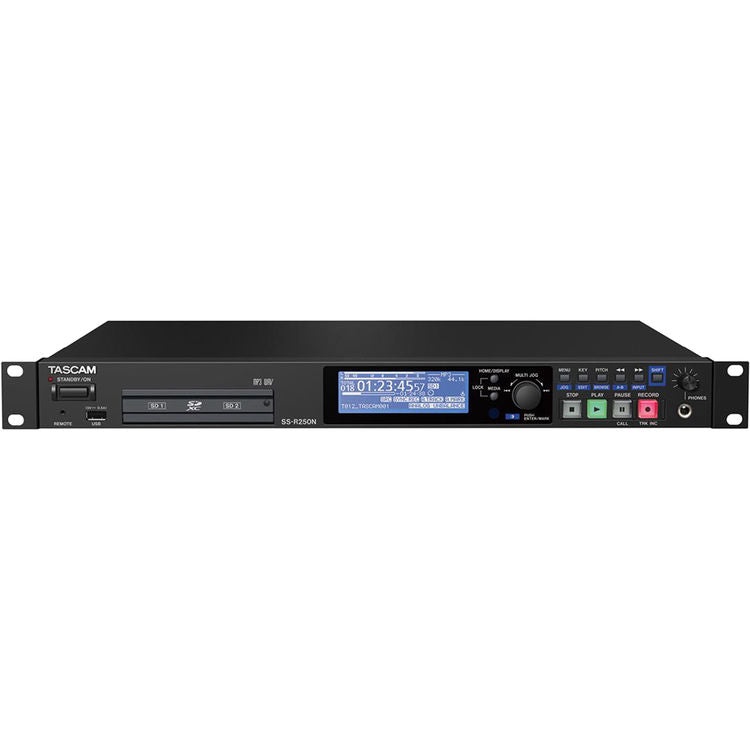

TASCAM SS-R250N Memory Recorder with Networking and Optional Dante Support

$1,150.00

The SS-R250N Memory Recorder with Networking and Optional Dante Support from TASCAM is a solid-state recorder that features networking and can accept an optional IF-DA2 Dante card for integrating into any commercial environment. It can be used in broadcast and contractor installation markets, and records in WAV, MP3, SD/SDHC/SDXC, or USB memory formats.

Built with parallel and RS-232C serial control, along with flash start, the media recorder provides balanced and unbalanced I/O, AES/EBU, and coaxial digital I/O. These unique features make the SS-R250N memory recorder an ideal one rack-space media solution.

View Product Features

  • XLR and RCA Input and Output Jacks
  • AES/EBU and S/PDIF Digital I/O
  • RS-232C Serial & 25-Pin Control Ports
  • Records to SD Card or USB Media
  • Graphic LCD Displays Time, Level & Menu
  • Compact, Rack-Mountable 1RU Format
  • Supports SDXC Media Cards up to 128 GB
  • Compressor and Limiter on Input
  • Dual-Format Recording as WAV and MP3
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the TASCAM SS-R250N Memory Recorder with Networking and Optional Dante Support

The SS-R250N Memory Recorder with Networking and Optional Dante Support from TASCAM is a solid-state recorder that features networking and can accept an optional IF-DA2 Dante card for integrating into any commercial environment. It can be used in broadcast and contractor installation markets, and records in WAV, MP3, SD/SDHC/SDXC, or USB memory formats.

Built with parallel and RS-232C serial control, along with flash start, the media recorder provides balanced and unbalanced I/O, AES/EBU, and coaxial digital I/O. These unique features make the SS-R250N memory recorder an ideal one rack-space media solution.

Key Features

  • XLR and RCA Input and Output Jacks
  • AES/EBU and S/PDIF Digital I/O
  • RS-232C Serial & 25-Pin Control Ports
  • Records to SD Card or USB Media
  • Graphic LCD Displays Time, Level & Menu
  • Compact, Rack-Mountable 1RU Format
  • Supports SDXC Media Cards up to 128 GB
  • Compressor and Limiter on Input
  • Dual-Format Recording as WAV and MP3

TASCAM SS-R250N Memory Recorder with Networking and Optional Dante Support Specs

General
Form Factor
Rackmount
Number of Tracks
2
Maximum Simultaneous Tracks
2x Recording
Display
LCD
Maximum Sampling Rate
44.1 kHz / 16-Bit
Number of Microphone Inputs
2
Built-In Microphone
No
Number of Headphone Mixes
1x Master
Sample Pads
No
Signal Processing
Gain/Trim Range
Up to +24 dBu
High-Pass Filter
No
EQ
No
Dynamic Processing
No
Built-In Effects
No
Connectivity

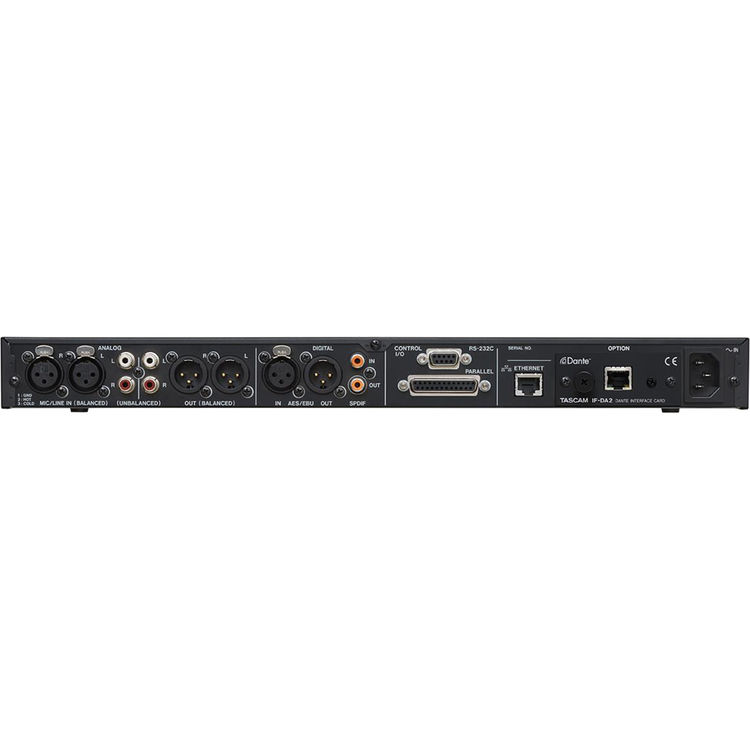

Analog Audio I/O
2x XLR 3-Pin Balanced Mic/Line Input 1x Stereo RCA Coaxial Unbalanced Stereo Input 2x XLR 3-Pin Balanced Line Output 1x 1/4" TRS Headphone Output 1x Stereo RCA Coaxial Unbalanced Stereo Output
Phantom Power
48 V
Digital Audio I/O
1x XLR 3-Pin AES3 Input 1x XLR 3-Pin AES3 Output 1x RCA Coaxial S/PDIF Input 1x RCA Coaxial S/PDIF Output
Host Connection / USB
No
USB (Non-Host)
No
Sync I/O
No
Network I/O
1x RJ45 Ethernet (100BASE-TX)
MIDI I/O
No
Other I/O
1x 1/8" / 3.5 mm TRS Remote Input 1x DB-25 Parallel/Control 1x DB-9 RS-232 1x 2.5 mm TRS Remote Input
Wireless
Wi-Fi
Performance
Frequency Response
20 Hz to 20 kHz ±0.5 dB (JEITA)
Maximum Input Level
Line Inputs: +6 dBV Analog Inputs: +20 dBu Control Inputs: +5.5 V
Maximum Output Level
Analog Outputs: +20 dBu +6 dBV
Headphone Output Power
45 mW per Channel into 32 Ohms (Max, 0.1% THD)
Impedance
XLR Outputs: 100 Ohms RCA Outputs: 200 Ohms Analog Inputs: 22 Kilohms
Dynamic Range
95 dB (JEITA)
SNR
≥ 95 dB (JEITA)
THD
≤ 0.005% (JEITA)
Crosstalk
95 dB (JEITA)
Digital Audio
Audio File Formats
MP3, WAV
Sample Rates
Up to 96 kHz
Bit Depths
16 / 24-Bit (WAV)
Bit Rates
64 to 320 kb/s (MP3)
Sync Sources
Ethernet
Clocking
Internal:
Audio Storage & Playback
Supported Media
SD Card, CompactFlash Card
Media/Memory Card Slot
Single Slot: SD/SDHC/SDXC
Supported Media Capacity
SD: 512 MB Minimum to 2 GB Maximum SDHC: 4 GB Minimum to 32 GB Maximum SDXC: 128 GB Minimum USB Hard Disk Drive/USB Flash Drive: 512 MB Minimum to 64 GB Maximum
Compatibility
OS Compatibility
Android/iOS
Mobile Device Compatibility
Android Smartphone iPhone
Required Hardware
USB 2.0 Port
Power
Power Requirements
AC Input
AC Input Power
100 to 240 VAC, 50 / 60 Hz
AC/DC Power Adapter
Included
Power Consumption
20 W (Maximum)
Physical
Rackmount Size
1 U
Operating Conditions
41 to 95°F / 5 to 35°C
Dimensions
19 x 11.9 x 1.8" / 482.6 x 301 x 44.5 mm
Weight
7.1 lb / 3.2 kg

Key Features

  • XLR and RCA Input and Output Jacks
  • AES/EBU and S/PDIF Digital I/O
  • RS-232C Serial & 25-Pin Control Ports
  • Records to SD Card or USB Media
  • Graphic LCD Displays Time, Level & Menu
  • Compact, Rack-Mountable 1RU Format
  • Supports SDXC Media Cards up to 128 GB
  • Compressor and Limiter on Input
  • Dual-Format Recording as WAV and MP3
