SKU: US-1X2HR

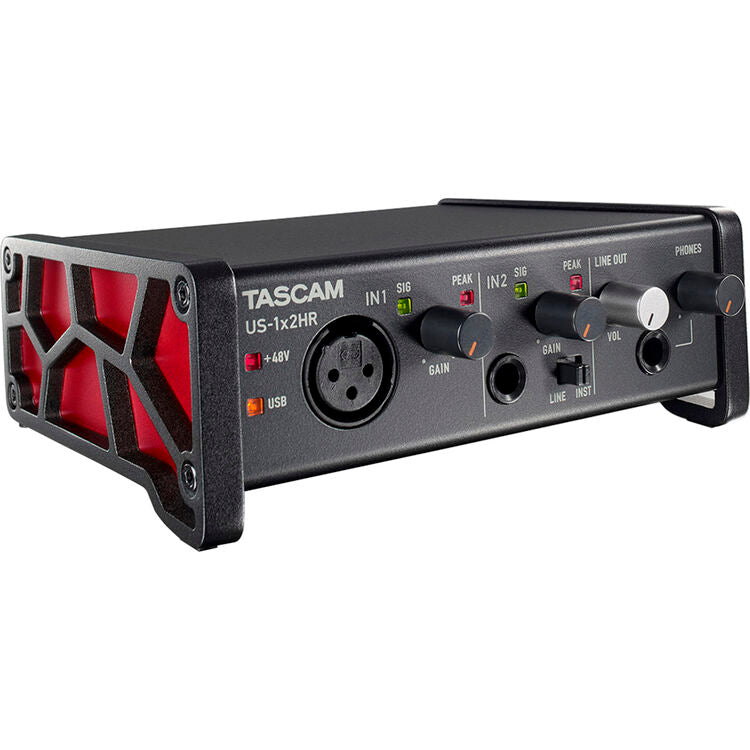

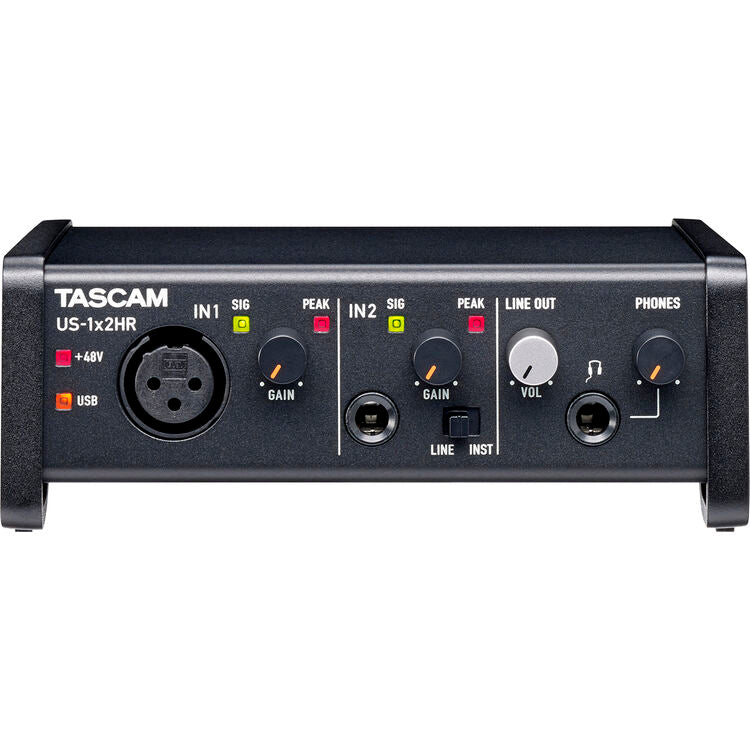

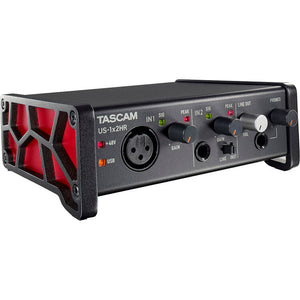

TASCAM US-1x2HR Desktop 2x2 USB Type-C Audio Interface

$119.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

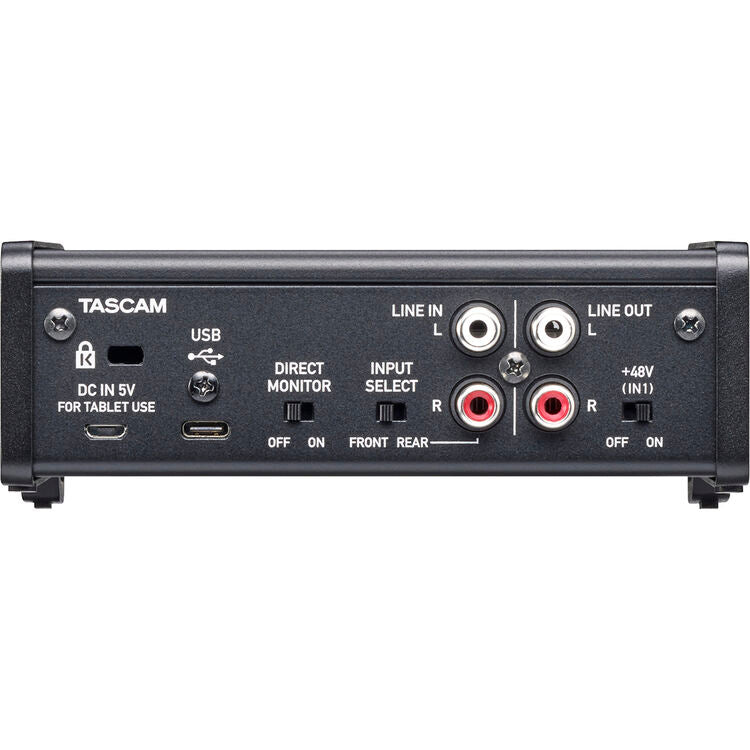

Record or livestream songs, podcasts, and commentary in high resolution to your Mac/Windows computer or iOS mobile device with the TASCAM US-1x2HR, a desktop 2x2 USB Type-C audio interface designed to deliver comfortable, user-friendly operation, clean audio quality, and simultaneous input of a mic and an instrument for home recordists and traveling content creators. With its single Ultra-HDDA mic preamp and 1/4" line/Hi-Z input, the US-1x2HR allows you to track or overdub two different sources at the same time. Phantom power is onboard for condenser mics and LED signal/peak indicators are provided to help you properly set levels. Use the rear-panel RCA inputs to record an unbalanced line-level signal from a DJ mixer, media player, or mixing console. The stereo RCA line outs and 1/4" headphone output enable monitoring through speakers, headphones, or both, each with its own level control. Additional feature enhancements include virtual loopback for podcasting and livestreaming, zero-latency direct monitoring, and an empowering software bundle. Read more

Features

  • Musicians, Podcasters, and Producers
  • USB Type-C / USB Type-A Connectivity
  • 1 Mic Preamp, 1 Line/Hi-Z In, RCA Inputs
  • 1 Headphone Out, Stereo RCA Line Out
  • 24-Bit / 192 kHz AD/DA Converters
  • Bus Powered / Mac, Windows, iOS
  • Phantom Power, Direct Monitor
  • LED Signal/Peak Indicators
  • Virtual Loopback for Livestreaming
  • DAWs, Virtual Instrument, Auto-Tune

Business Financing Options Avaiable

View Available Financing

Record or livestream songs, podcasts, and commentary in high resolution to your Mac/Windows computer or iOS mobile device with the TASCAM US-1x2HR, a desktop 2x2 USB Type-C audio interface designed to deliver comfortable, user-friendly operation, clean audio quality, and simultaneous input of a mic and an instrument for home recordists and traveling content creators. With its single Ultra-HDDA mic preamp and 1/4" line/Hi-Z input, the US-1x2HR allows you to track or overdub two different sources at the same time. Phantom power is onboard for condenser mics and LED signal/peak indicators are provided to help you properly set levels. Use the rear-panel RCA inputs to record an unbalanced line-level signal from a DJ mixer, media player, or mixing console. The stereo RCA line outs and 1/4" headphone output enable monitoring through speakers, headphones, or both, each with its own level control. Additional feature enhancements include virtual loopback for podcasting and livestreaming, zero-latency direct monitoring, and an empowering software bundle. Read more

Features

  • Musicians, Podcasters, and Producers
  • USB Type-C / USB Type-A Connectivity
  • 1 Mic Preamp, 1 Line/Hi-Z In, RCA Inputs
  • 1 Headphone Out, Stereo RCA Line Out
  • 24-Bit / 192 kHz AD/DA Converters
  • Bus Powered / Mac, Windows, iOS
  • Phantom Power, Direct Monitor
  • LED Signal/Peak Indicators
  • Virtual Loopback for Livestreaming
  • DAWs, Virtual Instrument, Auto-Tune

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the TASCAM US-1x2HR Desktop 2x2 USB Type-C Audio Interface

Record or livestream songs, podcasts, and commentary in high resolution to your Mac/Windows computer or iOS mobile device with the TASCAM US-1x2HR, a desktop 2x2 USB Type-C audio interface designed to deliver comfortable, user-friendly operation, clean audio quality, and simultaneous input of a mic and an instrument for home recordists and traveling content creators.

With its single Ultra-HDDA mic preamp and 1/4" line/Hi-Z input, the US-1x2HR allows you to track or overdub two different sources at the same time. Phantom power is onboard for condenser mics and LED signal/peak indicators are provided to help you properly set levels. Use the rear-panel RCA inputs to record an unbalanced line-level signal from a DJ mixer, media player, or mixing console. The stereo RCA line outs and 1/4" headphone output enable monitoring through speakers, headphones, or both, each with its own level control. Additional feature enhancements include virtual loopback for podcasting and livestreaming, zero-latency direct monitoring, and an empowering software bundle.

Key Features

  • Musicians, Podcasters, and Producers
  • USB Type-C / USB Type-A Connectivity
  • 1 Mic Preamp, 1 Line/Hi-Z In, RCA Inputs
  • 1 Headphone Out, Stereo RCA Line Out
  • 24-Bit / 192 kHz AD/DA Converters
  • Bus Powered / Mac, Windows, iOS
  • Phantom Power, Direct Monitor
  • LED Signal/Peak Indicators
  • Virtual Loopback for Livestreaming
  • DAWs, Virtual Instrument, Auto-Tune

Already own this item and want to sell it?

Click here to sell your item

TASCAM US-1x2HR Desktop 2x2 USB Type-C Audio Interface Specs

General
Display
No
Channels of I/O
Analog: 2 Inputs / 2 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
1 Preamp
Input Level Adjustment
2x Knob
Expansion Slots
No
Signal Processing
Pad
No
Gain/Trim Range
Mic Inputs: 58 dB Line/Hi-Z Inputs: 45 dB
High-Pass Filter
No
Solo/Mute
No
Connectivity
Analog Audio I/O
1x XLR 3-Pin Balanced Mic Input (Front Panel) 1x 1/4" TRS Balanced/Unbalanced Line/Hi-Z Input (Front Panel) 2x Stereo RCA Coaxial Unbalanced Line Input 1x 1/4" TRS Unbalanced Headphone Output (Front Panel) 2x Stereo RCA Coaxial Unbalanced Line Output
Phantom Power
48 V, Selectable On/Off
Digital Audio I/O
No
Host Connection / USB
1x USB-C
Host Connection Protocol
USB 2.0
USB (Non-Host)
1x Micro-USB (Power Input)
Sync I/O
No
Network I/O
No
MIDI I/O
No
Performance
Frequency Response
Mic Inputs: 20 Hz to 20 kHz +0/-0.4 dB (at 44.1/48 kHz, JEITA) 20 Hz to 40 kHz +0/-0.4 dB (at 88.2/96 kHz, JEITA) Line Inputs: 20 Hz to 20 kHz +0/-0.3 dB (at 44.1/48 kHz, JEITA) 20 Hz to 40 kHz +0/-0.3 dB (at 88.2/96 kHz, JEITA) Line Outputs: 20 Hz to 20 kHz +0/-0.4 dB (at 44.1/48 kHz, JEITA) 20 Hz to 40 kHz +0/-0.4 dB (at 88.2/96 kHz, JEITA)
Maximum Input Level
Mic Inputs: +9 dBu 1/4" Line Inputs: +20 dBu 1/4" Hi-Z Inputs: +3 dBV RCA Line Inputs: +6 dBV
Maximum Output Level
Line Outputs: +6 dBV
Headphone Output Power
18 mW per Channel into 32 Ohms (0.1% THD)
Impedance
Mic Inputs: 2.4 Kilohms 1/4" Line Inputs: 10 Kilohms RCA Line Inputs: 10 Kilohms RCA Line Outputs: 100 Ohms 1/4" Hi-Z Inputs: ≥ 1 Megohm
SNR
Mic Inputs: 109 dB (A-Weighted, Min Gain) Line Inputs: 105 dB (A-Weighted, Min Gain) Line Outputs: 110 dB (A-Weighted, Max Gain)
THD+N
Mic Inputs: 0.0013% (1 kHz, Min Gain) Line Inputs: 0.0027% (1 kHz, Min Gain) Line Outputs: 0.0015% (1 kHz)
EIN
-128 dBu (150-Ohm Source, Max Gain)
Digital Audio
Sample Rates
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Sync Sources
Internal
Audio Storage & Playback
Memory Card Slot
No
Compatibility
OS Compatibility
macOS 10.13 macOS 11 or Later Windows 7 or Later iPadOS 13 or Later 11 or Later
Processor Requirement
2 GHz or Better
RAM Requirements
2 GB
Mobile Device Compatibility
iPad iPhone
Required Hardware
Available USB 2.0 Port USB Cable (Included)
Internet Connection
Required for Registration, Software/Driver Download
Power
Power Requirements
AC/DC Power Adapter (Not Included) or USB Bus Power
AC/DC Power Adapter
5 VDC at 700 mA (Not Included)
Power Consumption
1.8 W
Physical
Anti-Theft Features
Kensington Security Slot
Operating Temperature
41 to 95°F / 5 to 35°C
Dimensions
5.7 x 4.7 x 2.2" / 14.6 x 12 x 5.5 cm (Including Controls and Protrusions)
Weight
1.3 lb / 0.6 kg

Key Features

  • Musicians, Podcasters, and Producers
  • USB Type-C / USB Type-A Connectivity
  • 1 Mic Preamp, 1 Line/Hi-Z In, RCA Inputs
  • 1 Headphone Out, Stereo RCA Line Out
  • 24-Bit / 192 kHz AD/DA Converters
  • Bus Powered / Mac, Windows, iOS
  • Phantom Power, Direct Monitor
  • LED Signal/Peak Indicators
  • Virtual Loopback for Livestreaming
  • DAWs, Virtual Instrument, Auto-Tune
