Tascam

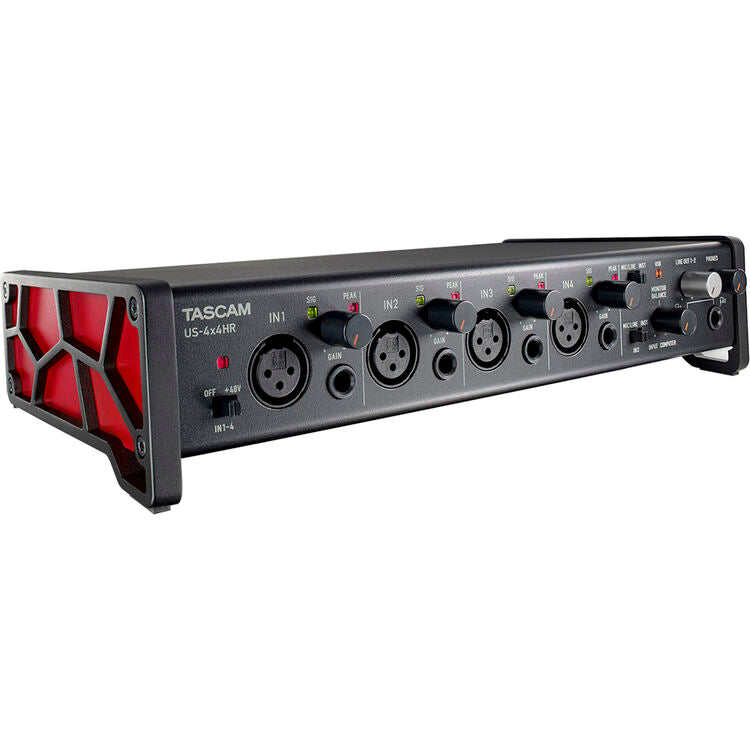

TASCAM US-4x4HR USB-C Audio/MIDI Interface

$249.00

Record or livestream songs, podcasts, and commentary in high resolution to your Mac/Windows computer or iOS mobile device with the TASCAM US-4x4HR, a desktop 4x4 USB-C audio/MIDI interface designed to deliver comfortable, user-friendly operation, clean audio quality, and simultaneous input of four mics for home recordists and content creators. The inclusion of MIDI ports gives producers an easy way to integrate MIDI gear into their music production setups.

With its four Ultra-HDDA mic preamps, two line / Hi-Z inputs, and two line inputs, the US-4x4HR allows you to track or overdub four different sources at the same time. Phantom power is onboard for condenser mics and LED signal/peak indicators are provided to help you properly set levels. The four balanced 1/4" line outputs and dual 1/4" headphone outputs enable monitoring through multiple speakers, headphones, or both. Additional feature enhancements include virtual loopback for podcasting and livestreaming, zero-latency adjustable direct monitoring, and an empowering software bundle.

View Product Features

  • Producers, Musicians, and Home Studios
  • AC and Bus Powered / Mac, Windows, iOS
  • 4 Mic Pres, 2 Line / Hi-Z In, 2 Line In
  • 2 Headphone Out, 4 Line Out
  • 24-Bit / 192 kHz AD/DA Conversion
  • Virtual Loopback for Streaming
  • 48V, Zero-Latency Direct Monitoring
  • MIDI I/O on 5-Pin DIN Jacks
  • DAWs, Virtual Instrument, Auto-Tune
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the TASCAM US-4x4HR USB-C Audio/MIDI Interface

Record or livestream songs, podcasts, and commentary in high resolution to your Mac/Windows computer or iOS mobile device with the TASCAM US-4x4HR, a desktop 4x4 USB-C audio/MIDI interface designed to deliver comfortable, user-friendly operation, clean audio quality, and simultaneous input of four mics for home recordists and content creators. The inclusion of MIDI ports gives producers an easy way to integrate MIDI gear into their music production setups.

With its four Ultra-HDDA mic preamps, two line / Hi-Z inputs, and two line inputs, the US-4x4HR allows you to track or overdub four different sources at the same time. Phantom power is onboard for condenser mics and LED signal/peak indicators are provided to help you properly set levels. The four balanced 1/4" line outputs and dual 1/4" headphone outputs enable monitoring through multiple speakers, headphones, or both. Additional feature enhancements include virtual loopback for podcasting and livestreaming, zero-latency adjustable direct monitoring, and an empowering software bundle.

Key Features

  • Producers, Musicians, and Home Studios
  • AC and Bus Powered / Mac, Windows, iOS
  • 4 Mic Pres, 2 Line / Hi-Z In, 2 Line In
  • 2 Headphone Out, 4 Line Out
  • 24-Bit / 192 kHz AD/DA Conversion
  • Virtual Loopback for Streaming
  • 48V, Zero-Latency Direct Monitoring
  • MIDI I/O on 5-Pin DIN Jacks
  • DAWs, Virtual Instrument, Auto-Tune

TASCAM US-4x4HR USB-C Audio/MIDI Interface Specs

General
Display
No
Channels of I/O
Analog: 4 Inputs / 4 Outputs
Built-In DSP
No
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
4
Built-In Microphone
No
Input Level Adjustment
4x Knob
Signal Processing
Pad
No
Gain/Trim Range
Mic/Line/Hi-Z Inputs: 56 dB
High-Pass Filter
No
Solo/Mute
No
Connectivity
Analog Audio I/O
4x XLR 3-Pin Balanced Mic Input (Front Panel) 2x 1/4" TRS Balanced/Unbalanced Line/Hi-Z Input (Front Panel) 2x 1/4" TRS Balanced Line Input (Front Panel) 4x 1/4" TRS Balanced Line Output 2x 1/4" TRS Unbalanced Headphone Output (Front Panel)
Phantom Power
48 V, Selectable On/Off (Applied to All Inputs)
Digital Audio I/O
No
Host Connection / USB
1x USB-C
Host Connection Protocol
USB 2.0
USB (Non-Host)
No
Sync I/O
No
Network I/O
No
MIDI I/O
1x DIN 5-Pin Input 1x DIN 5-Pin Output
Expansion Slots
No
Wireless
No
Performance
Frequency Response
Mic, Line Inputs: 20 Hz to 20 kHz +0/-0.4 dB (at 44.1/48 kHz, JEITA) 20 Hz to 40 kHz +0/-0.4 dB (at 88.2/96 kHz, JEITA) Line Outputs: 20 Hz to 20 kHz +0.2/-0.1 dB (at 44.1/48 kHz, JEITA) 20 Hz to 40 kHz +0.2/-0.4 dB (at 88.2/96 kHz, JEITA)
Maximum Input Level
Mic Inputs: +9 dBu Line Inputs: +20 dBu Hi-Z Inputs: +10 dBV
Maximum Output Level
Line Outputs: +20 dBu
Headphone Output Power
45 mW per Channel into 32 Ohms (0.1% THD)
Impedance
Mic Inputs: 2.2 Kilohms Line Inputs: 10 Kilohms Line Outputs: 210 Ohms Hi-Z Inputs: ≥ 1 Megohm
SNR
Mic Inputs: 110 dB (A-Weighted, Min Gain) Line Inputs: 108 dB (A-Weighted, Min Gain) Line Outputs: 110 dB (A-Weighted, Max Gain)
THD+N
Mic Inputs: 0.0013% (1 kHz, Min Gain) Line Inputs:
0.0011% (1 kHz, Min Gain) Line Outputs: 0.0012% (1 kHz)
EIN
-128 dBu
Digital Audio
Sample Rates
44.1 to 192 kHz
Sample Rate Conversion
No
Bit Depths
24-Bit
Sync Sources
Internal
Audio Storage & Playback
Media/Memory Card Slot
No
Compatibility
OS Compatibility
Computer: macOS 10.13 or Later / Windows 7 or Later Mobile: iOS Only
Processor Requirement
2 GHz or Better
RAM Requirements
2 GB
Mobile Device Compatibility
iPad iPhone
Required Hardware
Available USB 2.0 Port USB Cable (Included)
Power
Power Requirements
AC/DC Power Adapter (Not Included) or USB Bus Power
AC/DC Power Adapter
12 VDC, Center-Positive (Included)
Power Consumption
2.25 W
Physical
Operating Conditions
41 to 95°F / 5 to 35°C
Dimensions
11.7 x 6.3 x 2.6" / 29.6 x 16 x 6.5 cm (Including Controls and Protrusions)
Weight
3.5 lb / 1.6 kg

Key Features

  • Producers, Musicians, and Home Studios
  • AC and Bus Powered / Mac, Windows, iOS
  • 4 Mic Pres, 2 Line / Hi-Z In, 2 Line In
  • 2 Headphone Out, 4 Line Out
  • 24-Bit / 192 kHz AD/DA Conversion
  • Virtual Loopback for Streaming
  • 48V, Zero-Latency Direct Monitoring
  • MIDI I/O on 5-Pin DIN Jacks
  • DAWs, Virtual Instrument, Auto-Tune
