Tektronix

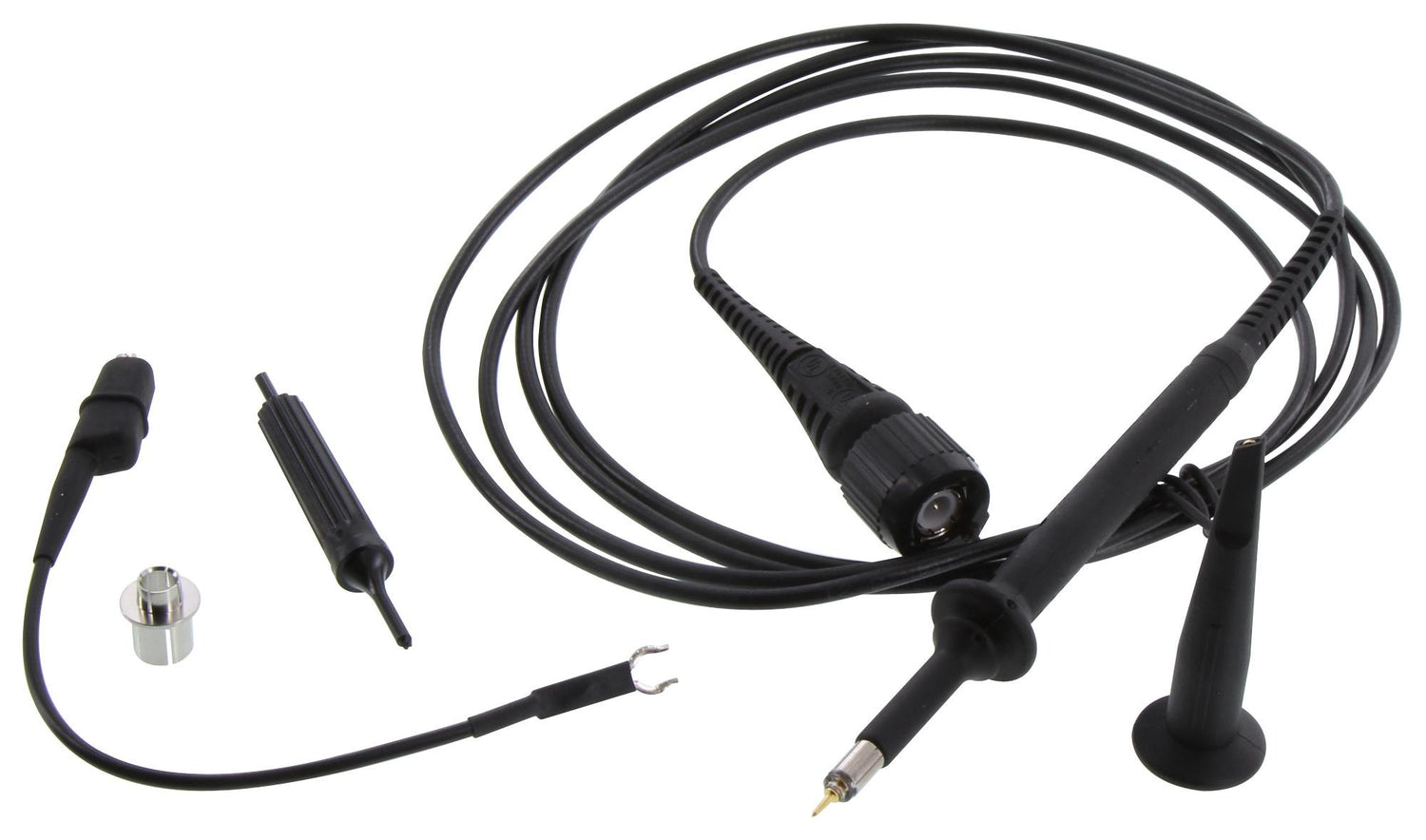

Tektronix P3010 100 MHz 10X Passive Probe w/ Tektronix 020213401 Accessories kit

$149.40

The P3010 is an industry-standard scope probe built with durability and performance in mind. It functions as a 10X attenuation probe, meaning it reduces the input signal amplitude by a factor of ten before it reaches the oscilloscope input, which is essential for measuring higher voltages and minimizing the loading effect on the circuit under test. It has a bandwidth of 100 MHz and a maximum input voltage rating of 300 V CAT II. The included Tektronix 020-2134-01 accessory kit provides essential tips and tools to enhance the probe's functionality and versatility across various testing scenarios.

View Product Features

Attenuation Factor: Fixed 10X attenuation ensures the ability to measure higher voltages safely and reduces circuit loading.
Bandwidth: Offers a 100 MHz bandwidth for capturing high-frequency signals.
Input Impedance: Provides a high input impedance (10 MΩ || 13 pF when connected to a 1 MΩ input scope) to minimize disturbance to the circuit under test.
Maximum Input Voltage: Rated for a maximum input voltage of 300 V RMS CAT II.
Compensation Range: Features a compensation range of 10 pF to 22 pF, allowing the probe to be calibrated and matched with a wide variety of oscilloscopes.
Accessory Kit: Comes bundled with the Tektronix 020-2134-01 accessory kit, providing versatility for various connection types.
Versatile Applications: A general-purpose probe suitable for a broad range of debugging, testing, and measurement applications in electronics engineering.

Low stock

1 in stock – Hurry while stock lasts

Scroll below to see our current inventory for this item.

In-Stock Inventory

40% off
Used

C1482-141

Tektronix P3010, 100MHz Probe w/ Tektronix 020213401 Accessories kit

Cosmetic Rating

Fair

"Fair Condition" gear exhibits noticeable signs of use, including moderate wear, scratches, and minor cosmetic damage. While some non-essential parts may be missing, these items are fully functional for key purposes. A great choice for those prioritizing functionality over appearance.

$149.40 ~~$249.00~~

View Product

Already own this item and want to sell it?

Click here to sell your item

About the Tektronix P3010 100 MHz 10X Passive Probe w/ Tektronix 020213401 Accessories kit

The Tektronix P3010 is a high-performance passive oscilloscope probe engineered for professional electronics testing and measurement, offering a precise signal pathway for observing circuits up to 100 MHz. As a 10X attenuation probe, it reduces the input signal by a factor of ten, which serves two critical purposes: it extends the voltage measurement range of the oscilloscope and, more importantly, minimizes the probe's loading effect on the circuit under test. This high input impedance, typically 10 MOhms, combined with low capacitance, ensures that the probe does not significantly alter the behavior of sensitive or high-frequency circuits, allowing engineers to make accurate and reliable observations of true signal behavior in digital systems, power electronics, and communications devices.

The probe is constructed with durability and user safety in mind, featuring a ruggedized body designed to withstand the rigors of a lab or field service environment. Its accessories kit, often including items like a spring-loaded tip for surface-mount device (SMD) connections, an IC tip for probing integrated circuit legs, and a ground lead with multiple attachment options, provides the versatility needed for a wide array of probing challenges. The compensation adjustment mechanism allows the probe to be precisely matched to the specific input capacitance of the oscilloscope channel it is connected to, a crucial step that ensures optimal frequency response and accurate square wave representation, preventing measurement errors due to improper waveform shaping.

Designed for seamless integration with Tektronix and other major oscilloscope brands, the P3010 probe terminates in a standard BNC connector for a secure connection. The included accessories enhance its utility, offering solutions for probing tightly spaced pins, providing a stable ground connection to minimize noise, and ensuring repeatable contact. For any engineer or technician, proper probe selection and compensation are fundamental to valid oscilloscope measurements, and the Tektronix P3010 provides a trusted, industry-standard tool that prioritizes signal integrity, measurement accuracy, and operational flexibility across a broad spectrum of electronic diagnostic tasks.

Key Features

Attenuation Factor: Fixed 10X attenuation ensures the ability to measure higher voltages safely and reduces circuit loading.
Bandwidth: Offers a 100 MHz bandwidth for capturing high-frequency signals.
Input Impedance: Provides a high input impedance (10 MΩ || 13 pF when connected to a 1 MΩ input scope) to minimize disturbance to the circuit under test.
Maximum Input Voltage: Rated for a maximum input voltage of 300 V RMS CAT II.
Compensation Range: Features a compensation range of 10 pF to 22 pF, allowing the probe to be calibrated and matched with a wide variety of oscilloscopes.
Accessory Kit: Comes bundled with the Tektronix 020-2134-01 accessory kit, providing versatility for various connection types.
Versatile Applications: A general-purpose probe suitable for a broad range of debugging, testing, and measurement applications in electronics engineering.
