Telex

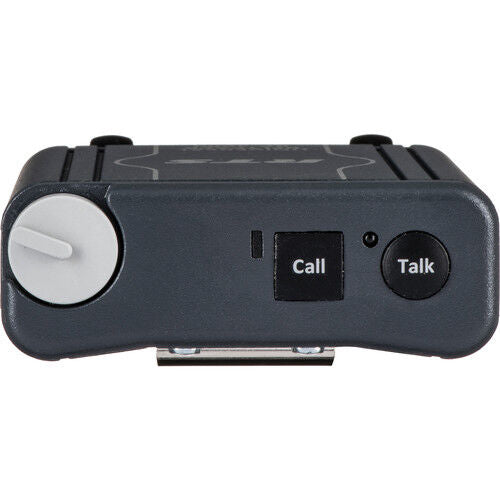

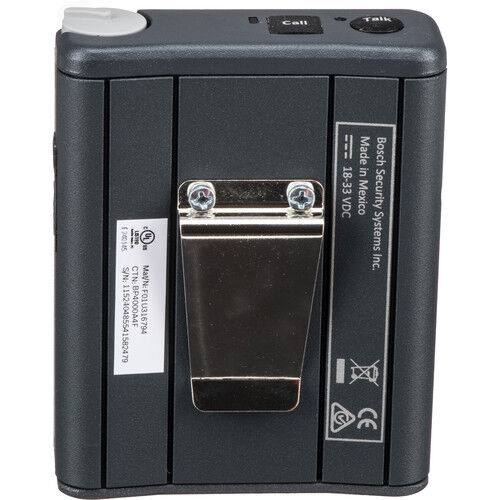

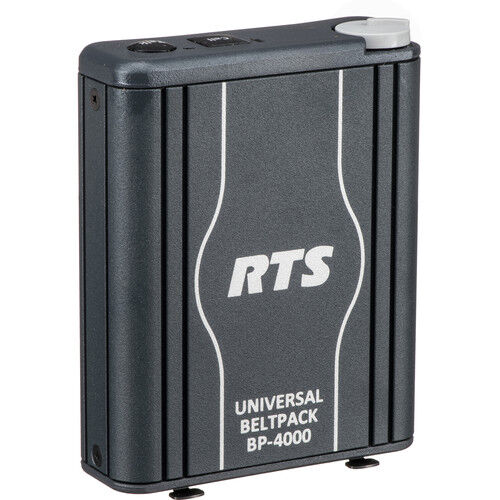

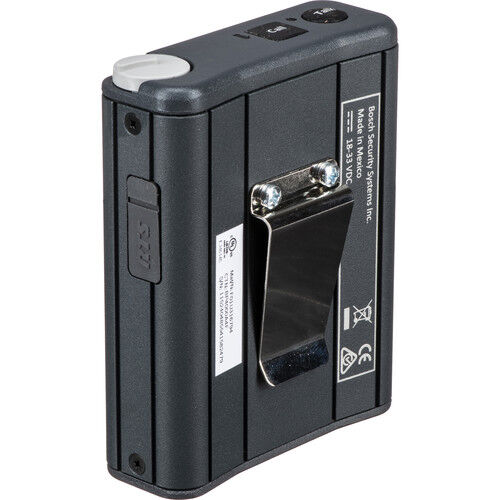

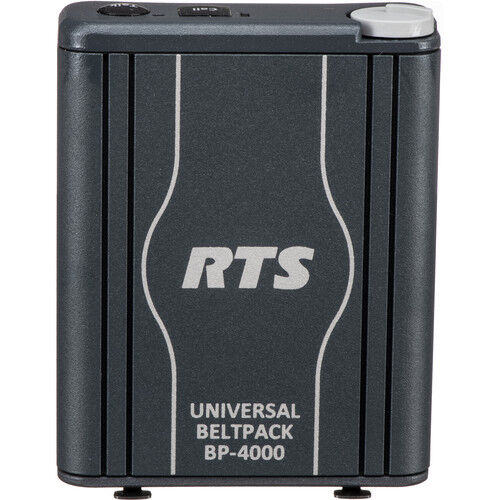

Telex RTS Series 4000 IFB System Beltpack

$100.00

The Telex RTS Series 4000 IFB System Beltpack (often referred to as the BP-4000 or IFB-325 for listen-only versions) is a portable user station for professional party-line intercom and talent cueing systems in broadcast and production environments. The BP-4000 model is a universal, single-channel beltpack that automatically detects and configures itself to be compatible with RTS, Audiocom, and Clear-Com systems

View Product Features

  • System Compatibility: Features "auto-wiring scheme detection," allowing the beltpack to automatically configure itself for RTS, Audiocom, or Clear-Com systems when plugged in.
  • Voice-Guided Setup: Utilizes short voice prompts to guide the user through menu options for configuration and factory resets, eliminating the need for internal jumpers or switches.
  • Programmable Talk Button: The talk button offers multiple operating modes, including "always on," "always off," or "switching" (momentary/latching).
  • Call Signaling: Includes a blinking lamp as a visual indicator for incoming calls and also provides haptic (vibration) feedback for call alerts.

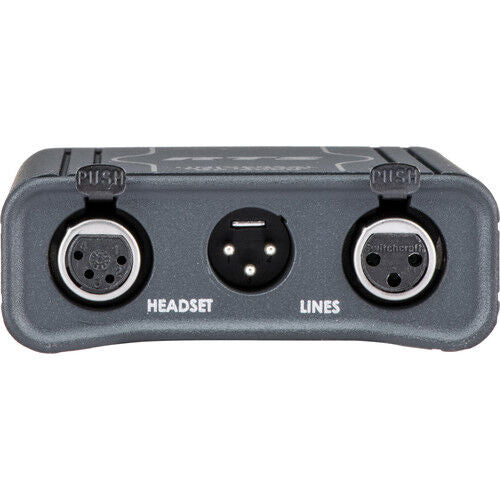

  • Headset Connectivity: Features a 4-pin female (or other optional 4-pin male/5-pin female) XLR connector that supports both dynamic and electret headset microphones.
  • Durable Design: Housed in a rugged, low-profile case with a sturdy belt clip, designed for demanding studio and field use.
  • Volume Control: Features a volume knob to adjust the headset/headphone listen level.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Telex RTS Series 4000 IFB System Beltpack

The Telex RTS Series 4000 IFB System Beltpack is a specialized, portable receiver unit integral to an Interrupted Foldback (IFB) communication system, primarily used in broadcast television, film production, and live event broadcasting. This beltpack device allows on-air talent, such as news anchors, reporters, directors, and producers, to privately receive program audio and critical instructions from a production control room via a wireless or wired transmission system. The defining feature of an IFB system is its ability for the control room to "interrupt" or "talk over" the program feed being sent to the talent's earpiece, enabling a director to give last-second cues, timing adjustments, or new information without the audience hearing the communication. This beltpack serves as the personal interface for the talent, providing them with a clear, reliable audio mix of the live program and any private communications.

The beltpack is designed for ruggedness and ease of use, featuring a compact form factor with a robust clip or belt loop for secure attachment to clothing. It typically includes a volume control knob, a mute switch, and a standard 3.5mm or 1/4" headphone jack for connecting an earpiece or headset. Advanced models may offer a mix control to adjust the balance between the program audio and the interrupt channel. Operation is supported by the broader RTS Series 4000 infrastructure, which includes base station transmitters or interface units that encode and distribute the IFB signals over specific radio frequencies or wired party-line systems. The beltpack's receiver is tuned to the assigned channel, ensuring private, crystal-clear audio reception that is free from the interference often encountered in crowded RF environments like major news events or stadium broadcasts.

In practice, the Telex RTS 4000 IFB Beltpack is an indispensable tool for live production workflow, ensuring precise coordination and timing. It enables seamless communication that keeps broadcasts running smoothly, allowing talent to react instantly to director commands while maintaining their on-air presence. The system's reliability is paramount, as any dropout or audio degradation in the IFB feed can directly impact a live broadcast. Built to the professional standards of the Telex RTS brand, these beltpacks are known for their durable construction, long battery life, and consistent performance under pressure. By providing a private, two-way audio link (where some models also include a talk-back microphone), the IFB system and its beltpacks form the critical, unseen nervous system that connects the control room with on-screen personnel, enabling the complex orchestration of modern live television and event production.

Key Features

  • System Compatibility: Features "auto-wiring scheme detection," allowing the beltpack to automatically configure itself for RTS, Audiocom, or Clear-Com systems when plugged in.
  • Voice-Guided Setup: Utilizes short voice prompts to guide the user through menu options for configuration and factory resets, eliminating the need for internal jumpers or switches.
  • Programmable Talk Button: The talk button offers multiple operating modes, including "always on," "always off," or "switching" (momentary/latching).
  • Call Signaling: Includes a blinking lamp as a visual indicator for incoming calls and also provides haptic (vibration) feedback for call alerts.
  • Headset Connectivity: Features a 4-pin female (or other optional 4-pin male/5-pin female) XLR connector that supports both dynamic and electret headset microphones.
  • Durable Design: Housed in a rugged, low-profile case with a sturdy belt clip, designed for demanding studio and field use.
  • Volume Control: Features a volume knob to adjust the headset/headphone listen level.

Telex RTS Series 4000 IFB System Beltpack Specs

System Function
Product Type
IFB (Interrupted Foldback) Beltpack Receiver
System Compatibility
Telex RTS Series 4000 IFB
Primary Function
Private Program Audio & Cue Reception
Audio & Controls
Headphone Output
3.5mm or 1/4" Jack
Volume Control
Integrated Knob
Mix Control
Program/Interrupt Balance (if available)
Mute Function
Yes
Connectivity & Power
Frequency Range
UHF or VHF Band (System Dependent)
Antenna Connection
BNC or Integrated
Power Source
Rechargeable Battery or AA Cells
Battery Life
Extended (8+ hours typical)
Physical Details
Enclosure
Rugged Plastic/Metal Composite
Wearing Style
Belt Clip or Loop
Dimensions
Compact, Handheld/Beltpack Size
Weight
Lightweight (approx. 200-300g)
Operational Features
Channel Select
Programmable or Switch Selected
Squelch Control
Auto or Manual
Audio Input
Receiver only (from IFB transmitter)
Accessories & Integration
Standard Accessories
Belt Clip, Battery
Earpiece Compatibility
Standard 3.5mm
Talkback Capability
Not Standard on Receiver-only Models

Key Features

  • System Compatibility: Features "auto-wiring scheme detection," allowing the beltpack to automatically configure itself for RTS, Audiocom, or Clear-Com systems when plugged in.
  • Voice-Guided Setup: Utilizes short voice prompts to guide the user through menu options for configuration and factory resets, eliminating the need for internal jumpers or switches.
  • Programmable Talk Button: The talk button offers multiple operating modes, including "always on," "always off," or "switching" (momentary/latching).
  • Call Signaling: Includes a blinking lamp as a visual indicator for incoming calls and also provides haptic (vibration) feedback for call alerts.
  • Headset Connectivity: Features a 4-pin female (or other optional 4-pin male/5-pin female) XLR connector that supports both dynamic and electret headset microphones.
  • Durable Design: Housed in a rugged, low-profile case with a sturdy belt clip, designed for demanding studio and field use.
  • Volume Control: Features a volume knob to adjust the headset/headphone listen level.
