SKU: 2238-1772

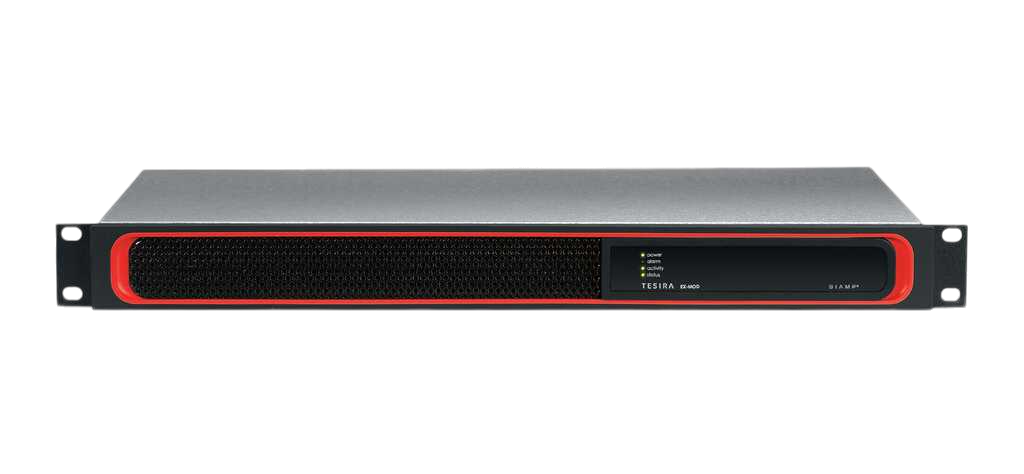

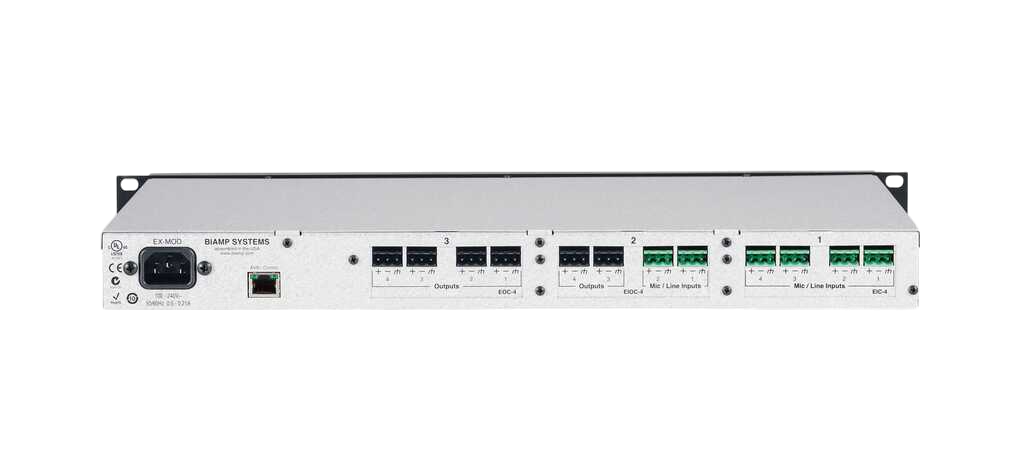

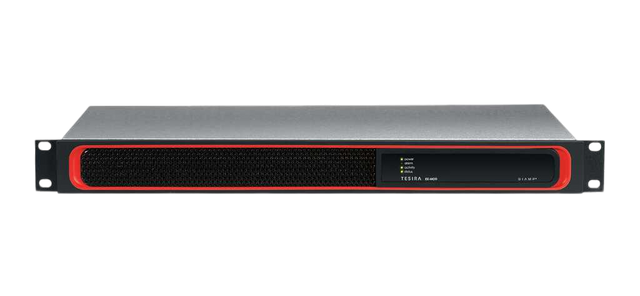

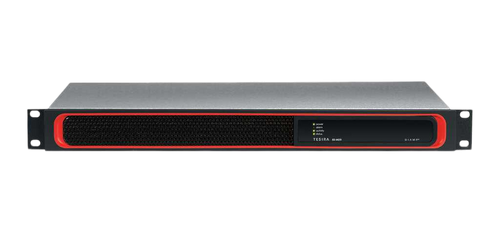

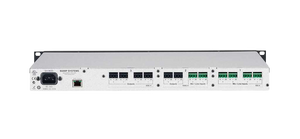

Tesira EX-MOD Modular Expander Device

$495.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The Tesira EX-MOD is a modular expander device that is designed for use with AVB-enabled Tesira server-class devices. It can be configured with up to three 4-channel input and/or output cards for a maximum of 12 channels. The expander communicates with the Tesira AVB network for audio networking, configuration, and control. The Tesira EX-MOD complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government. Read more

Features

  • Can be configured with up to three I/O cards
  • Up to 12 channels of analog audio
  • AVB/TSN connection to Tesira system for audio networking, configuration and control
  • Plug-in barrier strip connections on cards
  • Front panel LEDs for device status indications
  • Internal universal power supply
  • Rack mountable (1RU)
  • CE marked, UL listed, and RoHS compliant
  • 5-year warranty
  • Compliant with the US Trade Agreement Act (TAA)

Business Financing Options Avaiable

View Available Financing

The Tesira EX-MOD is a modular expander device that is designed for use with AVB-enabled Tesira server-class devices. It can be configured with up to three 4-channel input and/or output cards for a maximum of 12 channels. The expander communicates with the Tesira AVB network for audio networking, configuration, and control. The Tesira EX-MOD complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government. Read more

Features

  • Can be configured with up to three I/O cards
  • Up to 12 channels of analog audio
  • AVB/TSN connection to Tesira system for audio networking, configuration and control
  • Plug-in barrier strip connections on cards
  • Front panel LEDs for device status indications
  • Internal universal power supply
  • Rack mountable (1RU)
  • CE marked, UL listed, and RoHS compliant
  • 5-year warranty
  • Compliant with the US Trade Agreement Act (TAA)

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the Tesira EX-MOD Modular Expander Device

The Biamp Tesira EX-MOD is a 1RU rack-mountable modular audio expander designed to add up to 12 analog audio channels to AVB-enabled Tesira systems.

Key Features

  • Can be configured with up to three I/O cards
  • Up to 12 channels of analog audio
  • AVB/TSN connection to Tesira system for audio networking, configuration and control
  • Plug-in barrier strip connections on cards
  • Front panel LEDs for device status indications
  • Internal universal power supply
  • Rack mountable (1RU)
  • CE marked, UL listed, and RoHS compliant
  • 5-year warranty
  • Compliant with the US Trade Agreement Act (TAA)

Already own this item and want to sell it?

Click here to sell your item

Tesira EX-MOD Modular Expander Device Specs

Card Slots
Accepts up to three 4-channel plug-in I/O cards (such as the EIC-4, EEC-4, EOC-4, or EIOC-4) for a maximum of 12 channels.
Networking
Connects via a single AVB/TSN Ethernet connection for audio networking, configuration, and control.
Audio Quality
Features 24-bit A/D and D/A converters running at a 48kHz sampling rate with a dynamic range over 108dB.
Physical Design
Standard 1RU rack-mount footprint measuring 1.75"H x 10.5"W x 19"D and weighing 7 lbs, powered by an internal universal power supply (100–240VAC).
Compliance
CE marked, UL/C-UL listed, RoHS compliant, and TAA compliant.

Key Features

  • Can be configured with up to three I/O cards
  • Up to 12 channels of analog audio
  • AVB/TSN connection to Tesira system for audio networking, configuration and control
  • Plug-in barrier strip connections on cards
  • Front panel LEDs for device status indications
  • Internal universal power supply
  • Rack mountable (1RU)
  • CE marked, UL listed, and RoHS compliant
  • 5-year warranty
  • Compliant with the US Trade Agreement Act (TAA)
