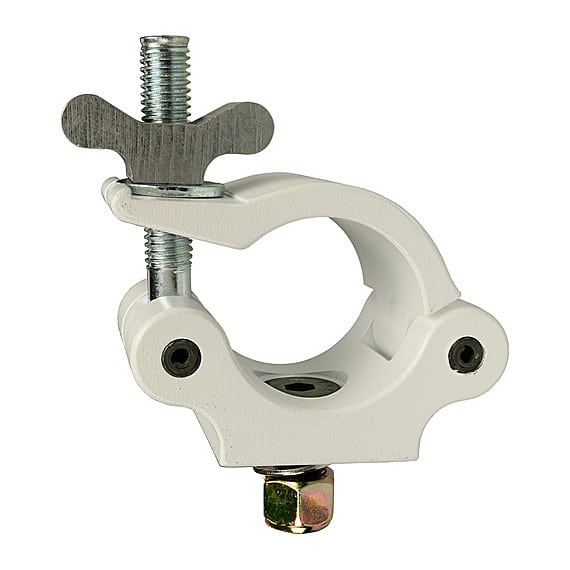

The Light Source Mega-Coupler with CS Base is an integrated mounting solution designed to securely attach a 1.5-inch nominal pipe to a flat surface or a Unistrut-type channel. This unit combines a robust pipe clamping mechanism with a versatile channel slide base, finished in a durable white powder coat for both corrosion protection and a clean aesthetic. The coupler portion is engineered to grip the 1.9-inch outer diameter of schedule 40 steel pipe firmly using a compression clamp, typically tightened by bolts on either side. Integrated directly into this clamp is a flat, rectangular "CS" (Channel Slotted) base plate featuring a central slot, which accommodates the included 3/8-inch flat head bolt and nyloc nut assembly for secure attachment to the framing system.

This design provides a critical bridge between pipe-based structures and the modularity of slotted metal framing. The flat head bolt sits flush within the base's slot when tightened, allowing for a sleek profile and preventing snagging. The use of a nyloc nut—a nut with an embedded nylon collar—ensures a vibration-resistant lock, preventing the connection from loosening over time due to environmental factors or structural movement. This makes the assembly exceptionally reliable for permanent or long-term installations in dynamic environments, such as supporting lighting trusses, audio equipment, signage, or partition frameworks from a ceiling or wall-mounted strut grid.

The white powder coat finish not only unifies the component's appearance but also offers enhanced durability against chipping and wear compared to standard paint. This coupler-base hybrid is a professional-grade hardware solution that streamlines installation by eliminating the need for separate adapters. It allows installers to quickly position and lock a pipe at any point along a length of channel, offering tremendous flexibility in the design and execution of custom support systems in venues, retail spaces, and industrial applications, where both strength and precise adjustability are required.
