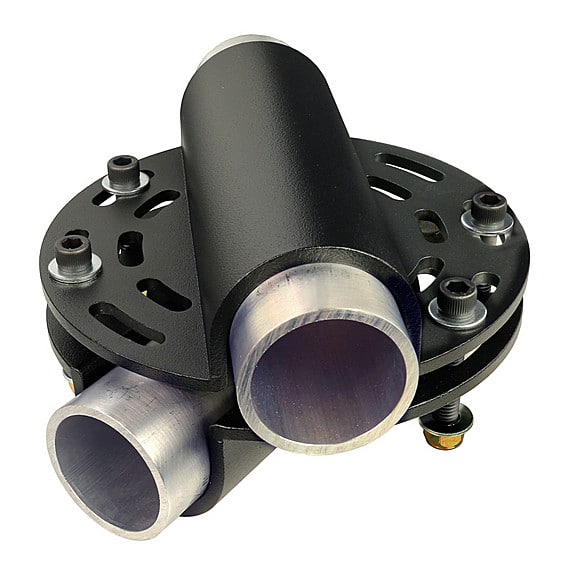

The Light Source Mega-Grid-Lock Diagonal Extra Large is a specialized nodal connector engineered to facilitate the construction of expansive, rigid three-dimensional truss systems with integrated diagonal bracing. This oversized component is designed to join multiple large-diameter pipes not just at standard right angles, but at fixed acute or obtuse angles critical for creating triangulated geometries. Triangulation is the fundamental principle behind structural rigidity in truss work, and this connector allows such bracing to be incorporated directly into the nodal point, significantly enhancing the load-bearing capacity and stability of large-scale frameworks for stages, lighting grids, exhibition booths, and architectural installations. Its black anodized finish provides a durable, corrosion-resistant surface that maintains a consistent professional appearance while protecting the aluminum from the wear of frequent assembly and disassembly in touring or rental scenarios.

Machined from high-strength aluminum alloy, the "Extra Large" designation indicates its capacity to accommodate pipes with a greater outer diameter than standard Grid-Lock connectors, allowing for the construction of more substantial structures capable of supporting heavier dynamic loads, such as lighting, audio, and video equipment. The precision-machined ports are angled to secure diagonal members firmly, locking them into position alongside the primary orthogonal pipes to form a monolithic joint. This design eliminates the need for separate gusset plates or complicated welding, streamlining the assembly process while ensuring every connection contributes directly to the overall structural integrity of the framework.

In practical application, this connector enables the fabrication of professional-grade box trusses and space frames from modular pipe. By allowing diagonal bracing to originate directly from a central hub, it maximizes torsional stiffness and minimizes deflection across long spans. The predictable, fixed angles ensure repeatable geometry, which is essential for creating multiple identical truss sections that must interconnect flawlessly. For production companies, installers, and designers, the Mega-Grid-Lock Diagonal XL transforms a collection of pipes into a high-performance, engineered structural system, offering a blend of unparalleled strength, modular flexibility, and professional-grade finish for the most demanding overhead and freestanding applications.
