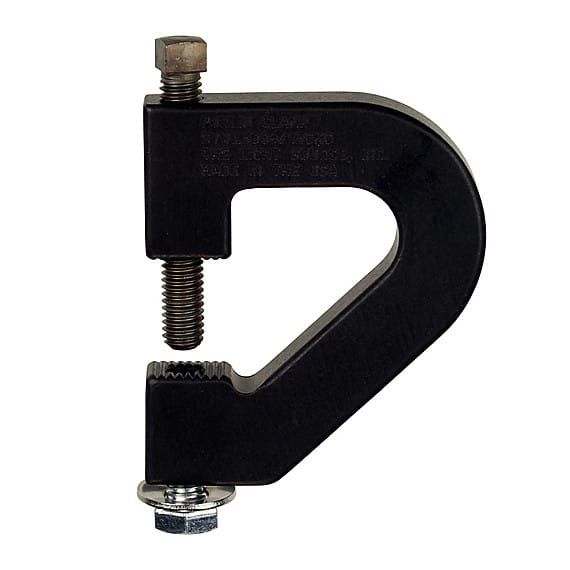

The Light Source Purlin Clamp 3/8" Fasteners Black Anodized PCB3/8
$19.00
Unit price
/
Shipping calculated at checkout.
For used equipment, the images displayed reflect the exact item and contents included, unless otherwise specified in the product description.
Already own this item and want to sell it?
Click here to sell your item
Description
Description
The Purlin Clamp is perfect for installing almost anything to bar joists, purlins and I-beams up to 1" thick. A 1/2"-13 × 2.5″ fully threaded square head set screw is provided for locking onto the structural member. A 1/2"-13 × 1″ grade 5 Hex Head Bolt is supplied to connect the load. Or use a 1/2"-13 tpi threaded rod to support a load at any length. The Purlin Clamp has Micro-grooves for a secure connection to beam. The 1/2" fastener Purlin Clamp body is extruded from aircraft grade aluminum and is 1" thick.
The Purlin Clamp is also available with 3/8"-16 tpi fasteners. 3/8"-16 tpi x 2.5" fully threaded square head set screw is provided for locking onto the structural member. A 3/8"-16 × 1″ grade 5 Hex Head Bolt is supplied to connect the load. Or use a 3/8"-16 tpi threaded rod to support a load at any length.
