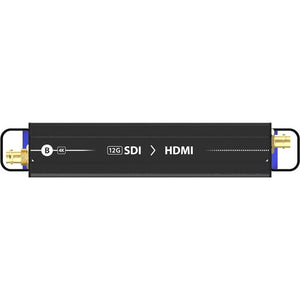

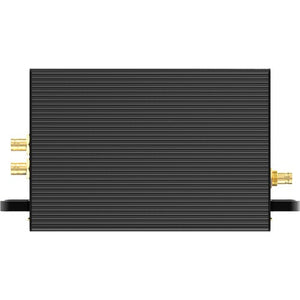

Theatrixx Technologies 12G-SDI to HDMI Reversible Module

Name: Theatrixx Technologies 12G-SDI to HDMI Reversible Module
Brand: AVGear.com
SKU: Theatrixx-XVVRM-SDI2HDMI
Price: 450.00 USD
Availability: InStock

$450.00

Shipping calculated at checkout.

For used equipment, the images displayed reflect the exact item and contents included, unless otherwise specified in the product description.

Already own this item and want to sell it?

Click here to sell your item

Description

The Theatrixx XVVRM-SDI2HDMI-12G module can be inserted in the XVVRF8 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

Features

High-Resolution Support: Handles up to 12G-SDI, supporting resolutions like 4K UHD (3840x2160p60) and DCI 4K (4096x2160p60).
Reversible Design: Fits into Theatrixx's reversible frame system (like the XVVRF8), allowing input/output placement at the front or back.
Durability: Enclosed, tour-ready, rugged design protects against static, dust, and wear, with magnetic stacking for stability.
Plug-and-Play: Simple operation with no dipswitches or menus, just plug it in.

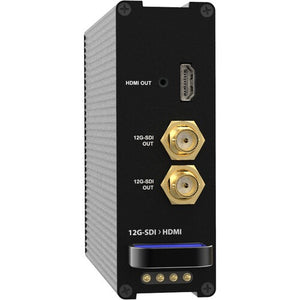

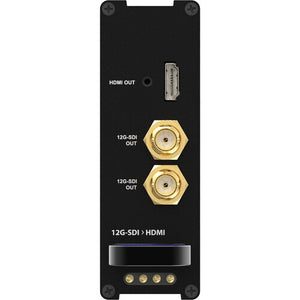

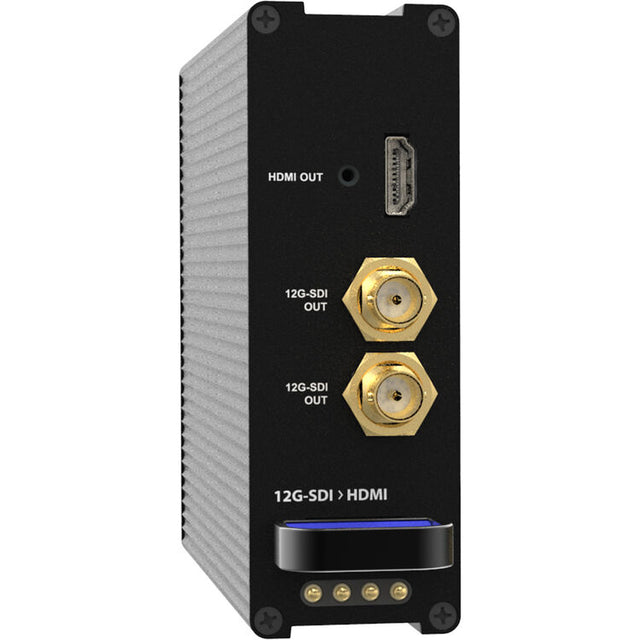

Locking HDMI: Secures the HDMI cable to prevent accidental disconnections.

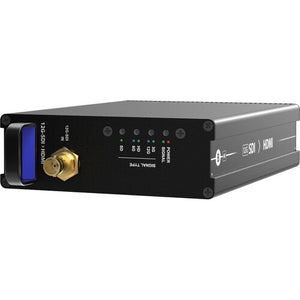

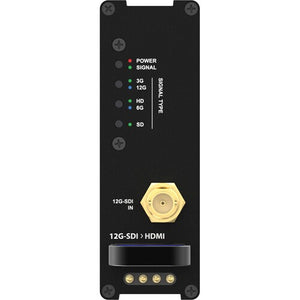

Status LEDs: Clear indicators for quick troubleshooting.
Reclocked SDI Loop-Through: Provides a clean, amplified SDI output.
Wide Format Compatibility: Auto-detects and supports various SDI standards (12G, 6G, 3G, HD, SD) and video samplings (4:2:2, 4:4:4).
