SKU: Theatrixx-XVVRM-SDIXHDMI

Theatrixx Technologies 3G-SDI Line Delay Module

$665.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

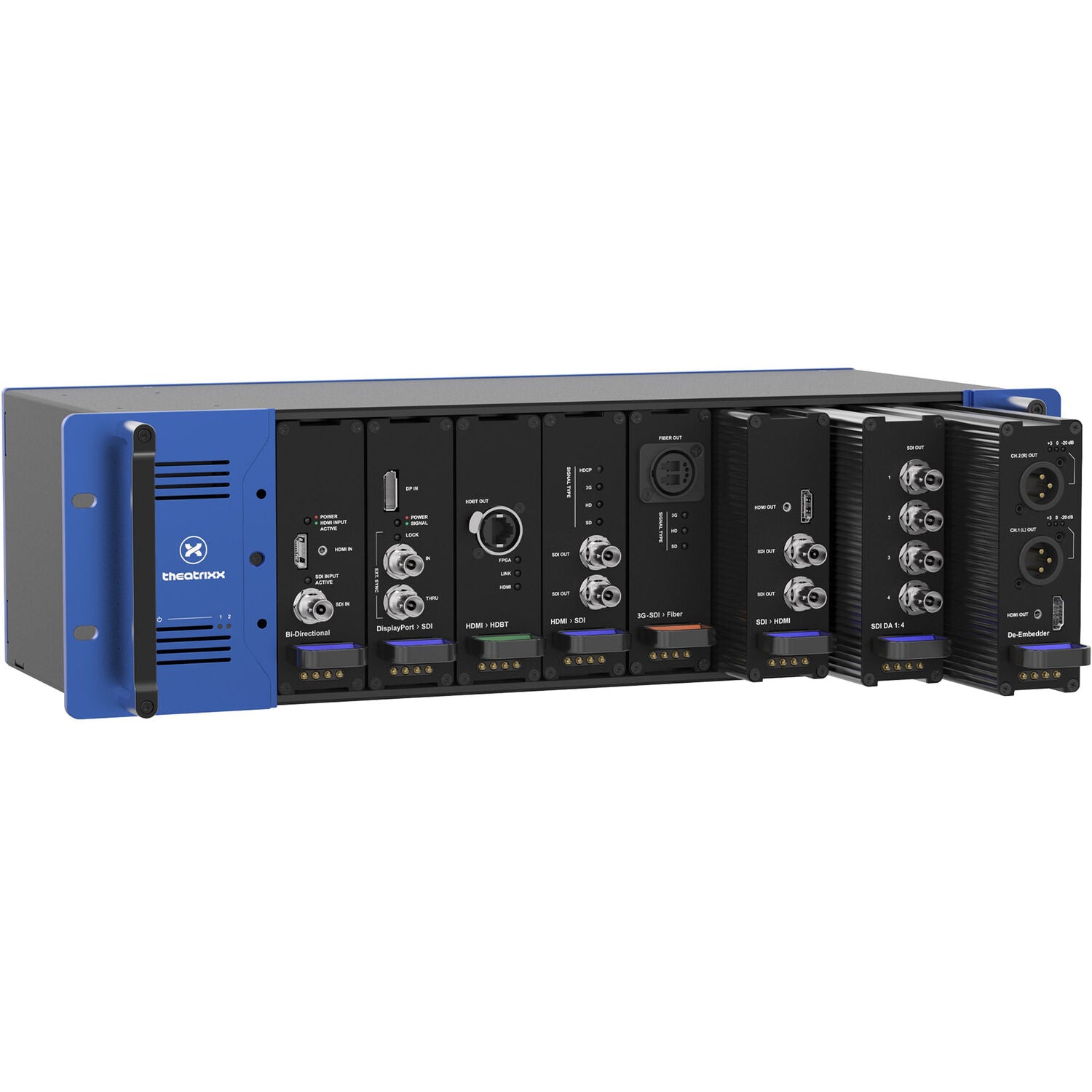

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed. Read more

Features

  • Reversible Design: Can be inserted front-to-back or back-to-front in the 8-Bay Rackmount Frame for flexible placement.
  • Robust & Protected: Enclosed module with no exposed PCBs, protecting against static, dust, and wear; also features magnetic retention for power pins.
  • Integrated Delay: Delays the full SDI payload (up to 16 channels of audio, 48kHz/24bit).
  • Precision Adjustment: Fine-tune delay by frame or millisecond using an onboard OLED screen and rotary wheel.
  • Versatile Signal Support: Handles 3G, HD, and SD formats (e.g., 1080p, 720p, 480i, 576i).
  • Rackmount Integration: Powers via gold-plated pins from the XVVRF8 frame, eliminating external power bricks and messy cables.
  • Connectivity: 1x 3G-SDI BNC input, 1x 3G-SDI BNC loop-thru (no delay), 4x 3G-SDI BNC delayed/mirrored outputs.
  • SMPTE Compliance: Supports various standards (ST425M, ST424M, ST292M, ST259M).

Business Financing Options Avaiable

View Available Financing

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed. Read more

Features

  • Reversible Design: Can be inserted front-to-back or back-to-front in the 8-Bay Rackmount Frame for flexible placement.
  • Robust & Protected: Enclosed module with no exposed PCBs, protecting against static, dust, and wear; also features magnetic retention for power pins.
  • Integrated Delay: Delays the full SDI payload (up to 16 channels of audio, 48kHz/24bit).
  • Precision Adjustment: Fine-tune delay by frame or millisecond using an onboard OLED screen and rotary wheel.
  • Versatile Signal Support: Handles 3G, HD, and SD formats (e.g., 1080p, 720p, 480i, 576i).
  • Rackmount Integration: Powers via gold-plated pins from the XVVRF8 frame, eliminating external power bricks and messy cables.
  • Connectivity: 1x 3G-SDI BNC input, 1x 3G-SDI BNC loop-thru (no delay), 4x 3G-SDI BNC delayed/mirrored outputs.
  • SMPTE Compliance: Supports various standards (ST425M, ST424M, ST292M, ST259M).

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the Theatrixx Technologies 3G-SDI Line Delay Module

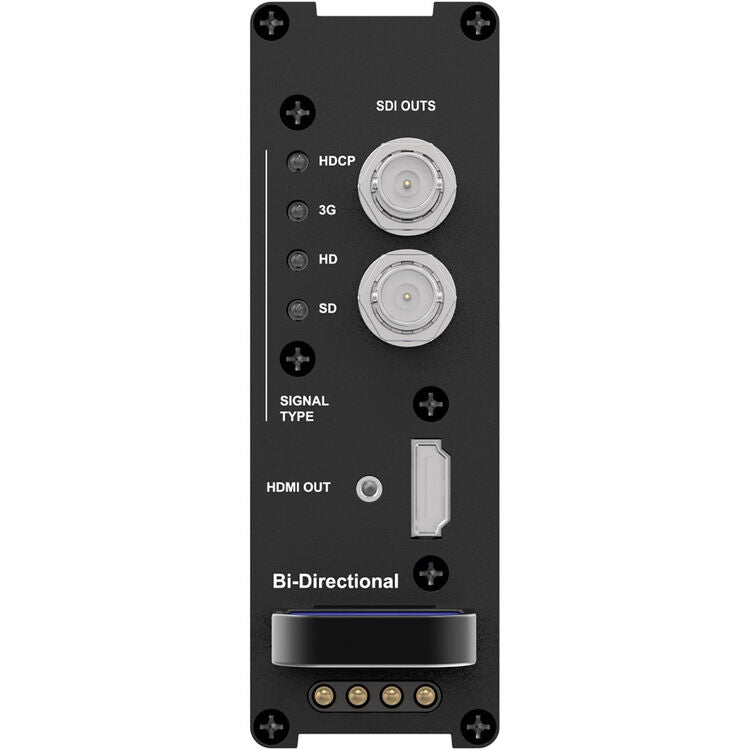

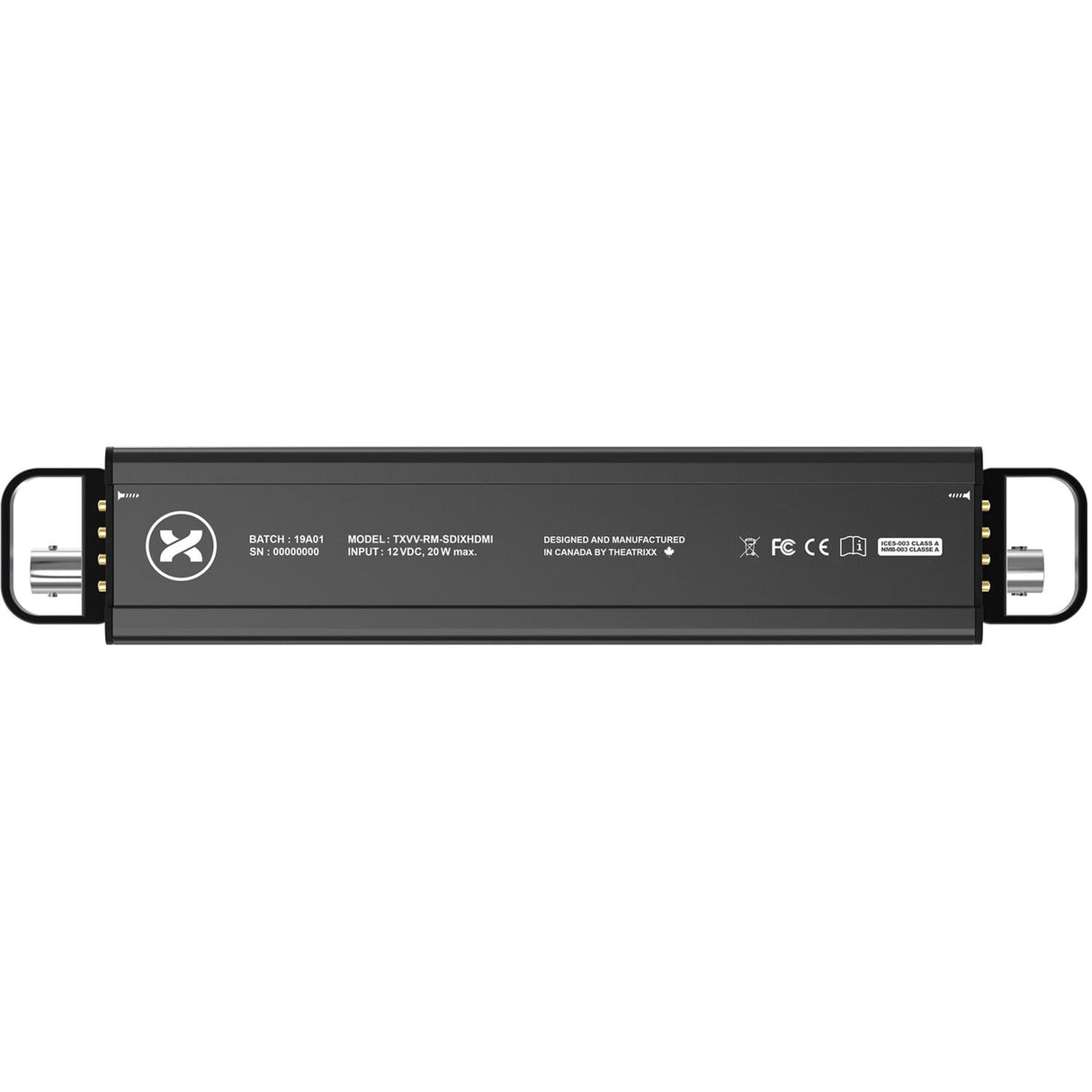

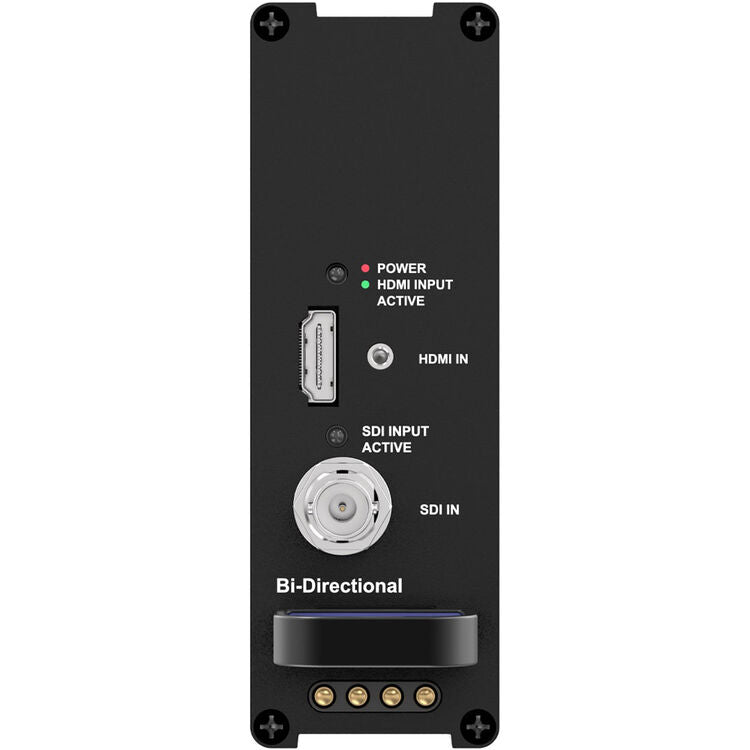

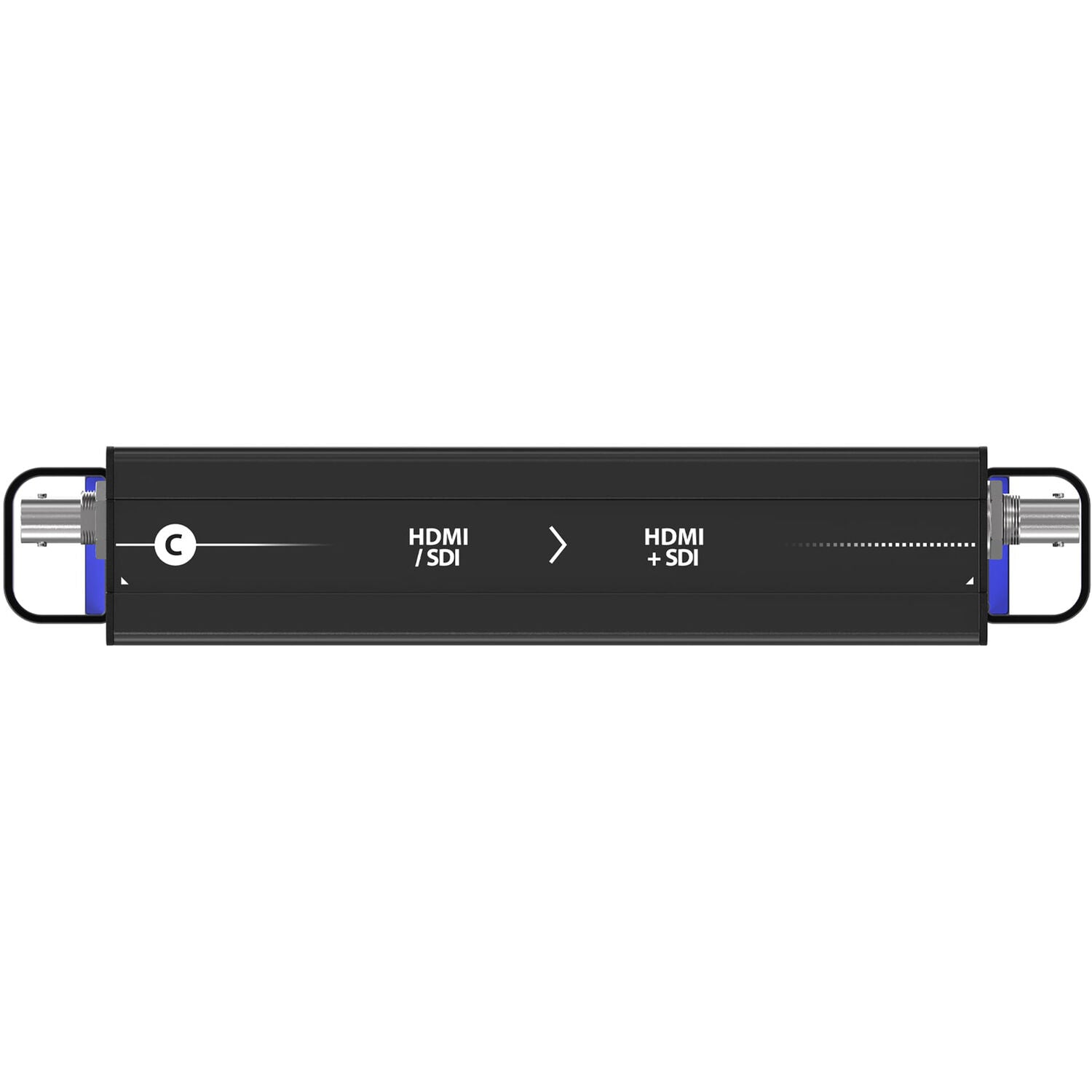

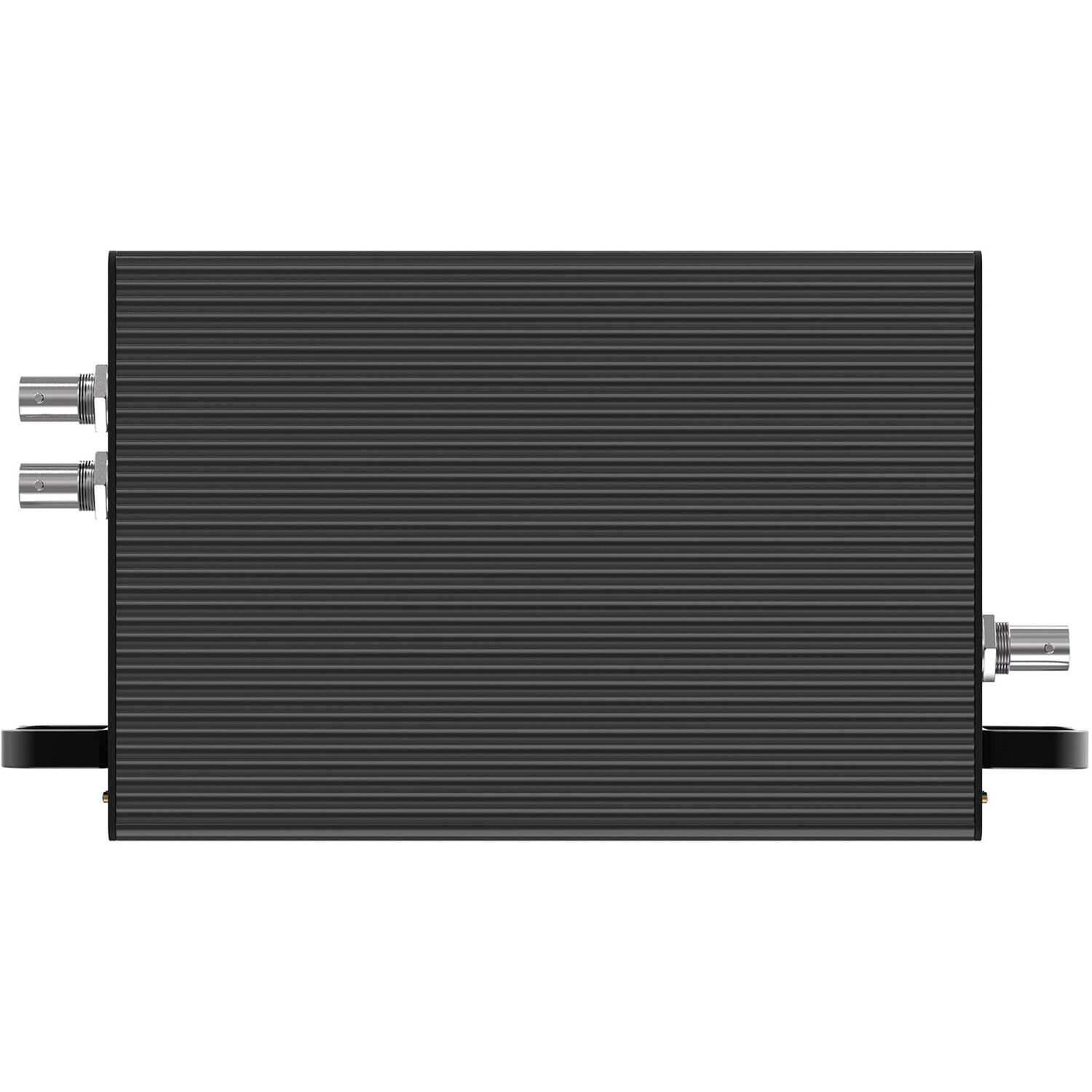

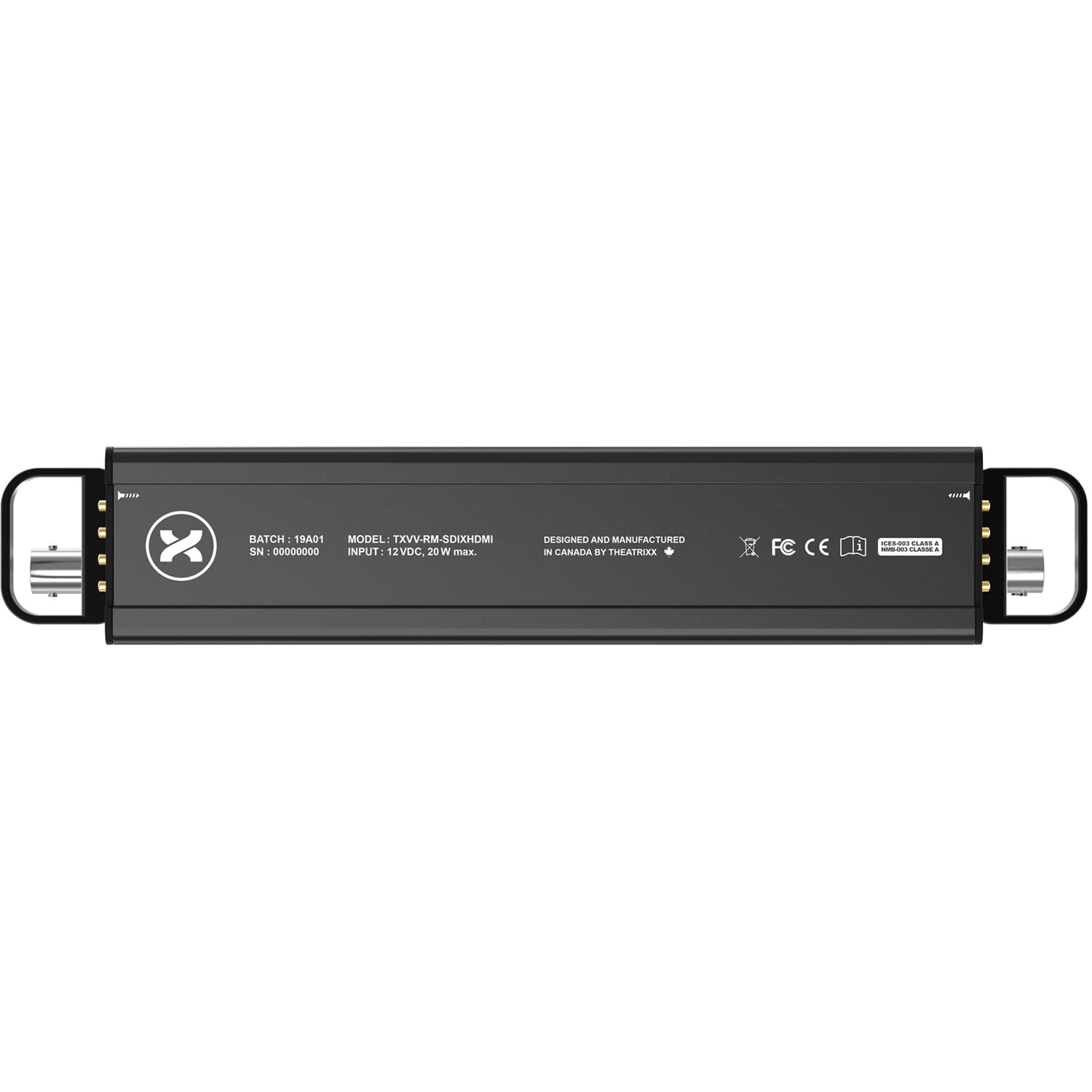

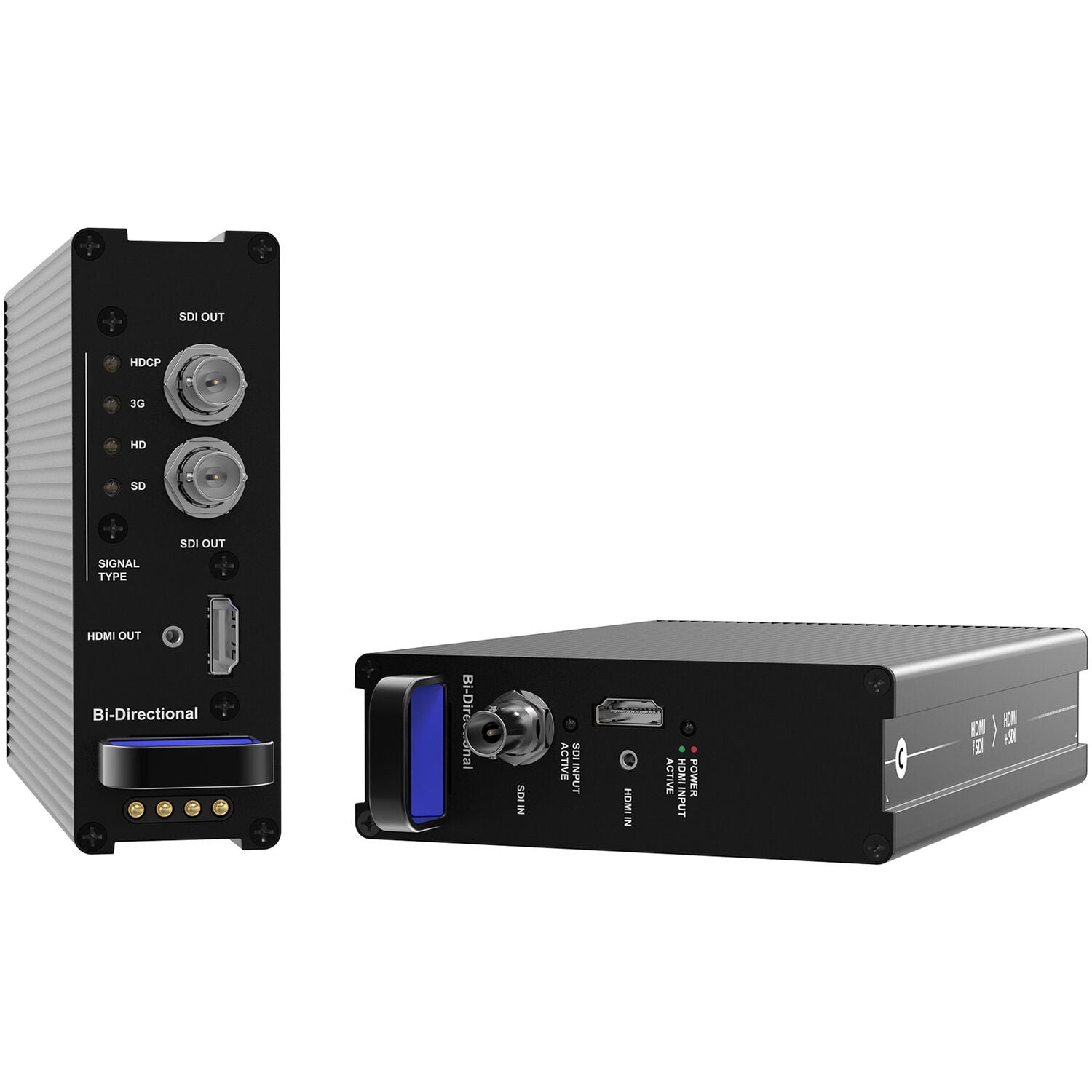

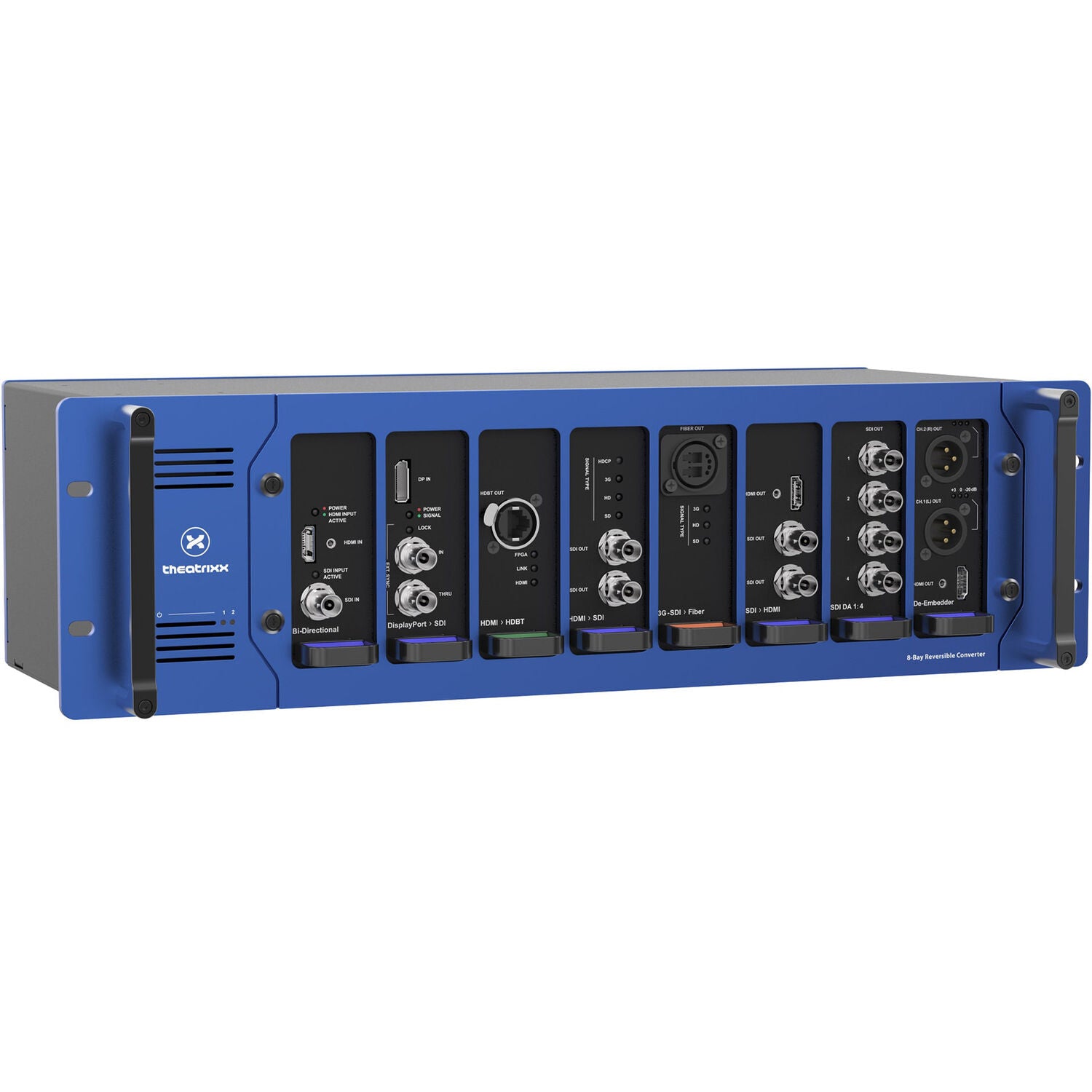

The Theatrixx XVVRM-SDIXHDMI is an SDI/HDMI Bidirectional Reversible Module that fits in the 8-Bay Reversible Rackmount Converter system.

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

Key Features

  • Reversible Design: Can be inserted front-to-back or back-to-front in the 8-Bay Rackmount Frame for flexible placement.
  • Robust & Protected: Enclosed module with no exposed PCBs, protecting against static, dust, and wear; also features magnetic retention for power pins.
  • Integrated Delay: Delays the full SDI payload (up to 16 channels of audio, 48kHz/24bit).
  • Precision Adjustment: Fine-tune delay by frame or millisecond using an onboard OLED screen and rotary wheel.
  • Versatile Signal Support: Handles 3G, HD, and SD formats (e.g., 1080p, 720p, 480i, 576i).
  • Rackmount Integration: Powers via gold-plated pins from the XVVRF8 frame, eliminating external power bricks and messy cables.
  • Connectivity: 1x 3G-SDI BNC input, 1x 3G-SDI BNC loop-thru (no delay), 4x 3G-SDI BNC delayed/mirrored outputs.
  • SMPTE Compliance: Supports various standards (ST425M, ST424M, ST292M, ST259M).

Already own this item and want to sell it?

Click here to sell your item

Theatrixx Technologies 3G-SDI Line Delay Module Specs

Connections
Video Input
Auto switching between 1 x 3G/HD/SD SDI BNC & 1 x HDMI 1.2 type A with locking system
Video Output
1x HDMI 1.2 type A with locking system 2x 3G/HD/SD SDI BNC
Input Priority
SDI input
Supported Signals
3G Format Support
1080p50, 1080p59.94, 1080p60
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
SD Format Support
525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Sample rate of 48 kHz and 24 bit
SDI Color Space
YUV and RGB
SDI Auto Switching
Automatically detects incoming signal format
SMPTE Standards
425 M Level A & B, 424 M Level A, 292 M, 259 M
Environmental
Relative Humidity
0% to 90% non-condensing
Operating Temperature
32° to 104°F (0° to 40°C)
Power Requirements
Power Supply
Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
Power Consumption
20W
Voltage Range
12VDC

Key Features

  • Reversible Design: Can be inserted front-to-back or back-to-front in the 8-Bay Rackmount Frame for flexible placement.
  • Robust & Protected: Enclosed module with no exposed PCBs, protecting against static, dust, and wear; also features magnetic retention for power pins.
  • Integrated Delay: Delays the full SDI payload (up to 16 channels of audio, 48kHz/24bit).
  • Precision Adjustment: Fine-tune delay by frame or millisecond using an onboard OLED screen and rotary wheel.
  • Versatile Signal Support: Handles 3G, HD, and SD formats (e.g., 1080p, 720p, 480i, 576i).
  • Rackmount Integration: Powers via gold-plated pins from the XVVRF8 frame, eliminating external power bricks and messy cables.
  • Connectivity: 1x 3G-SDI BNC input, 1x 3G-SDI BNC loop-thru (no delay), 4x 3G-SDI BNC delayed/mirrored outputs.
  • SMPTE Compliance: Supports various standards (ST425M, ST424M, ST292M, ST259M).
