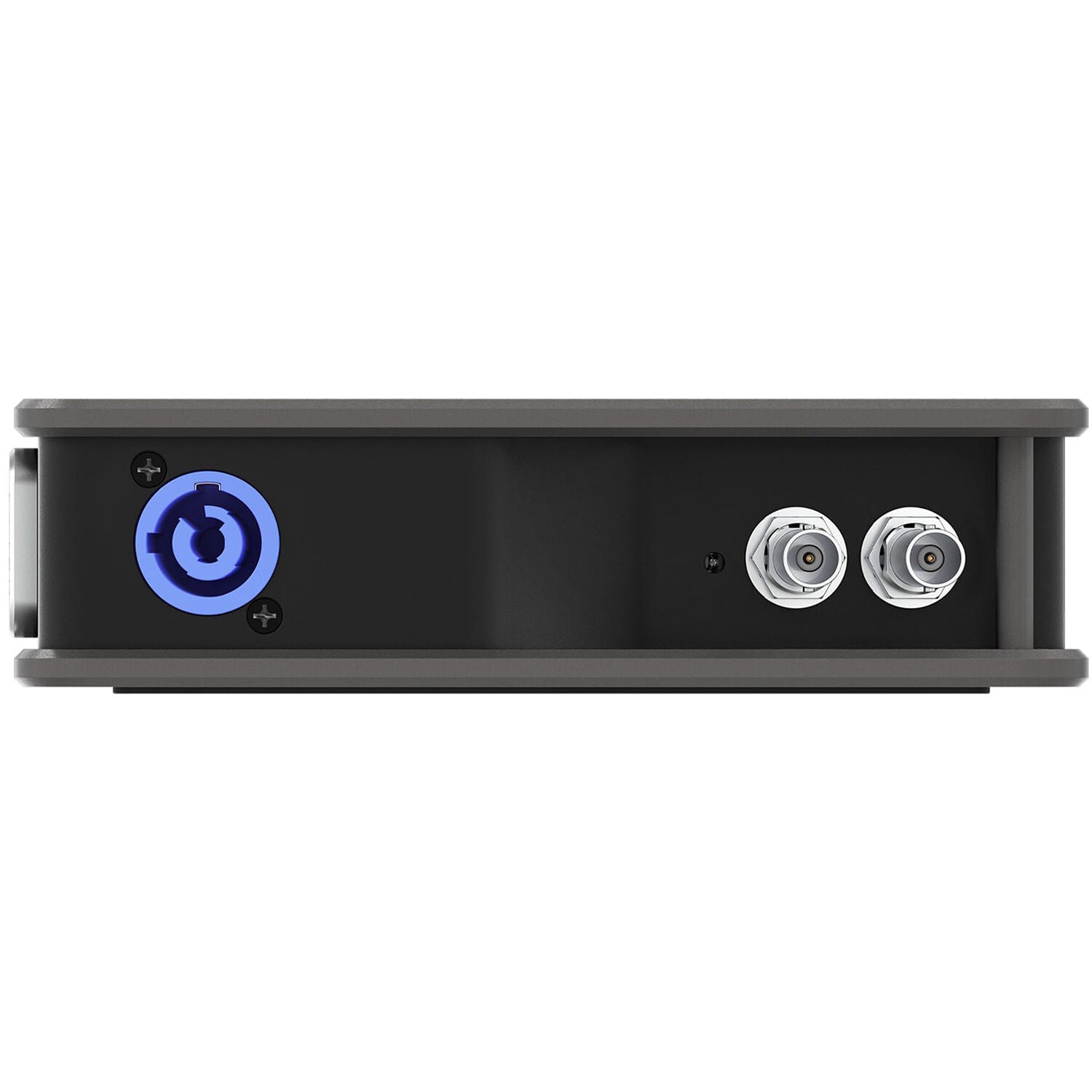

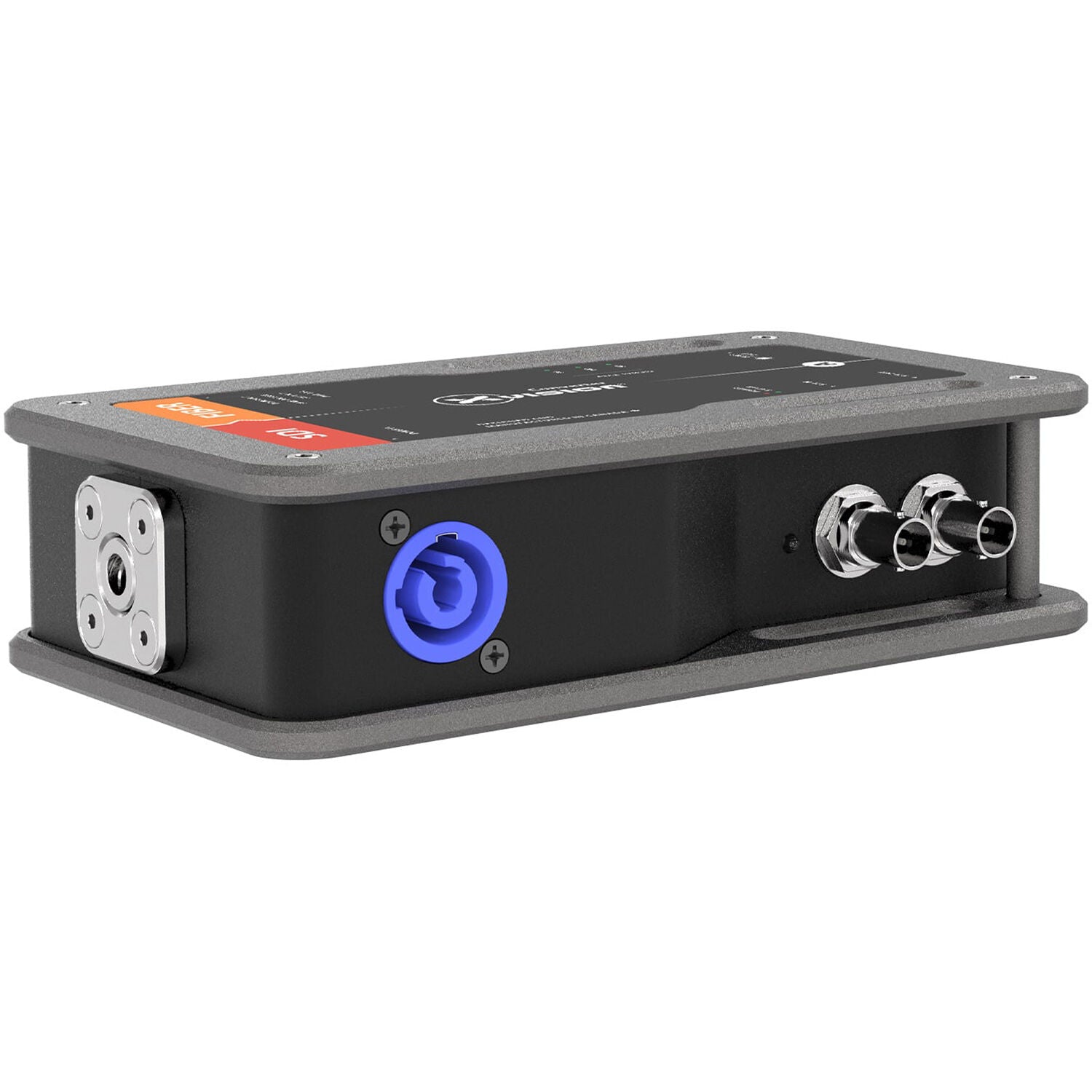

The Theatrixx Technologies 3G-SDI to Fiber xVision Converter with PowerCON In/Edison Loop-Thru (Multimode, ST) is a professional broadcast-grade device engineered to convert optical fiber signals back to 3G-SDI video for use in live events, broadcast studios, rental houses, touring, and permanent AV installations. This compact, plug-and-play converter accepts a multimode optical SDI input via a standard ST fiber connector and provides dual reclocked and amplified 3G-SDI outputs on industry-standard BNC connectors, enabling seamless integration of long-distance fiber infrastructure with local SDI equipment.

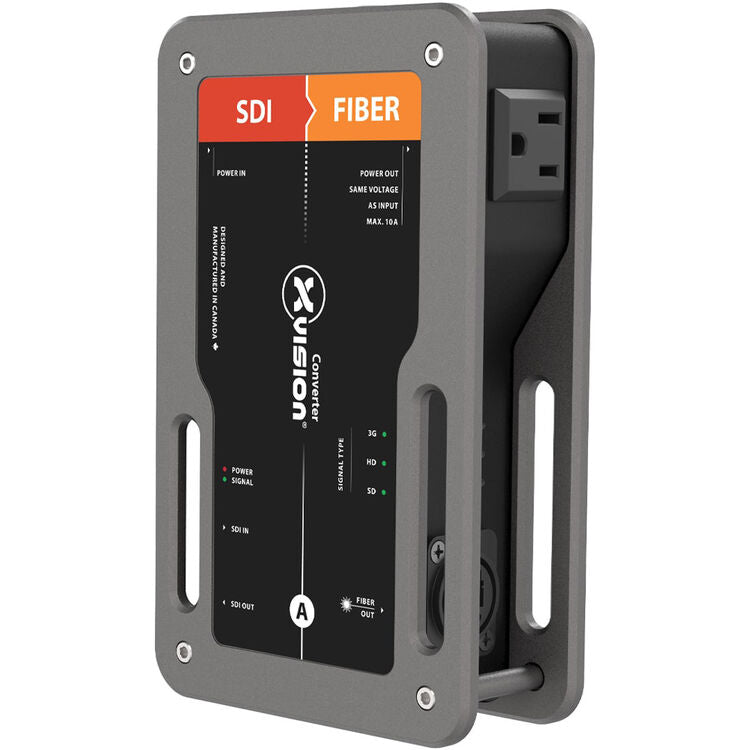

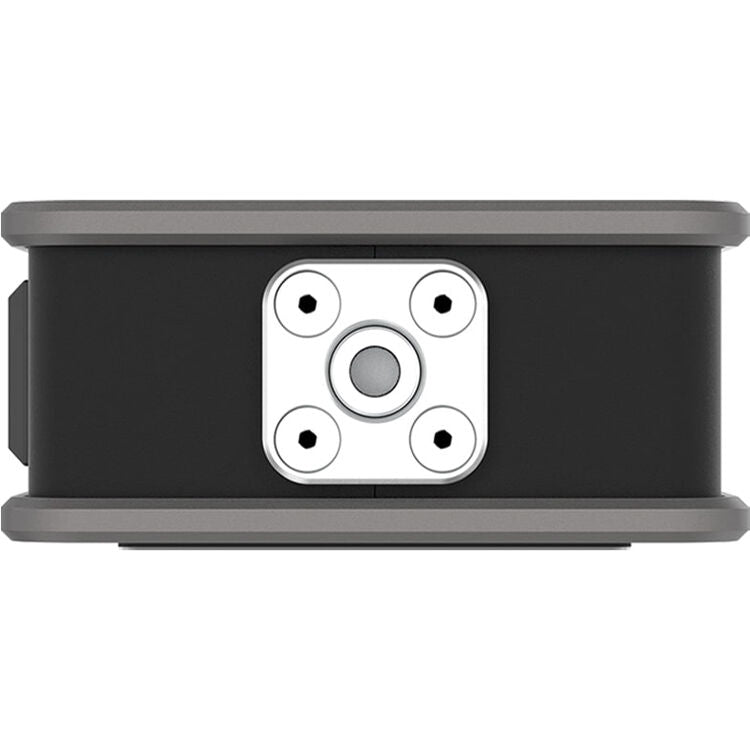

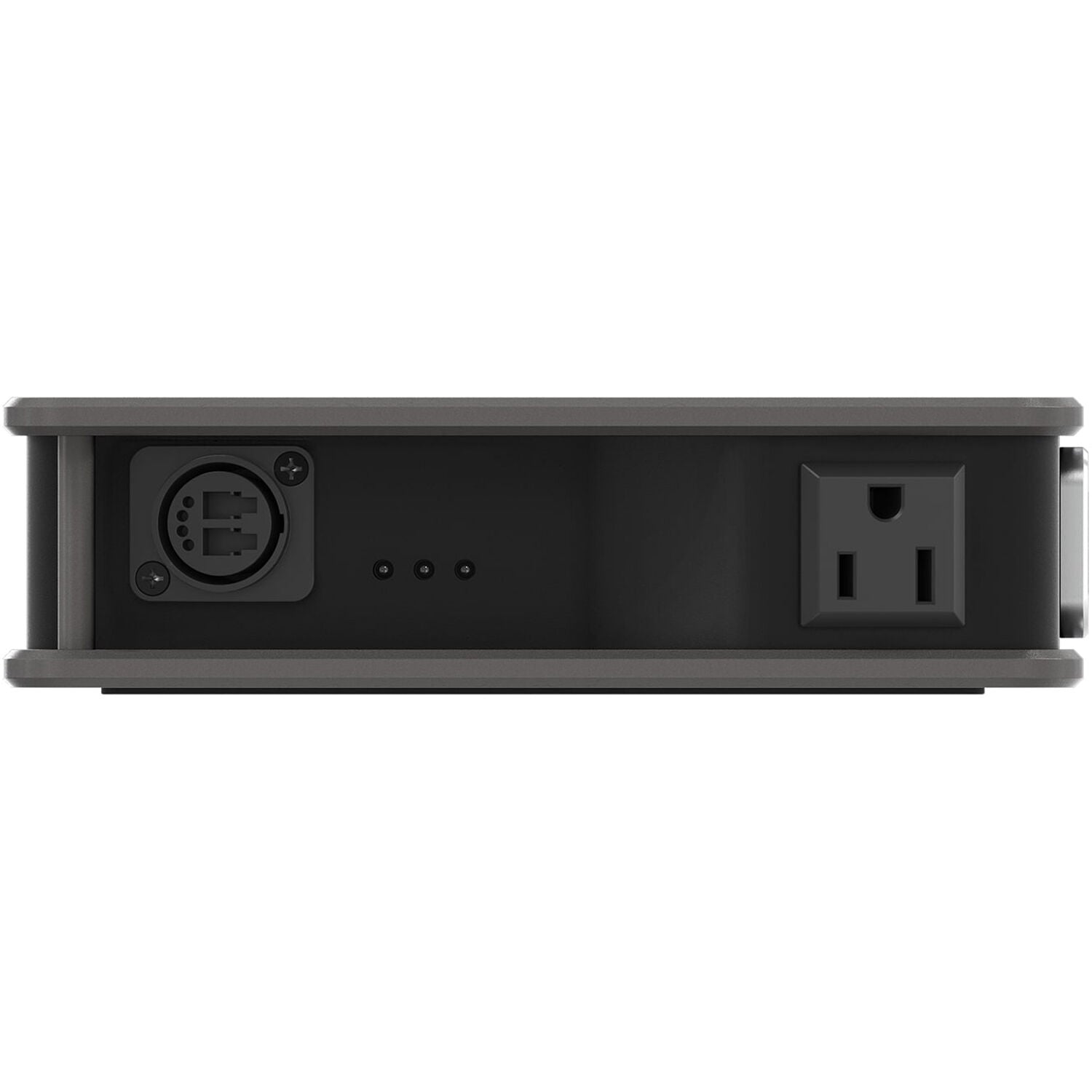

True to Theatrixx's road-focused design philosophy, the xVision series eliminates the weakest links common in consumer-grade converters—fragile wall-wart power supplies, unreliable connectors, and weak enclosures. The unit features an integrated power supply with a locking Neutrik powerCON input and a built-in NEMA 5-15 Edison AC courtesy outlet capable of delivering up to 10 amps to power a nearby projector, television, laptop, or other device directly from the converter. The rugged metal chassis incorporates a magnetic stacking system with non-skid rubber pads, allowing multiple converters to be stacked securely on tabletops without gaffer tape—saving rental houses considerable time and material. Multiple mounting options including C-clamp, wall-mount adapter, LCD mount adapter, and belt adapter provide installation flexibility for any deployment scenario.

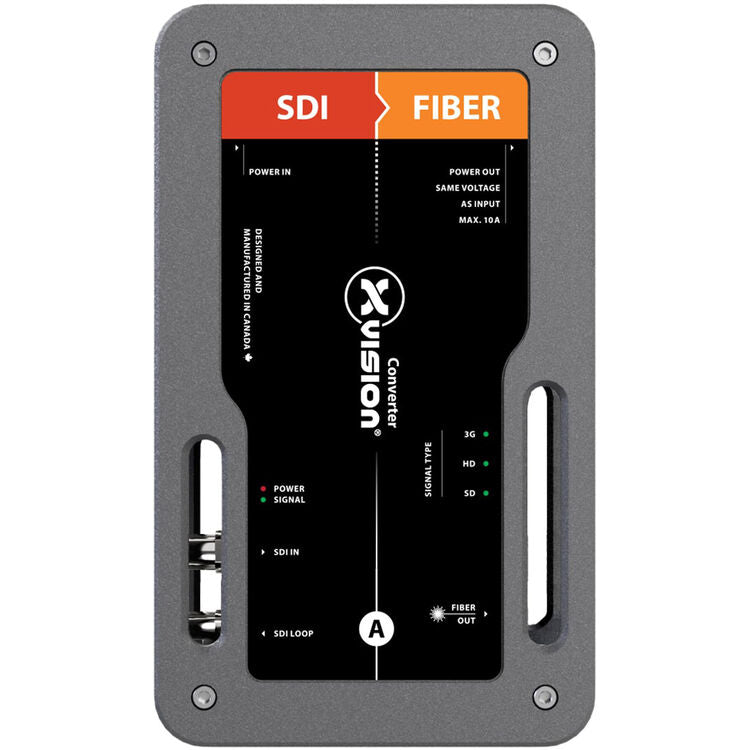

The conversion path fully supports 3G-SDI (SMPTE 424M Levels A and B) at 1080p60, HD-SDI (SMPTE 292M), and SD-SDI (SMPTE 259M) standards with embedded audio passthrough of up to 8 channels at 24-bit, 48 kHz resolution. The unit features automatic input format detection with clear status LED indicators providing real-time feedback for power, signal lock, and signal type (3G/HD/SD).
