SKU: Theatrixx-XVVSDI2FIBERT1-S1

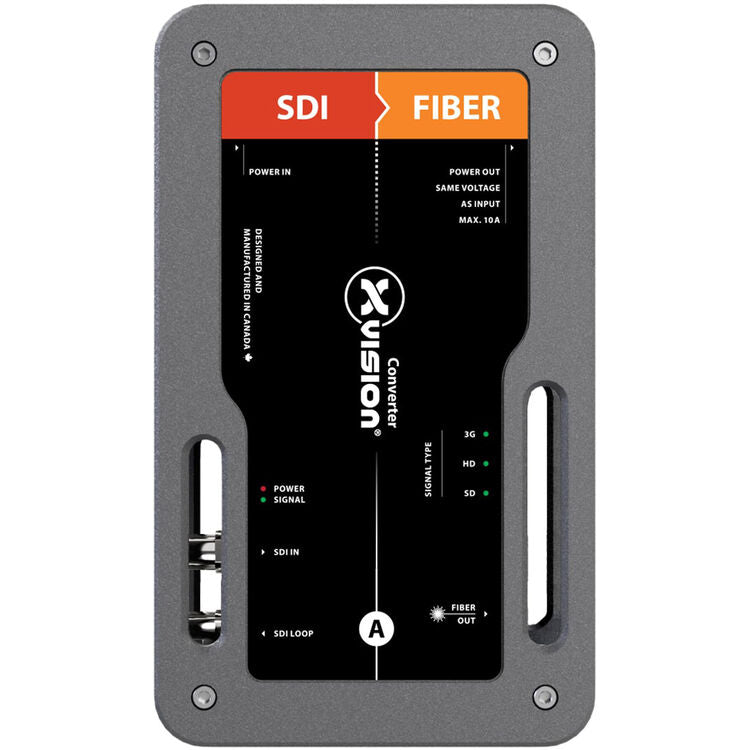

Theatrixx Technologies 3G-SDI to ST Fiber xVision Converter with True1 Loop (Single-Mode, ST)

$699.00 - $840.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

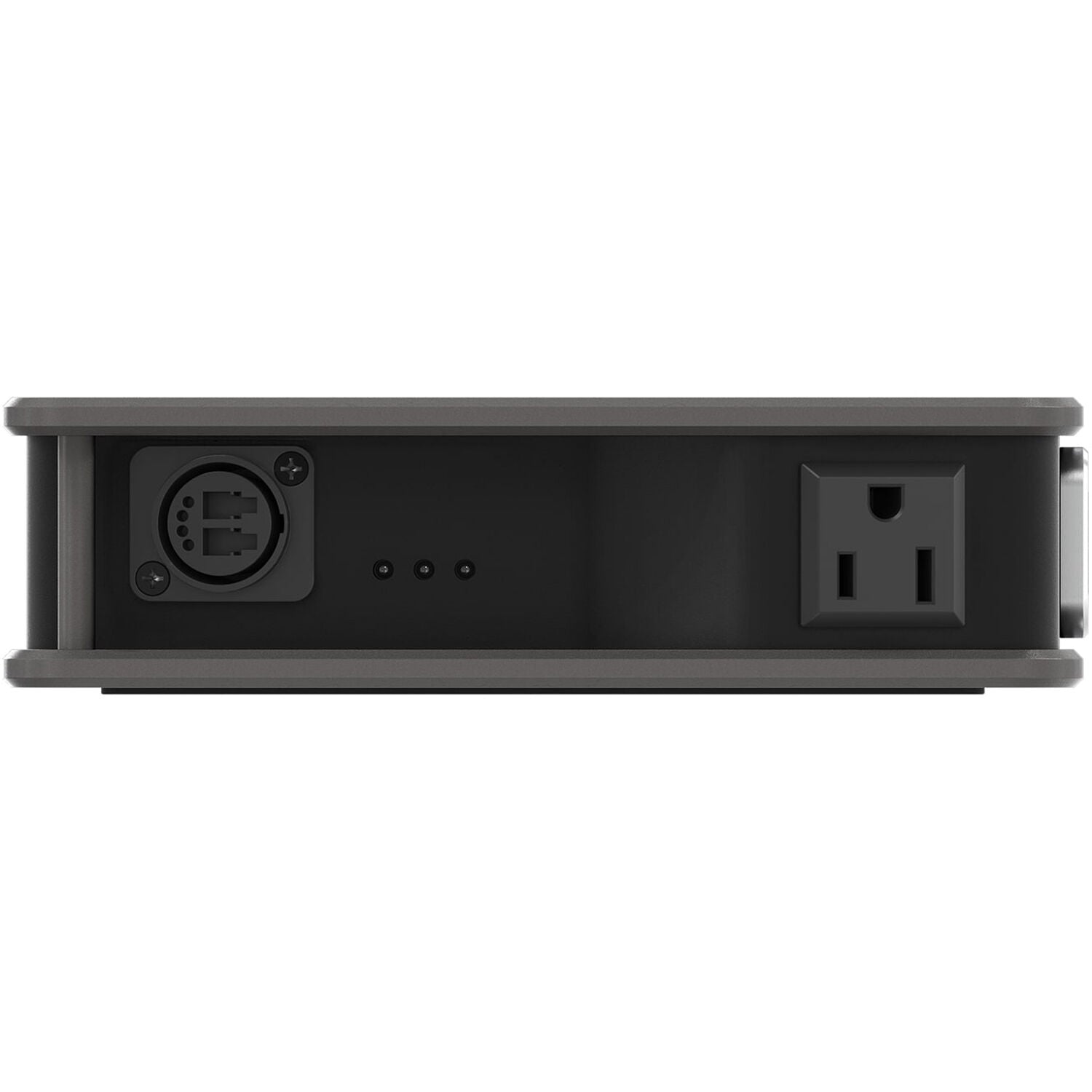

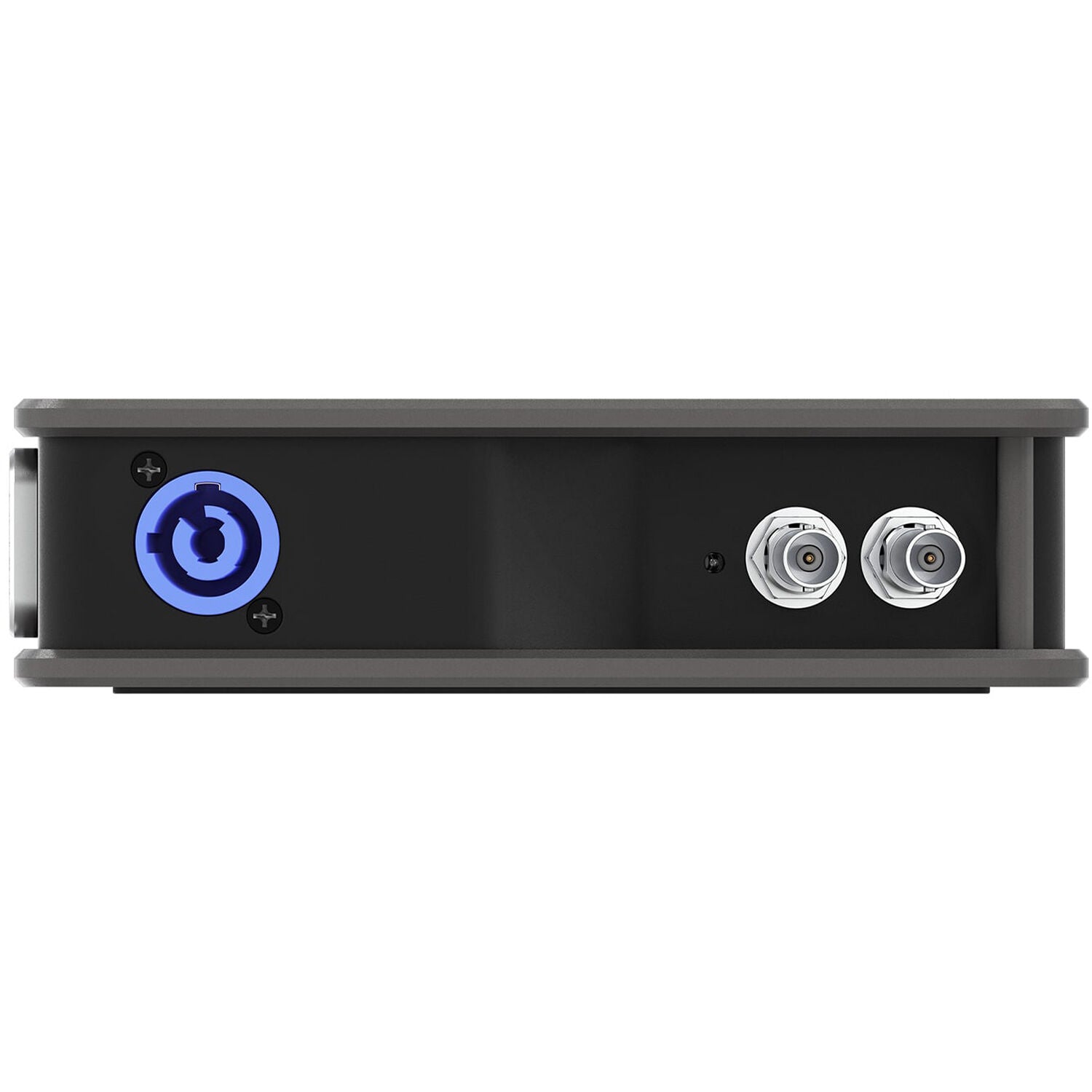

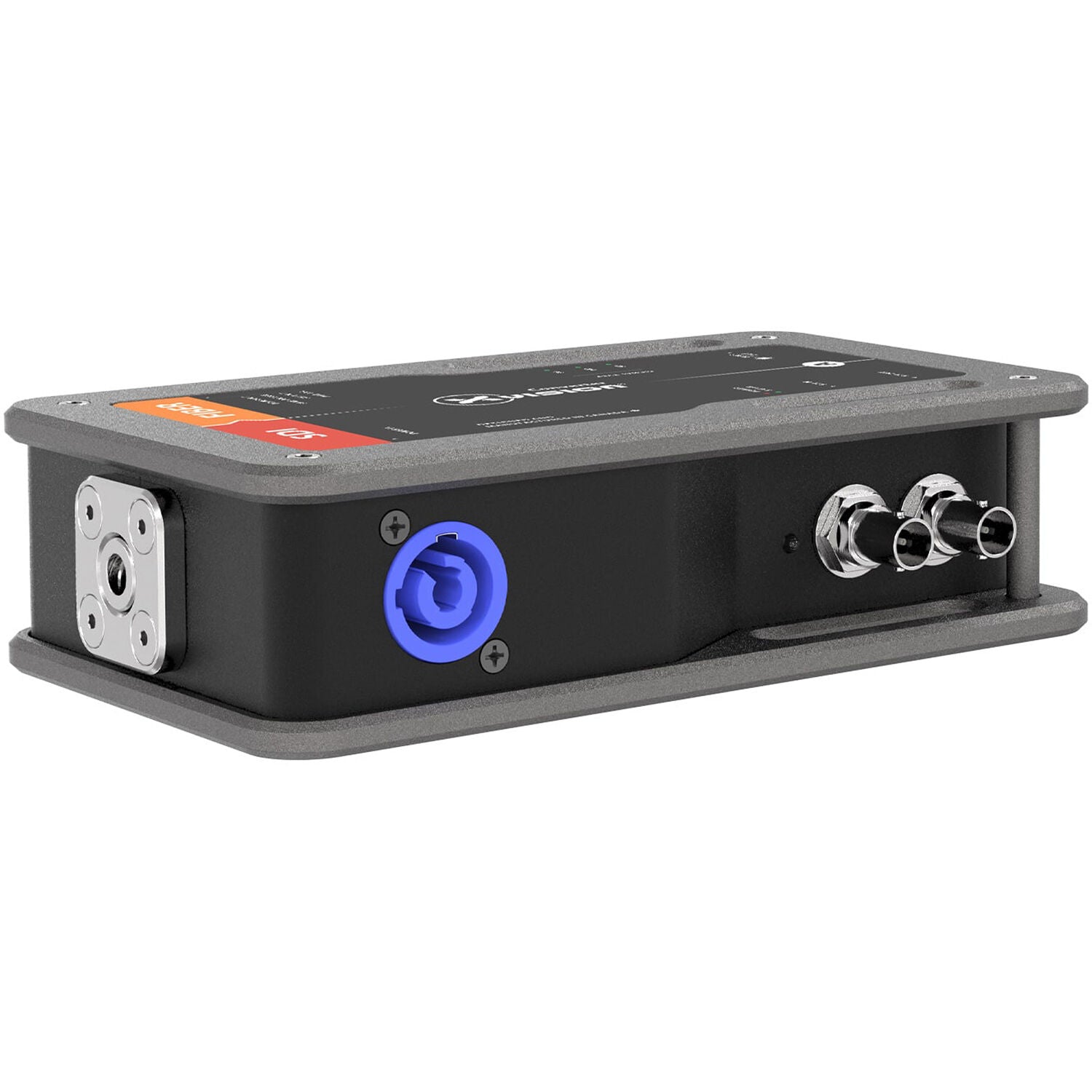

The 3G-SDI to ST Fiber xVision Converter with True1 Loop from Theatrixx Technologies is a sturdy, compact plug-and-play converter that offers a 3G-SDI input to a single-mode ST SFP fiber output module for video conversion over long-distances. The unit features an integrated power supply with a locking powerCON True1 connector and a built-in standard AC outlet to power a nearby projector, TV, or laptop. There is also a loop-through powerCON True1 output to daisy-chain your modules or power a local TV, computer, or projector. Read more

Features

  • Plug-and-Play Operation
  • 3G-SDI to SFP Fiber Video Transmission
  • Single-Mode Fiber Connection Type
  • ST Connector Output
  • PowerCON True1 Power Input/Loop Output

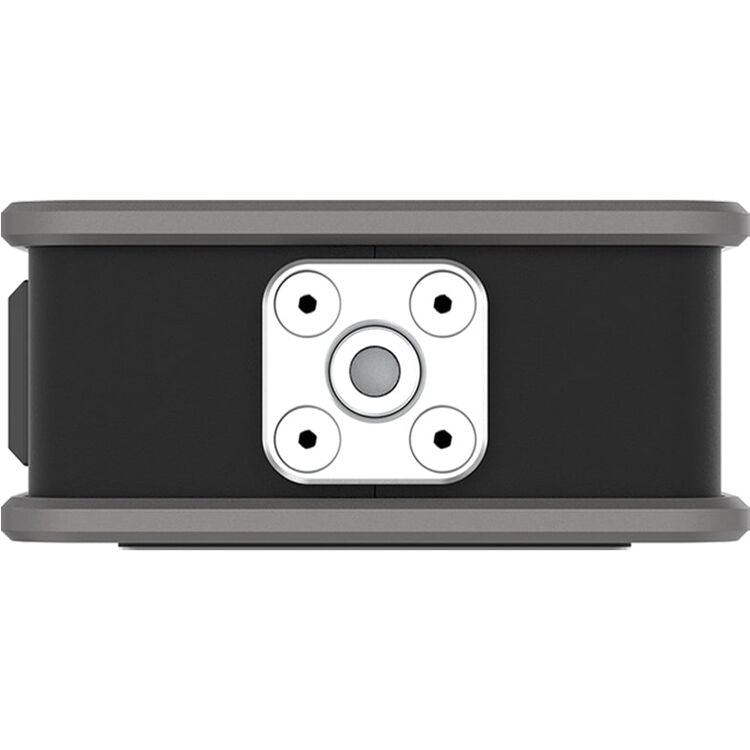

  • Multiple Mounting Options
  • Magnetic Stacking System

Business Financing Options Avaiable

View Available Financing

The 3G-SDI to ST Fiber xVision Converter with True1 Loop from Theatrixx Technologies is a sturdy, compact plug-and-play converter that offers a 3G-SDI input to a single-mode ST SFP fiber output module for video conversion over long-distances. The unit features an integrated power supply with a locking powerCON True1 connector and a built-in standard AC outlet to power a nearby projector, TV, or laptop. There is also a loop-through powerCON True1 output to daisy-chain your modules or power a local TV, computer, or projector. Read more

Features

  • Plug-and-Play Operation
  • 3G-SDI to SFP Fiber Video Transmission
  • Single-Mode Fiber Connection Type
  • ST Connector Output
  • PowerCON True1 Power Input/Loop Output
  • Multiple Mounting Options
  • Magnetic Stacking System

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the Theatrixx Technologies 3G-SDI to ST Fiber xVision Converter with True1 Loop (Single-Mode, ST)

Introducing the world's first video converters truly designed for the road. Video converters nowadays are used everywhere at professional A/V events, presentations, live shows and tours and often have a critical role. The Theatrixx XVVSDI2FIBERT1-S1 xVision Converter is a 3G-SDI to Fiber, PT1 In/Thru with SingleMode & OpticalCON DUO input.

Key Features

  • Plug-and-Play Operation
  • 3G-SDI to SFP Fiber Video Transmission
  • Single-Mode Fiber Connection Type
  • ST Connector Output
  • PowerCON True1 Power Input/Loop Output
  • Multiple Mounting Options
  • Magnetic Stacking System

Already own this item and want to sell it?

Click here to sell your item

Theatrixx Technologies 3G-SDI to ST Fiber xVision Converter with True1 Loop (Single-Mode, ST) Specs

Connections
Video Output
Singlemode
Video Input
1x 3G/HD/SD SDI BNC
Loop-thru
1x 3G/HD/SD SDI BNC
Supported Signals
Video Format Support
3G-SDI Level A and B, HD-SDI, SD SDI with embedded audio
SMPTE Standards
425 M Level A & B, 424 M, 292 M, 259 M
Environmental
Relative Humidity
0% to 90% non-condensing
Operating Temperature
32° to 104°F (0° to 40°C)
Power Requirements
Power Supply
Built-in power supply PowerCON True1 input PowerCON True1 output (loop-thru)
Power Consumption
15W
Voltage Range
100-240V, 50-60Hz (100-120V, 50-60Hz available with PowerCON/ Edison Nema 5-15)
Courtesy Outlet
Max 10 A, same voltage as input

Key Features

  • Plug-and-Play Operation
  • 3G-SDI to SFP Fiber Video Transmission
  • Single-Mode Fiber Connection Type
  • ST Connector Output
  • PowerCON True1 Power Input/Loop Output
  • Multiple Mounting Options
  • Magnetic Stacking System
