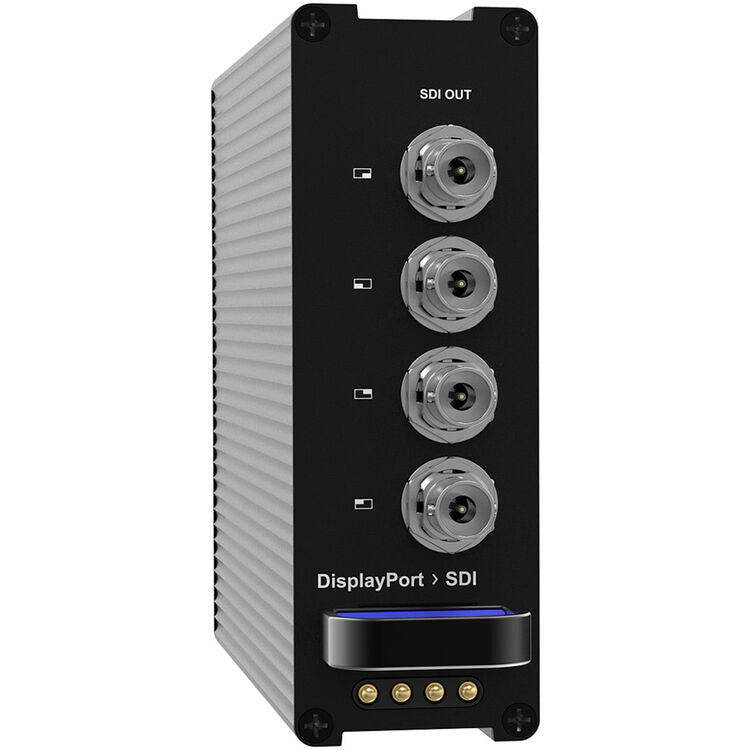

Theatrixx Technologies 4K DisplayPort to Quad 3G-SDI Reversible Module
$1,720.00
Unit price
/
This 4K DisplayPort to Quad 3G-SDI Reversible Module from Theatrixx Technologies is designed for mounting into the XVVRF8 8-Bay Reversible Frame in either direction, adding a DisplayPort 1.2 input that supports resolutions up to DCI 4K60 as well as four BNC output ports (quad-link) handling 3G-, HD-, and SD-SDI signals. The unit has BNC tri-level sync input and output ports. It handles 4:2:2 and 4:4:4 video sampling and YUV and RGB color spaces and, having no exposed PCBs, the device is inherently protected against static, shock, and dust.
View Product Features
View Product Features
In stock
Scroll below to see our current inventory for this item.
In-Stock Inventory
-
New
Theatrixx-XVVRM-DP2QSDI
Theatrixx Technologies 4K DisplayPort to Quad 3G-SDI Reversible Module
$1,720.00Unit price /View Product -
About the Theatrixx Technologies 4K DisplayPort to Quad 3G-SDI Reversible Module
Key Features
Theatrixx Technologies 4K DisplayPort to Quad 3G-SDI Reversible Module Specs
Module Identification
Compatible Frame
Theatrixx XVVRF8 8-Bay Reversible Rackmount Frame (3RU)
Module Function
4K DisplayPort to quad-link 3G-SDI converter

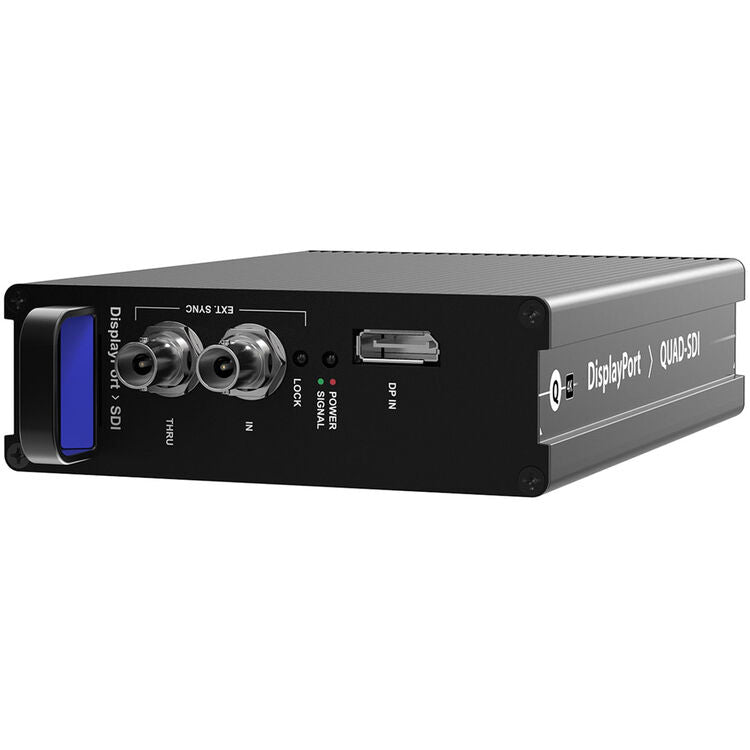

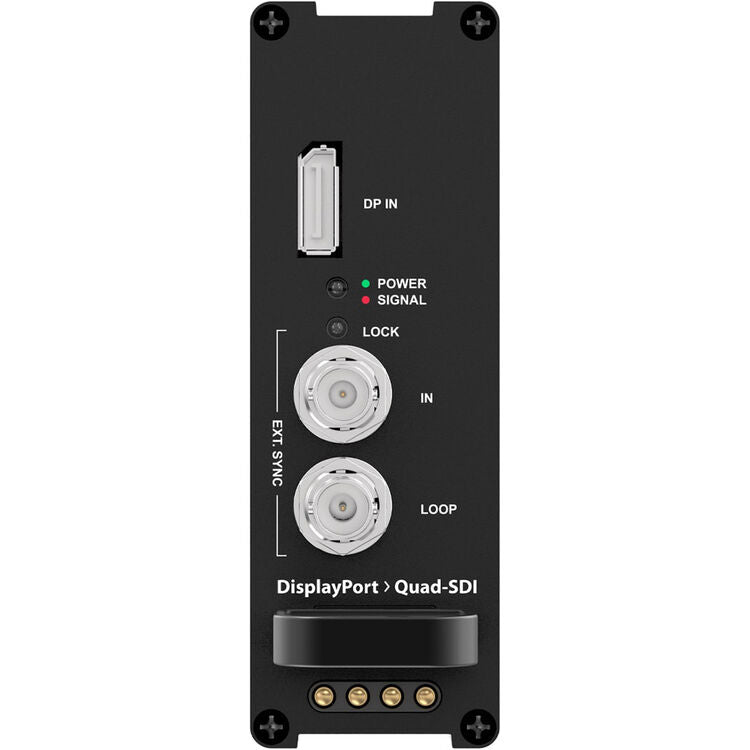

Input Connectors
Video Input
1 x DisplayPort 1.2
Sync (Genlock) Input
1 x Tri-level sync (BNC)
Sync Loop-Through
1 x Tri-level sync (BNC)

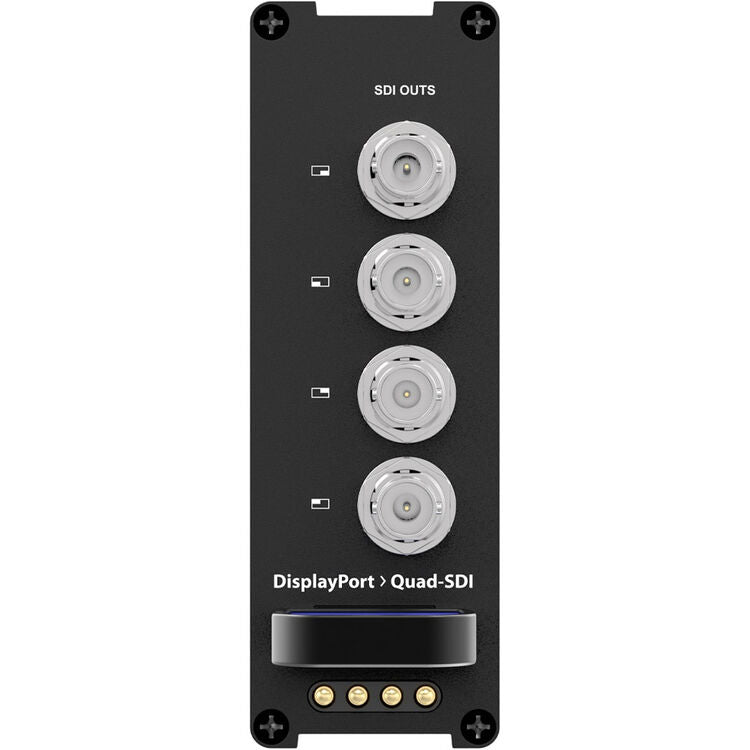

Video Outputs
Output Connector Type
4 x BNC (professional 75Ω)
Output Configuration
Quad-link 3G/HD/SD-SDI
Output Signal Type
Reclocked SDI with embedded audio
Supported Input Resolutions
DCI 4K60 4:4:4
4096x2160p @ 60/50 fps
DCI 4K
4096x2160p @ 30/25/24 fps
UHD 4K60
3840x2160p @ 60/50 fps
UHD 4K
3840x2160p @ 30/25/24 fps
Full HD 1080p
1920x1080p @ 60/50/30/25/24 fps
Full HD 1080i
1920x1080i @ 60/50 fps
Supported Output Resolutions
Quad-Link 3G-SDI
4096x2160p @ 60/50/30/25/24 fps
4 x 1080p 4:2:2
3840x2160p @ 60/50/30/25/24 fps
Video Format Specifications
SDI Standards
3G-SDI (SMPTE 424M Level A/B), HD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M)
Color Sampling Support
4:2:2 and 4:4:4
Color Space Support
YUV and RGB
Embedded Audio
Up to 8 channels, 24-bit, 48 kHz
Default EDID
User-selectable: 3840x2160p @ 60 Hz or 50 Hz

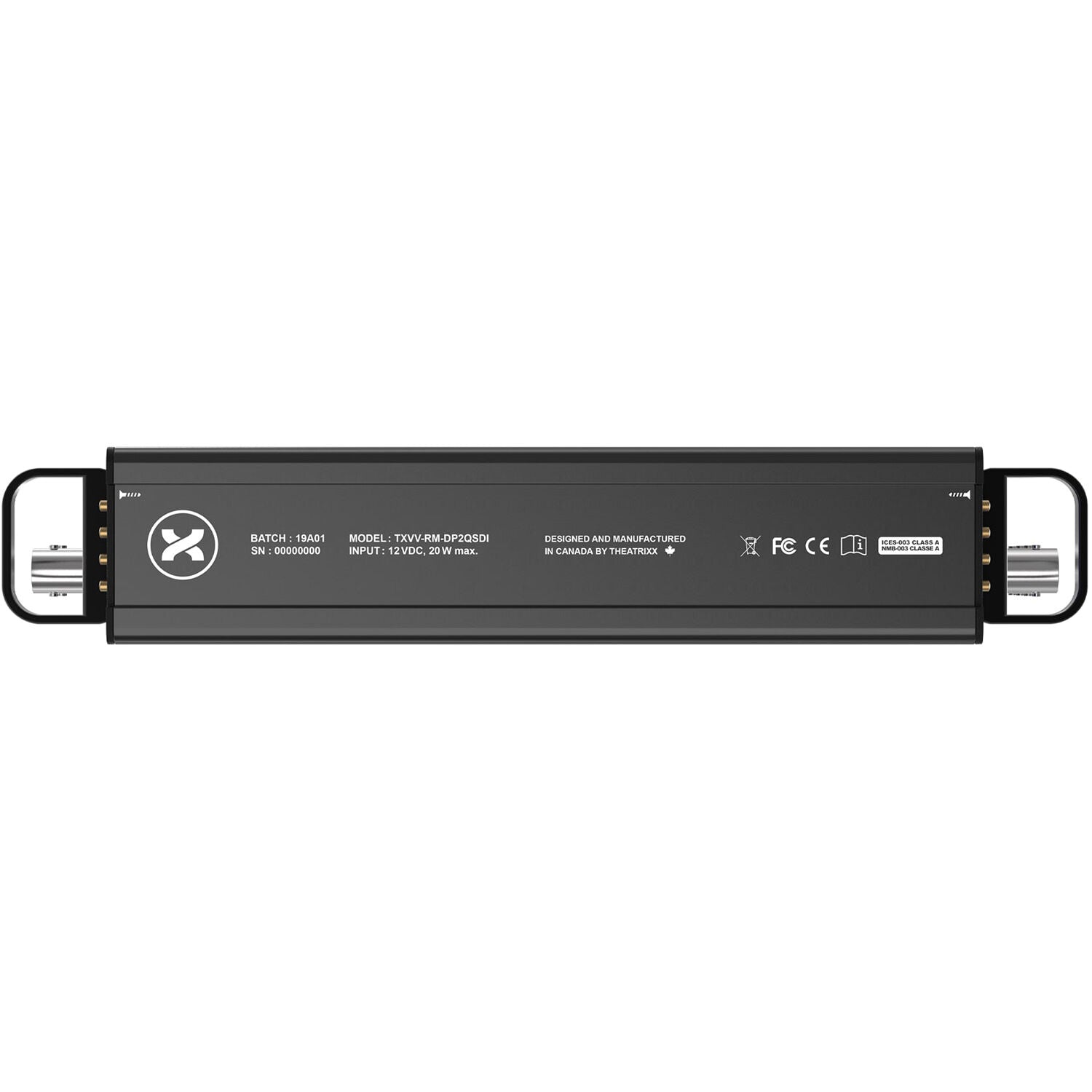

Power Specifications
Power Source
XVVRF8 frame backplane via spring pins
Voltage
12 V DC
Power Consumption
20 W maximum
Power Connection
Gold-plated redundant spring pins
Power Reliability
Magnetic retention with spring pin redundancy
