Theatrixx Technologies

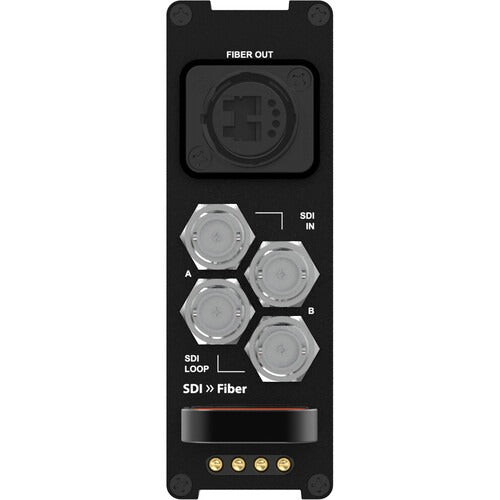

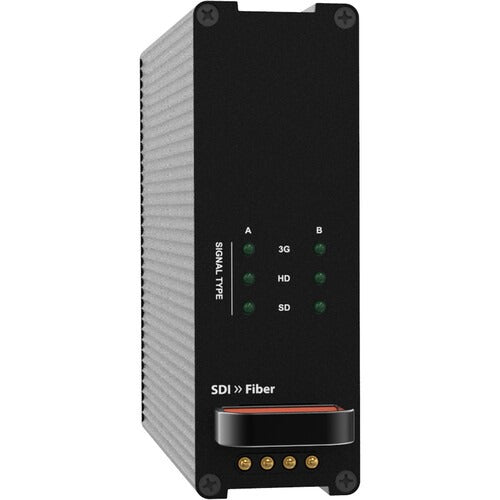

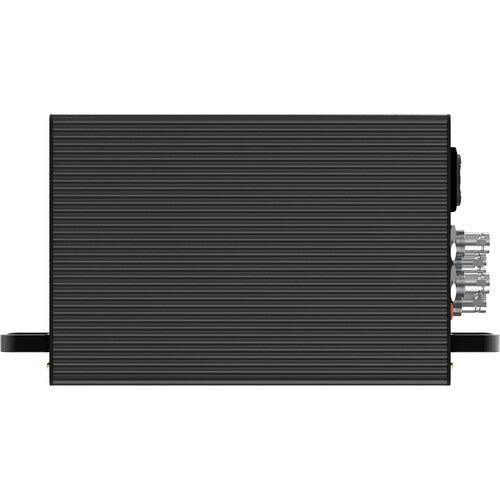

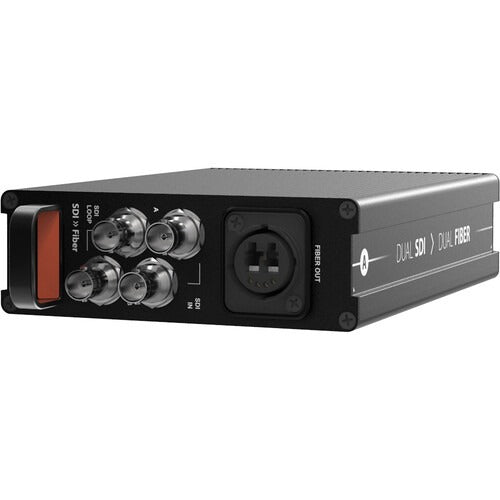

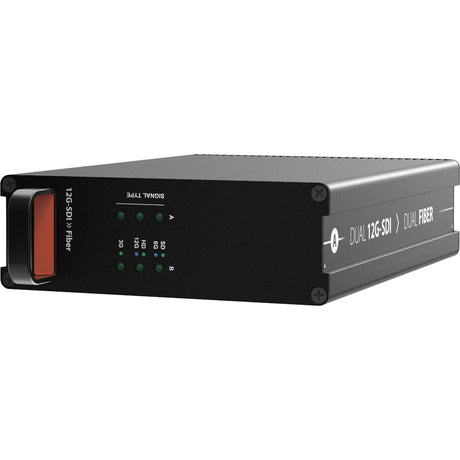

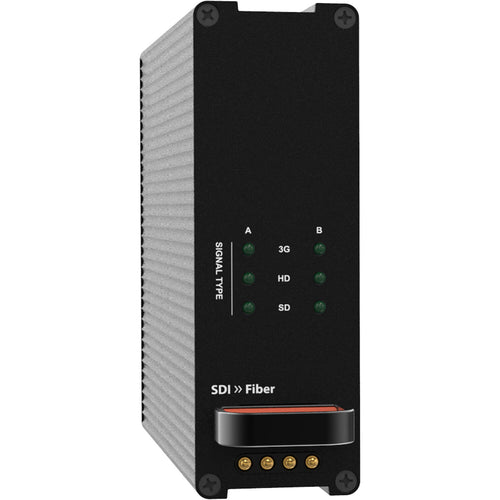

Theatrixx Technologies Dual 3G SDI to Dual Fiber Reversible Module

$1,599.00 - $2,475.00

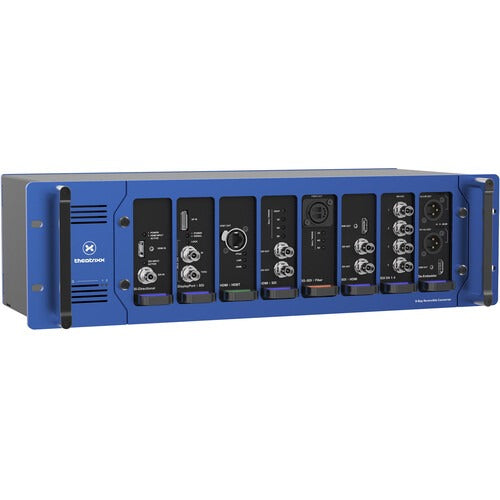

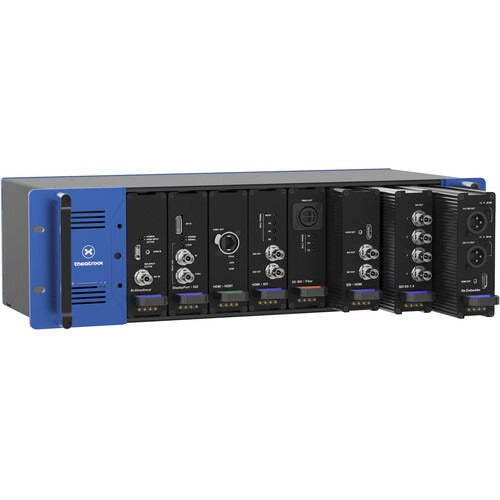

The Dual SDI to Dual Fiber Reversible Module from Theatrixx Technologies is designed for the Theatrixx 8-Bay Reversible Rackmount Frame for Video Converters. It can be inserted in the 8-bay frame from either direction, allowing the inputs/outputs to be positioned at the front or rear, as your application requires. The module features an enclosed design with no exposed PCBs and is protected against static shock, dust, and general wear and tear.

View Product Features

  • Fits Theatrixx 8-Bay Reversible Frame
  • Inserts into Frame from Either Direction
  • Enclosed Design with No Exposed PCBs
  • Gold-Plated Redundant Spring Pins
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Theatrixx Technologies Dual 3G SDI to Dual Fiber Reversible Module

The Dual SDI to Dual Fiber Reversible Module from Theatrixx Technologies is designed for the Theatrixx 8-Bay Reversible Rackmount Frame for Video Converters. It can be inserted in the 8-bay frame from either direction, allowing the inputs/outputs to be positioned at the front or rear, as your application requires. The module features an enclosed design with no exposed PCBs and is protected against static shock, dust, and general wear and tear.

Key Features

  • Fits Theatrixx 8-Bay Reversible Frame
  • Inserts into Frame from Either Direction
  • Enclosed Design with No Exposed PCBs
  • Gold-Plated Redundant Spring Pins

Theatrixx Technologies Dual 3G SDI to Dual Fiber Reversible Module Specs

Module Identification
Compatible Frame
Theatrixx XVVRF8 8-Bay Reversible Rackmount Frame (3RU)
Module Function
Dual-channel 3G-SDI to fiber optic converter

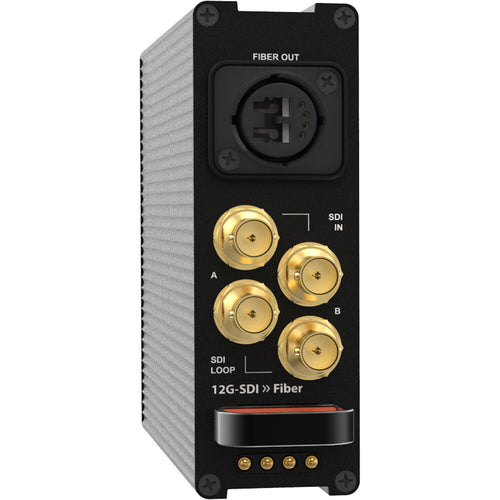

SDI Inputs
Input Connector Type
BNC (professional 75Ω)
Number of SDI Inputs
2 independent channels per module
Loop-Through Outputs
2 x BNC (one per input channel)
Fiber Outputs
Output Connector Options
OpticalCON DUO or OpticalCON QUAD (varies by model)
Fiber Type Supported
Single-mode (SM) or Multimode (MM) (varies by model)
Number of Fiber Outputs
2 independent outputs (one per SDI channel)
Video Format Support
3G-SDI Formats
SMPTE 424M (Level A and B) at 2.97 Gb/s
HD-SDI Formats
SMPTE 292M (1.485 Gb/s)
SD-SDI Formats
SMPTE 259M (270 Mb/s)
Embedded Audio
Full passthrough support
SMPTE Standards Compliance
425M Level A & B, 424M, 292M, 259M
Power Specifications
Power Source
XVVRF8 frame backplane via spring pins
Voltage
12 V DC
Power Consumption
20 W maximum
Power Connection
Gold-plated redundant spring pins
Power Reliability
Magnetic retention with spring pin redundancy
External Power Cabling
None (power via frame backplane)

Key Features

  • Fits Theatrixx 8-Bay Reversible Frame
  • Inserts into Frame from Either Direction
  • Enclosed Design with No Exposed PCBs
  • Gold-Plated Redundant Spring Pins
