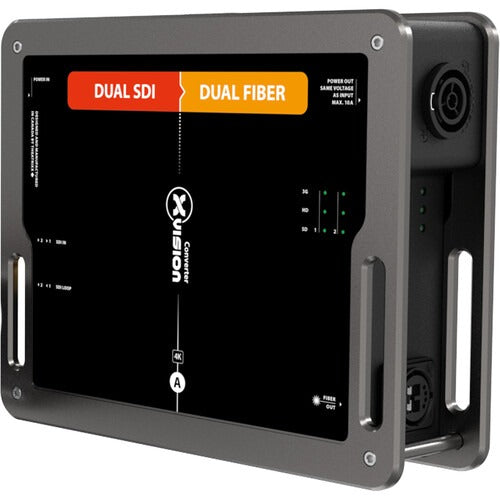

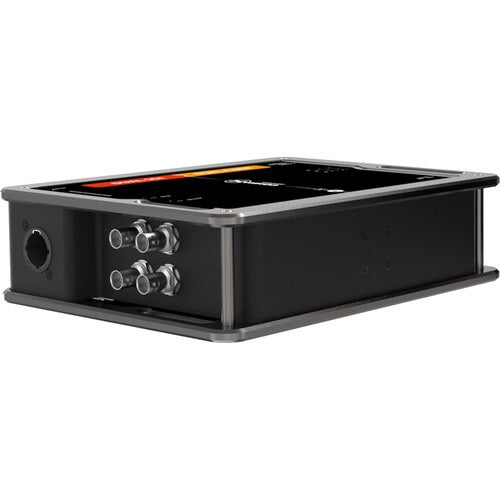

Theatrixx Technologies Dual 3G-SDI to Dual Fiber xVision Converter (Single-Mode, OpticalCON Dual)

$1,670.00

The Dual 3G-SDI to Dual Fiber xVision Converter from Theatrixx Technologies is a sturdy, compact plug-and-play converter that offers a quad 3G-SDI input to a single-mode opticalCON dual SFP fiber output module for video conversion over long-distances.

The unit features an integrated power supply with a locking powerCON True1 connector and a built-in standard AC outlet to power a nearby projector, TV, or laptop. There is also a loop-through powerCON True1 output to daisy-chain your modules or power a local TV, computer, or projector.

View Product Features

  • Plug-and-Play Operation
  • 3G-SDI to SFP Fiber Video Transmission
  • Single-Mode Fiber Connection Type
  • OpticalCON Dual Connector Output
  • Multiple Mounting Options
  • Magnetic Stacking System
  • PowerCON True1 Power Input/Loop Output
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Theatrixx Technologies Dual 3G-SDI to Dual Fiber xVision Converter (Single-Mode, OpticalCON Dual)

Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment.

Introducing the world's first video converters truly designed for the road. Video converters nowadays are used everywhere on profesionnal A/V events, presentations, live shows and tours and often have a critical role.

Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters.

Key Features

  • Plug-and-Play Operation
  • 3G-SDI to SFP Fiber Video Transmission
  • Single-Mode Fiber Connection Type
  • OpticalCON Dual Connector Output
  • Multiple Mounting Options
  • Magnetic Stacking System
  • PowerCON True1 Power Input/Loop Output

Theatrixx Technologies Dual 3G-SDI to Dual Fiber xVision Converter (Single-Mode, OpticalCON Dual) Specs

Connections
Video Input
2 x 3G/HD/SD SDI BNC
Loop-thru
2 x 3G/HD/SD SDI BNC
Video Output
Choice of Multimode Optical SDI on ST, OpticalCON DUO
Supported Signals
Video Format
3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
SMPTE Standards
425 M Level A & B, 424 M, 292 M, 259 M
Physical
Height
62 mm (2.44 in)
Depth
180 mm (7.08 in)
Width
221 mm (8.7 in)
Weight
2 kg (4.4 lbs)
Alternate Form Factor
Also available as a Reversible Module
Environmental
Relative Humidity
0% to 90% non-condensing
Operating Temperature
0-40 °C
Power Requirements
Power Supply
Built-in power supply - PowerCon True1 input, PowerCON True1 output (loop-thru)
Power Consumption
45W max.
Operational Voltage Range
100-120V, 50-60Hz
Courtesy Outlet
Max 10 A, same voltage as input

Key Features

  • Plug-and-Play Operation
  • 3G-SDI to SFP Fiber Video Transmission
  • Single-Mode Fiber Connection Type
  • OpticalCON Dual Connector Output
  • Multiple Mounting Options
  • Magnetic Stacking System
  • PowerCON True1 Power Input/Loop Output
