Theatrixx Technologies

Theatrixx Technologies Dual-Channel 3G-SDI to Fiber Multimode xVision Converter with PowerCON In/Loop-Thru (OpticalCON QUAD)

$1,670.00

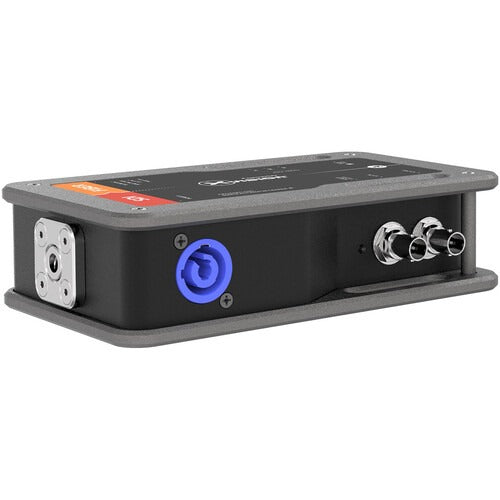

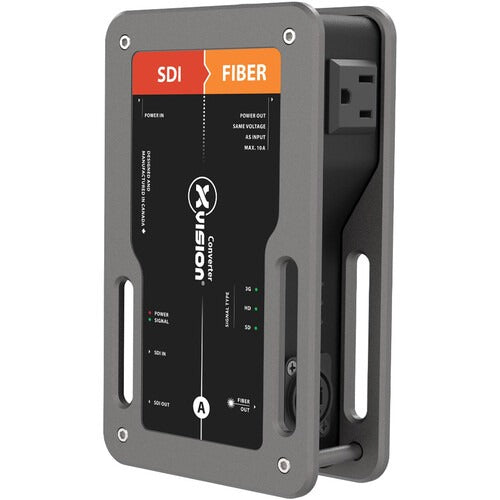

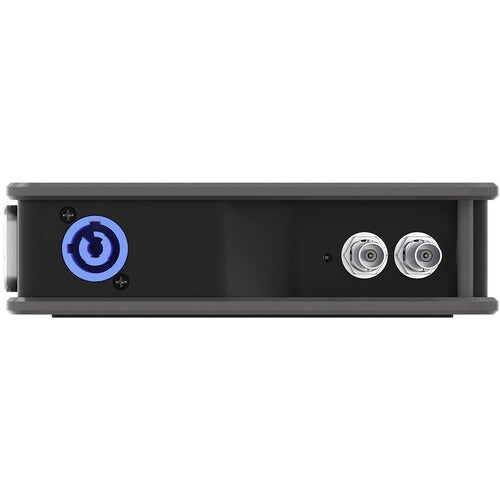

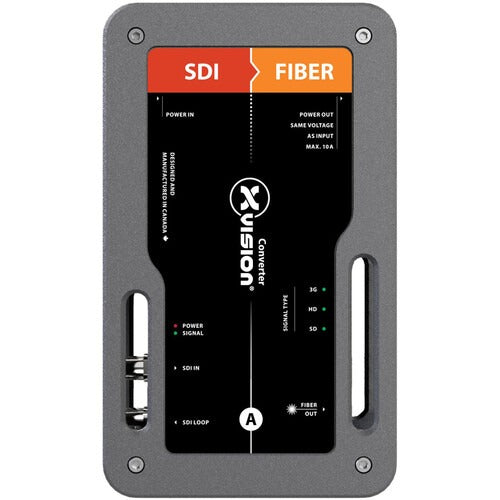

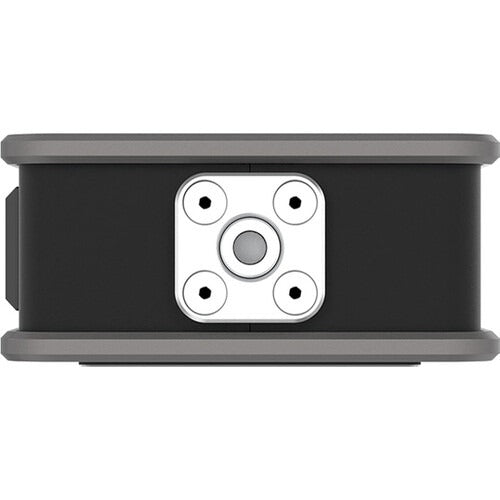

Ideal for live shows and events, the Dual-Channel 3G-SDI to Fiber xVision Converter from Theatrixx Technologies is a sturdy, compact plug-and-play converter that offers reliable video conversion over long distances. It provides two 3G-SDI inputs and loop-outs and a multimode, OpticalCON QUAD SFP fiber output module.

View Product Features

  • Converts Two 3G-SDI Signals to Fiber
  • Up to 1080p Video and Embedded Audio
  • Two Re-Clocked Amplified 3G-SDI Loop Out
  • Integrated Power with powerCON Connector
  • Built-In AC Convenience Outlet
  • Easy Plug-and Play Operation
  • Clear LED Status Indicators
  • Easy Color/Alphabet-Coded Identification
  • Magnetic Stacking System
  • Non-Skid Rubber Pad for Tabletop Usage
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Theatrixx Technologies Dual-Channel 3G-SDI to Fiber Multimode xVision Converter with PowerCON In/Loop-Thru (OpticalCON QUAD)

Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment.

Introducing the world's first video converters truly designed for the road. Video converters nowadays are used everywhere on profesionnal A/V events, presentations, live shows and tours and often have a critical role.

Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters.

Key Features

  • Converts Two 3G-SDI Signals to Fiber
  • Up to 1080p Video and Embedded Audio
  • Two Re-Clocked Amplified 3G-SDI Loop Out
  • Integrated Power with powerCON Connector
  • Built-In AC Convenience Outlet
  • Easy Plug-and Play Operation
  • Clear LED Status Indicators
  • Easy Color/Alphabet-Coded Identification
  • Magnetic Stacking System
  • Non-Skid Rubber Pad for Tabletop Usage

Theatrixx Technologies Dual-Channel 3G-SDI to Fiber Multimode xVision Converter with PowerCON In/Loop-Thru (OpticalCON QUAD) Specs

Connections
Video Input
2 x 3G/HD/SD SDI BNC
Loop-thru
2 x 3G/HD/SD SDI BNC
Video Output
Multimode Optical SDI on ST, OpticalCON QUAD
Supported Signals
Video Format
3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
SMPTE Standards
425 M Level A & B, 424 M, 292 M, 259 M
Physical
Height
62 mm (2.44 in)
Depth
180 mm (7.08 in)
Width
221 mm (8.7 in)
Weight
2 kg (4.4 lbs)
Alternate Form Factor
Also available as a Reversible Module
Environmental
Relative Humidity
0% to 90% non-condensing
Operating Temperature
0-40 °C
Power Requirements
Power Supply
Built-in power supply - PowerCon True1 input, PowerCON True1 output (loop-thru)
Power Consumption
45W max.
Operational Voltage Range
100-120V, 50-60Hz
Courtesy Outlet
Max 10 A, same voltage as input

Key Features

  • Converts Two 3G-SDI Signals to Fiber
  • Up to 1080p Video and Embedded Audio
  • Two Re-Clocked Amplified 3G-SDI Loop Out
  • Integrated Power with powerCON Connector
  • Built-In AC Convenience Outlet
  • Easy Plug-and Play Operation
  • Clear LED Status Indicators
  • Easy Color/Alphabet-Coded Identification
  • Magnetic Stacking System
  • Non-Skid Rubber Pad for Tabletop Usage
