Theatrixx Technologies

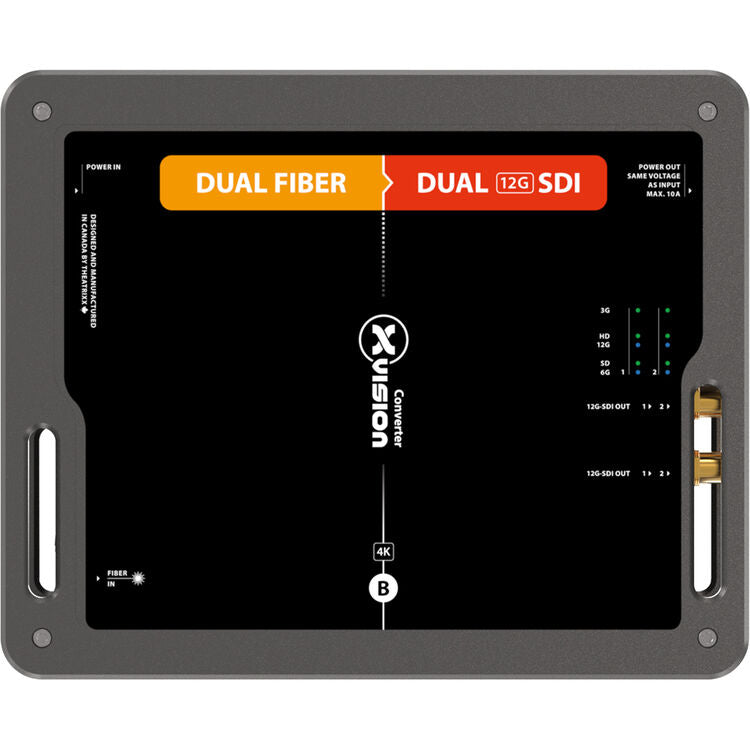

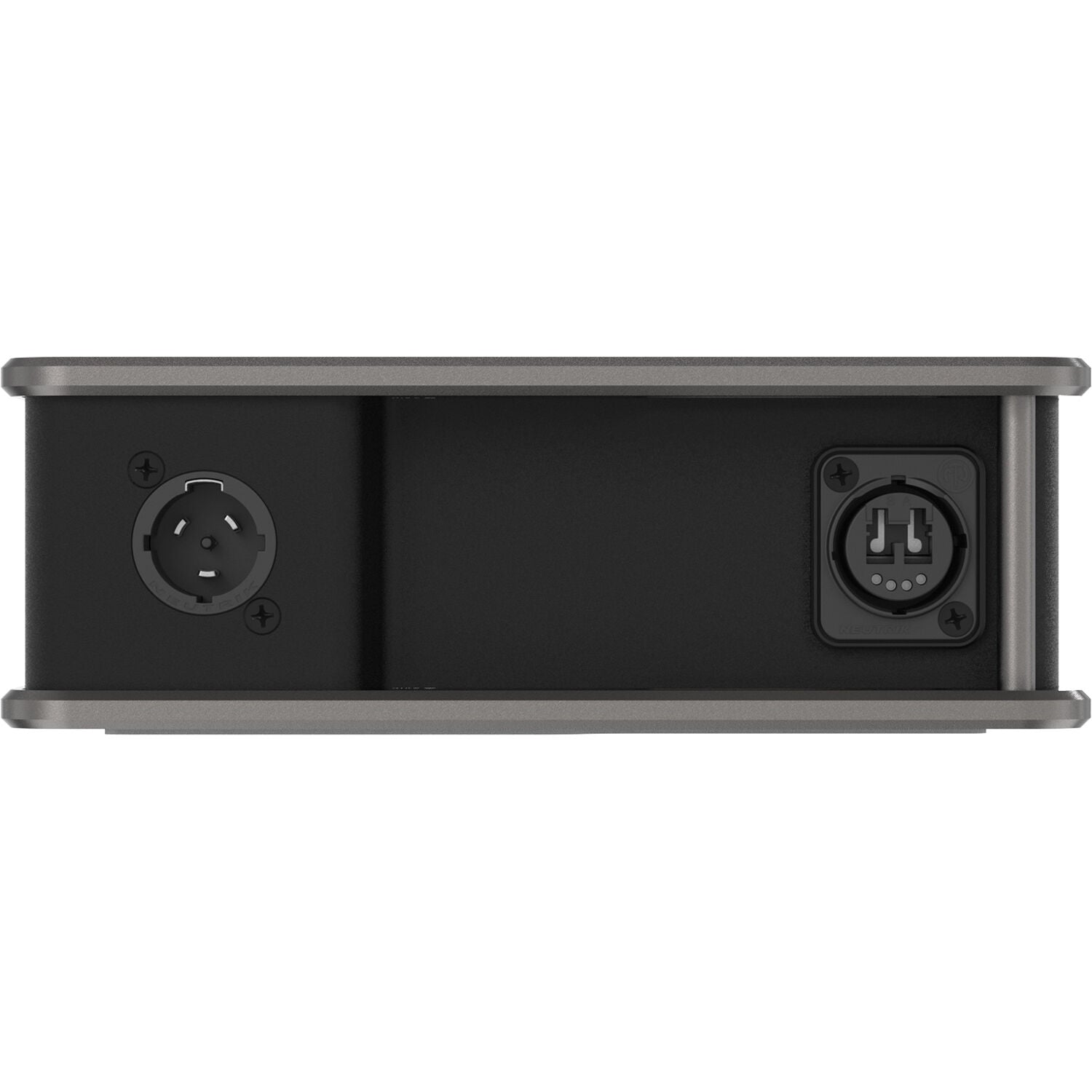

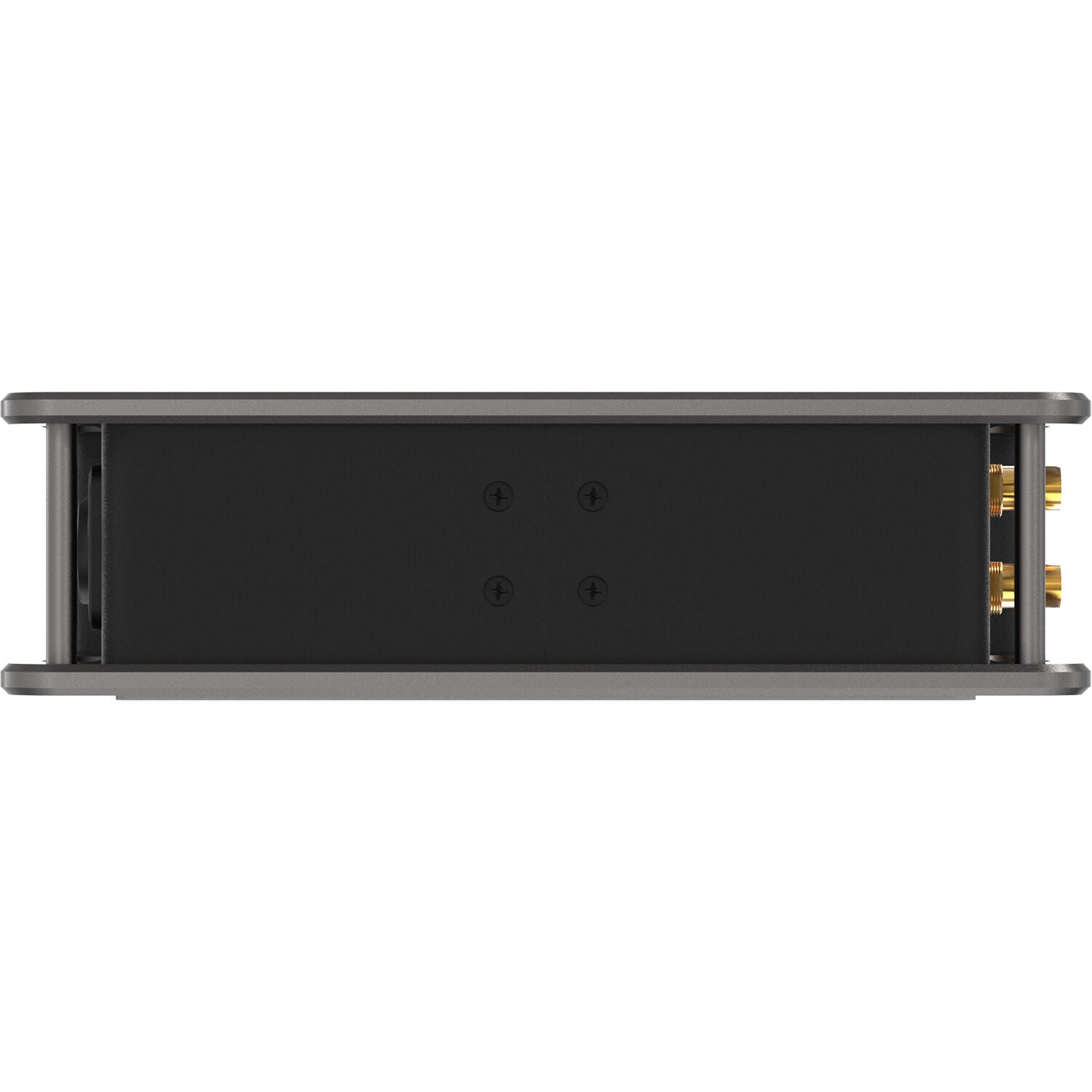

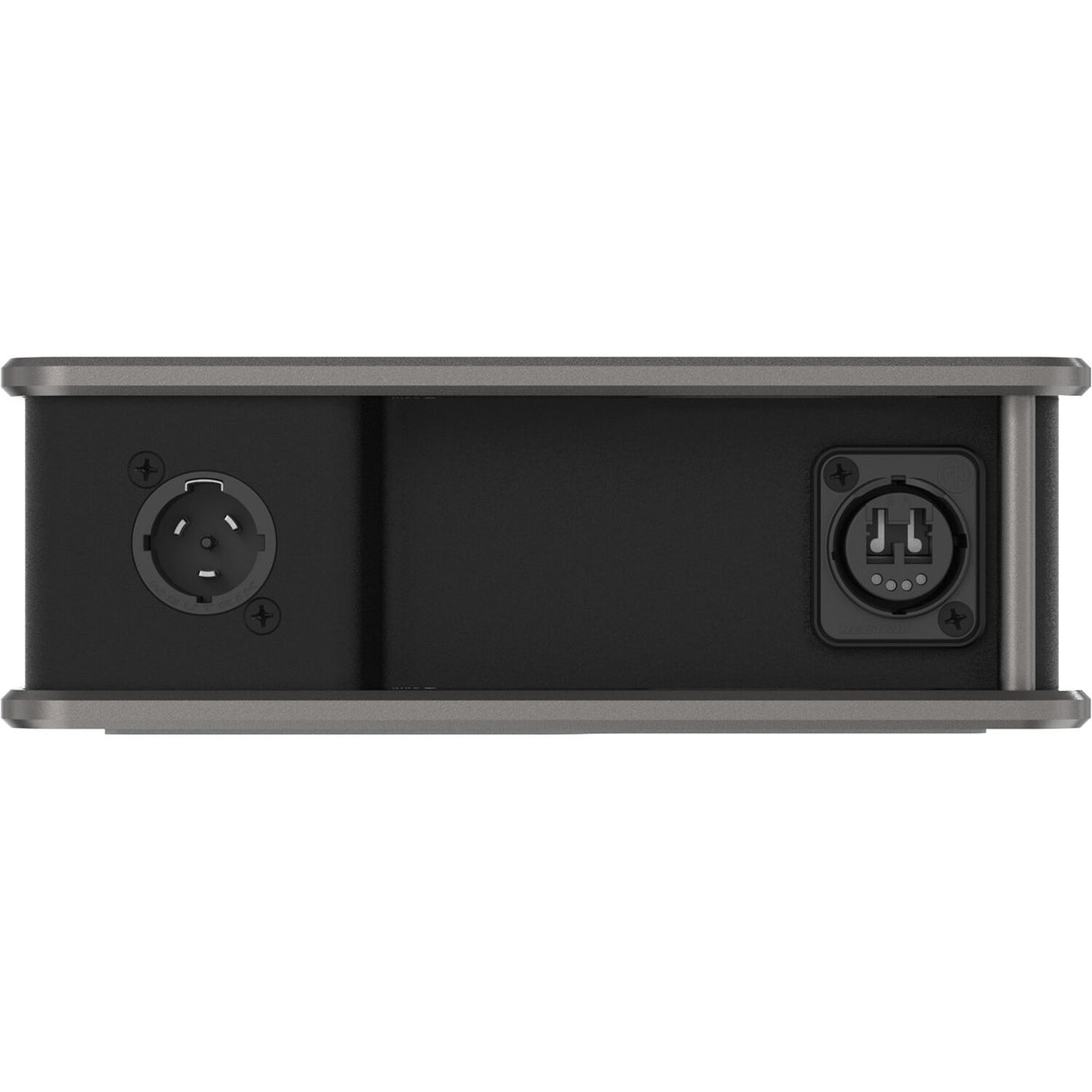

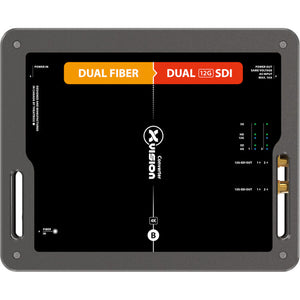

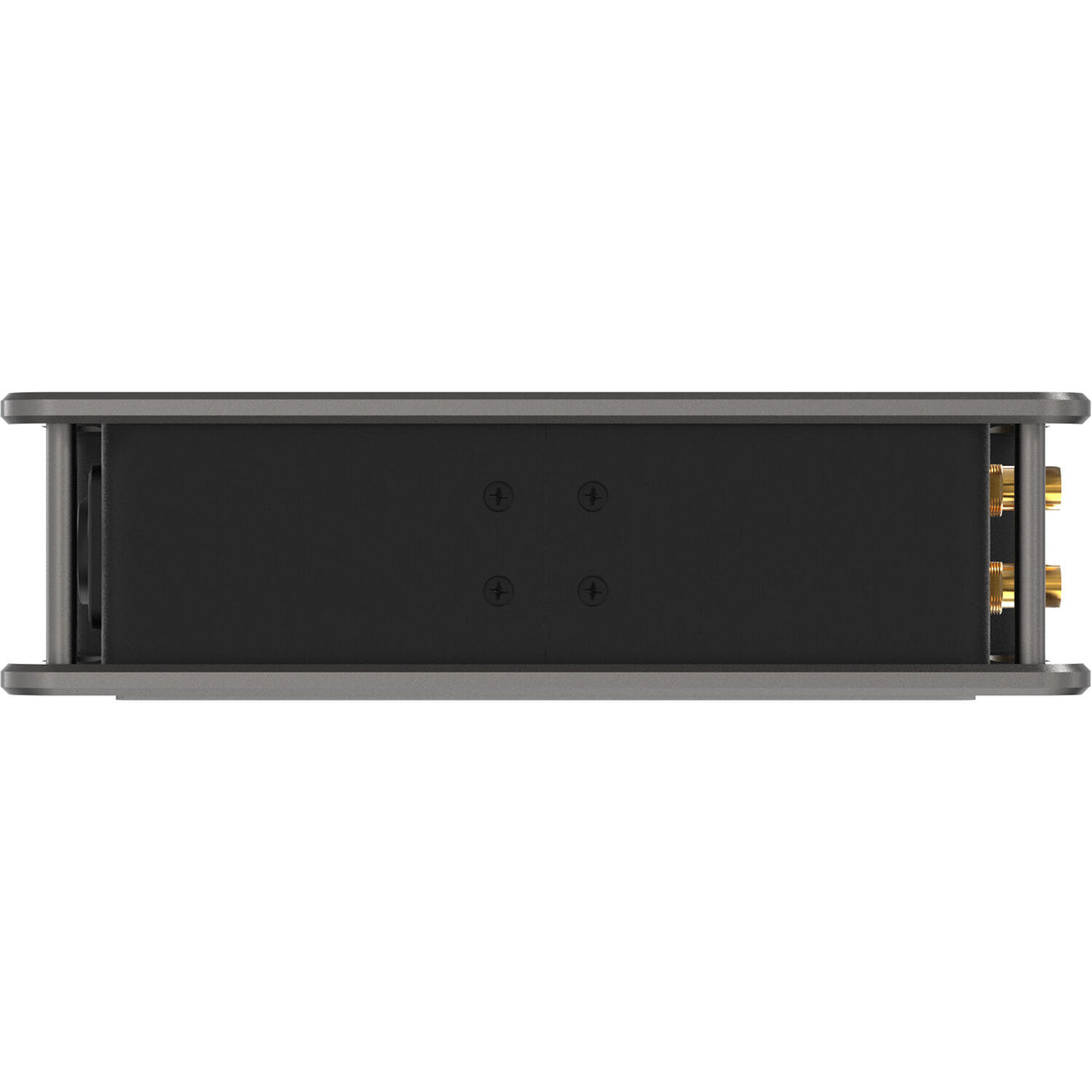

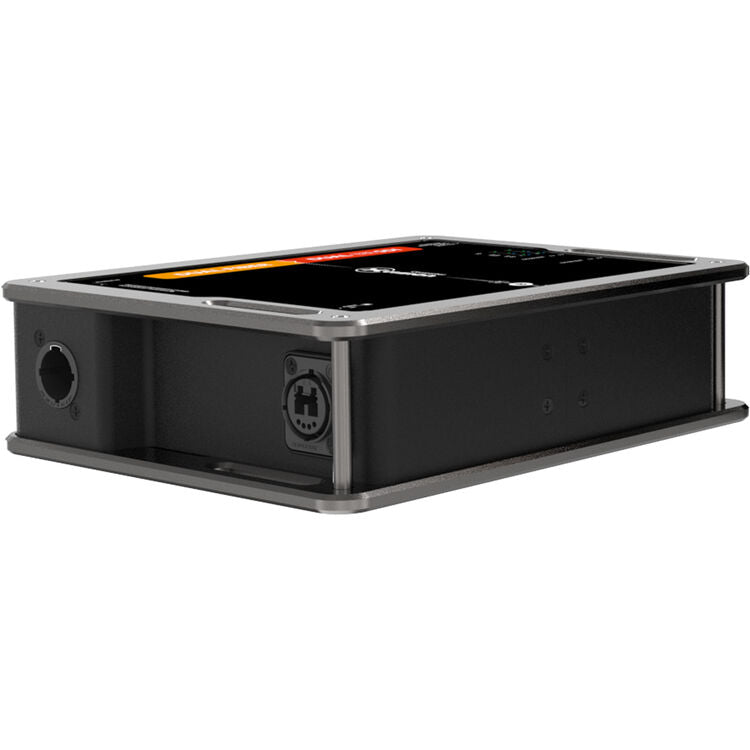

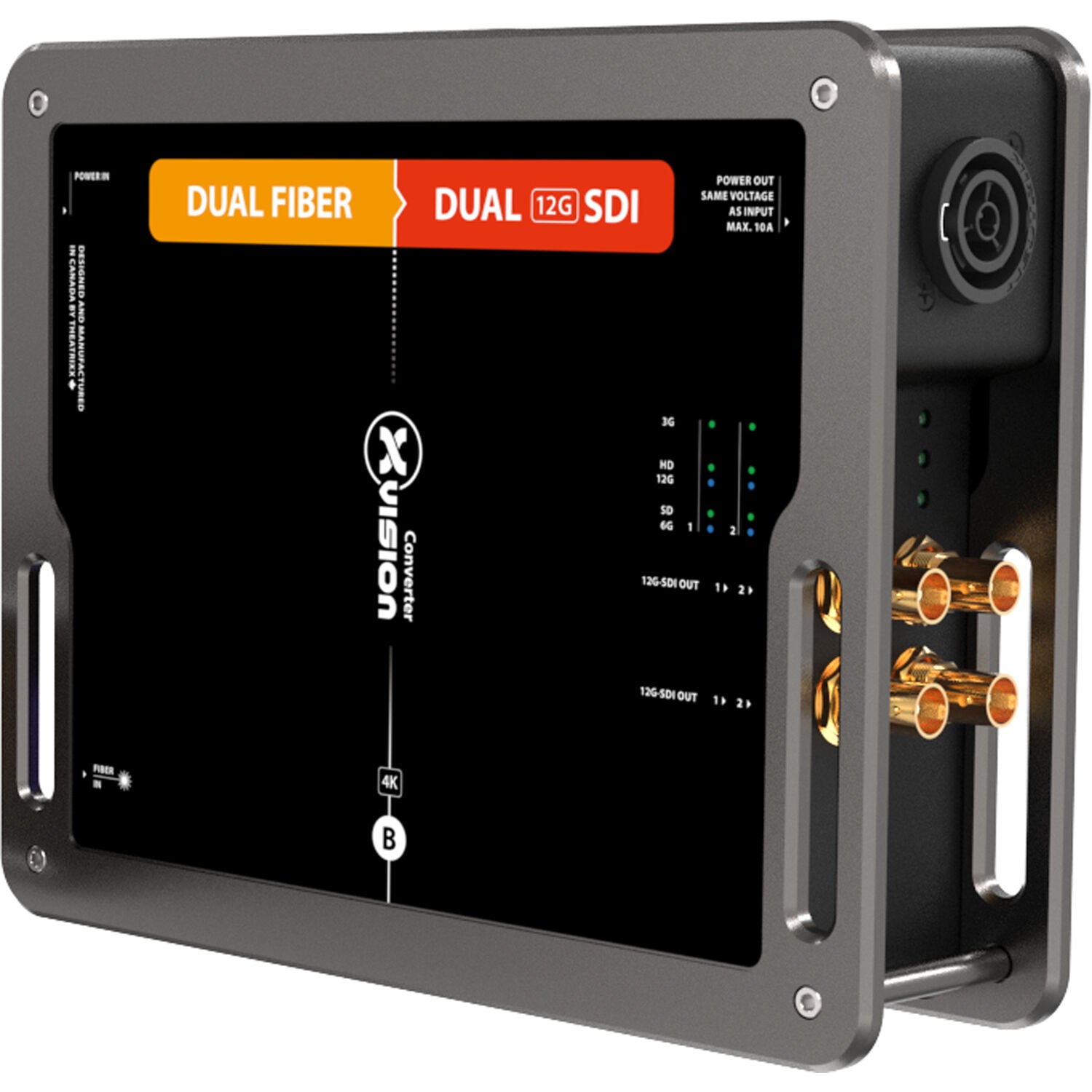

Theatrixx Technologies Dual Channel Fiber to 12G-SDI (PT1 In/Thru, Multimode, OpticalCON Duo)

$2,560.00

Professional equipment in mission-critical applications is all about reliability and confidence. So we started with a clean sheet, and built what might soon become your most trustworthy piece of equipment.

Introducing the world's first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role.

View Product Features
  • Integrated power supply with locking PowerCON Connector. Never rely on a cluster of wall-warts again.
  • Built-in convenience AC outlet to power nearby projector, TV, laptop, Singlemodeall video projector..Power bar to power both the converter and device not required anymore.
  • Magnetic stacking system and non-skid rubber pad for table top application. Saves at least 10 gaffer tape rolls a year.
  • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
  • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
  • Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works.
  • Clear and ample status LED indicators for quick troubleshooting.
  • Easy on-the-field identification with unique color and alphabetic coding system.
  • SFP-based video tranSinglemodeission for interoperability with standard SDI over fiber devices.
  • Reclocked and amplified SDI loop thru
In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

  •
    New

    Theatrixx-XVV2FIBER2SDI-12GM2

    Theatrixx Technologies Dual Channel Fiber to 12G-SDI (PT1 In/Thru, Multimode, OpticalCON Duo)

    $2,560.00
    View Product

Already own this item and want to sell it?

Click here to sell your item

About the Theatrixx Technologies Dual Channel Fiber to 12G-SDI (PT1 In/Thru, Multimode, OpticalCON Duo)

Professional equipment in mission-critical applications is all about reliability and confidence. So we started with a clean sheet, and built what might soon become your most trustwor- thy piece of equipment.
Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on profesionnal A/V events, presentations, live shows and tours and often have a critical role.

Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters.

Key Features

  • Integrated power supply with locking PowerCON Connector. Never rely on a cluster of wall-warts again.
  • Built-in convenience AC outlet to power nearby projector, TV, laptop, Singlemodeall video projector..Power bar to power both the converter and device not required anymore.
  • Magnetic stacking system and non-skid rubber pad for table top application. Saves at least 10 gaffer tape rolls a year.
  • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
  • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
  • Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works.
  • Clear and ample status LED indicators for quick troubleshooting.
  • Easy on-the-field identification with unique color and alphabetic coding system.
  • SFP-based video tranSinglemodeission for interoperability with standard SDI over fiber devices.
  • Reclocked and amplified SDI loop thru

Theatrixx Technologies Dual Channel Fiber to 12G-SDI (PT1 In/Thru, Multimode, OpticalCON Duo) Specs

Connections
Video Input
Choice of Multimode or Singlemode Choice of Optical SDI on OpticalCON DUO or OpticalCON QUAD

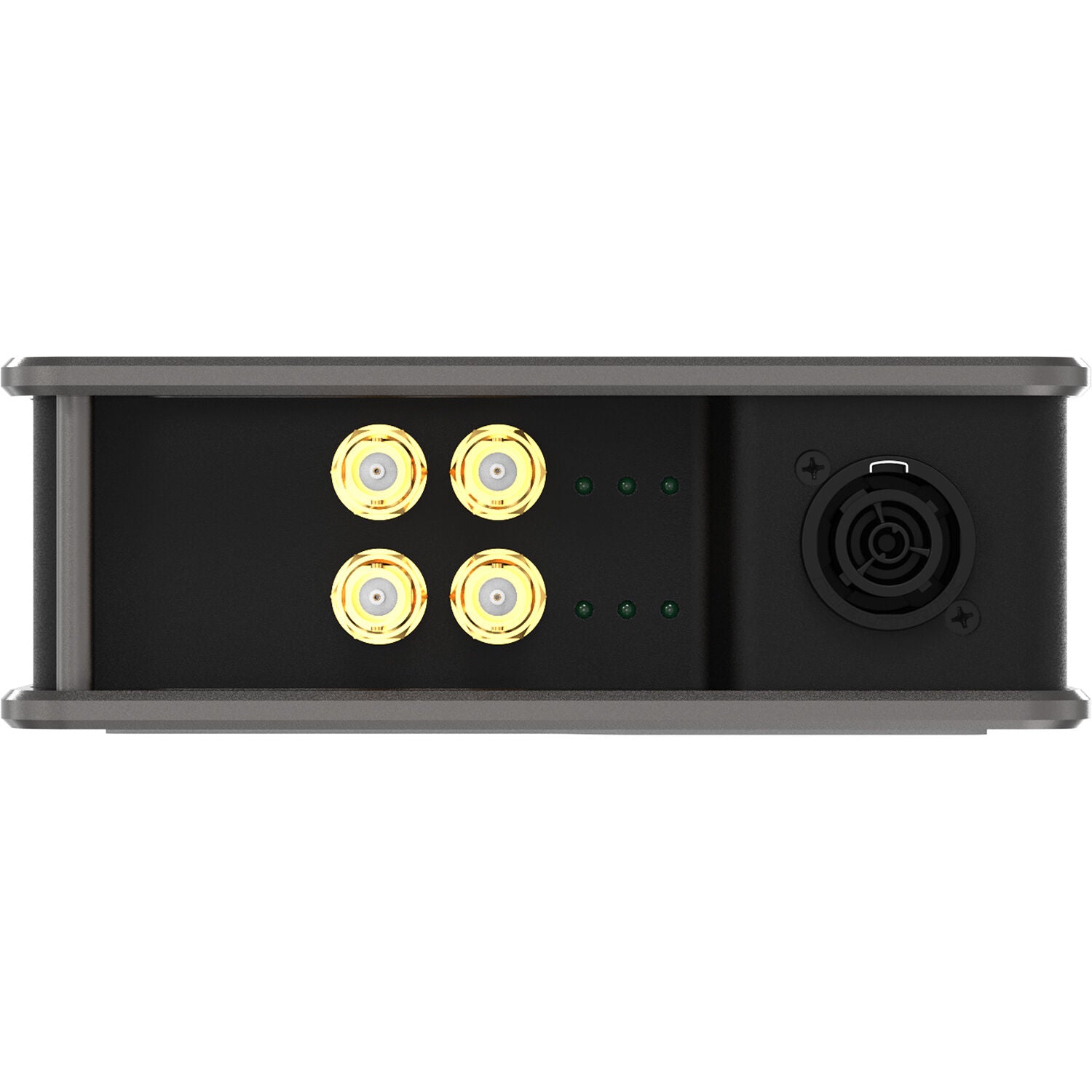

Video Output
4 x 12G/6G/3G/HD/SD SDI BNC
Supported Signals
Video Format
12G/6G/3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
SMPTE Standards
2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M
Physical
Height
62 mm (2.44 in)
Depth
180 mm (7.08 in)
Width
221 mm (8.7 in)
Weight
2 kg (4.4 lbs)
Alternate Form Factor
Also available as a Reversible Module
Environmental
Relative Humidity
0% to 90% non-condensing
Operating Temperature
0-40 °C
Power Requirements
Power Supply
Built-in power supply PowerCON True1 input PowerCON True1 output (loop-thru)
Power Consumption
45W max.
Operational Voltage Range
100-120V, 50-60Hz
Courtesy Outlet
Max 10 A, same voltage as input

Key Features

  • Integrated power supply with locking PowerCON Connector. Never rely on a cluster of wall-warts again.
  • Built-in convenience AC outlet to power nearby projector, TV, laptop, Singlemodeall video projector..Power bar to power both the converter and device not required anymore.
  • Magnetic stacking system and non-skid rubber pad for table top application. Saves at least 10 gaffer tape rolls a year.
  • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
  • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
  • Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works.
  • Clear and ample status LED indicators for quick troubleshooting.
  • Easy on-the-field identification with unique color and alphabetic coding system.
  • SFP-based video tranSinglemodeission for interoperability with standard SDI over fiber devices.
  • Reclocked and amplified SDI loop thru
