SKU: Theatrixx-XVVRM-2FIBER2SDI

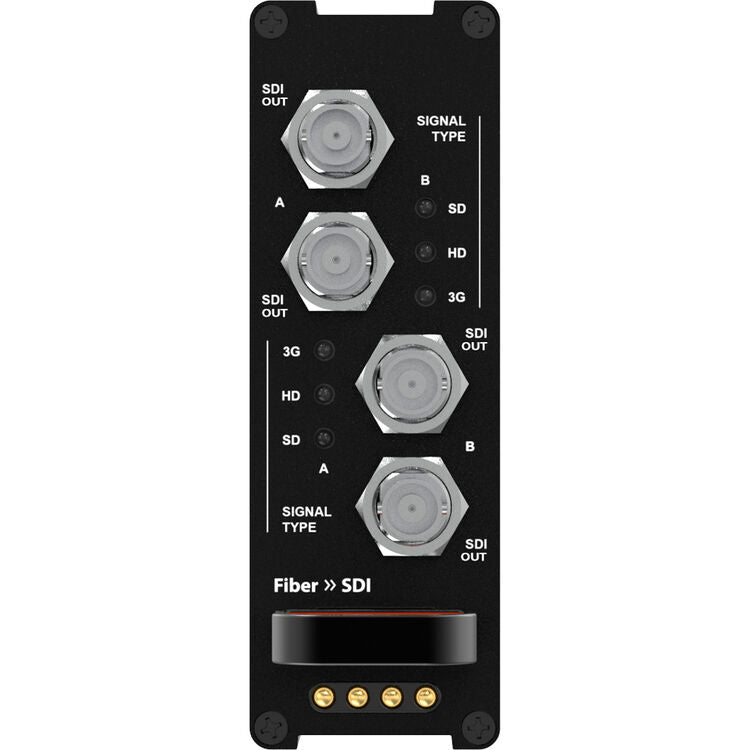

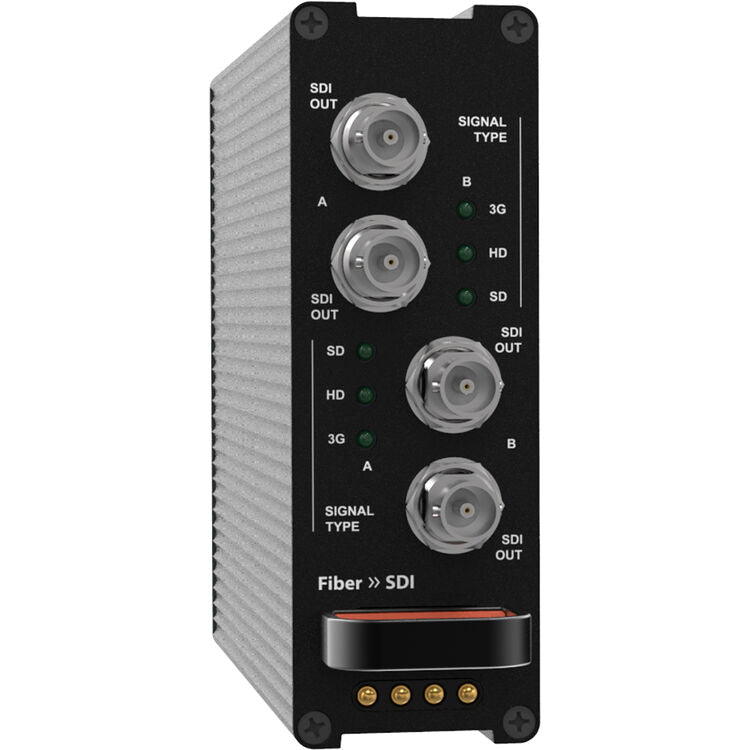

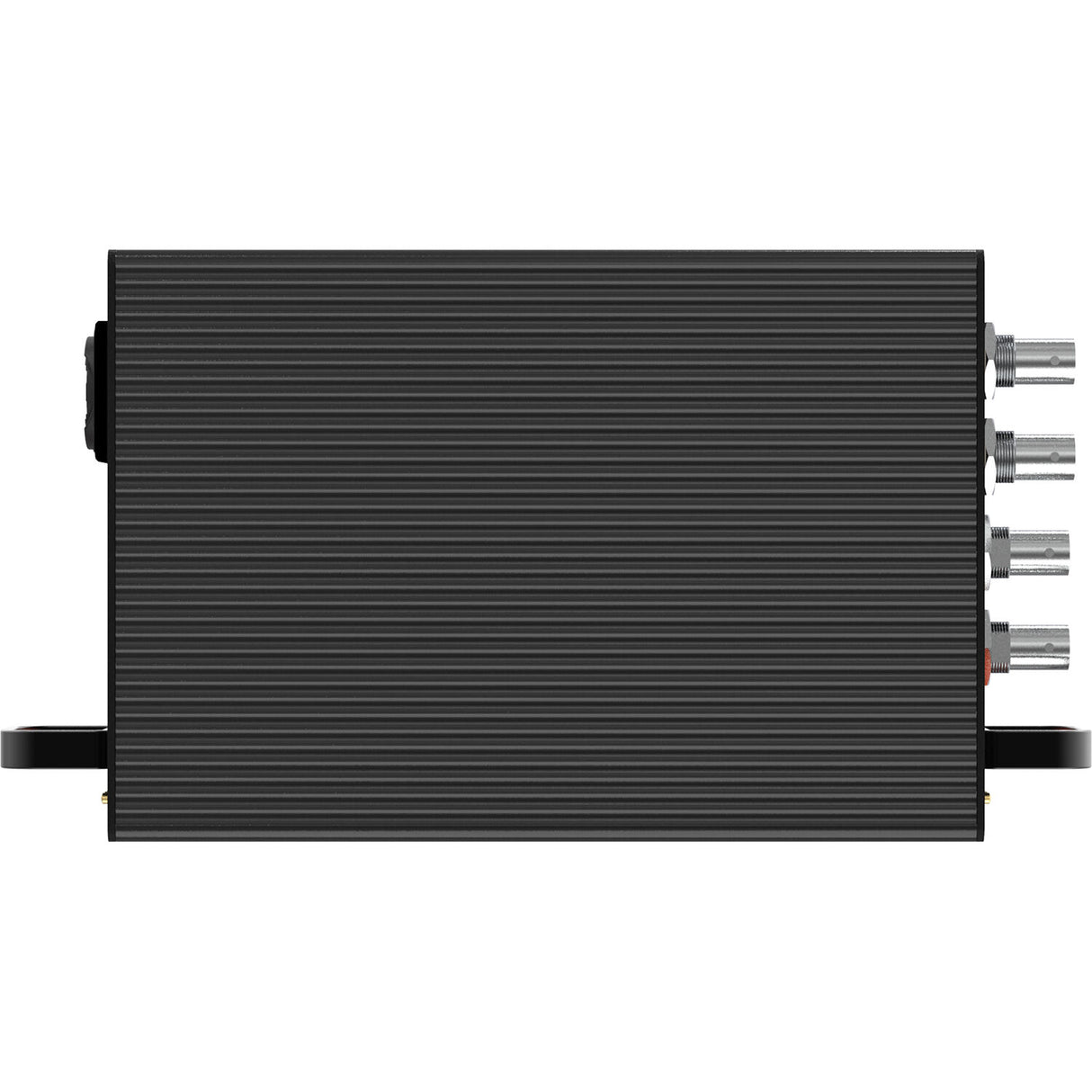

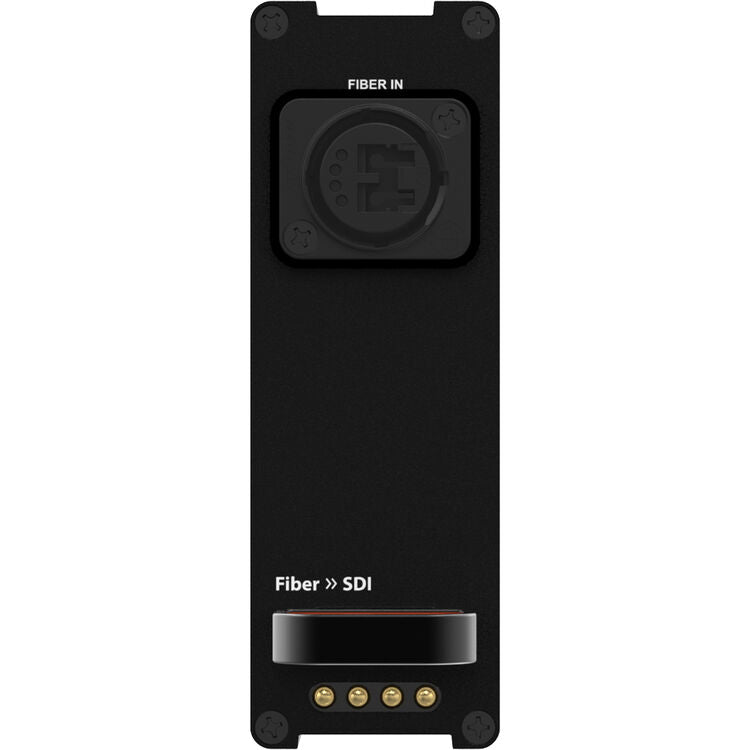

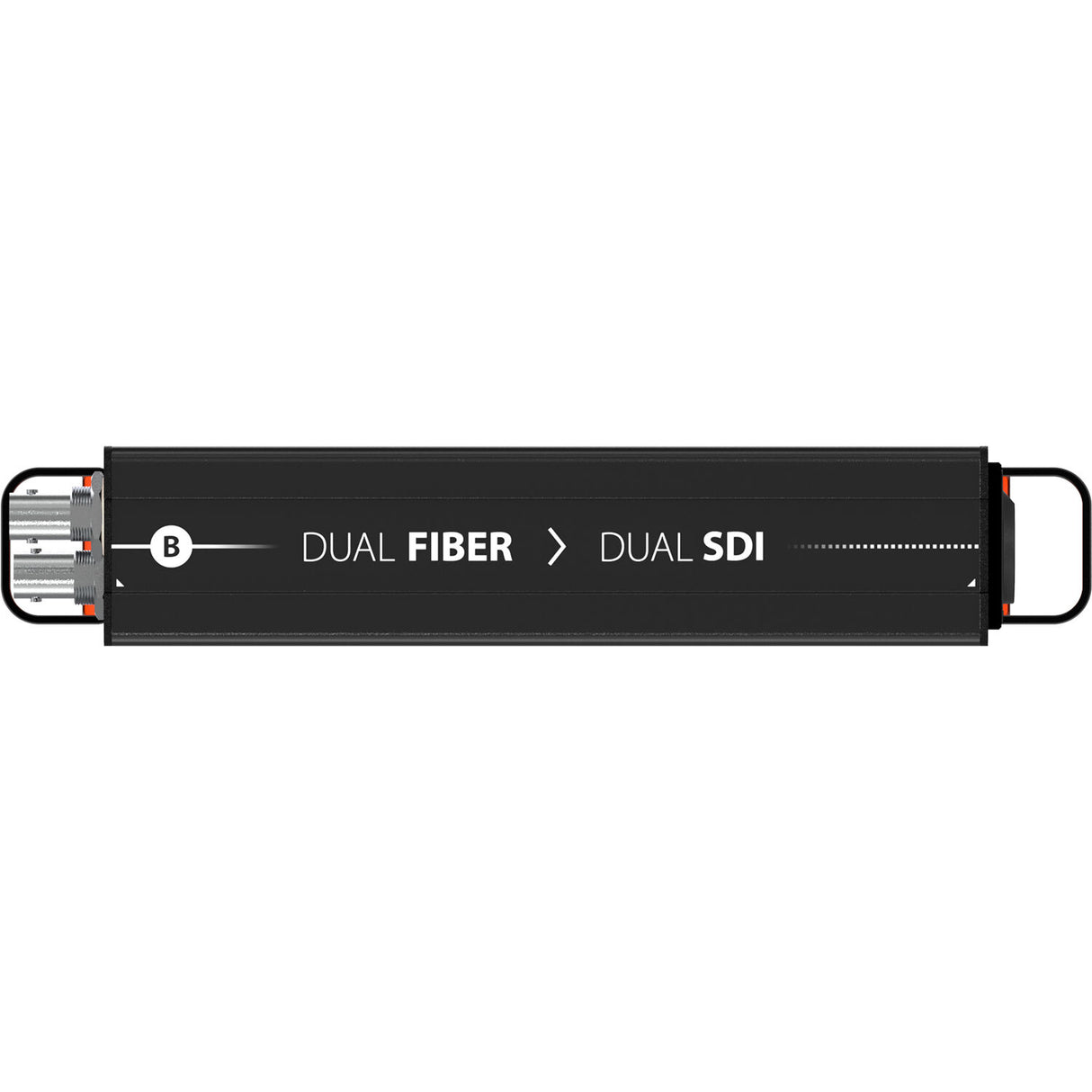

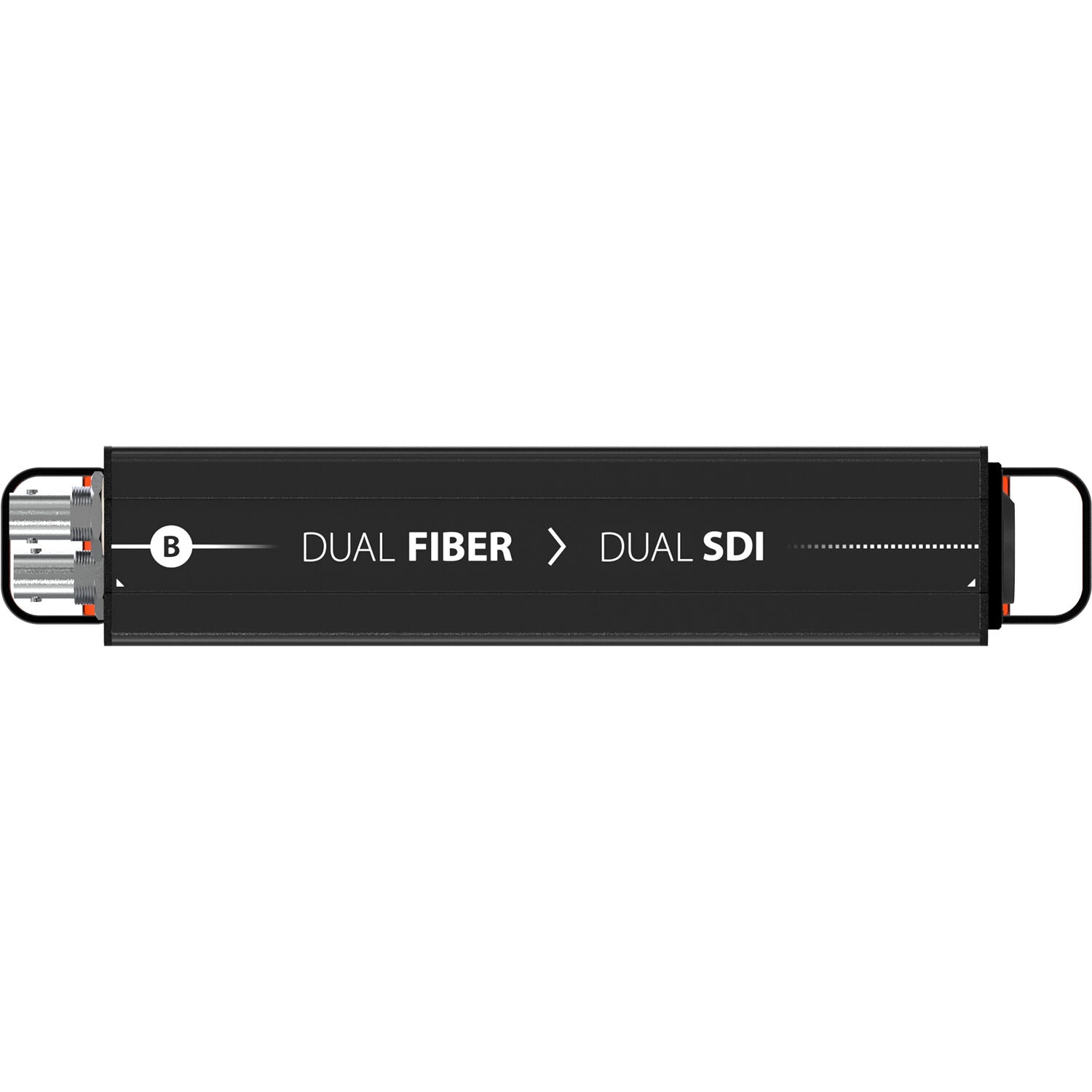

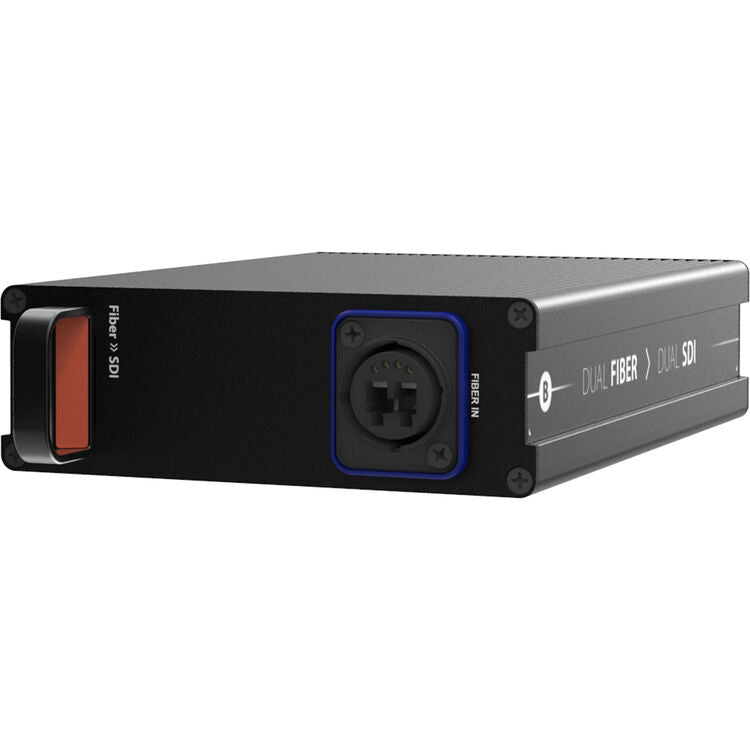

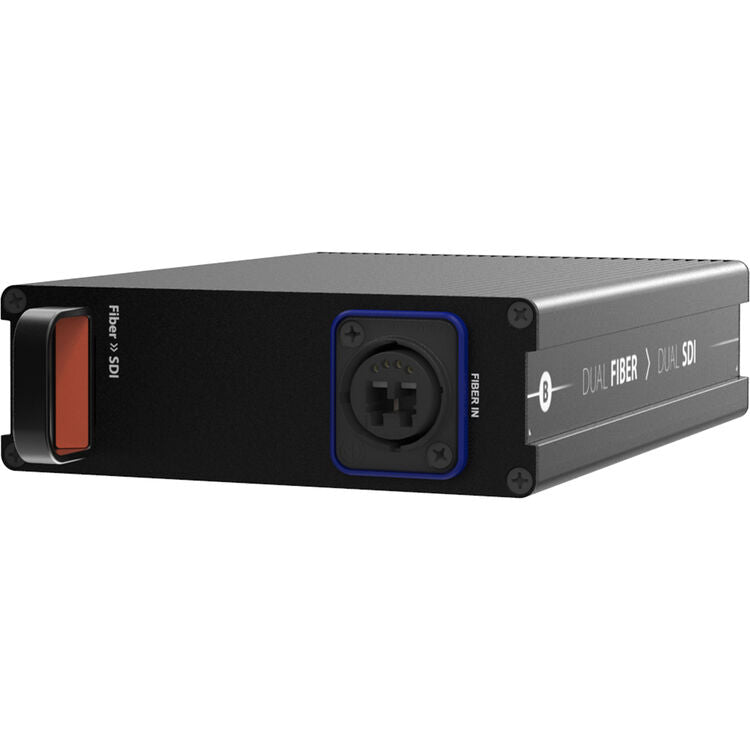

Theatrixx Technologies Dual Fiber to Dual 3G SDI Reversible Module

$1,599.00 - $2,475.00

Items Included

Item Notes

Condition: Fully Working 5 available
5 available View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window

Description

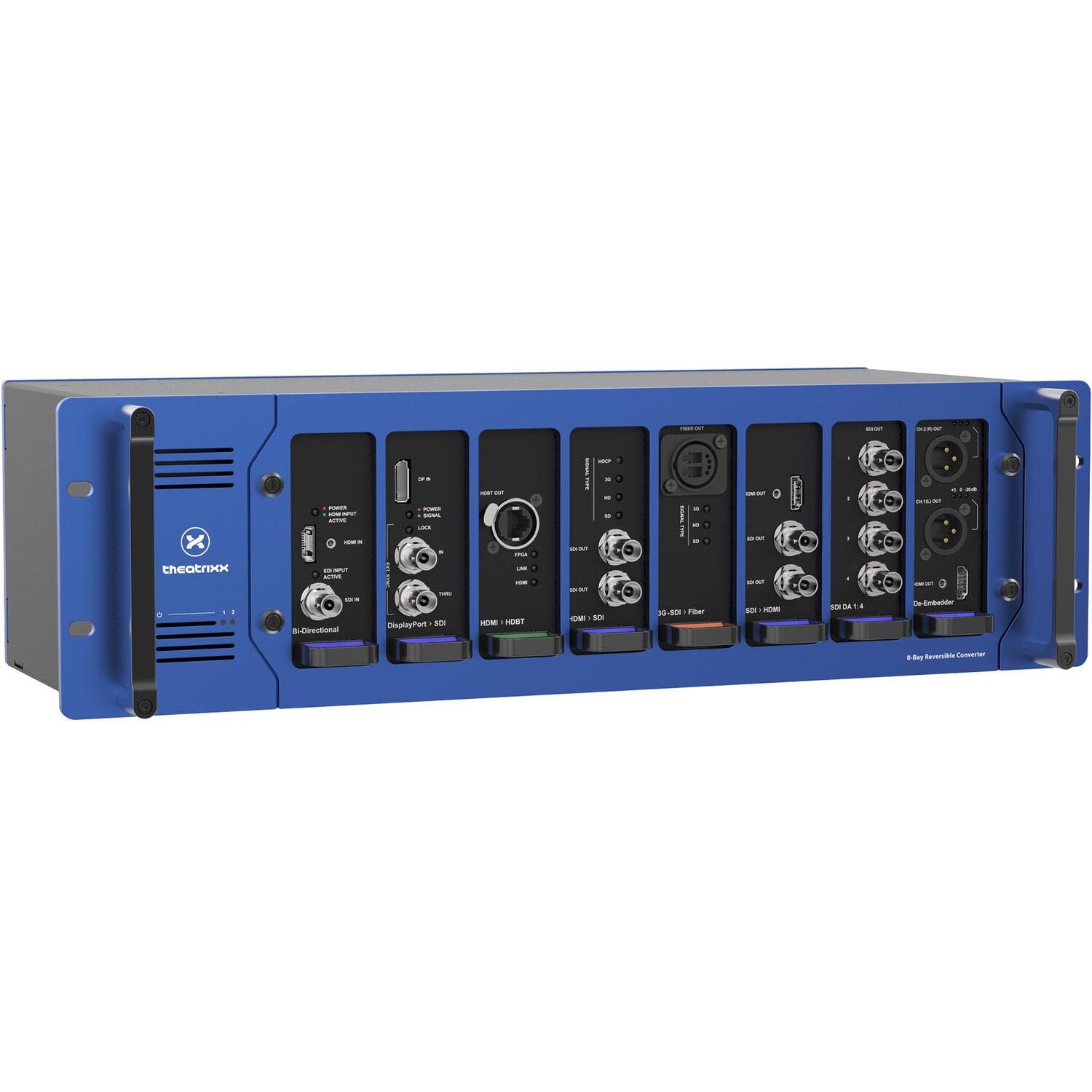

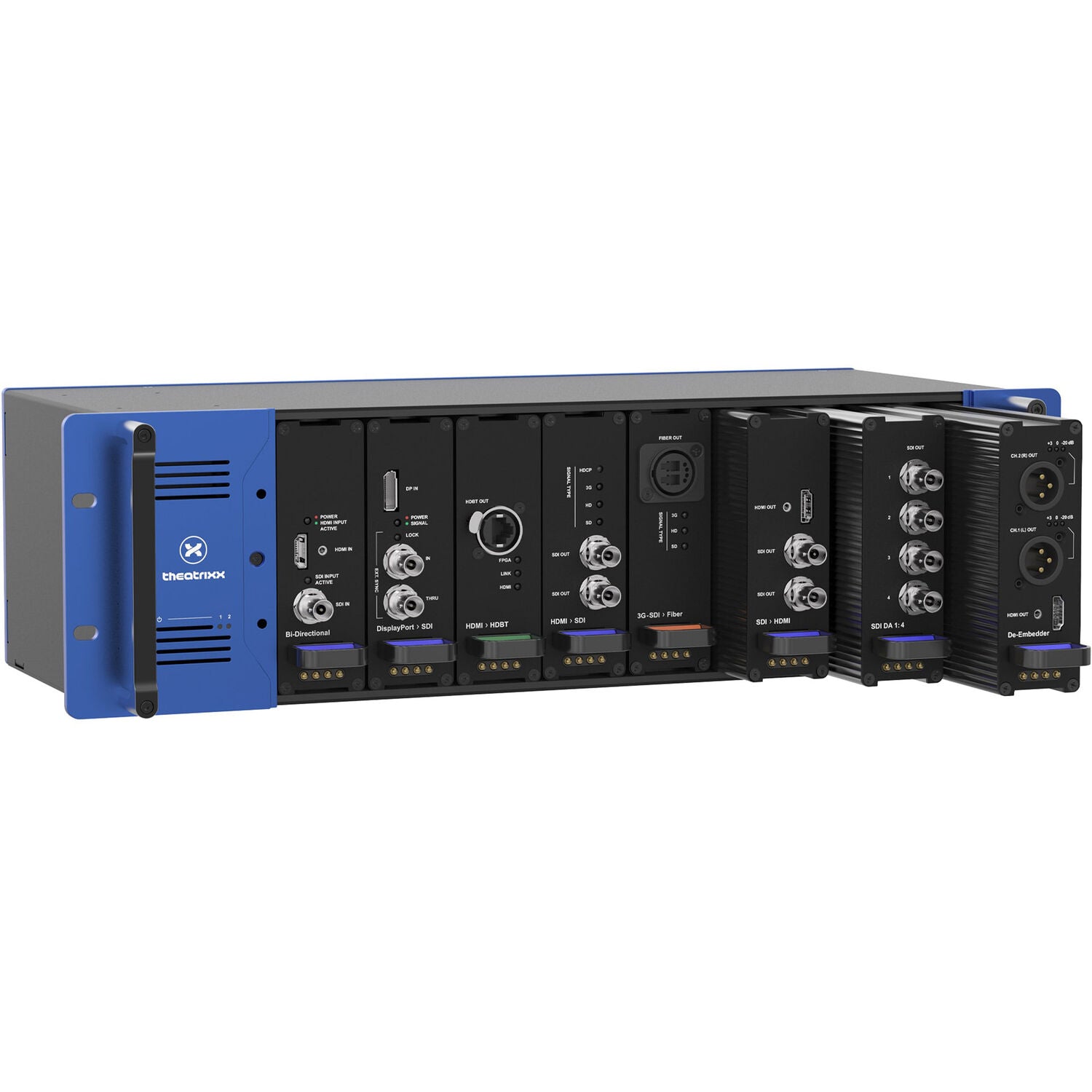

The Dual Fiber to Dual SDI Reversible Module from Theatrixx Technologies is designed for the Theatrixx 8-Bay Reversible Rackmount Frame for Video Converters. It can be inserted in the 8-bay frame from either direction, allowing the inputs/outputs to be positioned at the front or rear, as your application requires. The module features an enclosed design with no exposed PCBs and is protected against static shock, dust, and general wear and tear. Read more

Features

  • Fits Theatrixx 8-Bay Reversible Frame
  • Inserts into Frame from Either Direction
  • Enclosed Design with No Exposed PCBs
  • Gold-Plated Redundant Spring Pins

Business Financing Options Avaiable

The Dual Fiber to Dual SDI Reversible Module from Theatrixx Technologies is designed for the Theatrixx 8-Bay Reversible Rackmount Frame for Video Converters. It can be inserted in the 8-bay frame from either direction, allowing the inputs/outputs to be positioned at the front or rear, as your application requires. The module features an enclosed design with no exposed PCBs and is protected against static shock, dust, and general wear and tear. Read more

Features

  • Fits Theatrixx 8-Bay Reversible Frame
  • Inserts into Frame from Either Direction
  • Enclosed Design with No Exposed PCBs
  • Gold-Plated Redundant Spring Pins

About the Theatrixx Technologies Dual Fiber to Dual 3G SDI Reversible Module

The Dual Fiber to Dual SDI Reversible Module from Theatrixx Technologies is designed for the Theatrixx 8-Bay Reversible Rackmount Frame for Video Converters. It can be inserted in the 8-bay frame from either direction, allowing the inputs/outputs to be positioned at the front or rear, as your application requires. The module features an enclosed design with no exposed PCBs and is protected against static shock, dust, and general wear and tear.

Key Features

  • Fits Theatrixx 8-Bay Reversible Frame
  • Inserts into Frame from Either Direction
  • Enclosed Design with No Exposed PCBs
  • Gold-Plated Redundant Spring Pins

Theatrixx Technologies Dual Fiber to Dual 3G SDI Reversible Module Specs

Optical Inputs
Input Connector Options
ST, OpticalCON DUO, or OpticalCON QUAD
Fiber Type
Singlemode or Multimode (varies by model)
Optical Standard
SDI over fiber
Input Channels
2 independent fiber inputs
SDI Outputs
Output Connectors
4 x 3G/HD/SD SDI BNC
Output Configuration
2 channels × 4 total outputs
Output Type
Reclocked and amplified SDI
Video Format Support
3G-SDI Formats
Level A and B (SMPTE 425M)
HD-SDI Formats
SMPTE 292M compliant
SD-SDI Formats
SMPTE 259M compliant
Embedded Audio
Passthrough support
Additional Standards
SMPTE 424M

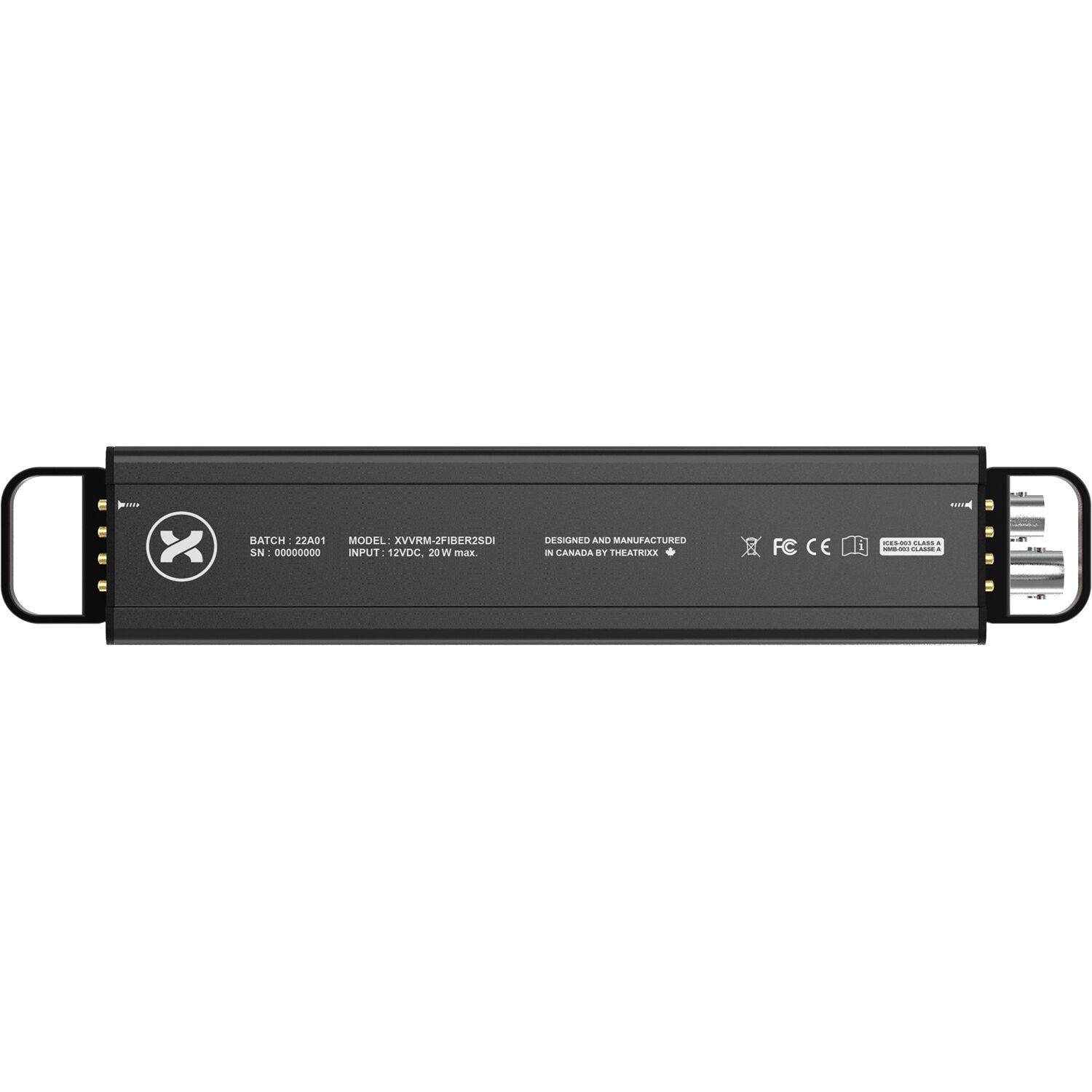

Power Specifications
Power Source
Reversible redundant power fed by XVVRF8 frame
Voltage
12 V DC (from frame backplane)
Power Consumption
20 W maximum
Power Connection
Gold-plated spring pins with magnetic retention
Construction Features
PCB Protection
Fully enclosed design, no exposed PCBs
Mounting Orientation
Reversible (front or rear I/O positioning)
Retention Mechanism
Magnetic retention system
Connector Protection
Static shock and dust resistant

Key Features

  • Fits Theatrixx 8-Bay Reversible Frame
  • Inserts into Frame from Either Direction
  • Enclosed Design with No Exposed PCBs
  • Gold-Plated Redundant Spring Pins
