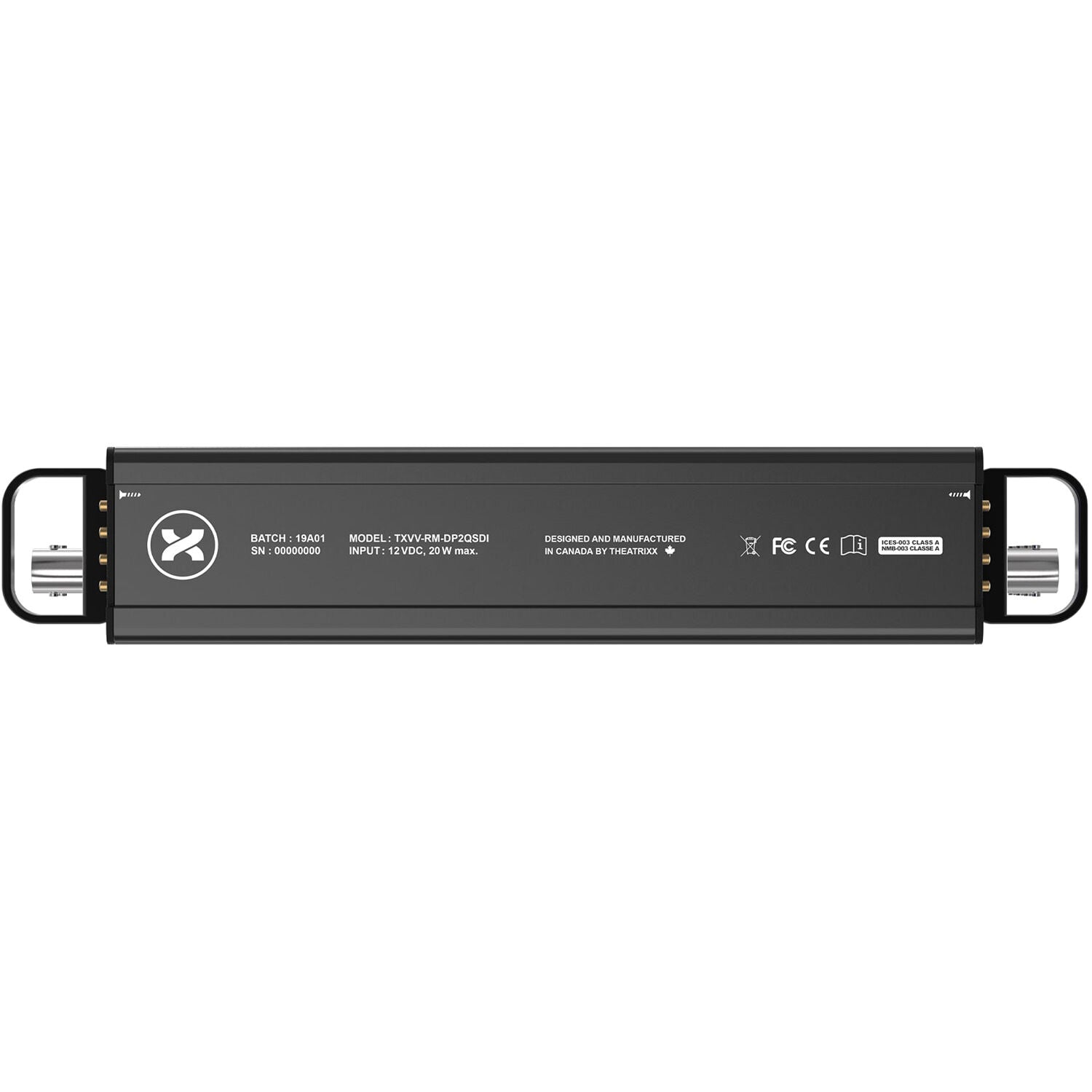

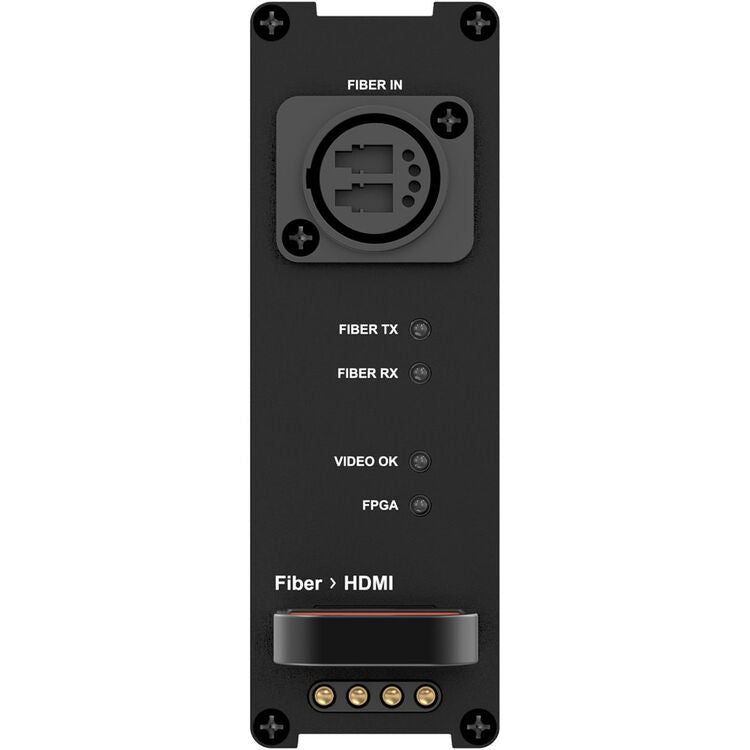

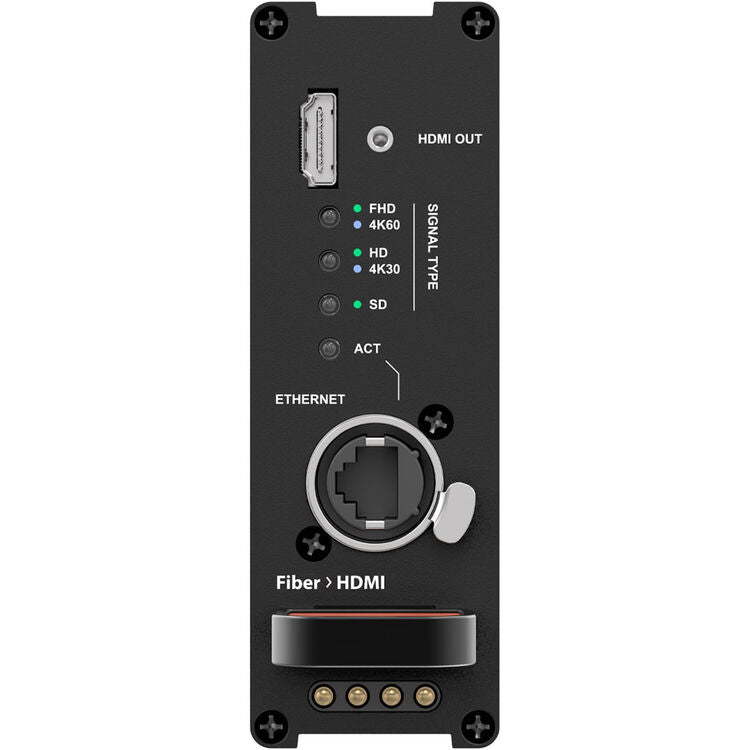

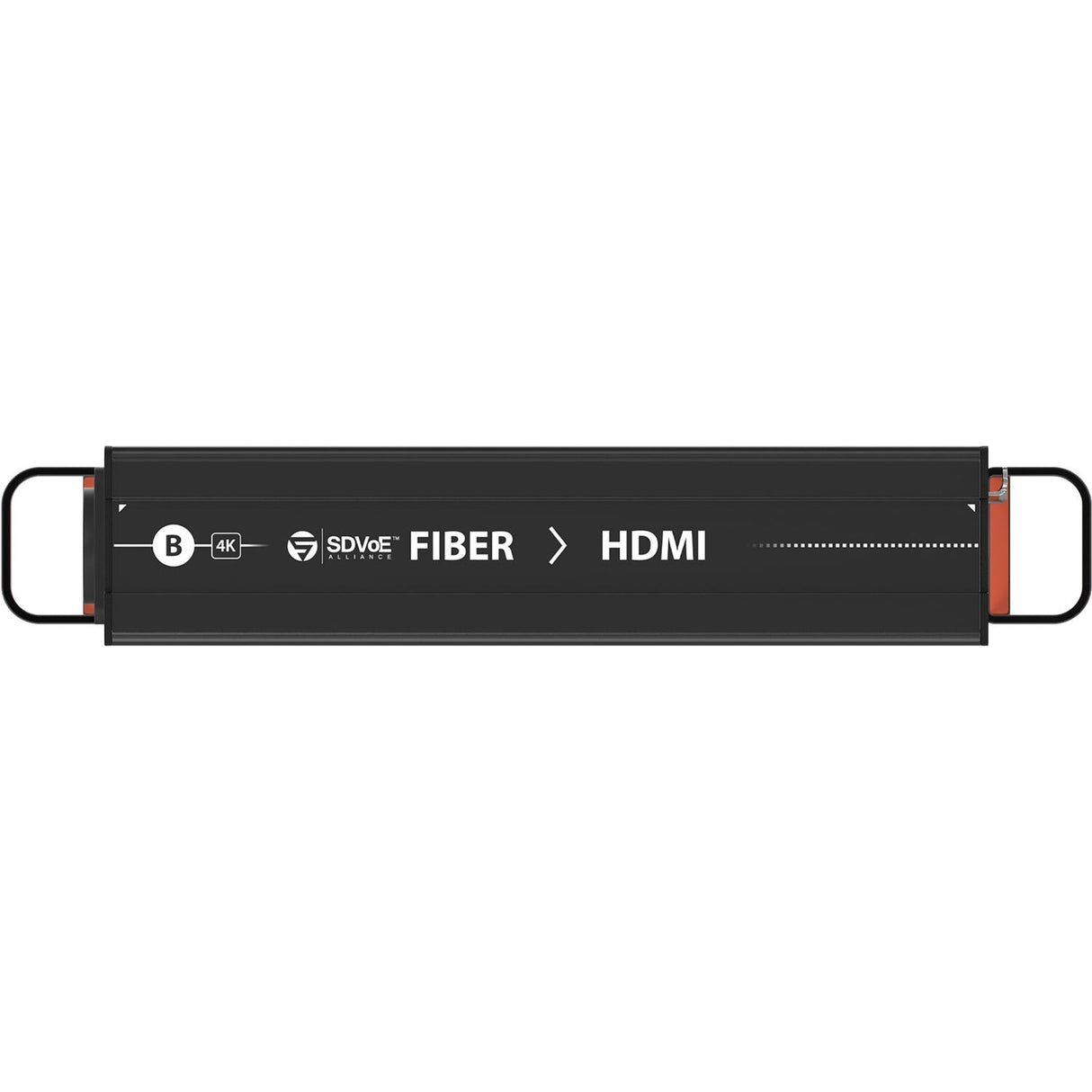

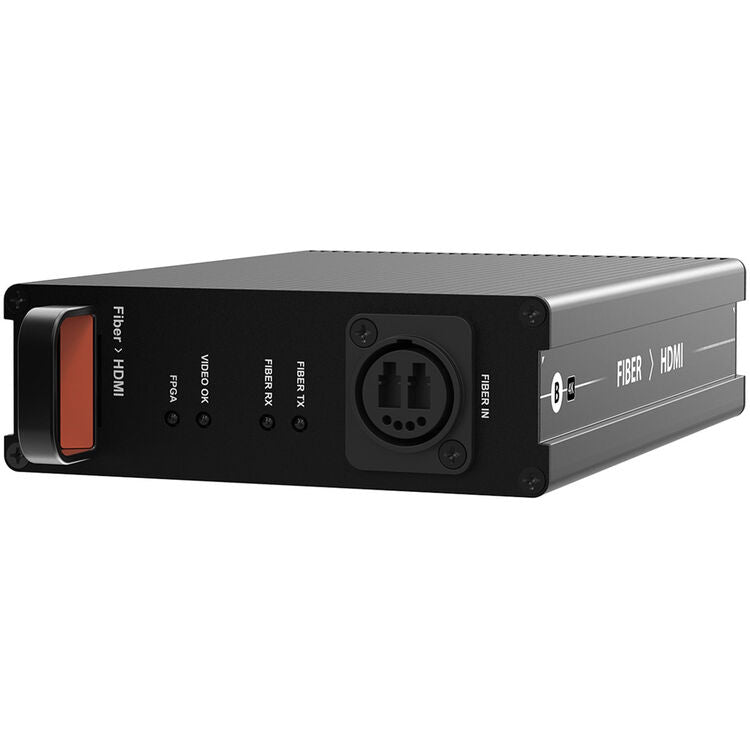

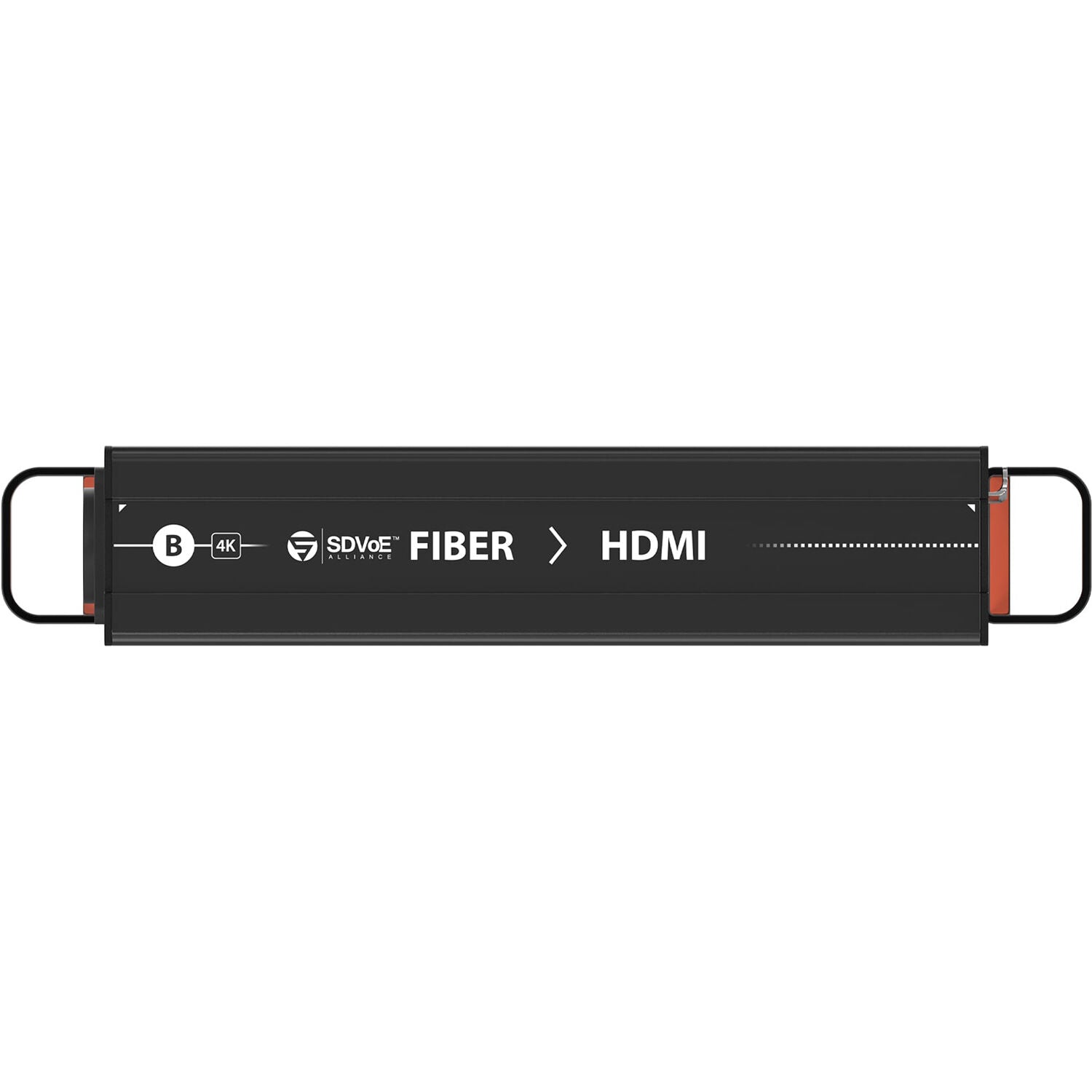

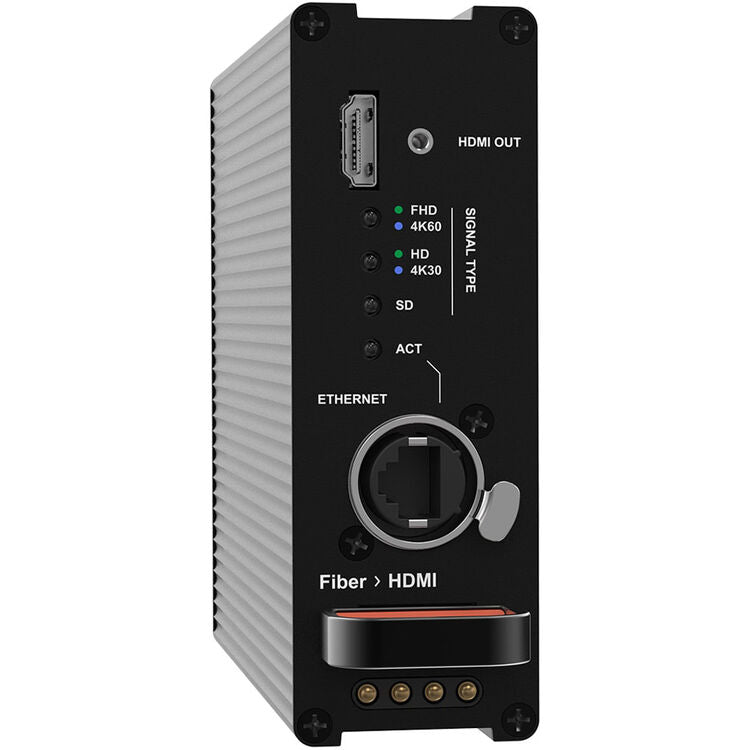

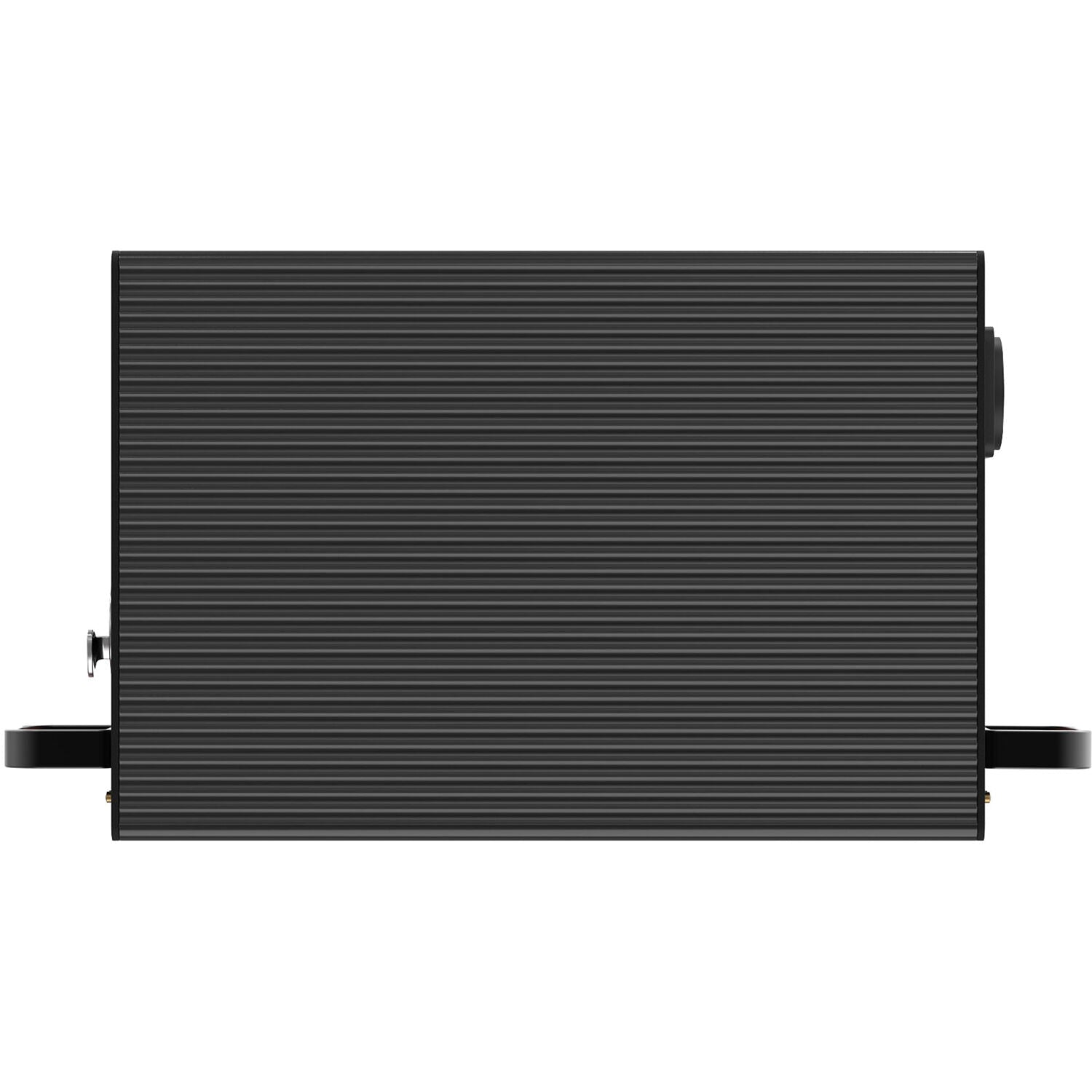

Theatrixx Technologies Fiber SDVoE to HDMI 2.0 + 1 Gb/s Ethernet Reversible Module (Single-Mode, OpticalCON Dual)

The Theatrixx Technologies Fiber SDVoE to HDMI 2.0 + 1 Gb/s Ethernet Reversible Module (Single-Mode, OpticalCON Dual) is a professional AV-over-IP receiver module designed for integration into the Theatrixx 8-Bay Reversible Rackmount Converter System. Developed for broadcast facilities, corporate AV, esports venues, live production, and mission-critical installations, the module converts 10 Gbps optical Ethernet delivered over single-mode fiber into a local HDMI 2.0 output while simultaneously providing a dedicated 1 Gb/s Ethernet connection for network devices.

The module supports all HDMI 2.0 video formats up to 4K UHD at 60 Hz, including HDR10 and Dolby Vision, while transporting embedded multi-channel audio with ultra-low latency using SDVoE (NT1000-based) technology. Designed specifically for professional environments, it enables visually lossless signal transport over fiber without compromising image quality or synchronization.

As a member of the xVision Reversible Module family, the unit can be installed from either side of the compatible rack frame, allowing connector orientation to be optimized for system layout. Power is supplied directly from the XVVRF8 frame through redundant internal contacts, eliminating external power adapters and simplifying rack integration for touring and permanent installations.
