SKU: Theatrixx-XVVFIBER2SDI-12GM3

Theatrixx Technologies Fiber to 12G-SDI (PWCA In/Edison Thru, Multimode, OpticalCON Quad)

Name: Theatrixx Technologies Fiber to 12G-SDI (PWCA In/Edison Thru, Multimode, OpticalCON Quad)
Brand: AVGear.com
SKU: Theatrixx-XVVFIBER2SDI-12GM3
Price: 1540.00 USD
Availability: InStock

$1,540.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

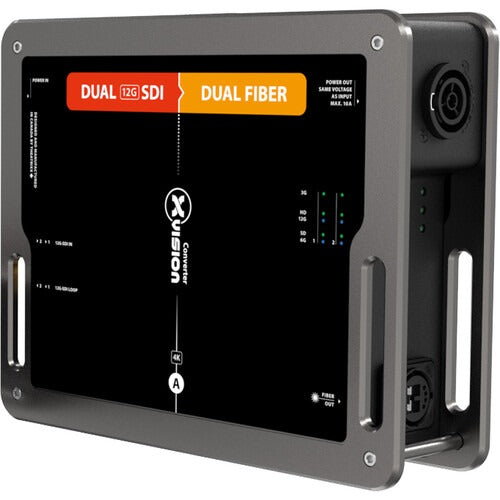

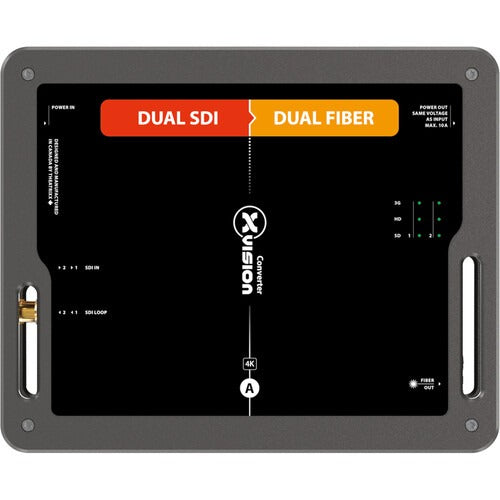

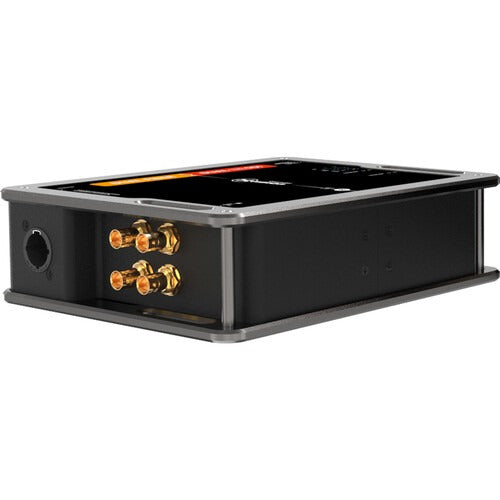

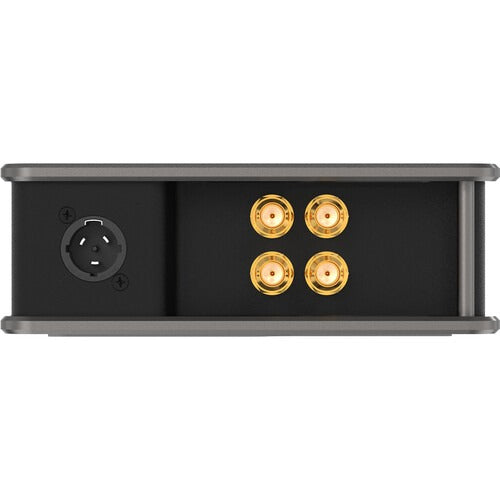

The Dual 12G-SDI to Dual Fiber xVision Converter from Theatrixx Technologies is a sturdy plug-and-play 12G-SDI video to dual fiber converter (with optional module) designed to easily be used while on the road. The unit features an integrated power supply with a locking powerCON connector and a built-in AC outlet to power a nearby projector, TV, or laptop. Read more

Features

Plug-and-Play Operation
Multiple Mounting Options
Magnetic Stacking System
Locking powerCON Connector
Built-In AC Outlet

Business Financing Options Avaiable

View Available Financing

Features

Plug-and-Play Operation
Multiple Mounting Options
Magnetic Stacking System
Locking powerCON Connector
Built-In AC Outlet

No products currently in stock

About the Theatrixx Technologies Fiber to 12G-SDI (PWCA In/Edison Thru, Multimode, OpticalCON Quad)

Professional equipment in mission-critical applications is all about reliability and confidence. So we started with a clean sheet, and built what might soon become your most trustwor- thy piece of equipment.

Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on profesionnal A/V events, presentations, live shows and tours and often have a critical role.

Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters.

Key Features

Plug-and-Play Operation
Multiple Mounting Options
Magnetic Stacking System
Locking powerCON Connector
Built-In AC Outlet

Already own this item and want to sell it?

Click here to sell your item

Theatrixx Technologies Fiber to 12G-SDI (PWCA In/Edison Thru, Multimode, OpticalCON Quad) Specs

Connections

Video Input

Choice of Multimode or Singlemode Choice of Optical SDI on ST, OpticalCON DUO or OpticalCON QUAD

Video Output

2 x 12G/6G/3G/HD/SD SDI BNC

Supported Signals

Video Format Support

12G/6G/3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio

SMPTE Standards

2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M

Physical

Height

50 mm (1.97 in)

Depth

180 mm (7.08 in)

Width

107 mm (4.21 in)

Weight

1 kg (2.2 lbs)

Alternate Form Factor

Also available as a Reversible Module

Environmental

Relative Humidity

0% to 90% non-condensing

Operating Temperature

0-40 °C

Power Requirements

Power Supply

Built-in power supply

PowerCON input Edison Nema 5-15 output (loop-thru)

Power Consumption

15W

Operational Voltage Range

100-120V, 50-60Hz (100-240V, 50-60Hz available with PowerCON True1)

Courtesy Outlet

Max 10 A, same voltage as input

Key Features

Plug-and-Play Operation
Multiple Mounting Options
Magnetic Stacking System
Locking powerCON Connector
Built-In AC Outlet
