Theatrixx Technologies

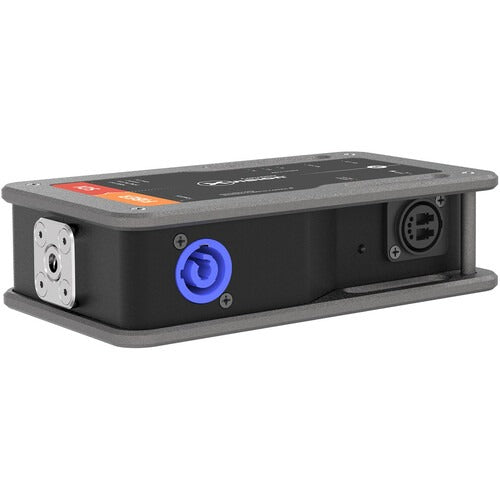

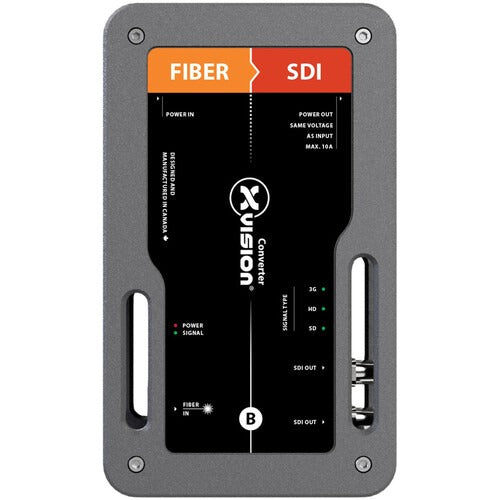

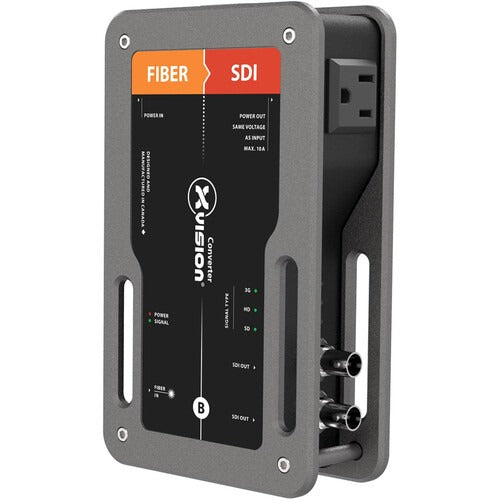

Theatrixx Technologies Fiber to 12G-SDI xVision Converter (Single-Mode, ST)

$1,399.00 - $1,540.00

The Fiber to 12G-SDI xVision Converter from Theatrixx Technologies is a sturdy, compact plug-and-play converter that offers a single-mode ST SFP fiber input module to a 12G-SDI video conversion output for long-distance video transmission.

The unit features an integrated power supply with a locking powerCON True1 connector and a built-in standard AC outlet to power a nearby projector, TV, or laptop. There is also a loop-through powerCON True1 output to daisy-chain your modules or power a local TV, computer, or projector.

View Product Features

  • Plug-and-Play Operation
  • SFP Fiber to 12G-SDI Video Transmission
  • Single-Mode ST Fiber Input

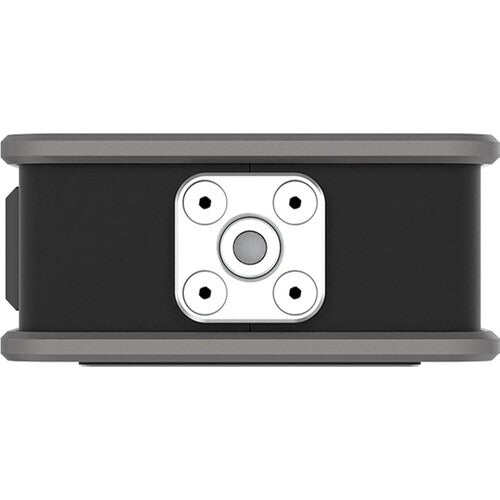

  • Multiple Mounting Options
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Theatrixx Technologies Fiber to 12G-SDI xVision Converter (Single-Mode, ST)

Professional equipment in mission-critical applications is all about reliability and confidence. So we started with a clean sheet, and built what might soon become your most trustwor- thy piece of equipment.

Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on profesionnal A/V events, presentations, live shows and tours and often have a critical role.

Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters.

Key Features

  • Plug-and-Play Operation
  • SFP Fiber to 12G-SDI Video Transmission
  • Single-Mode ST Fiber Input
  • Multiple Mounting Options

Theatrixx Technologies Fiber to 12G-SDI xVision Converter (Single-Mode, ST) Specs

Connections
Video Input
Choice of Multimode or Singlemode Choice of Optical SDI on ST, OpticalCON DUO or OpticalCON QUAD
Video Output
2 x 12G/6G/3G/HD/SD SDI BNC
Supported Signals
Video Format Support
12G/6G/3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
SMPTE Standards
2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M
Physical
Height
50 mm (1.97 in)
Depth
180 mm (7.08 in)
Width
107 mm (4.21 in)
Weight
1 kg (2.2 lbs)
Alternate Form Factor
Also available as a Reversible Module
Environmental
Relative Humidity
0% to 90% non-condensing
Operating Temperature
0-40 °C
Power Requirements
Power Supply
Built-in power supply PowerCON input Edison Nema 5-15 output (loop-thru)
Power Consumption
15W
Operational Voltage Range
100-120V, 50-60Hz (100-240V, 50-60Hz available with PowerCON True1)
Courtesy Outlet
Max 10 A, same voltage as input

Key Features

  • Plug-and-Play Operation
  • SFP Fiber to 12G-SDI Video Transmission
  • Single-Mode ST Fiber Input
  • Multiple Mounting Options
