XVVFIBER2SDI-M1

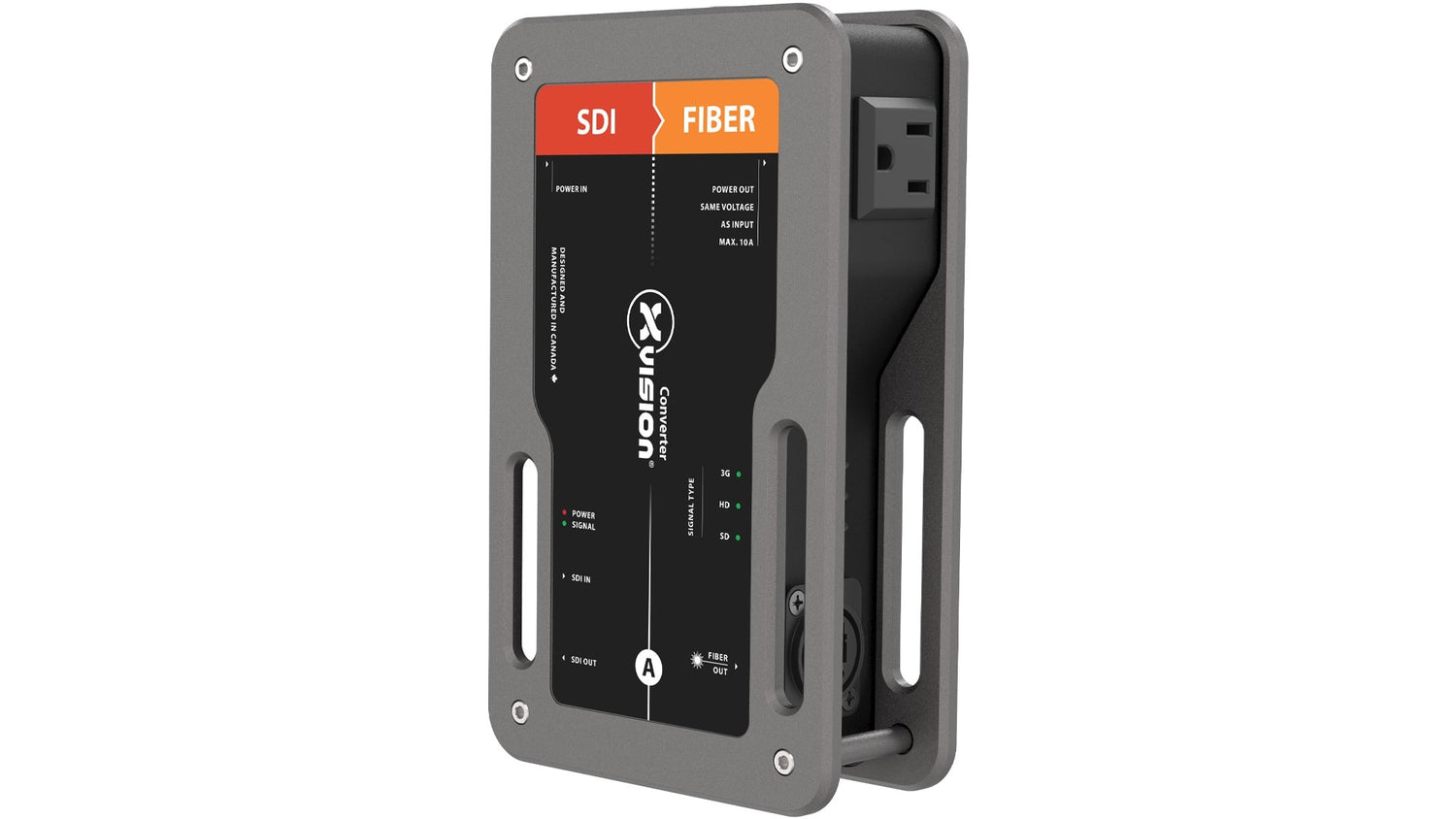

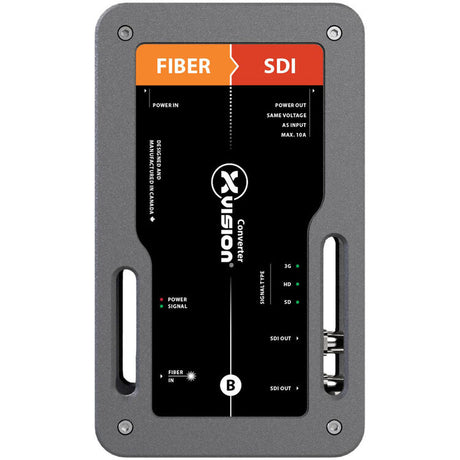

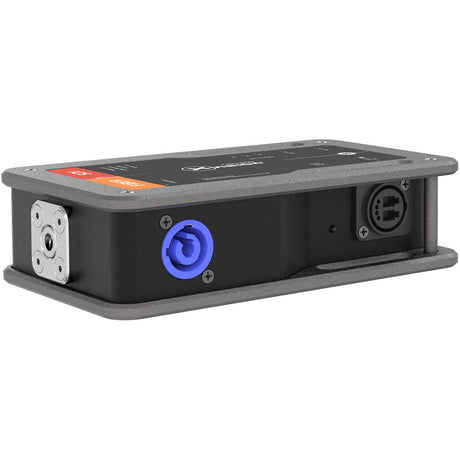

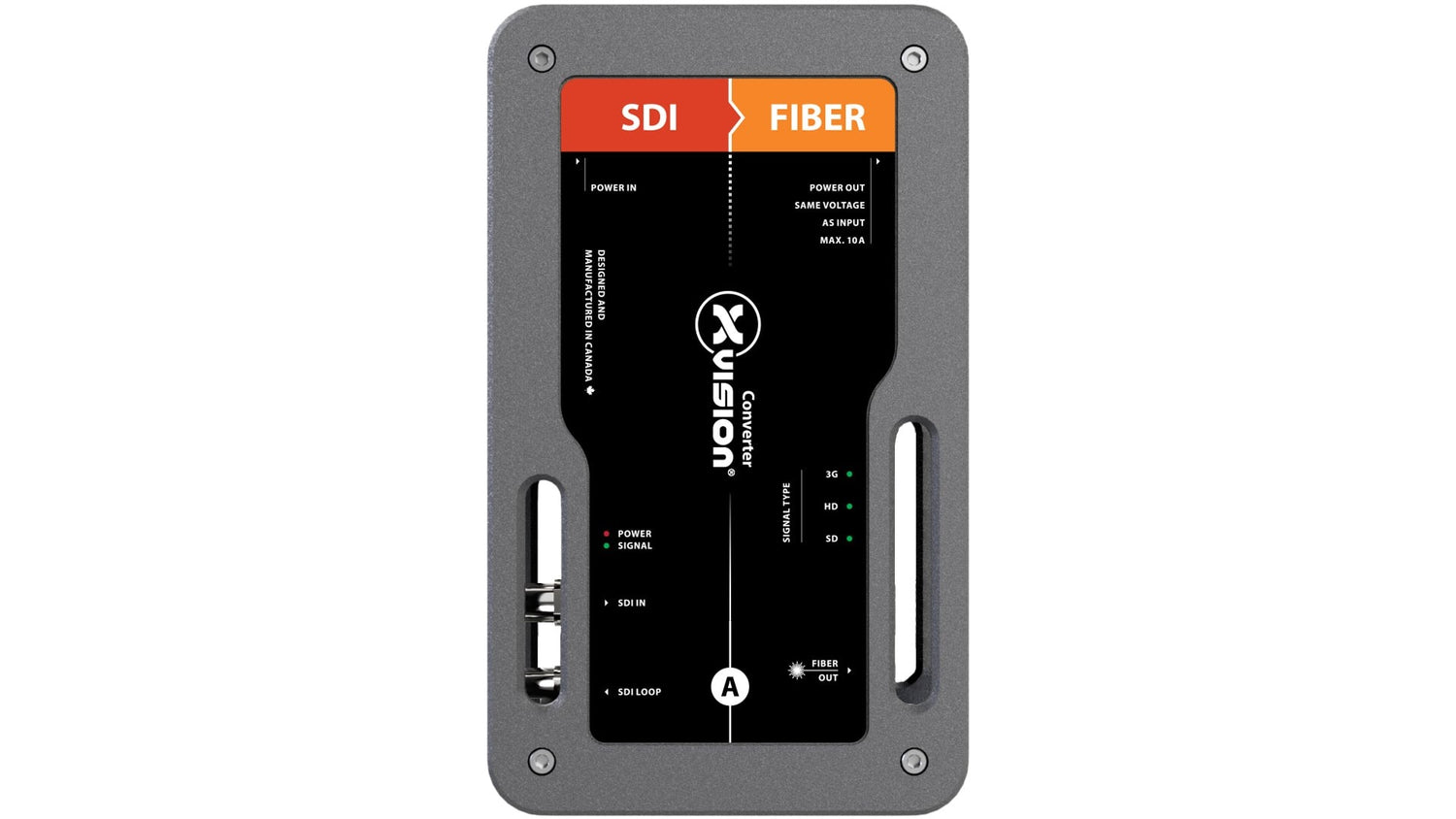

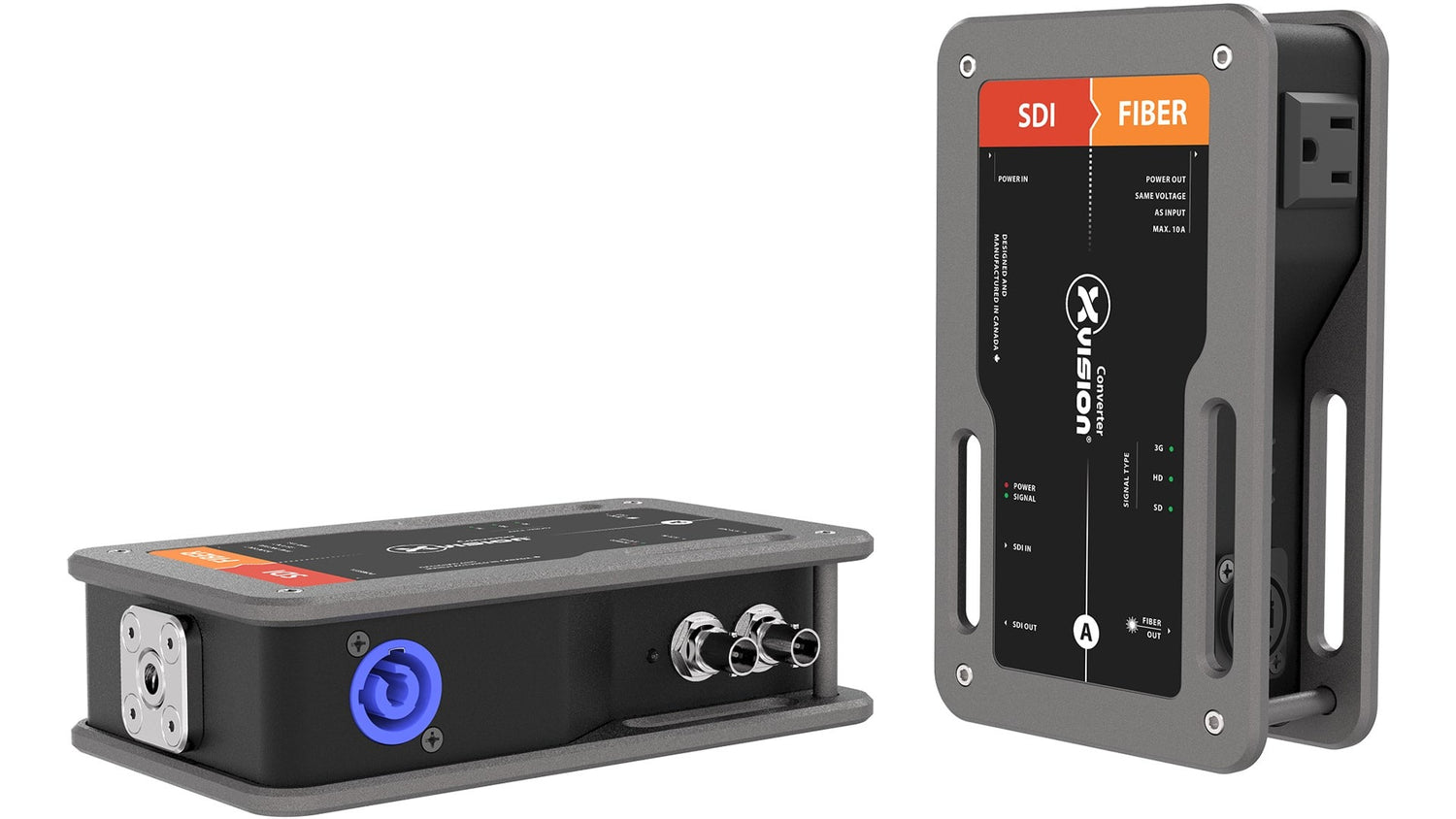

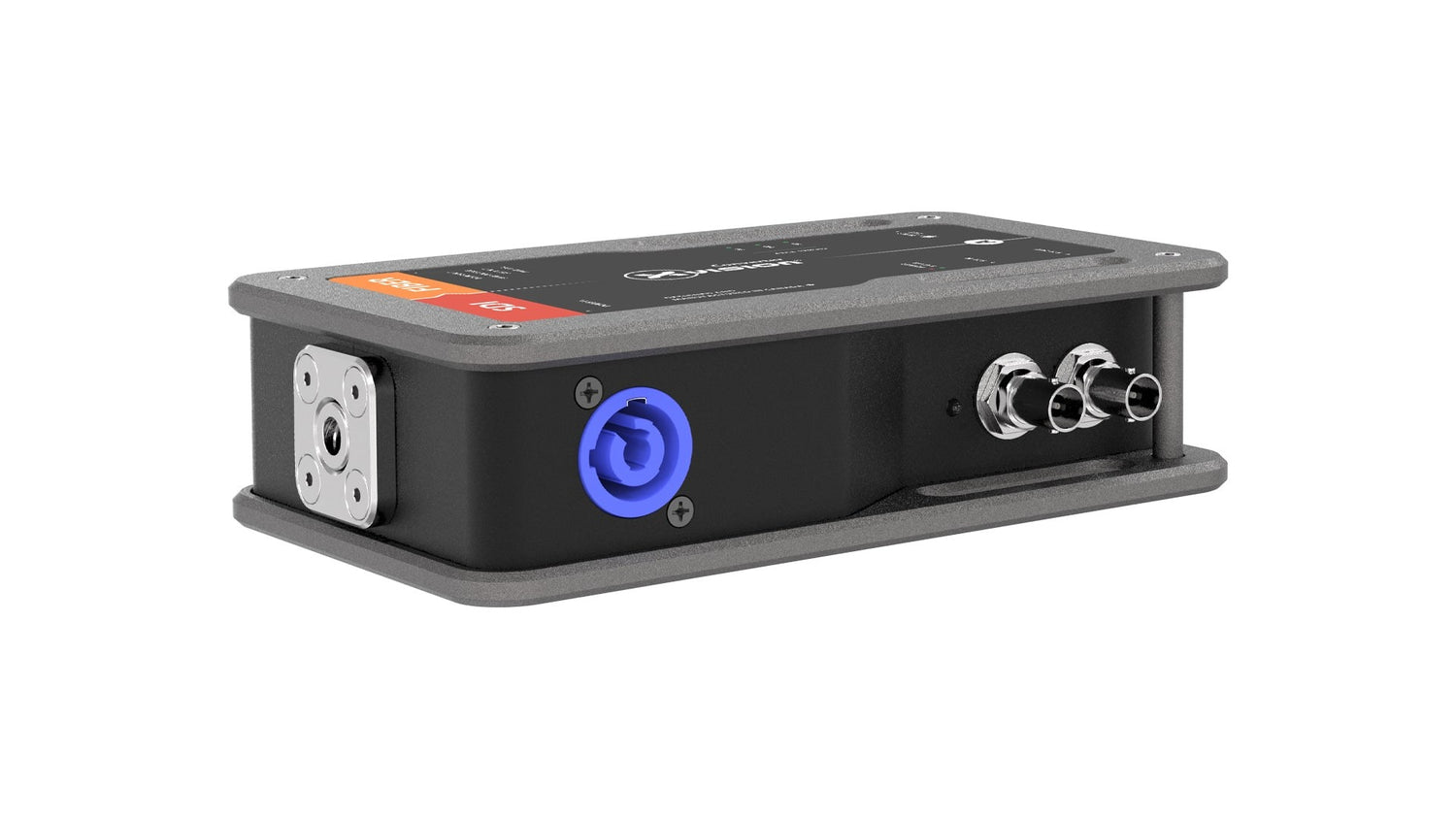

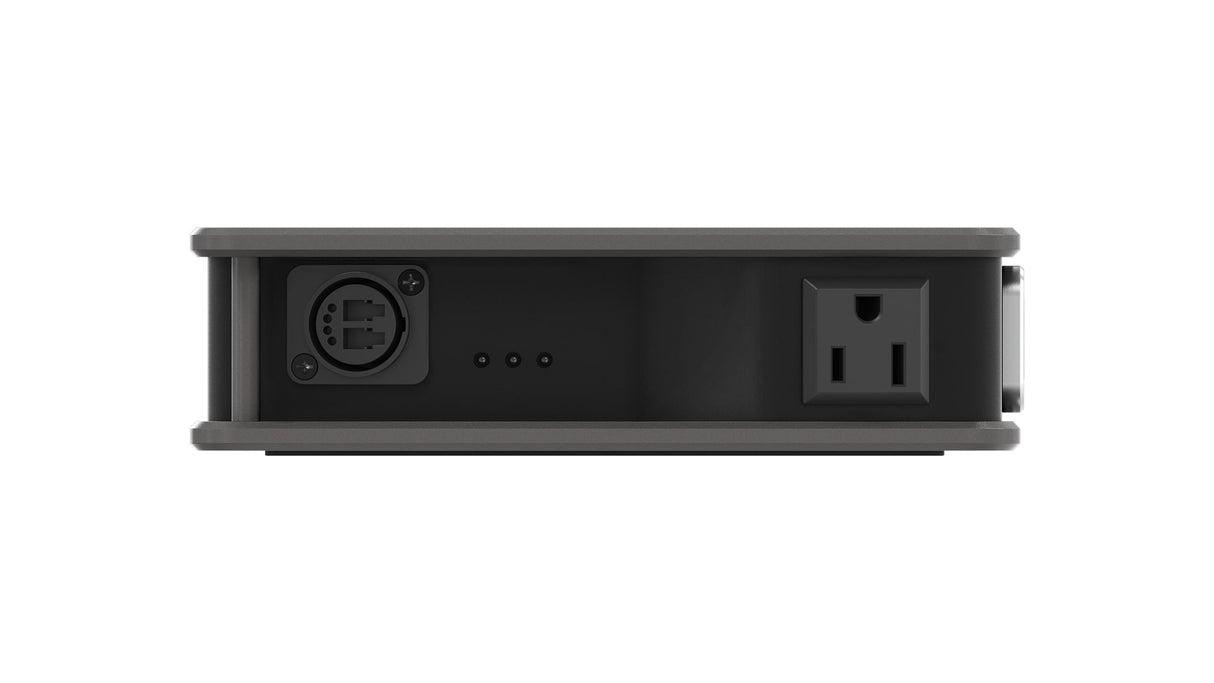

Theatrixx Technologies Fiber to 3G-SDI xVision Converter with PowerCON In/Edison Loop-Thru (Multimode, ST)

$699.00 - $840.00

Professional equipment in mission-critical applications is all about reliability and confidence. So we started with a clean sheet, and built what might soon become your most trustworthy piece of equipment.

Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role.

Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters.

View Product Features

  • Integrated power supply with locking PowerCON Connector. Never rely on a cluster of wall-warts again.
  • Built-in convenience AC outlet to power nearby projector, TV, laptop, small video projector… Power bar to power both the converter and device not required anymore.

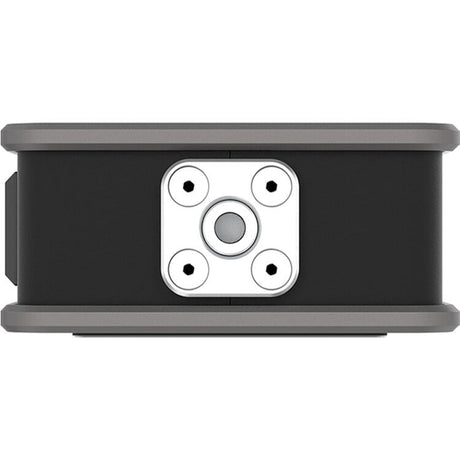

  • Magnetic stacking system and non-skid rubber pad for table top application. Saves at least 10 gaffer tape rolls a year.
  • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
  • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
  • Plug-n-play operation; No dipswitches, buttons or menus to fumble with : It just works.
  • Clear and ample status LED indicators for quick troubleshooting.
  • Easy on-the-field identification with unique color and alphabetic coding system.
  • Reclocked and amplified SDI loop thru
  • SFP-based video transmission for interoperability with standard SDI over fiber devices.
  • Choice of three optical connectors, each available as single- mode and multimode types.
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Theatrixx Technologies Fiber to 3G-SDI xVision Converter with PowerCON In/Edison Loop-Thru (Multimode, ST)

Professional equipment in mission-critical applications is all about reliability and confidence. So we started with a clean sheet, and built what might soon become your most trustwor- thy piece of equipment.
Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on profesionnal A/V events, presentations, live shows and tours and often have a critical role.

Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters.

Key Features

  • Integrated power supply with locking PowerCON Connector. Never rely on a cluster of wall-warts again.
  • Built-in convenience AC outlet to power nearby projector, TV, laptop, small video projector… Power bar to power both the converter and device not required anymore.
  • Magnetic stacking system and non-skid rubber pad for table top application. Saves at least 10 gaffer tape rolls a year.
  • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
  • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
  • Plug-n-play operation; No dipswitches, buttons or menus to fumble with : It just works.
  • Clear and ample status LED indicators for quick troubleshooting.
  • Easy on-the-field identification with unique color and alphabetic coding system.
  • Reclocked and amplified SDI loop thru
  • SFP-based video transmission for interoperability with standard SDI over fiber devices.
  • Choice of three optical connectors, each available as single- mode and multimode types.

Theatrixx Technologies Fiber to 3G-SDI xVision Converter with PowerCON In/Edison Loop-Thru (Multimode, ST) Specs

Connections
Video Input
Choice of Multimode or Singlemode Choice of Optical SDI on ST, OpticalCON DUO or OpticalCON QUAD
Video Output
2 x 3G/HD/SD SDI BNC
Supported Signals
Video Format
3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
SMPTE Standards
425 M Level A & B, 424 M, 292 M, 259 M
Physical
Height
50 mm (1.97 in)
Depth
180 mm (7.08 in)
Width
107 mm (4.21 in)
Weight
1 kg (2.2 lbs)
Alternate Form Factor
Also available as a Reversible Module
Environmental
Relative Humidity
0% to 90% non-condensing
Operating Temperature
0-40 °C
Power Requirements
Power Supply

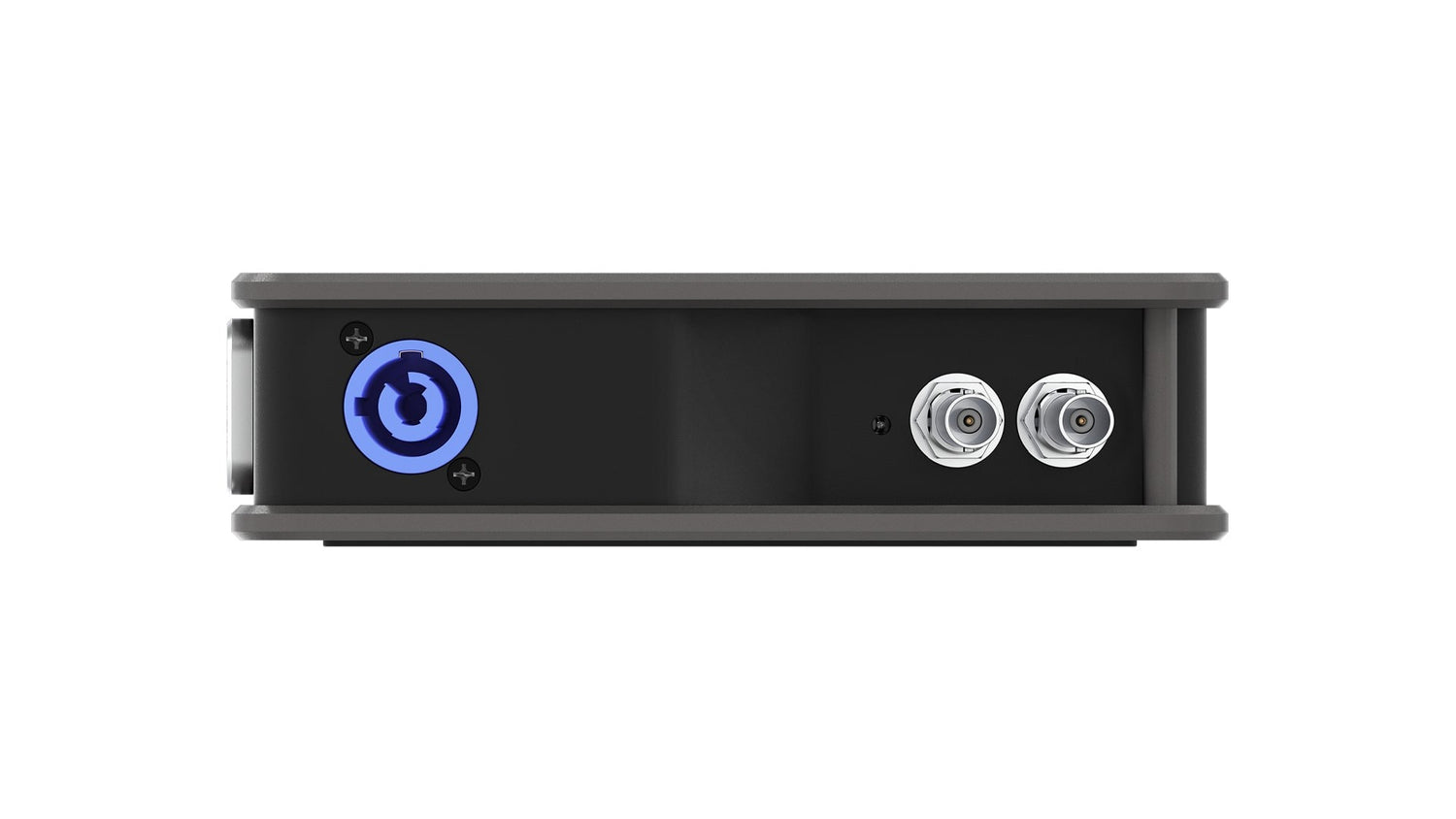

Built-in power supply PowerCON input Edison Nema 5-15 output (loop-thru)
Power Consumption
15W
Operational Voltage Range
100-120V, 50-60Hz (100-240V, 50-60Hz available with PowerCON True1)
Courtesy Outlet
Max 10 A, same voltage as input

Key Features

  • Integrated power supply with locking PowerCON Connector. Never rely on a cluster of wall-warts again.
  • Built-in convenience AC outlet to power nearby projector, TV, laptop, small video projector… Power bar to power both the converter and device not required anymore.
  • Magnetic stacking system and non-skid rubber pad for table top application. Saves at least 10 gaffer tape rolls a year.
  • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
  • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
  • Plug-n-play operation; No dipswitches, buttons or menus to fumble with : It just works.
  • Clear and ample status LED indicators for quick troubleshooting.
  • Easy on-the-field identification with unique color and alphabetic coding system.
  • Reclocked and amplified SDI loop thru
  • SFP-based video transmission for interoperability with standard SDI over fiber devices.
  • Choice of three optical connectors, each available as single- mode and multimode types.
