Theatrixx Technologies

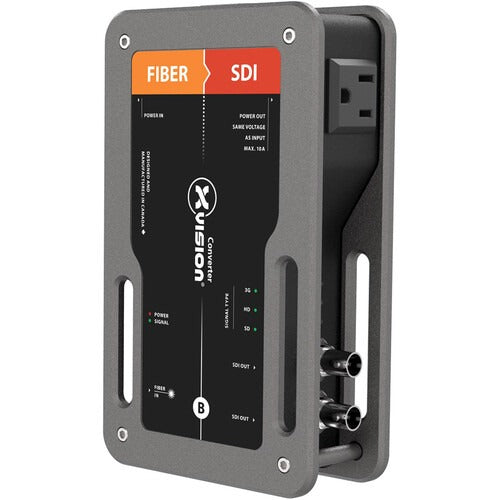

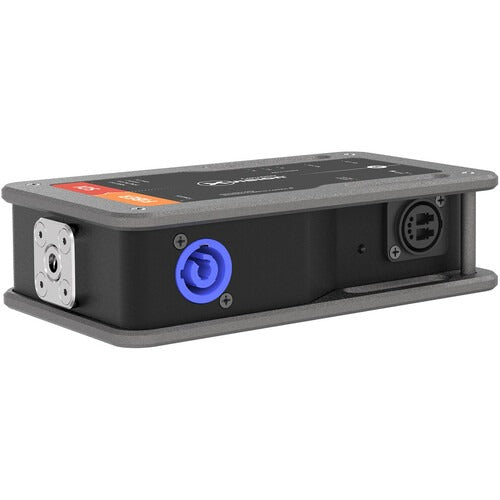

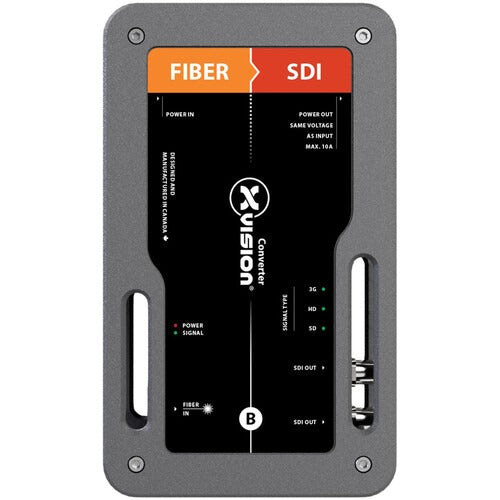

Theatrixx Technologies Fiber to 3G-SDI xVision Converter with PowerCON In/Edison Loop-Thru (Single-Mode, ST)

$699.00 - $840.00

Ideal for live shows and events, the Fiber to 3G-SDI xVision Converter from Theatrixx Technologies is a sturdy, compact plug-and-play converter that offers a single-mode, ST SFP fiber input to 3G-SDI output module for reliable video conversion over long distances.

The unit features an integrated power supply with a locking powerCON input connector and a built-in standard AC outlet to power a nearby projector, TV, or laptop. There is also a loop-through Edison NEMA 5-15 output to daisy-chain your modules or power a compatible device.

This xVision converter supports up to 1080p60 video with embedded audio. It uses SFP-based video transmission to provide interoperability with standard SDI-over-fiber devices.

View Product Features

  • Converts Fiber Signals to 3G-SDI
  • Up to 1080p Video and Embedded Audio
  • Re-Clocked & Amplified 3G-SDI Loop Out
  • Integrated Power with powerCON Connector
  • Built-In AC Convenience Outlet
  • Easy Plug-and Play Operation
  • Clear LED Status Indicators
  • Easy Color/Alphabet-Coded Identification

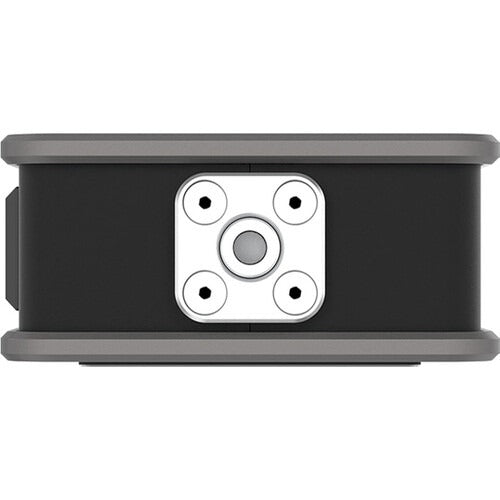

  • Magnetic Stacking System
  • Non-Skid Rubber Pad for Tabletop Usage
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Theatrixx Technologies Fiber to 3G-SDI xVision Converter with PowerCON In/Edison Loop-Thru (Single-Mode, ST)

Professional equipment in mission-critical applications is all about reliability and confidence. So we started with a clean sheet, and built what might soon become your most trustwor- thy piece of equipment.
Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on profesionnal A/V events, presentations, live shows and tours and often have a critical role.

Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters.

Key Features

  • Converts Fiber Signals to 3G-SDI
  • Up to 1080p Video and Embedded Audio
  • Re-Clocked & Amplified 3G-SDI Loop Out
  • Integrated Power with powerCON Connector
  • Built-In AC Convenience Outlet
  • Easy Plug-and Play Operation
  • Clear LED Status Indicators
  • Easy Color/Alphabet-Coded Identification
  • Magnetic Stacking System
  • Non-Skid Rubber Pad for Tabletop Usage

Theatrixx Technologies Fiber to 3G-SDI xVision Converter with PowerCON In/Edison Loop-Thru (Single-Mode, ST) Specs

Connections
Video Input
Choice of Multimode or Singlemode Choice of Optical SDI on ST, OpticalCON DUO or OpticalCON QUAD
Video Output
2 x 3G/HD/SD SDI BNC
Supported Signals
Video Format
3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
SMPTE Standards
425 M Level A & B, 424 M, 292 M, 259 M
Physical
Height
50 mm (1.97 in)
Depth
180 mm (7.08 in)
Width
107 mm (4.21 in)
Weight
1 kg (2.2 lbs)
Alternate Form Factor
Also available as a Reversible Module
Environmental
Relative Humidity
0% to 90% non-condensing
Operating Temperature
0-40 °C
Power Requirements
Power Supply
Built-in power supply PowerCON input Edison Nema 5-15 output (loop-thru)
Power Consumption
15W
Operational Voltage Range
100-120V, 50-60Hz (100-240V, 50-60Hz available with PowerCON True1)
Courtesy Outlet
Max 10 A, same voltage as input

Key Features

  • Converts Fiber Signals to 3G-SDI
  • Up to 1080p Video and Embedded Audio
  • Re-Clocked & Amplified 3G-SDI Loop Out
  • Integrated Power with powerCON Connector
  • Built-In AC Convenience Outlet
  • Easy Plug-and Play Operation
  • Clear LED Status Indicators
  • Easy Color/Alphabet-Coded Identification
  • Magnetic Stacking System
  • Non-Skid Rubber Pad for Tabletop Usage
