Theatrixx Technologies

Theatrixx Technologies Fiber to Dual 3G-SDI Converter

$1,670.00

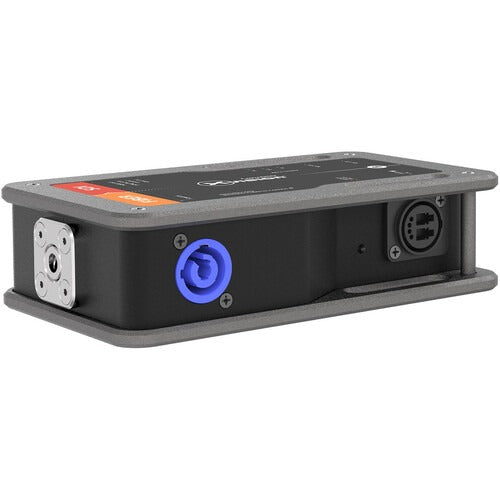

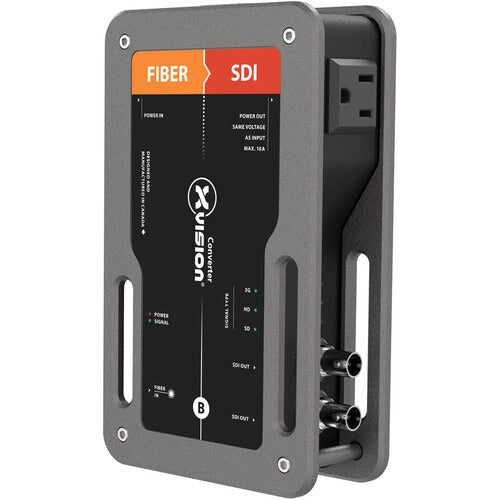

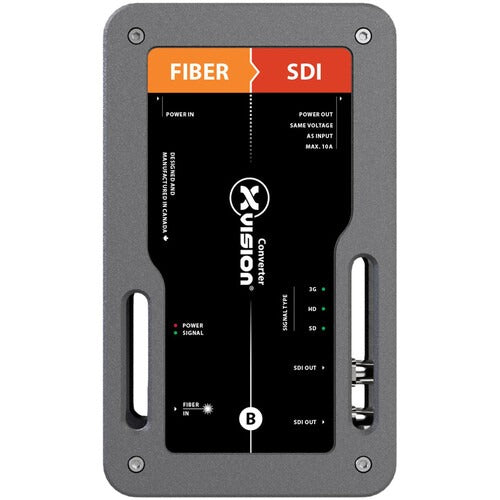

The Fiber to Dual 3G-SDI xVision Converter from Theatrixx Technologies is sturdy a plug-and-play converter that offers a fiber input (with optional module) to dual 3G-SDI video conversion. The unit features an integrated power supply with a locking powerCON connector and a built-in standard AC outlet to power a nearby projector, TV, or laptop.

View Product Features

  • Plug-and-Play Operation
  • SFP Fiber-Based Video Transmission
  • Multiple Mounting Options
  • Magnetic Stacking System
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Theatrixx Technologies Fiber to Dual 3G-SDI Converter

The Dual Fiber to SDI Reversible Module fits in the 8-Bay Reversible Rackmount Converter system.

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

Key Features

  • Plug-and-Play Operation
  • SFP Fiber-Based Video Transmission
  • Multiple Mounting Options
  • Magnetic Stacking System

Theatrixx Technologies Fiber to Dual 3G-SDI Converter Specs

Connections
Video Input
Choice of Multimode or Singlemode Choice of Optical SDI on ST, OpticalCON DUO or OpticalCON QUAD
Video Output
4 x 3G/HD/SD SDI BNC
Supported Signals
Video Format Support
3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
SMPTE Standards
425 M Level A & B, 424 M, 292 M, 259 M
Physical
Height
121.5 mm (4.78 in)
Depth
225 mm (8.85 in)
Width
41 mm (1.61 in)
Weight
710 g (1.56 lbs)
Alternate Form Factor
Also available as a standalone converter
Environmental
Relative Humidity
0% to 90% non-condensing
Operating Temperature
0-40 °C
Power Requirements
Power Supply
Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
Power Consumption
20W
Voltage Range
12VDC

Key Features

  • Plug-and-Play Operation
  • SFP Fiber-Based Video Transmission
  • Multiple Mounting Options
  • Magnetic Stacking System
