Theatrixx Technologies Fiber to HDMI Reversible Module
$2,165.00
Unit price
/
The Fiber to HDMI Reversible Module from Theatrixx Technologies is designed for the Theatrixx 8-Bay Reversible Rackmount Frame for Video Converters. It can be inserted in the 8-bay frame from either direction, allowing the inputs/outputs to be positioned at the front or rear, as your application requires. The module features an enclosed design with no exposed PCBs and is protected against static shock, dust, and general wear and tear.
View Product Features
View Product Features
In stock
Scroll below to see our current inventory for this item.
In-Stock Inventory
-
New
Theatrixx-XVVRM-FIBER2HDMI
Theatrixx Technologies Fiber to HDMI Reversible Module
$2,165.00Unit price /View Product -
About the Theatrixx Technologies Fiber to HDMI Reversible Module
Key Features
Theatrixx Technologies Fiber to HDMI Reversible Module Specs
Module Identification
Compatible Frame

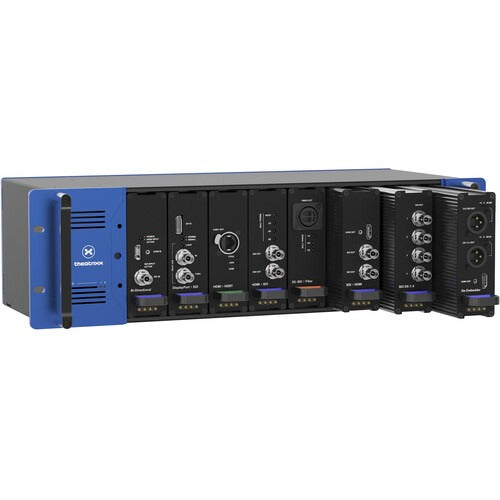

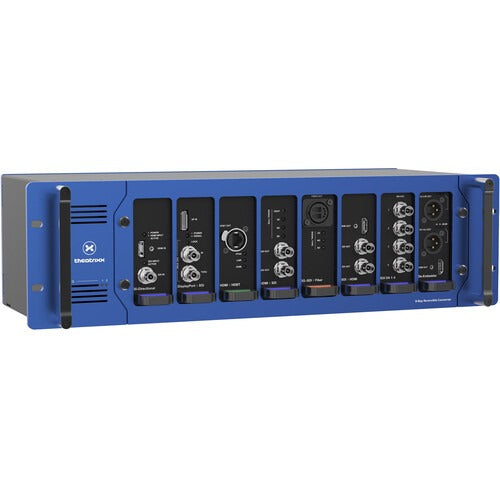

Theatrixx XVVRF8 8-Bay Reversible Rackmount Frame (3RU)
Module Function
SDVoE fiber optic to HDMI 2.0 receiver / decoder
Fiber Input
Input Connector Type
10 Gbps Optical Ethernet, SFP-based
Fiber Type Options
Singlemode or Multimode (varies by ordering)
Connector Options
Neutrik OpticalCON DUO, OpticalCON QUAD, or FiberFOX EBC
Input Signal Type
SDVoE (Software-Defined Video-over-Ethernet)
Video Output
Output Connector Type
HDMI 2.0 Type A with locking system
Maximum Output Resolution
4K60 (4096x2160 @ 60 Hz)
Chroma Subsampling Support
4:4:4 (8-bit) and 4:2:2 (10-bit)
High Dynamic Range
HDR10 and Dolby Vision
Supported HDMI Formats
All HDMI 2.0 specifications
Ethernet Pass-Through
Ethernet Port
1 x 1 Gbps Ethernet on Neutrik EtherCON
Function
Auxiliary signal pass-through (1 Gbps)
Audio Specifications
Embedded Audio Channels
Up to 8 channels
Audio Bit Depth
24-bit
Audio Sampling Rate
192 kHz maximum
Audio Passthrough
Embedded in HDMI output
Encoding & Performance
Encoding Technology
SDVoE (NT1000-based chipset)
Typical Latency
< 0.1 milliseconds (zero-frame)
Transmission Medium
10 Gigabit Ethernet / fiber optic
Power Specifications
Power Source
XVVRF8 frame backplane via spring pins
Voltage
12 V DC
Power Consumption
20 W maximum
Power Connection
Gold-plated redundant spring pins
Power Reliability
Magnetic retention with spring pin redundancy
External Power Cabling
None (power via frame backplane)
