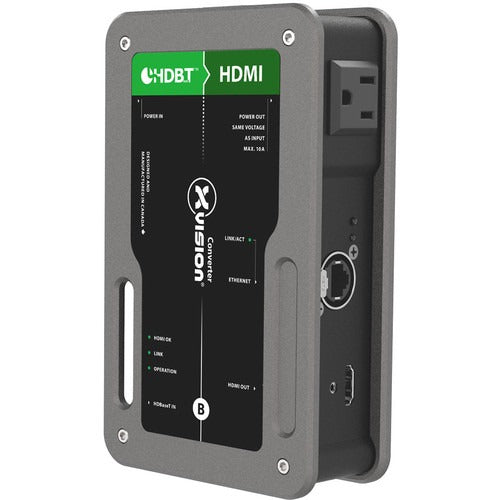

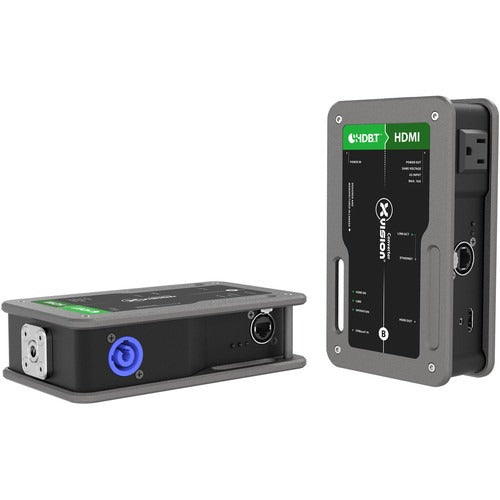

The Theatrixx Technologies HDBaseT to HDMI Receiver xVision Video Converter is a professional-grade signal conversion device engineered specifically for touring, live events, and mission-critical AV installations. Unlike consumer converters that rely on fragile wall-wart power supplies and plastic enclosures, this unit features an integrated power supply with a locking powerCON connector and a built-in NEMA 5-15 AC outlet that delivers up to 10 amps of pass-through power to nearby projectors, TVs, laptops, or other equipment. The rugged metal chassis incorporates a magnetic stacking system with non-skid rubber pads, allowing multiple converters to be stacked securely on tabletops without tape—saving rental houses approximately ten rolls of gaffer tape annually. Multiple mounting options include C-clamp, wall-mount adapter, LCD mount adapter, belt adapter, and strapping for truss or rack installation.

The converter accepts HDBaseT 1.0 input over a shielded EtherCON RJ45 connector and outputs HDMI 1.4 via a locking HDMI Type A port. It supports video resolutions up to 4K at 30 frames per second (or 4K60 at 4:2:0 chroma subsampling) over Cat 6 or Cat 6a cable runs up to 100 meters (328 feet) with HDCP 1.4 compliance. A dedicated 100 Mbps Ethernet channel is built into the HDBaseT link, enabling pass-through of projector control signals, LAN extension, or RS-232 commands without requiring separate cabling. Three clear status LEDs provide real-time feedback for device operation, HDBaseT link status, and active HDMI signal with HDCP encryption detection, simplifying on-site troubleshooting.

Designed and assembled in Canada, the xVision series prioritizes reliability for demanding professional environments. The unit operates plug-and-play with automatic input format detection and output matching—no dipswitches, buttons, or configuration menus are required. Locking connectors on all critical ports (EtherCON for HDBaseT, locking HDMI for output) prevent accidental disconnection during live shows. The converter is certified to CAN/CSA, UL, and FCC standards, with operating temperature range of 0°C to 40°C and humidity tolerance from 0% to 90% non-condensing.
