SKU: Theatrixx-XVVRM-HDMI2SDI-12G

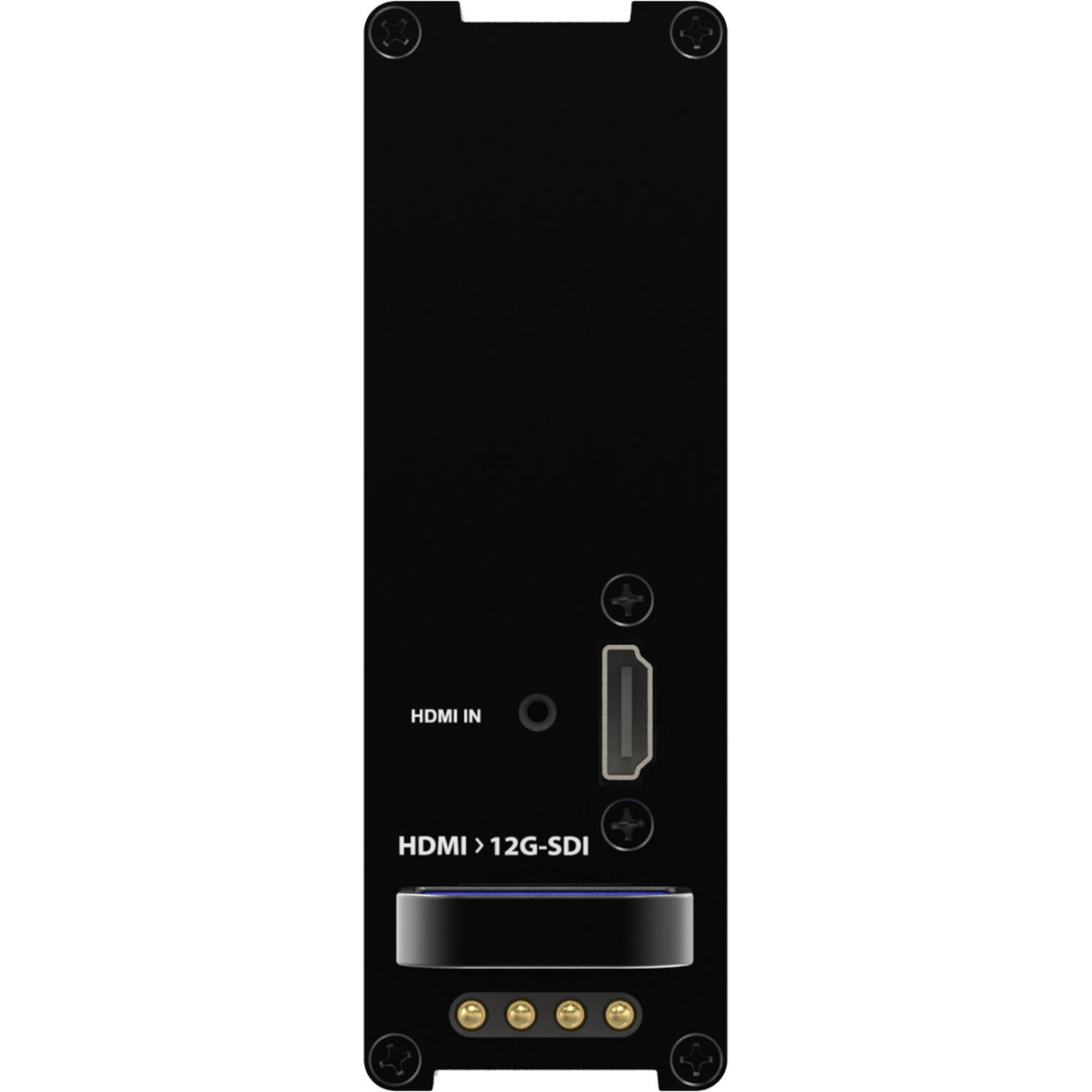

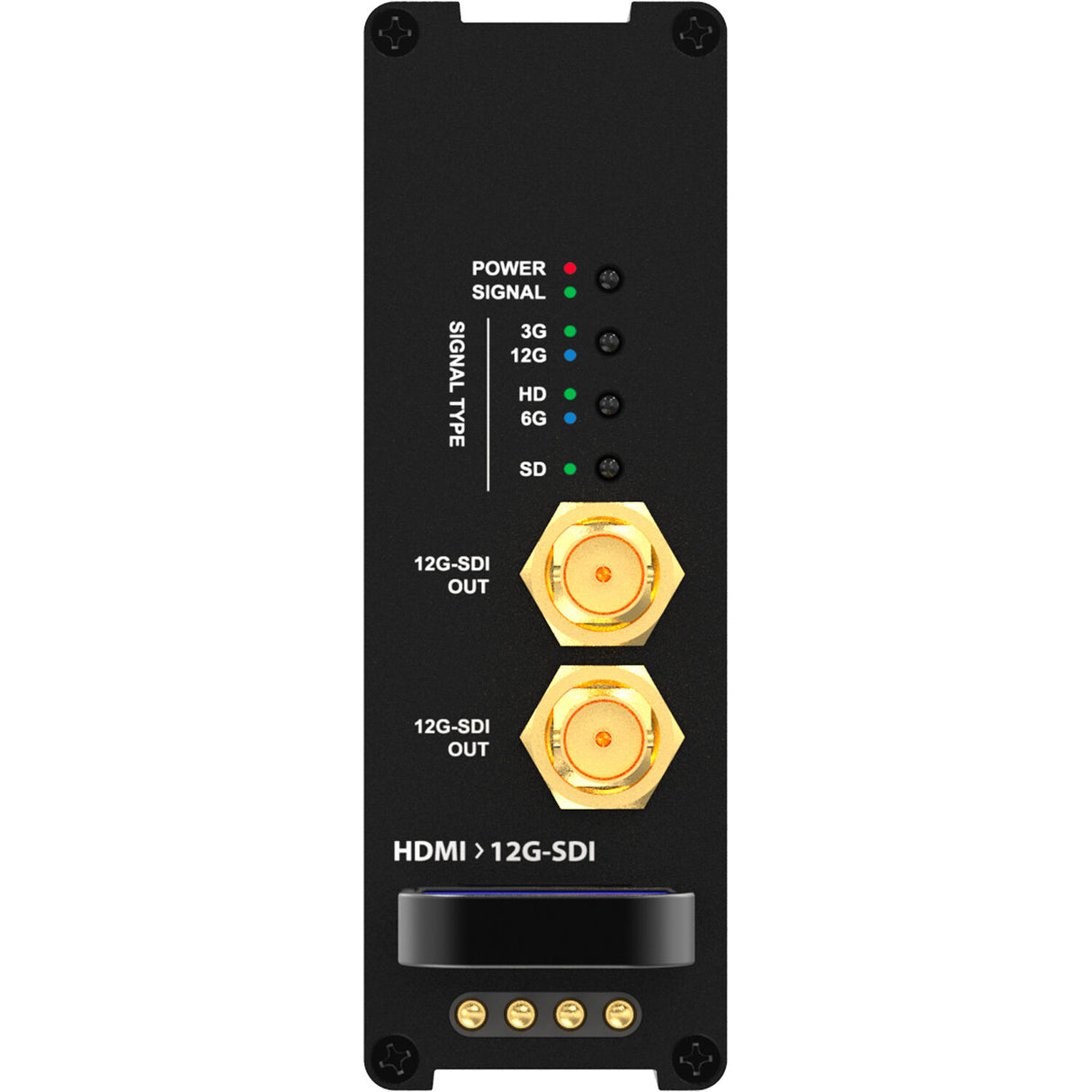

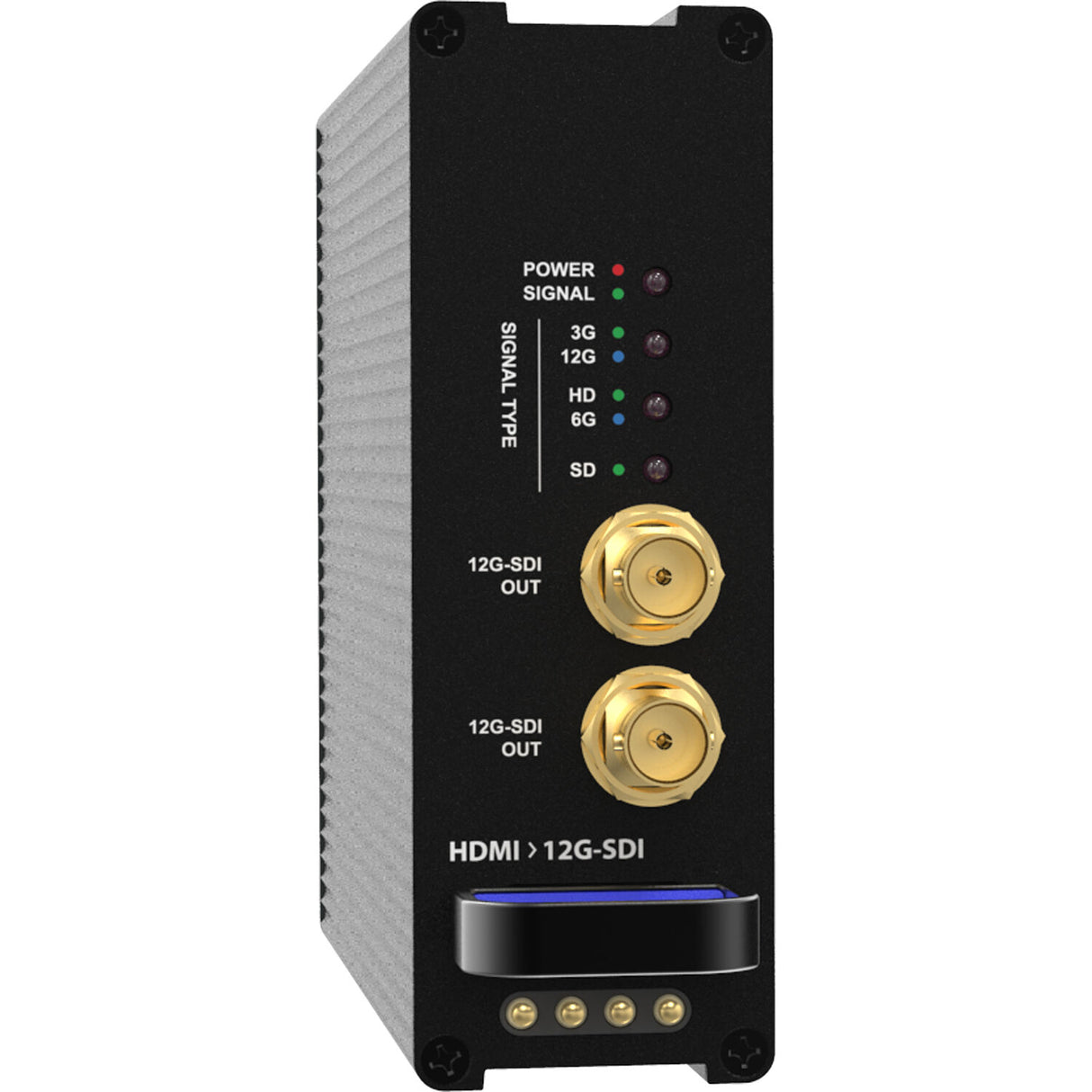

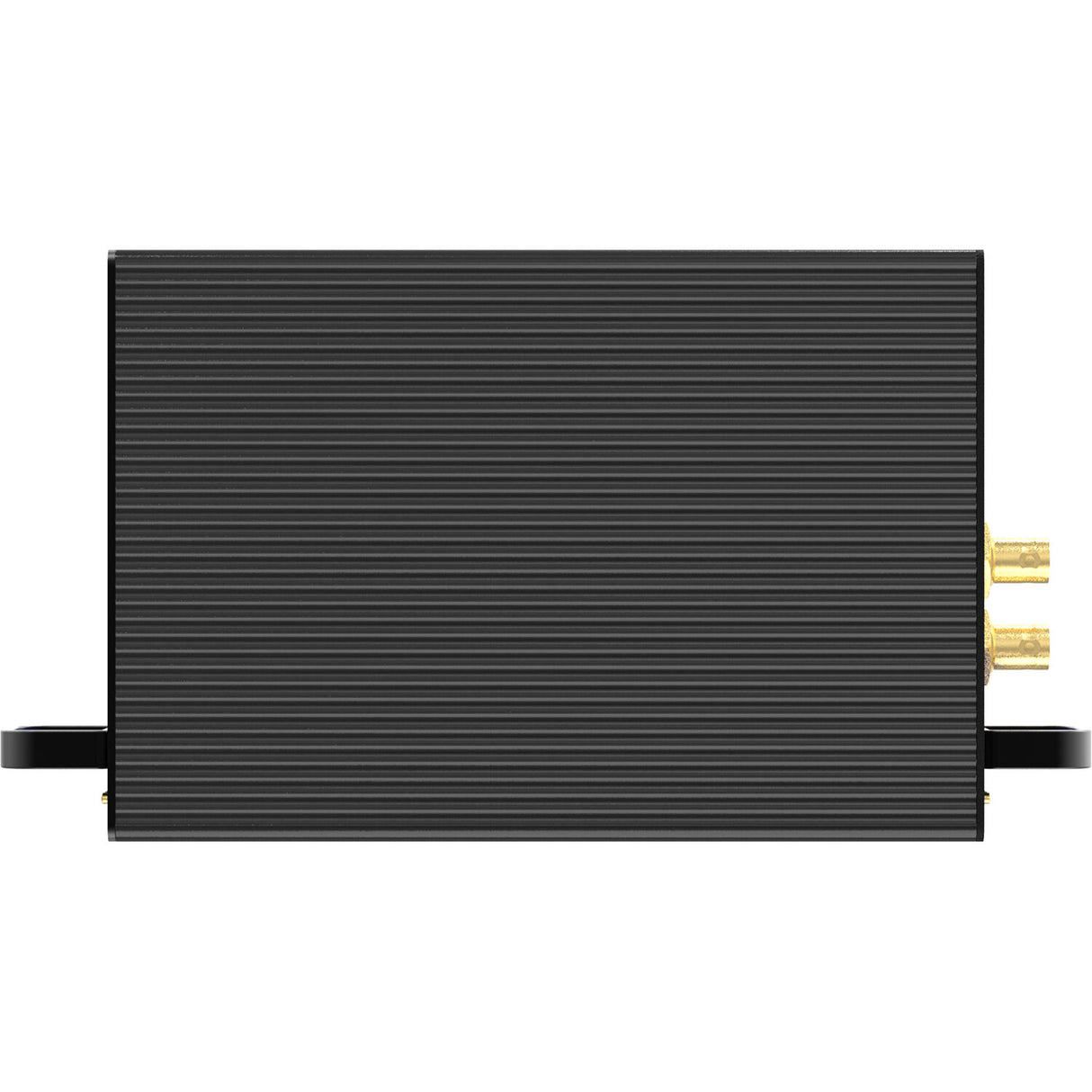

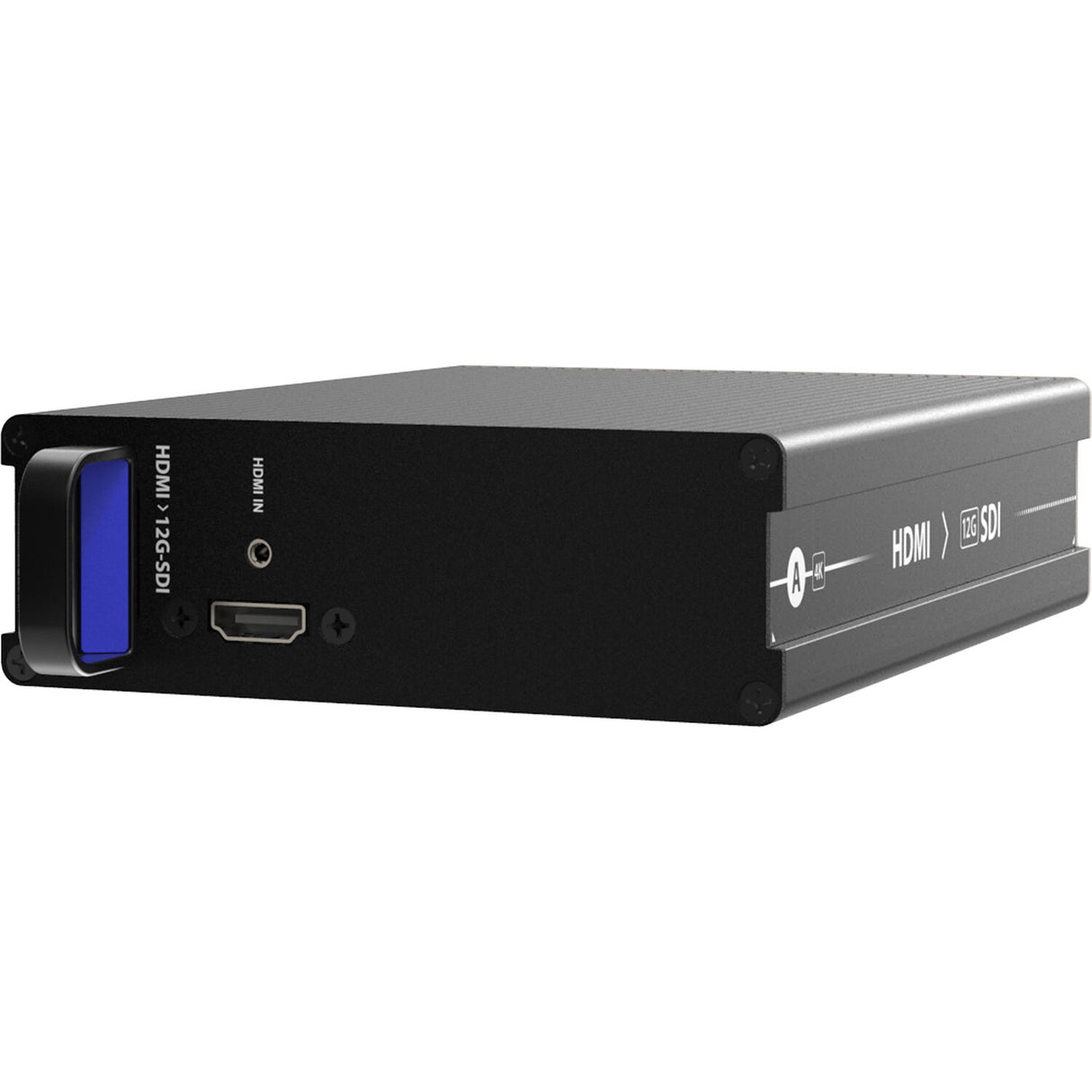

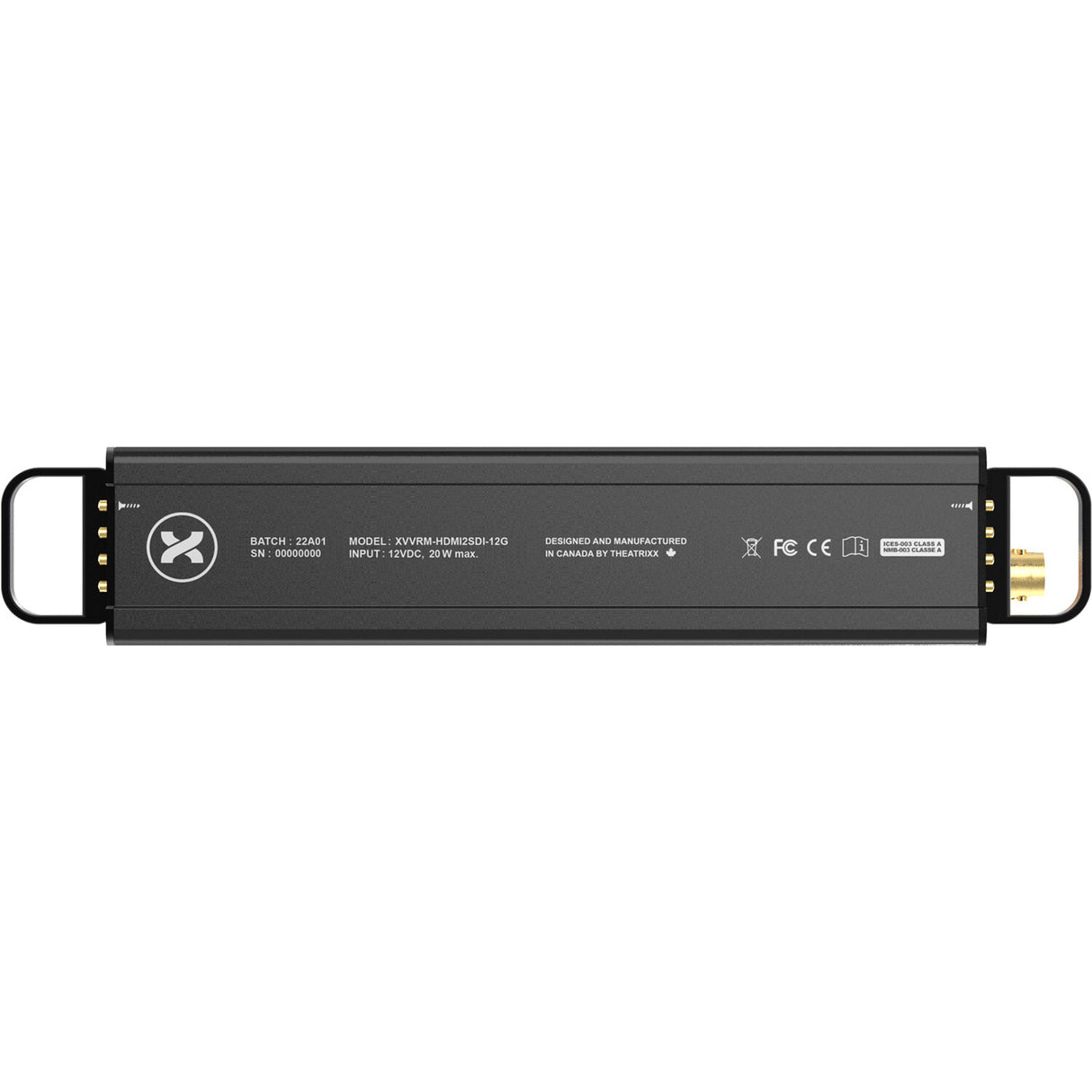

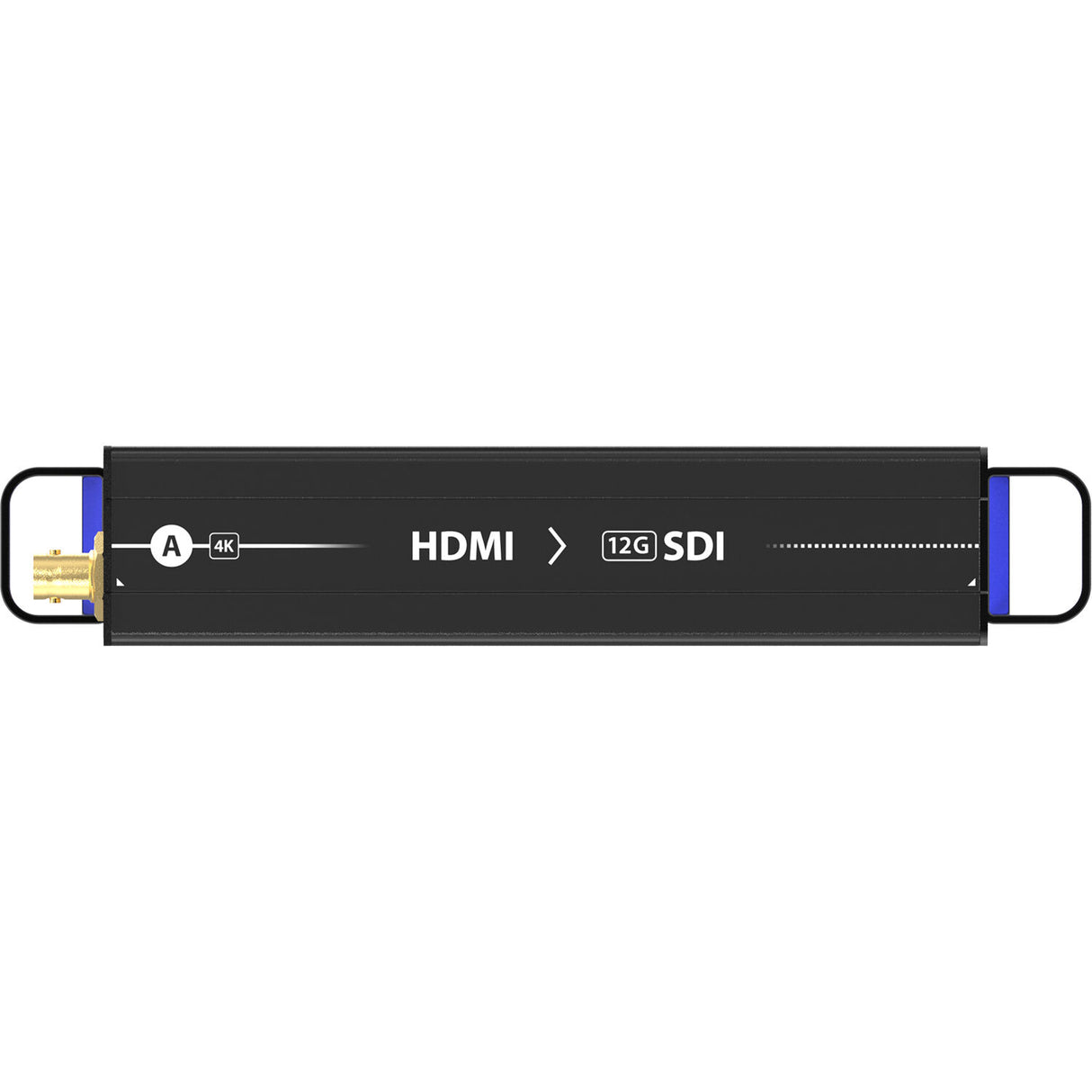

Theatrixx Technologies HDMI to 12G-SDI Reversible Module

Name: Theatrixx Technologies HDMI to 12G-SDI Reversible Module
Brand: AVGear.com
SKU: Theatrixx-XVVRM-HDMI2SDI-12G
Price: 910.00 USD
Availability: InStock

$910.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

This HDMI to 12G-SDI Reversible Module from Theatrixx Technologies is designed for mounting into the XVVRF8 8-bay or XVVRF2 2-bay rackmount frame in either direction, adding an HDMI 2.0 input as well as two BNC outputs. All BNC connectors support 12G/6G/3G/HD/SD-SDI signals that are capable of handling resolutions up to DCI/UHD 4K. The unit supports 4:2:2 and 4:4:4 YUV/RGB video sampling and YUV and RGB color spaces. Having no exposed PCBs, the device is inherently protected against static, shock, and dust. Read more

Features

Mounts on XVVRF8 8-Bay Reversible Frame
1 x HDMI 2.0 Input with Locking System
BNC Ports Support 12G-SDI
Protected Against Static, Shock & Dust
Also Mounts on XVVRF2 2-Bay Frame

Business Financing Options Avaiable

View Available Financing

Features

Mounts on XVVRF8 8-Bay Reversible Frame
1 x HDMI 2.0 Input with Locking System
BNC Ports Support 12G-SDI
Protected Against Static, Shock & Dust
Also Mounts on XVVRF2 2-Bay Frame

No products currently in stock

About the Theatrixx Technologies HDMI to 12G-SDI Reversible Module

This HDMI to 12G-SDI Reversible Module from Theatrixx Technologies is designed for mounting into the XVVRF8 8-bay or XVVRF2 2-bay rackmount frame in either direction, adding an HDMI 2.0 input as well as two BNC outputs.

All BNC connectors support 12G/6G/3G/HD/SD-SDI signals that are capable of handling resolutions up to DCI/UHD 4K. The unit supports 4:2:2 and 4:4:4 YUV/RGB video sampling and YUV and RGB color spaces. Having no exposed PCBs, the device is inherently protected against static, shock, and dust.

Key Features

Mounts on XVVRF8 8-Bay Reversible Frame
1 x HDMI 2.0 Input with Locking System
BNC Ports Support 12G-SDI
Protected Against Static, Shock & Dust
Also Mounts on XVVRF2 2-Bay Frame

Already own this item and want to sell it?

Click here to sell your item

Theatrixx Technologies HDMI to 12G-SDI Reversible Module Specs

Video Input

Input Connector Type

1 x HDMI 1.2 Type A with locking system

Input Signal Type

HDMI 1.2

Maximum Input Resolution

1080p60

Video Outputs

Output Connector Type

2 x BNC (professional 75Ω)

Number of SDI Outputs

2 independent reclocked outputs

Output Signal Type

3G/HD/SD-SDI with embedded audio

Output Impedance

75Ω

Video Format Support

3G-SDI Formats

SMPTE 424M (Level A and B) at 2.97 Gb/s, 1080p50, 1080p59.94, 1080p60

HD-SDI Formats

SMPTE 292M, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30

SD-SDI Formats

SMPTE 259M, 525/23.98 NTSC, 525/29.97 NTSC, 625/25 PAL

SDI Video Sampling

4:2:2 and 4:4:4

SDI Audio Sampling

48 kHz, 24-bit

SDI Color Space

YUV and RGB

Signal Detection

Automatic incoming format detection

SMPTE Compliance

425M Level A & B, 424M Level A, 292M, 259M

Power Specifications

Power Source

XVVRF8 frame backplane via spring pins

Voltage

12 V DC

Power Consumption

20 W maximum

Power Connection

Gold-plated redundant spring pins with magnetic retention

Power Reliability

Magnetic retention with spring pin redundancy

External Power Cabling

None (power via frame backplane)

Key Features

Mounts on XVVRF8 8-Bay Reversible Frame
1 x HDMI 2.0 Input with Locking System
BNC Ports Support 12G-SDI
Protected Against Static, Shock & Dust
Also Mounts on XVVRF2 2-Bay Frame
