Description

The SDI/HDMI Bidirectional Video Converter from Theatrixx Technologies is designed to be used while on the road. It features an integrated power supply with a locking powerCON connector and a built-in 120V outlet to power a nearby projector, TV, or laptop. There is an SDI input, two SDI outputs, a locking HDMI input, and a locking HDMI output. This converter has an SDI input priority. It can be mounted using a C-clamp, wall-mount adapter, LCD mount adapter, or belt adapter (available separately). Read more

Features

Magnetic stacking system and non-skid rubber pad
Rugged, tour-ready, and aesthetic enclosure
Plug-and-play operation
Clear and ample status LED indicators for quick troubleshooting
Easy on-the-field identification with unique color and alphabetic coding system
Locking HDMI ports prevent accidental disconnection
Reclocked and amplified SDI outputs
Automatic incoming signal type detection

Business Financing Options Avaiable

View Available Financing

Features

Magnetic stacking system and non-skid rubber pad
Rugged, tour-ready, and aesthetic enclosure
Plug-and-play operation
Clear and ample status LED indicators for quick troubleshooting
Easy on-the-field identification with unique color and alphabetic coding system
Locking HDMI ports prevent accidental disconnection
Reclocked and amplified SDI outputs
Automatic incoming signal type detection

No products currently in stock

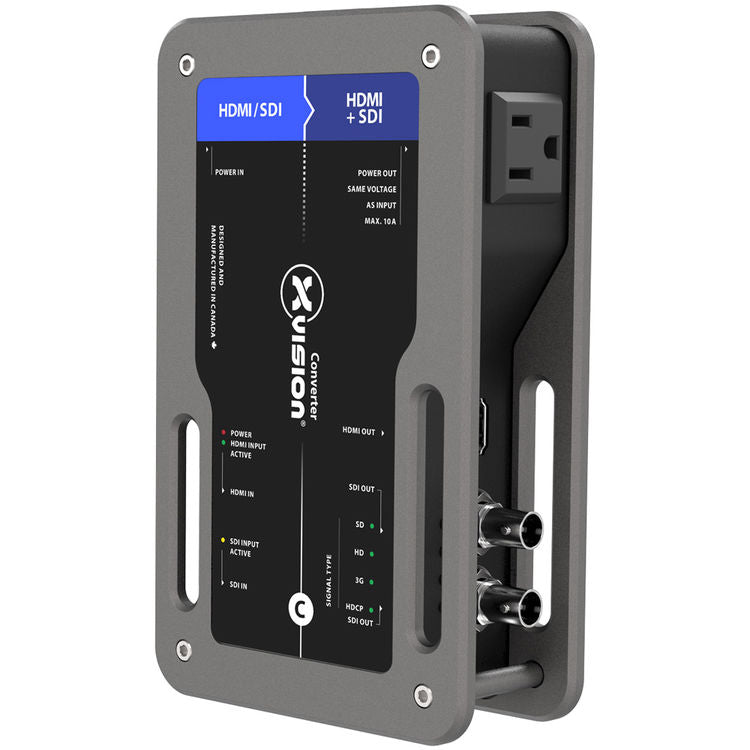

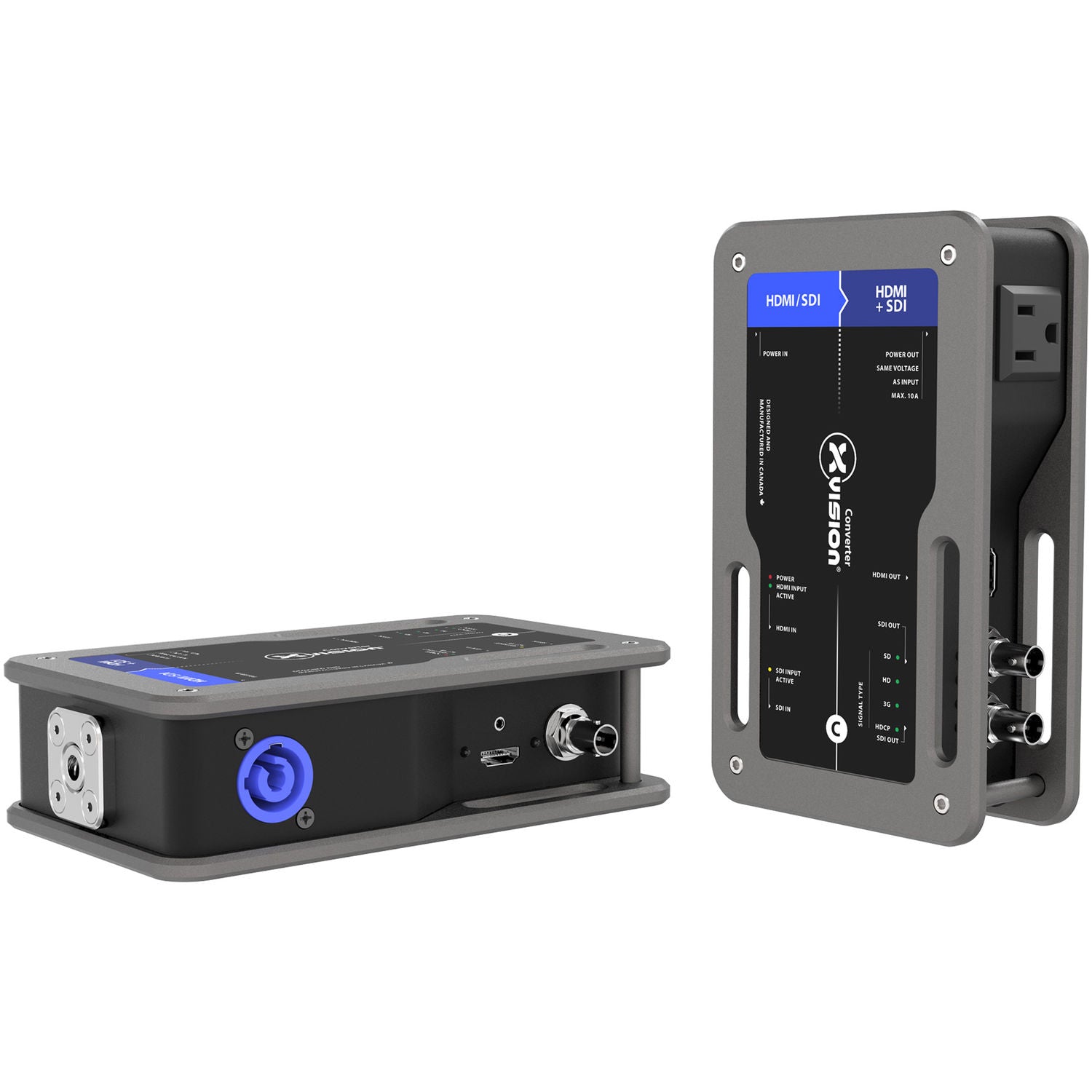

About the Theatrixx Technologies SDI/HDMI Bidirectional Video Converter

The Theatrixx Technologies SDI/HDMI Bidirectional Video Converter is a rugged broadcast-grade signal conversion solution from the xVision Converter Series, purpose-built for live events, broadcast facilities, rental companies, houses of worship, and professional AV installations. Unlike conventional one-way converters, this unit automatically detects the incoming signal and performs bidirectional conversion between 3G/HD/SD-SDI and HDMI, eliminating manual switching or configuration during deployment.

Designed specifically for road use, the converter integrates an internal power supply with a locking PowerCON connector, removing the need for external power adapters while improving reliability in mission-critical environments. Locking HDMI connectivity, reclocked SDI outputs, clear front-panel status indicators, and multiple mounting options make it well suited for touring racks, flypacks, presentation systems, and permanent AV installations.

The converter supports 3G-SDI, HD-SDI, and SD-SDI formats with embedded audio and automatically prioritizes the SDI input whenever both SDI and HDMI sources are connected. Its robust metal enclosure, magnetic stacking system, and Canadian design and assembly further reinforce its suitability for demanding professional applications where dependable signal conversion is required.

Key Features

Magnetic stacking system and non-skid rubber pad
Rugged, tour-ready, and aesthetic enclosure
Plug-and-play operation
Clear and ample status LED indicators for quick troubleshooting
Easy on-the-field identification with unique color and alphabetic coding system
Locking HDMI ports prevent accidental disconnection
Reclocked and amplified SDI outputs
Automatic incoming signal type detection

Already own this item and want to sell it?

Click here to sell your item

Theatrixx Technologies SDI/HDMI Bidirectional Video Converter Specs

Signal Interfaces

Video Input

Auto-switching between 1 x 3G/HD/SD-SDI BNC and 1 x HDMI 1.2 Type-A (Locking)

Video Output

1 x HDMI 1.2 Type-A (Locking), 2 x 3G/HD/SD-SDI BNC

Input Priority

SDI Input

Supported Formats

3G-SDI

1080p50, 1080p59.94, 1080p60

HD-SDI

720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98/24/25/29.97/30 (including PsF formats)

SD-SDI

NTSC 525/23.98, NTSC 525/29.97, PAL 625/25

SDI Sampling

4:2:2 and 4:4:4

Audio Sampling

48 kHz, 24-bit Embedded Audio

Color Space

YUV and RGB

Automatic Format Detection

Supported

SMPTE Compliance

SMPTE 425M Level A & B, 424M Level A, 292M, 259M

Power Configuration

Power Supply

Built-in Internal Power Supply

Power Input

Locking PowerCON

Courtesy Power Output

Edison NEMA 5-15 Loop-Through

Power Consumption

15 W

Operating Voltage

100–120 VAC, 50/60 Hz (100–240 VAC available on TRUE1 version)

Courtesy Outlet Rating

Maximum 10 A (Same Voltage as Input)

Key Features

Magnetic stacking system and non-skid rubber pad
Rugged, tour-ready, and aesthetic enclosure
Plug-and-play operation
Clear and ample status LED indicators for quick troubleshooting
Easy on-the-field identification with unique color and alphabetic coding system
Locking HDMI ports prevent accidental disconnection
Reclocked and amplified SDI outputs
Automatic incoming signal type detection
