SKU: Theatrixx-XVVFIBER2SDI

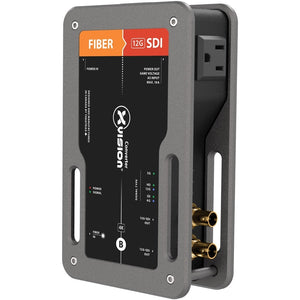

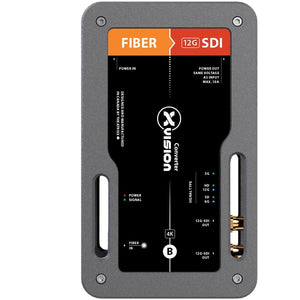

Theatrixx Technologies XVV-FIBER2SDI Optical Fiber to SDI Receiver xVision Video Converter

$699.00

Items Included

Theatrixx Technologies Theatrixx XVV-FIBER2SDI Optical Fiber to SDI Receiver xVision Video Converter

Item Notes

Condition: Fully Working 5 available
5 available View All
Note: Each item is unique. please check individual listings for details.
Title
Add to cart
Pre-Owned Guarantee 14 Day Return Window

Description

The Optical Fiber to SDI Receiver xVision Video Converter from Theatrixx Technologies is a plug-and-play optical fiber to SDI video converter designed to be easily used while on the road. It features an integrated power supply with a locking powerCON connector and a built-in AC outlet to power a nearby projector, TV, or laptop. There is an SDI input on ST, OpticalCON DUO, or OpticalCON QUAD and two SDI outputs. Your SDI input choice should be specified at the time of order. This converter can be mounted using a C-clamp, wall-mount adapter, LCD mount adapter, or belt adapter (available separately). Read more

Features

  • Plug-and-Play Operation
  • SFP-Based Video Transmission
  • Multiple Mounting Options
  • Magnetic Stacking System
  • Locking powerCON Connector
  • Built-In AC Outlet
  • Designed and Assembled in Canada

Business Financing Options Avaiable

The Optical Fiber to SDI Receiver xVision Video Converter from Theatrixx Technologies is a plug-and-play optical fiber to SDI video converter designed to be easily used while on the road. It features an integrated power supply with a locking powerCON connector and a built-in AC outlet to power a nearby projector, TV, or laptop. There is an SDI input on ST, OpticalCON DUO, or OpticalCON QUAD and two SDI outputs. Your SDI input choice should be specified at the time of order. This converter can be mounted using a C-clamp, wall-mount adapter, LCD mount adapter, or belt adapter (available separately). Read more

Features

  • Plug-and-Play Operation
  • SFP-Based Video Transmission
  • Multiple Mounting Options
  • Magnetic Stacking System
  • Locking powerCON Connector
  • Built-In AC Outlet
  • Designed and Assembled in Canada

About the Theatrixx Technologies XVV-FIBER2SDI Optical Fiber to SDI Receiver xVision Video Converter

Professional equipment in mission-critical applications is all about reliability and confidence. So we started with a clean sheet, and built what might soon become your most trustwor- thy piece of equipment.
Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on profesionnal A/V events, presentations, live shows and tours and often have a critical role.

Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters.

Key Features

  • Plug-and-Play Operation
  • SFP-Based Video Transmission
  • Multiple Mounting Options
  • Magnetic Stacking System
  • Locking powerCON Connector
  • Built-In AC Outlet
  • Designed and Assembled in Canada

Theatrixx Technologies XVV-FIBER2SDI Optical Fiber to SDI Receiver xVision Video Converter Specs

Connections
Video Input
Choice of Multimode or Singlemode Choice of Optical SDI on ST, OpticalCON DUO or OpticalCON QUAD
Video Output
2 x 3G/HD/SD SDI BNC
Supported Signals
Video Format
3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
SMPTE Standards
425 M Level A & B, 424 M, 292 M, 259 M
Physical
Height
50 mm (1.97 in)
Depth
180 mm (7.08 in)
Width
107 mm (4.21 in)
Weight
1 kg (2.2 lbs)
Alternate Form Factor
Also available as a Reversible Module
Environmental
Relative Humidity
0% to 90% non-condensing
Operating Temperature
0-40 °C
Power Requirements
Power Supply
Built-in power supply PowerCON input Edison Nema 5-15 output (loop-thru)
Power Consumption
15W
Operational Voltage Range
100-120V, 50-60Hz (100-240V, 50-60Hz available with PowerCON True1)
Courtesy Outlet
Max 10 A, same voltage as input

Key Features

  • Plug-and-Play Operation
  • SFP-Based Video Transmission
  • Multiple Mounting Options
  • Magnetic Stacking System
  • Locking powerCON Connector
  • Built-In AC Outlet
  • Designed and Assembled in Canada
