Theatrixx Technologies

Theatrixx Technologies xPressCue UHD 4K60 Rackmount Broadcast Media Player - 1TB SSD

$4,977.00

The Theatrixx Technologies xPressCue UHD 4K60 Rackmount Broadcast Media Player is a hardware device that streamlines media playback in professional broadcast environments, eliminating the steep learning curve and complications of traditional media-server and laptop-based workflows. The xPressCue features a 1TB M.2 SSD for quick loading and can play most known video, audio, and image files with the necessary hardware and software to minimize latency when switching clips. With dependability in mind, the xPressCue is housed in a durable 1 RU rackmount enclosure with professional inputs and outputs with locking connections. The media player can output video up to UHD 4K60 at 12-bit RGB and YUV 4:4:4 color space with embedded stereo audio on all video outputs. Control options include an onboard full-color OLED display and encoder button for navigation, a cross-platform web-based interface, DMX-512 input with support for sACN and Art-Net protocols, 20 user-programmable RGB backlit buttons, and native support for all Elgato Stream Deck controllers for greater flexibility and possibility.

View Product Features

  • Up to UHD 4K60 Output Resolution
  • Cross-Platform Web-Based Control
  • Supports Most Audio-Visual Formats
  • DMX-512, sACN & Art-Net Network Control
  • HDMI 2.0a, DisplayPort 1.4 Outputs
  • 2 x 12G-SDI Outputs, 2 x USB-A Ports
  • 2 x XLR Outputs, DMX Input & Output
  • 20 User-Programmable RGB Backlit Buttons
  • Native Elgato Stream Deck Support
  • Rugged 1 RU Rackmount Enclosure, 1TB SSD
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Theatrixx Technologies xPressCue UHD 4K60 Rackmount Broadcast Media Player - 1TB SSD

When it comes to media playback, most professional solutions available today are either laptop-based, or media-server based. This often comes with a slew of reliability issues and a steep learning curve. The Theatrixx xPressCue is a hardware device that addresses the playback needs of the video, lighting and audio professionals and has currently no equivalent on the market.

This new media player, designed and manufactured by Theatrixx, has a large onboard, flash-based, storage capacity. It can recognize and play most known video, audio and image files with a minimal loading delay. The device is equipped with the necessary hardware and software to make switching between two clips instant and seamless.

Key Features

  • Up to UHD 4K60 Output Resolution
  • Cross-Platform Web-Based Control
  • Supports Most Audio-Visual Formats
  • DMX-512, sACN & Art-Net Network Control
  • HDMI 2.0a, DisplayPort 1.4 Outputs
  • 2 x 12G-SDI Outputs, 2 x USB-A Ports
  • 2 x XLR Outputs, DMX Input & Output
  • 20 User-Programmable RGB Backlit Buttons
  • Native Elgato Stream Deck Support
  • Rugged 1 RU Rackmount Enclosure, 1TB SSD

Theatrixx Technologies xPressCue UHD 4K60 Rackmount Broadcast Media Player - 1TB SSD Specs

Inputs/Outputs
Video Output

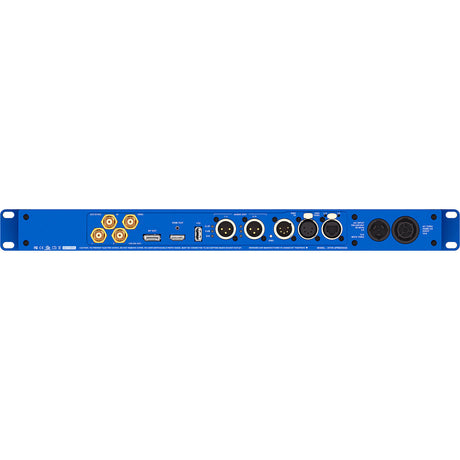

2x 12G/6G/3G/HD SDI BNC - HDMI 2.0 type A with locking system DisplayPort 1.4
Audio Output
2x Analog audio XLR (+4 dBu) with LED level meters - Stereo audio embedded on all video outputs
External Sync
Tri-level sync (BNC) with loop-thru (optional)
DMX Input
DMX-512 input and loop-thru on XLR5 with LED indicator
Ethernet
2x Gigabit Ethernet ports on Neutrik Ether- CON locking connectors
USB
2x USB 3.0
Control
Local User Interface

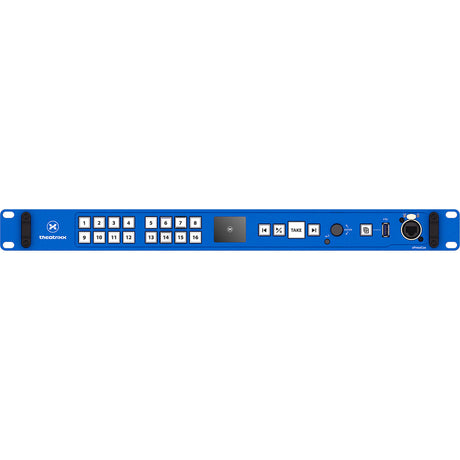

20 user-programmable, RGB-backlit, broadcast grade buttons, full-color graphical OLED display with push-button encoder navigation
Web Interface
Cross-plaform, cross-browser web interface
External Controller Support
Native support for Elgato StreamDeck (all models)
DMX Control
Native DMX-512 input - DMX-over-IP inputs in sACN and ArtNet
Mutli-Device Sync
UDP-based synchronization across devices
Advanced Protocols
Self-documented HTTP REST API
Video Output
Output Processing
Built-in scaling engine, adjustable AOI (Area of Interest) - Full-range colorimetry adjustments (R, G, B and Saturation) - Full-range brightness adjustment
Output Resolutions
3840x2160P60, 3840x2160P50, 3840x2160P30, 3840x2160P29, 3840x2160P25, 3840x2160P24, 3840x2160P23, 1920x1080P60, 1920x1080P59, 1920x1080P50, 1920x1080P30, 1920x1080P29, 1920x1080P25, 1920x1080P24, 1920x1080P23, 1920x1080I60, 1920x1080I59, 1920x1080I50, 1280x720P60, 1280x720P59, 1280x720P50
Output Color Space
HDMI: YUV 4:2:0 (8 bpc), YUV 4:2:2 (8 bpc), YUV 4:4:4 (8, 10, 12 bpc), RGB 4:4:4 (8, 10, 12 bpc) - DisplayPort: YUV 4:2:0 (8 bpc), YUV 4:2:2 (8 bpc), YUV 4:4:4 (8 bpc), RGB 4:4:4 (8 bpc) 12G-SDI: YUV 4:2:2 (10 bpc)
Audio Output
Audio Sample Rate
48kHz, 16 bit
Output Processing
Full-range audio volume adjustment
Media Storage
Storage Media
Professional M.2 solid-state drive (SSD)
Storage Capacity
1TB
File Transfer
Via web interface or directly using the USB connectors
Media File Support
Media Types
Video, still image, audio
Decoding Engine
FFmpeg
Video Codecs
Apple MJPEG-B, Apple ProRes, DV, MPEG-1, MPEG-2, MPEG-4 part 2, H.264 / AVC / MPEG-4 AVC / MPEG-4 part 10, HEVC, QuickTime (v210 / v308 / v408 / v410), WMV, FLV1/Sorenson
Audio Codecs
AAC, AAC+, AC-3, Apple lossless audio, MP1, MP2, MP3, MPEG-4 ALS, PCM, WMA
Still Image Formats
JPEG, JPEG-2000, PNG, BMP, GIF, TIFF
Environmental
Relative Humidity
0% - 90%, non-condensing
Operating Temperature
32°F - 104°F (0°C - 40°C)

Key Features

  • Up to UHD 4K60 Output Resolution
  • Cross-Platform Web-Based Control
  • Supports Most Audio-Visual Formats
  • DMX-512, sACN & Art-Net Network Control
  • HDMI 2.0a, DisplayPort 1.4 Outputs
  • 2 x 12G-SDI Outputs, 2 x USB-A Ports
  • 2 x XLR Outputs, DMX Input & Output
  • 20 User-Programmable RGB Backlit Buttons
  • Native Elgato Stream Deck Support
  • Rugged 1 RU Rackmount Enclosure, 1TB SSD
