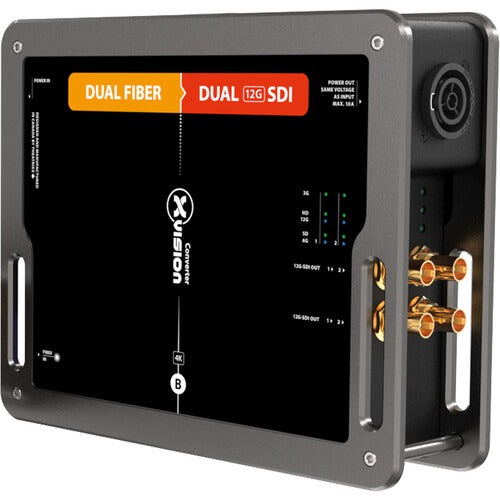

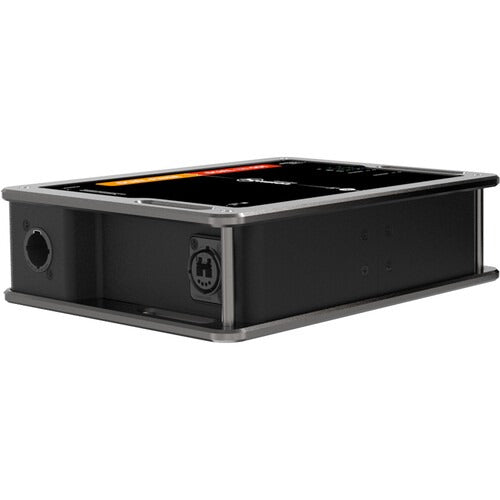

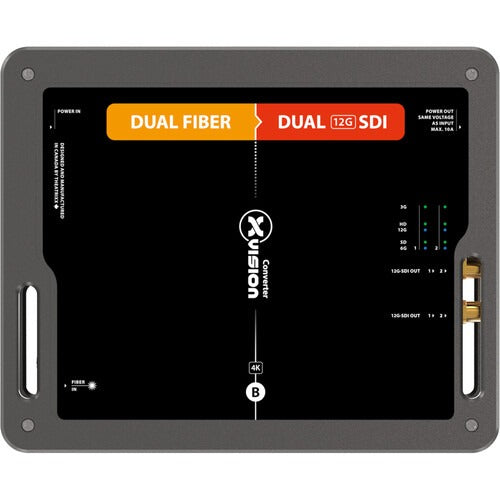

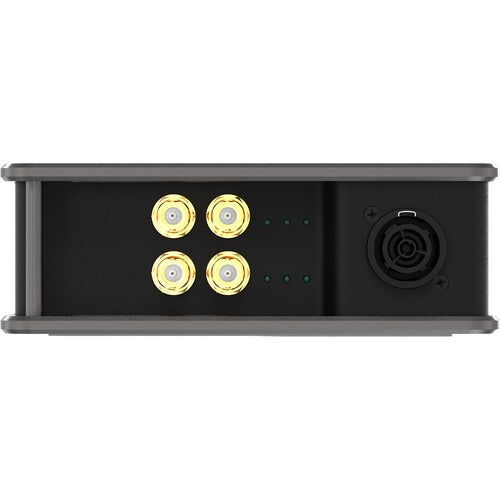

Theatrixx Technologies xVision Dual Fiber to Dual 12G-SDI Converter

$2,560.00

The Dual Fiber to Dual 12G-SDI xVision Converter from Theatrixx Technologies is a sturdy, plug-and-play converter that offers dual fiber (with optional module) to dual 12G-SDI video conversion. The unit features an integrated power supply with a locking powerCON connector and a built-in standard AC outlet to power a nearby projector, TV, or laptop.

View Product Features

  • Plug-and-Play Operation
  • SFP Fiber-Based Video Transmission
  • Multiple Mounting Options
  • Magnetic Stacking System
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the Theatrixx Technologies xVision Dual Fiber to Dual 12G-SDI Converter

Professional equipment in mission-critical applications is all about reliability and confidence. So we started with a clean sheet, and built what might soon become your most trustwor- thy piece of equipment.
Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role.

Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters.

Key Features

  • Plug-and-Play Operation
  • SFP Fiber-Based Video Transmission
  • Multiple Mounting Options
  • Magnetic Stacking System

Theatrixx Technologies xVision Dual Fiber to Dual 12G-SDI Converter Specs

Connections
Video Input
Choice of Multimode or Singlemode Choice of Optical SDI on OpticalCON DUO or OpticalCON QUAD
Video Ouput
4 x 12G/6G/3G/HD/SD SDI BNC
Supported Signals
Video Format
12G/6G/3G-SDI Level A and B, HD-SDI, SD-SDI with embedded audio
SMPTE Standards
2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M
Physical
Height
62 mm (2.44 in)
Depth
180 mm (7.08 in)
Width
221 mm (8.7 in)
Weight
2 kg (4.4 lbs)
Alternate Form Factor
Also available as a Reversible Module
Environmental
Relative Humidity
0% to 90% non-condensing
Operating Temperature
0-40 °C
Power Requirements
Power Supply
Built-in power supply PowerCON True1 input PowerCON True1 output (loop-thru)
Power Consumption
45W max.
Operational Voltage Range
100-120V, 50-60Hz
Courtesy Outlet
Max 10 A, same voltage as input

Key Features

  • Plug-and-Play Operation
  • SFP Fiber-Based Video Transmission
  • Multiple Mounting Options
  • Magnetic Stacking System
