Theatrixx Technologies xVision Dual Multimode Fiber to Dual 12G-SDI Reversible Module (OpticalCON DUO)
$2,475.00
Unit price
/

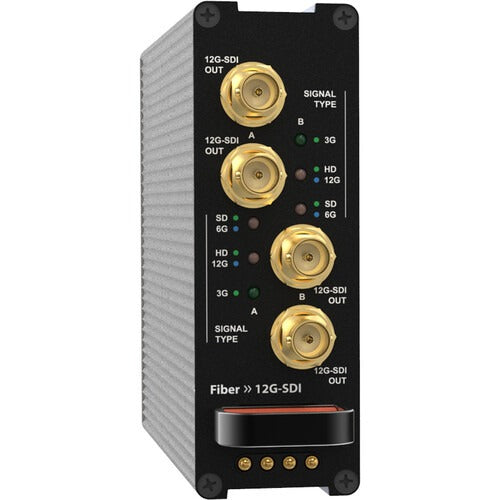

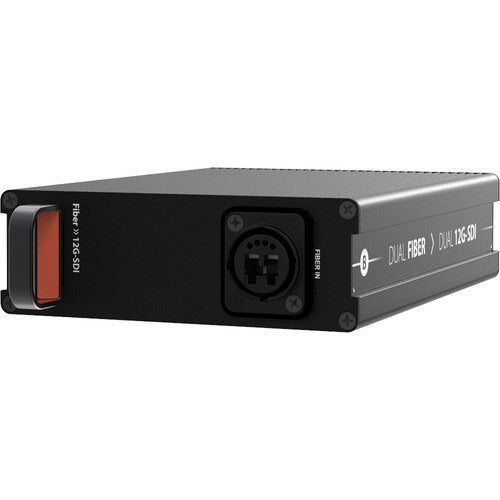

The xVision Dual Multimode Fiber to Dual 12G-SDI Reversible Module from Theatrixx Technologies is designed for the Theatrixx 8-Bay Reversible Rackmount Frame for Video Converters. Its reversible design allows it to be inserted in the 8-bay frame from either direction, allowing the inputs/outputs to be positioned at the front or rear. It features a dual-channel Multimode OpticalCON DUO fiber input and four 12G-SDI level A/B outputs.

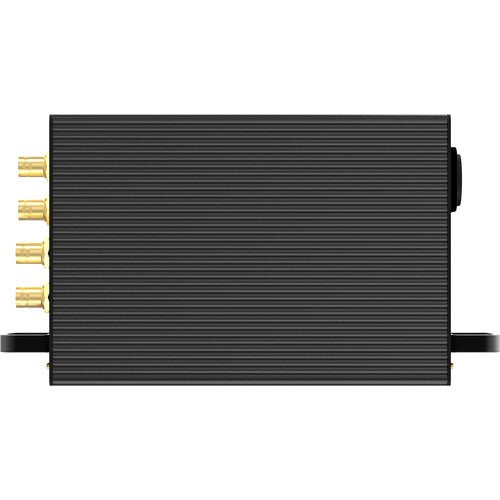

The module is powered from the rackmount frame using gold-plated pins and features an enclosed design with no exposed PCBs, protecting against static shock, dust, and general wear and tear.
View Product Features
View Product Features
In stock
Scroll below to see our current inventory for this item.
In-Stock Inventory
-
New
-
-
New
-
About the Theatrixx Technologies xVision Dual Multimode Fiber to Dual 12G-SDI Reversible Module (OpticalCON DUO)
Key Features
Theatrixx Technologies xVision Dual Multimode Fiber to Dual 12G-SDI Reversible Module (OpticalCON DUO) Specs
Optical Inputs

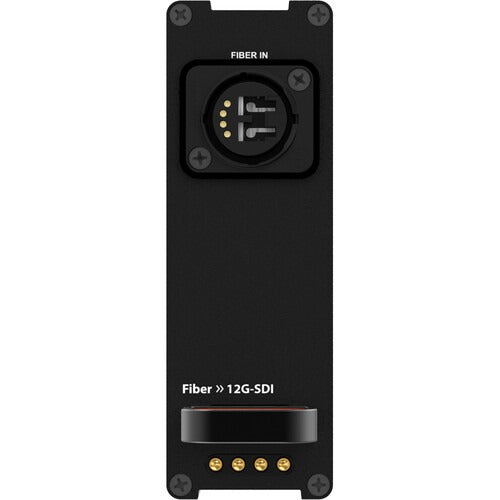

Input Connector Type
Neutrik OpticalCON DUO (duplex)
Number of Optical Inputs
2 independent channels
Fiber Type Supported
Multimode (MM)
Optical Standard
12G/6G/3G/HD/SD-SDI over fiber
SDI Outputs

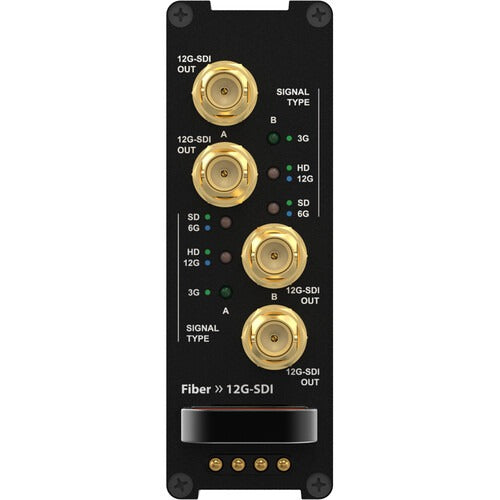

Output Connector Type
BNC (professional 75Ω)
Number of SDI Outputs
2 independent outputs (one per fiber channel)
Output Signal Type
Reclocked, amplified 12G-SDI
Output Impedance
75Ω
Video Format Support
12G-SDI Formats
SMPTE ST 2082-1 (12 Gb/s)
6G-SDI Formats
SMPTE ST 2081-1 (6 Gb/s)
3G-SDI Formats
SMPTE 424M (Level A and B)
HD-SDI Formats
SMPTE 292M
SD-SDI Formats
SMPTE 259M
Embedded Audio
Full passthrough support
Power Specifications
Power Source
XVVRF8 frame backplane via spring pins
Voltage
12 V DC
Power Consumption
20 W maximum
Power Connection
Gold-plated redundant spring pins
Power Reliability
Magnetic retention with spring pin redundancy
