SKU: Theatrixx-XVVRMSDI2FIBERM1

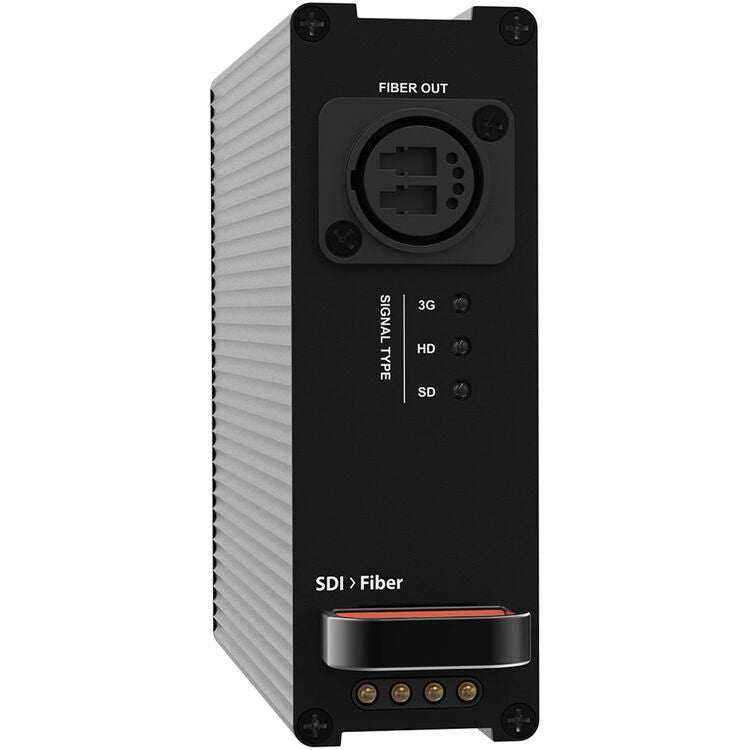

Theatrixx Technologies xVision Reversible Module (3G-SDI to Fiber, Multimode, ST)

$625.00 - $766.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundantspring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed. Read more

Features

  • SFP-Based Fiber: Uses standard SFP modules for flexible, interoperable SDI over fiber transmission (multimode or singlemode).
  • Integrated Power: Includes a locking PowerCON connector and a built-in AC outlet to power nearby gear, eliminating wall warts.
  • Rugged & Mountable: Features magnetic stacking, non-skid pads, and various mounting options (C-clamp, wall, belt) for versatile placement.
  • Plug-and-Play: No menus or buttons; detects signals automatically for immediate use.
  • Status LEDs: Clear indicators for quick visual confirmation and troubleshooting.
  • SDI Loop-Thru: Reclocked and amplified SDI loop-thru for monitoring or daisy-chaining.
  • Tour-Ready: Designed for durability in live production environments with unique color/alphabetic coding for easy identification.

Business Financing Options Avaiable

View Available Financing

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundantspring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed. Read more

Features

  • SFP-Based Fiber: Uses standard SFP modules for flexible, interoperable SDI over fiber transmission (multimode or singlemode).
  • Integrated Power: Includes a locking PowerCON connector and a built-in AC outlet to power nearby gear, eliminating wall warts.
  • Rugged & Mountable: Features magnetic stacking, non-skid pads, and various mounting options (C-clamp, wall, belt) for versatile placement.
  • Plug-and-Play: No menus or buttons; detects signals automatically for immediate use.
  • Status LEDs: Clear indicators for quick visual confirmation and troubleshooting.
  • SDI Loop-Thru: Reclocked and amplified SDI loop-thru for monitoring or daisy-chaining.
  • Tour-Ready: Designed for durability in live production environments with unique color/alphabetic coding for easy identification.

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the Theatrixx Technologies xVision Reversible Module (3G-SDI to Fiber, Multimode, ST)

The SDI to Fiber Reversible Module fits in the 8-Bay Reversible Rackmount Converter system.

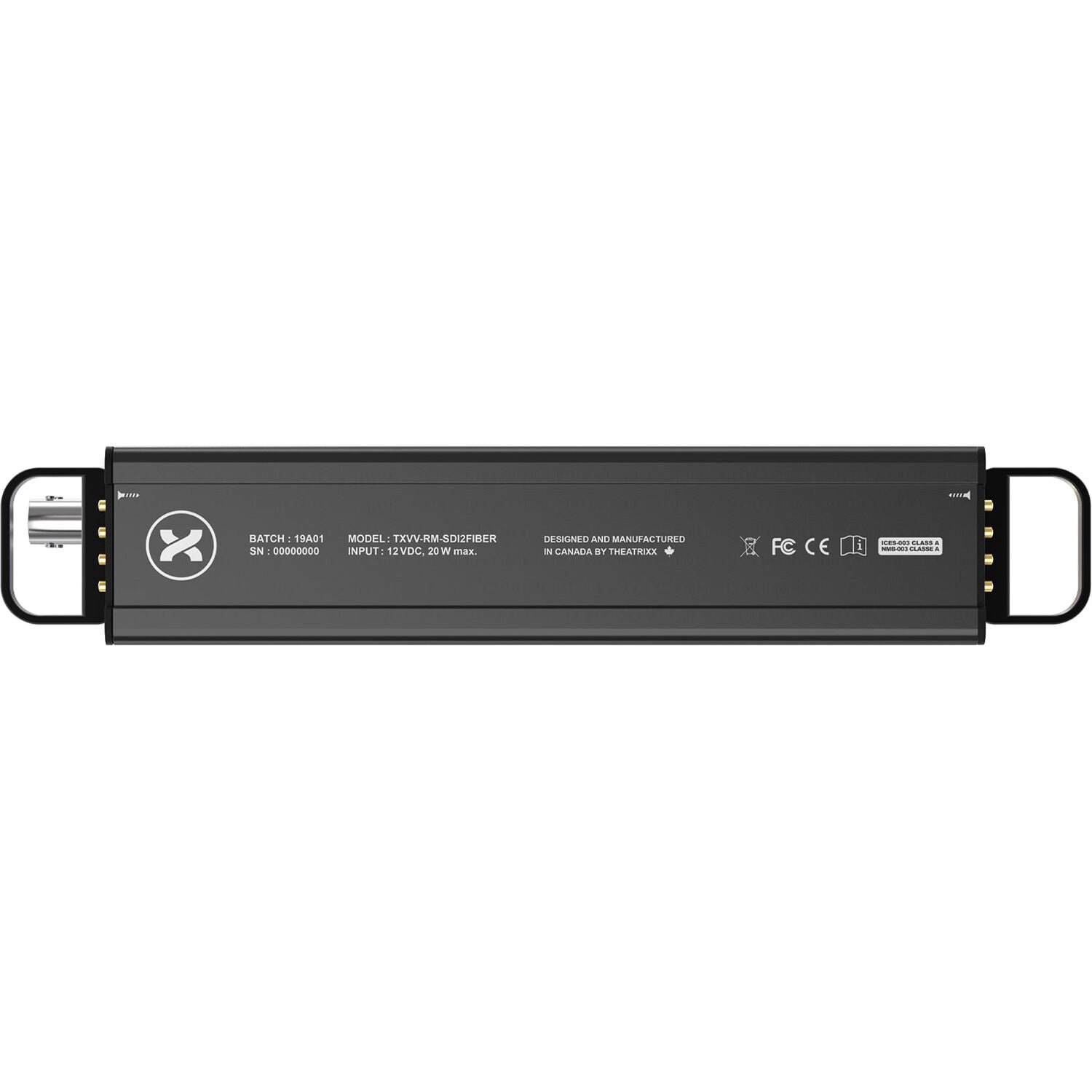

The Theatrixx XVVRMSDI2FIBERM1 module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

Key Features

  • SFP-Based Fiber: Uses standard SFP modules for flexible, interoperable SDI over fiber transmission (multimode or singlemode).
  • Integrated Power: Includes a locking PowerCON connector and a built-in AC outlet to power nearby gear, eliminating wall warts.
  • Rugged & Mountable: Features magnetic stacking, non-skid pads, and various mounting options (C-clamp, wall, belt) for versatile placement.
  • Plug-and-Play: No menus or buttons; detects signals automatically for immediate use.
  • Status LEDs: Clear indicators for quick visual confirmation and troubleshooting.
  • SDI Loop-Thru: Reclocked and amplified SDI loop-thru for monitoring or daisy-chaining.
  • Tour-Ready: Designed for durability in live production environments with unique color/alphabetic coding for easy identification.

Already own this item and want to sell it?

Click here to sell your item

Theatrixx Technologies xVision Reversible Module (3G-SDI to Fiber, Multimode, ST) Specs

Connections
Video Input

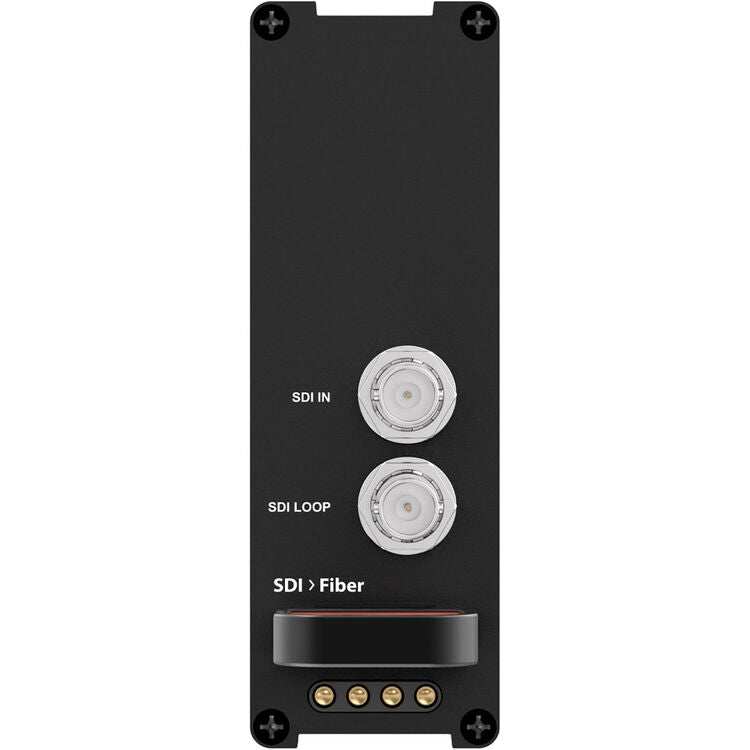

1 x 3G/HD/SD SDI BNC
Loop-thru
1 x 3G/HD/SD SDI BNC
Video Output

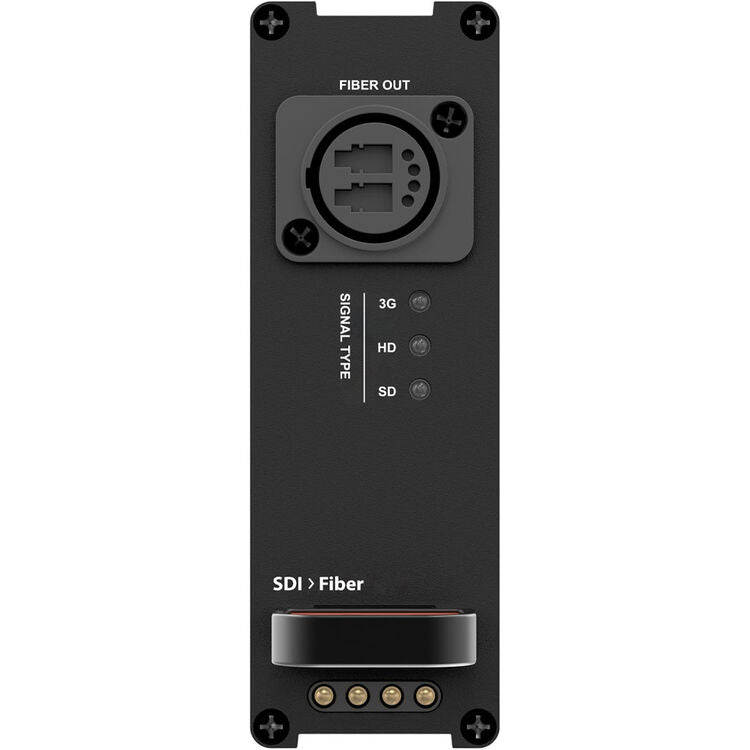

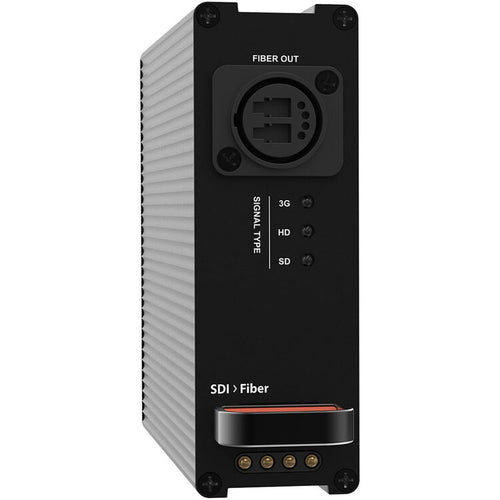

Multimode or Singlemode, Optical SDI on ST, OpticalCON DUO
Supported Signals
Video Format Support
3G-SDI Level A and B, HD-SDI, SD SDI with embedded audio
SMPTE Standards
425 M Level A & B, 424 M, 292 M, 259 M
Environmental
Relative Humidity
0% to 90% non-condensing
Operating Temperature
0-40 °C
Power Requirements
Power Supply
Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
Power Consumption
20W
Voltage Range
12VDC

Key Features

  • SFP-Based Fiber: Uses standard SFP modules for flexible, interoperable SDI over fiber transmission (multimode or singlemode).
  • Integrated Power: Includes a locking PowerCON connector and a built-in AC outlet to power nearby gear, eliminating wall warts.
  • Rugged & Mountable: Features magnetic stacking, non-skid pads, and various mounting options (C-clamp, wall, belt) for versatile placement.
  • Plug-and-Play: No menus or buttons; detects signals automatically for immediate use.
  • Status LEDs: Clear indicators for quick visual confirmation and troubleshooting.
  • SDI Loop-Thru: Reclocked and amplified SDI loop-thru for monitoring or daisy-chaining.
  • Tour-Ready: Designed for durability in live production environments with unique color/alphabetic coding for easy identification.
