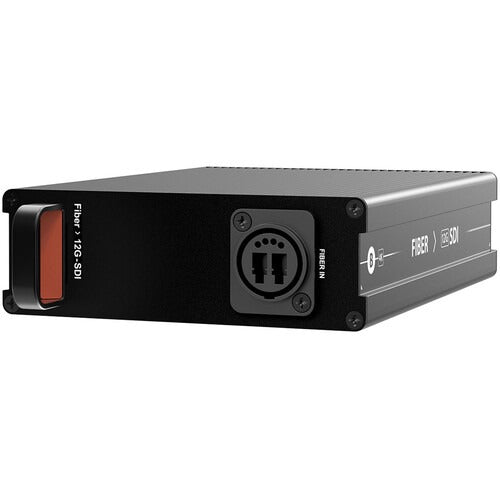

Theatrixx Technologies xVision Single-Mode Fiber to 12G-SDI Reversible Module (ST)

$1,345.00 - $1,486.00

The xVision Single-Mode Fiber to 12G-SDI Reversible Module from Theatrixx Technologies is designed for the Theatrixx 8-Bay Reversible Rackmount Frame for Video Converters. Its reversible design allows it to be inserted in the 8-bay frame from either direction, allowing the inputs/outputs to be positioned at the front or rear. It features one Single-Mode ST fiber input and two 12G-SDI level A/B outputs.

View Product Features

Fits Theatrixx 8-Bay Reversible Frame

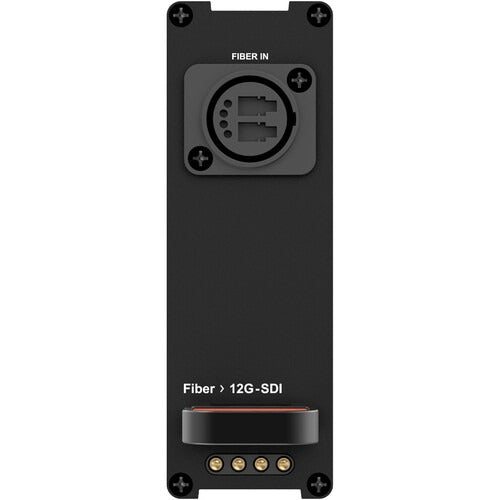

Single-Mode ST Input

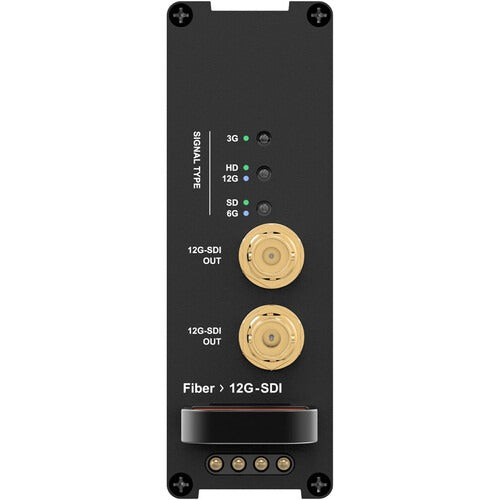

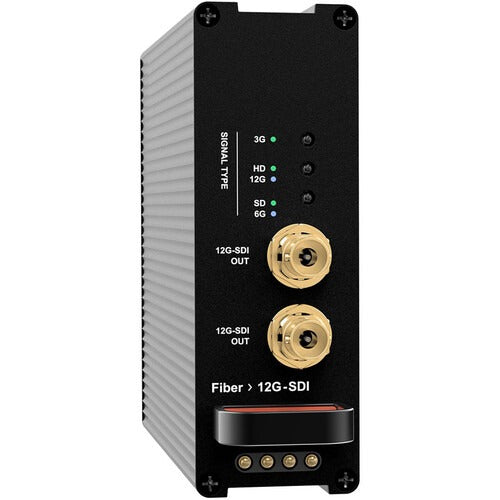

Dual 12G-SDI BNC Output Connectors
Inserts into Frame from Either Direction

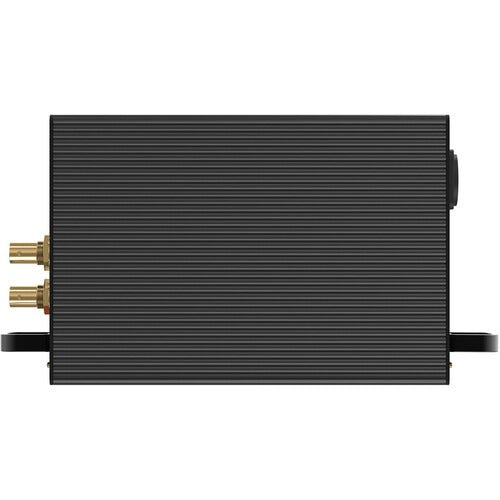

Enclosed Design with No Exposed PCBs
Gold-Plated Redundant Spring Pins

In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

New
Theatrixx-XVVRMFIBER2SDI12GS1

Theatrixx Technologies xVision Single-Mode Fiber to 12G-SDI Reversible Module (ST)

$1,345.00

View Product
New
Theatrixx-XVVRMFIBER2SDI12GS2

Theatrixx Technologies xVision Single-Mode Fiber to 12G-SDI Reversible Module (OpticalCON DUO)

$1,486.00

View Product
New
Theatrixx-XVVRMFIBER2SDI12GS3

Theatrixx Technologies xVision Single-Mode Fiber to 12G-SDI Reversible Module (OpticalCON QUAD)

$1,486.00

View Product

Already own this item and want to sell it?

Click here to sell your item

About the Theatrixx Technologies xVision Single-Mode Fiber to 12G-SDI Reversible Module (ST)

The xVision Single-Mode Fiber to 12G-SDI Reversible Module from Theatrixx Technologies is designed for the Theatrixx 8-Bay Reversible Rackmount Frame for Video Converters. Its reversible design allows it to be inserted in the 8-bay frame from either direction, allowing the inputs/outputs to be positioned at the front or rear. It features one Single-Mode ST fiber input and two 12G-SDI level A/B outputs.

Key Features

Fits Theatrixx 8-Bay Reversible Frame
Single-Mode ST Input
Dual 12G-SDI BNC Output Connectors
Inserts into Frame from Either Direction
Enclosed Design with No Exposed PCBs
Gold-Plated Redundant Spring Pins

Theatrixx Technologies xVision Single-Mode Fiber to 12G-SDI Reversible Module (ST) Specs

Module Identification

Compatible Frame

Theatrixx XVVRF8 8-Bay Reversible Rackmount Frame (3RU)

Module Function

Single-mode fiber to 12G-SDI converter

Fiber Input

Input Connector Type

ST (standard ST fiber connector)

Fiber Type Supported

Single-mode (SM)

Number of Fiber Inputs

1 optical SDI input

Signal Over Fiber

SDI over single-mode fiber

Maximum Transmission Distance

7 kilometers (single-mode typical range)

SDI Outputs

Output Connector Type

2 x BNC (professional 75Ω)

Number of SDI Outputs

2 independent reclocked outputs

Output Signal Type

12G/6G/3G/HD/SD-SDI with embedded audio

Output Configuration

12G-SDI Level A and B compatible

Video Format Support

12G-SDI Formats

SMPTE ST 2082-1, ST 2082-10 (12 Gb/s)

6G-SDI Formats

SMPTE ST 2081-1 (6 Gb/s)

3G-SDI Formats

SMPTE 424M (Level A and B) at 2.97 Gb/s

HD-SDI Formats

SMPTE 292M (1.485 Gb/s)

SD-SDI Formats

SMPTE 259M (270 Mb/s)

Embedded Audio

Full passthrough support

Additional Compliance

SMPTE 425M Level A & B

Power Specifications

Power Source

XVVRF8 frame backplane via spring pins

Voltage

12 V DC

Power Consumption

20 W maximum
