Theatrixx Technologies

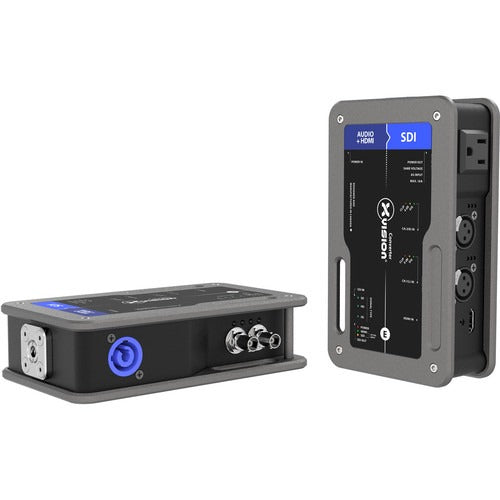

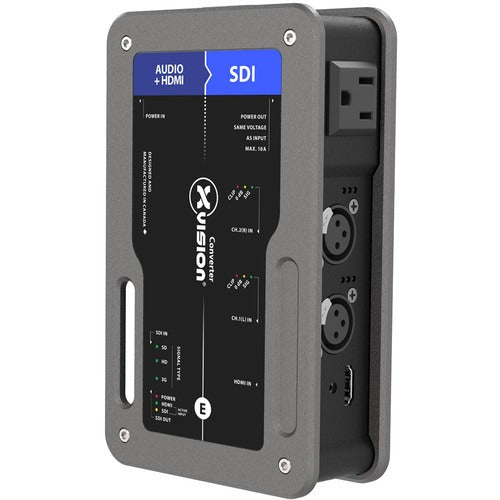

Theatrixx Technologies xVision Video Converter with SDI Audio Embedder

$705.00

The xVision Video Converter with SDI Audio Embedder from Theatrixx Technologies is designed to be used while on the road. It features an integrated power supply with a locking powerCON connector and a built-in AC outlet to power a nearby projector, TV, or laptop. There is an SDI input, HDMI input, an SDI output, and two balanced, 4 dB XLR analog audio inputs each with a 3-segment LED meter. This converter combines analog audio with incoming HDMI or SDI into the reclocked SDI output with automatic input detection. It can be mounted using a C-clamp, wall-mount adapter, LCD mount adapter, or belt adapter (available separately).

View Product Features
  • Plug-and-Play Operation
  • 3G/HD/SD-SDI / HDMI & Dual XLR Audio In
  • Magnetic Stacking System
  • Multiple Mounting Options
  • Locking powerCON Connector
  • Built-In AC Outlet
In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

  •
    New

    Theatrixx-XVVAUDIO2SDI

    Theatrixx Technologies xVision Video Converter with SDI Audio Embedder

    $705.00
    View Product

Already own this item and want to sell it?

Click here to sell your item

About the Theatrixx Technologies xVision Video Converter with SDI Audio Embedder

Professional equipment in mission-critical applications is all about reliability and confidence. So Theatrixx started with a clean sheet, and built what might soon become your most trustworthy piece of equipment.

Introducing the world's first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role.

Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. Theatrixx wanted to change that, so they designed the XVVAUDIO2SDI xVision Video Converter.

Key Features

  • Plug-and-Play Operation
  • 3G/HD/SD-SDI / HDMI & Dual XLR Audio In
  • Magnetic Stacking System
  • Multiple Mounting Options
  • Locking powerCON Connector
  • Built-In AC Outlet

Theatrixx Technologies xVision Video Converter with SDI Audio Embedder Specs

Connections
Video Input
Auto switching between 1 x 3G/HD/SD SDI, BNC & 1 x HDMI 1.4 type A with locking system
Audio Input
2 x Balanced + 4dB XLR (analog) each with a 3-segment LED meter
Video Output
1 x 3G/HD/SD SDI BNC
Supported Signals
3G Format Support
1080p50, 1080p59.94, 1080p60.
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
SD Format Support
525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Sample rate of 48 kHz and 24 bit
SDI Color Space
YUV and RGB
SDI Auto Switching
Automatically detects incoming signal format
Embedding to
SDI Channels 1 & 2
SMPTE Standards
425M Level A & B, 424M Level A, 292M, 259M
Physical
Height
50 mm (1.97 in)
Depth
180 mm (7.08 in)
Width
107 mm (4.21 in)
Weight
1 kg (2.2 lbs)
Alternate Form Factor
Also available as a Reversible Module
Environmental
Relative Humidity
0% to 90% non-condensing
Operating Temperature
0-40 °C
Power Requirements
Power Supply
Built-in power supply, PowerCON input Edison Nema 5-15 output (loop-thru)
Power Consumption
15W
Voltage Range
100-120V, 50-60Hz (100-240V, 50-60Hz available with PowerCON True1)
Courtesy Outlet
Max 10A, same voltage as input

Key Features

  • Plug-and-Play Operation
  • 3G/HD/SD-SDI / HDMI & Dual XLR Audio In
  • Magnetic Stacking System
  • Multiple Mounting Options
  • Locking powerCON Connector
  • Built-In AC Outlet
