SKU: Theatrixx-XVVFIBER2HDMI-S3

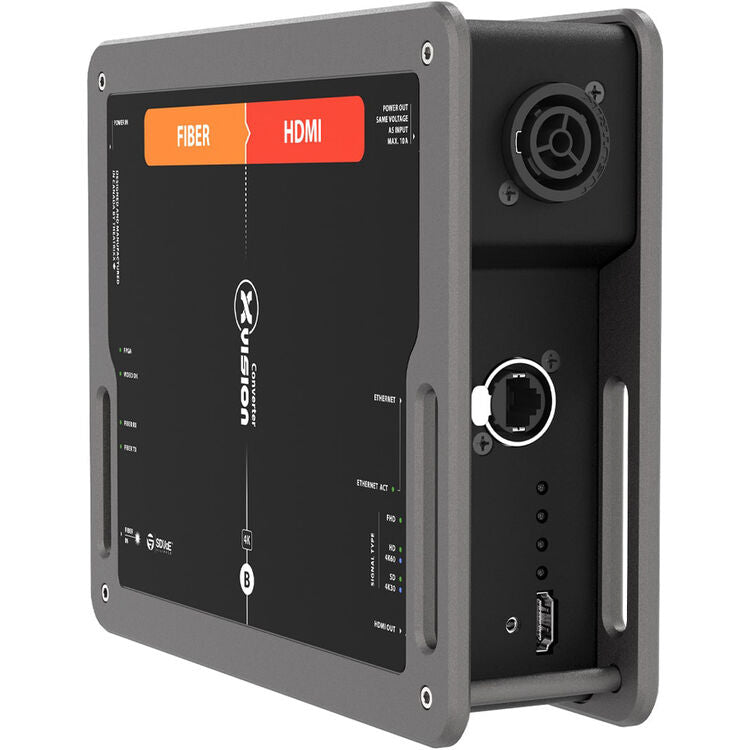

Theatrixx Technologies XVVFIBER2HDMI-S3 Fiber to HDMI 2.0 xVision Converter with GbE, PC TRUE1 In/Thru (Single-Mode, OpticalCON QUAD)

Name: Theatrixx Technologies XVVFIBER2HDMI-S3 Fiber to HDMI 2.0 xVision Converter with GbE, PC TRUE1 In/Thru (Single-Mode, OpticalCON QUAD)
Brand: AVGear.com
SKU: Theatrixx-XVVFIBER2HDMI-S3
Price: 2230.00 USD
Availability: InStock

$2,230.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ

5 availableⓘ View All

Note: Each item is unique. please check individual listings for details.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

Ideal for live shows and events, the Fiber to HDMI2.0 xVision Converter with GbE from Theatrixx Technologies is a sturdy, compact plug-and-play converter that offers a single-mode, OpticalCON QUAD SFP fiber input to HDMI 2.0 with zero-latency SDVoE output and GbE for reliable video conversion over long distances. This unit features an integrated power supply with a locking powerCON TRUE1 input connector and a built-in standard AC outlet to power a nearby projector, TV, or laptop. There is also a loop-through powerCON TRUE1 output to daisy-chain your modules or power a compatible device. Read more

Features

Converts Fiber Signals to HDMI2.0
UHD 4K60 Video, HDR, and Embedded Audio
SDVoE Encoding, GbE EtherCON Port
Integrated powerCON TRUE1 In & Loop Thru
Locking HDMI Port
Built-In AC Convenience Outlet
Easy Plug-and Play Operation
Clear LED Status Indicators
Easy Color/Alphabet-Coded Identification
Magnetic Stacking, Non-Skid Rubber Pads

Business Financing Options Avaiable

View Available Financing

Features

Converts Fiber Signals to HDMI2.0
UHD 4K60 Video, HDR, and Embedded Audio
SDVoE Encoding, GbE EtherCON Port
Integrated powerCON TRUE1 In & Loop Thru
Locking HDMI Port
Built-In AC Convenience Outlet
Easy Plug-and Play Operation
Clear LED Status Indicators
Easy Color/Alphabet-Coded Identification
Magnetic Stacking, Non-Skid Rubber Pads

No products currently in stock

About the Theatrixx Technologies XVVFIBER2HDMI-S3 Fiber to HDMI 2.0 xVision Converter with GbE, PC TRUE1 In/Thru (Single-Mode, OpticalCON QUAD)

Professional equipment in mission-critical applications is all about reliability and confidence. So we started with a clean sheet, and built what may soon become your most trustworthy piece of equipment.

Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role.

Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters.

Key Features

Converts Fiber Signals to HDMI2.0
UHD 4K60 Video, HDR, and Embedded Audio
SDVoE Encoding, GbE EtherCON Port
Integrated powerCON TRUE1 In & Loop Thru
Locking HDMI Port
Built-In AC Convenience Outlet
Easy Plug-and Play Operation
Clear LED Status Indicators
Easy Color/Alphabet-Coded Identification
Magnetic Stacking, Non-Skid Rubber Pads

Already own this item and want to sell it?

Click here to sell your item

Theatrixx Technologies XVVFIBER2HDMI-S3 Fiber to HDMI 2.0 xVision Converter with GbE, PC TRUE1 In/Thru (Single-Mode, OpticalCON QUAD) Specs

Connections

Fiber Input

10 Gbps Optical Ethernet, SFP-based, Choice of Singlemode or Multimode, Choice of Neutrik OpticalCON DUO or QUAD, or FiberFOX EBC connectors

Ethernet Port

1 Gbps Ethernet on Neutrik EtherCON

Video Output

HDMI 2.0 type A

Supported Signals

HDMI 2.0 output

All HDMI 2.0 formats including: 4K/60 8-bit 4:4:4, 4K/60 10-bit 4:2:2, High dynamic range (HDR10 & Dolby Vision)

Embedded audio

Up to 8 channels, 24 bit, 192 kHz

Encoding Technology

SDVoE (NT1000-based)

Typical Latency

< 0.1 ms

Auxiliary Signals

1 Gbps Ethernet pass-thru

Physical

Height

62 mm (2.44 in)

Depth

180 mm (7.08 in)

Width

221 mm (8.7 in)

Weight

2 kg (4.4 lbs)

Alt. form factor

Also available in rackmount module (RM)

Environmental

Operating temp.

0-40° C

Relative Humidity

0 % to 90 % RH non-condensing

Power Requirements

Power Supply

Built-in power supply PowerCON True1 in / loop thru

Power Consumption

45W max.

Operational Voltage Range

100-240 V 50-60 Hz

Key Features

Converts Fiber Signals to HDMI2.0
UHD 4K60 Video, HDR, and Embedded Audio
SDVoE Encoding, GbE EtherCON Port
Integrated powerCON TRUE1 In & Loop Thru
Locking HDMI Port
Built-In AC Convenience Outlet
Easy Plug-and Play Operation
Clear LED Status Indicators
Easy Color/Alphabet-Coded Identification
Magnetic Stacking, Non-Skid Rubber Pads
