SKU: Theatrixx-XVVSDIDA4T1-12G

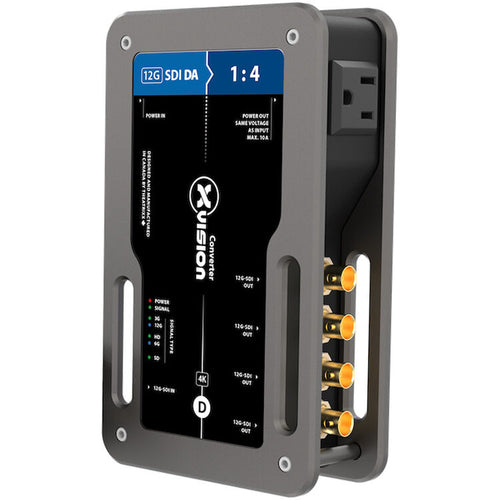

Theatrixx XVVSDIDA4T1-12G 12G-SDI Distribution Amplifier (1:4, True1)

$815.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The XVVSDIDA4T1-12G is a rugged, tour-ready 1:4 12G-SDI distribution amplifier built to perform under pressure. Designed for the demands of live events, broadcasts, and installations, it delivers rock-solid reliability with professional-grade connectors, integrated power, and all-metal housing. No menus, no dipswitches—just plug, play, and trust it to work. Proudly built in Canada, it's your signal chain’s new strongest link. Read more

Features

  • Built-in Power Supply with locking PowerCON input/output – no wall-warts
  • Courtesy AC Outlet to power nearby gear (up to 10A)
  • Stackable Design with magnetic alignment and non-slip base
  • Multiple Mounting Options: C-Clamp, wall, LCD, belt
  • Reclocked & Amplified Outputs for clean, strong signals
  • Zero Config Setup: No menus, buttons, or dipswitches
  • Status LEDs for real-time monitoring
  • Durable Enclosure: Sleek, rugged, and tour-friendly
  • Color-coded ID System for fast field identification

Business Financing Options Avaiable

View Available Financing

The XVVSDIDA4T1-12G is a rugged, tour-ready 1:4 12G-SDI distribution amplifier built to perform under pressure. Designed for the demands of live events, broadcasts, and installations, it delivers rock-solid reliability with professional-grade connectors, integrated power, and all-metal housing. No menus, no dipswitches—just plug, play, and trust it to work. Proudly built in Canada, it's your signal chain’s new strongest link. Read more

Features

  • Built-in Power Supply with locking PowerCON input/output – no wall-warts
  • Courtesy AC Outlet to power nearby gear (up to 10A)
  • Stackable Design with magnetic alignment and non-slip base
  • Multiple Mounting Options: C-Clamp, wall, LCD, belt
  • Reclocked & Amplified Outputs for clean, strong signals
  • Zero Config Setup: No menus, buttons, or dipswitches
  • Status LEDs for real-time monitoring
  • Durable Enclosure: Sleek, rugged, and tour-friendly
  • Color-coded ID System for fast field identification

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the Theatrixx XVVSDIDA4T1-12G 12G-SDI Distribution Amplifier (1:4, True1)

Professional equipment in mission-critical applications is all about reliability and confidence. So we started with a clean sheet, and built what might soon become your most trustwor- thy piece of equipment.

Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on profesionnal A/V events, presentations, live shows and tours and often have a critical role.

Key Features

  • Built-in Power Supply with locking PowerCON input/output – no wall-warts
  • Courtesy AC Outlet to power nearby gear (up to 10A)
  • Stackable Design with magnetic alignment and non-slip base
  • Multiple Mounting Options: C-Clamp, wall, LCD, belt
  • Reclocked & Amplified Outputs for clean, strong signals
  • Zero Config Setup: No menus, buttons, or dipswitches
  • Status LEDs for real-time monitoring
  • Durable Enclosure: Sleek, rugged, and tour-friendly
  • Color-coded ID System for fast field identification

Already own this item and want to sell it?

Click here to sell your item

Theatrixx XVVSDIDA4T1-12G 12G-SDI Distribution Amplifier (1:4, True1) Specs

Connections
Video Input
1 x 12G/6G/3G/HD/SD SDI BNC
Video Output
4 x 12G/6G/3G/HD/SD SDI BNC (reclocked and amplified)
Supported Signals
12G Support Format
4096x2160p60, 4096x2160p59.94, 4096x2160p50, 3840x2160p60, 3840x2160p59.94, 3840x2160p50
6G Support Format
4096x2160p30, 4096x2160p29.97, 4096x2160p25, 4096x2160p23.98, 3840x2160p30, 3840x2160p29.97, 3840x2160p25, 3840x2160p29.97
3G Format Support
1080p50, 1080p59.94, 1080p60.
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
SD Format Support
525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Sample rate of 48 kHz and 24 bit
SDI Color Space
YUV and RGB
SDI Auto Switching
Automatically detects incoming signal format
SMPTE Standards
2082-1, 2082-10, 425 M Level A & B, 424 M, 292 M, 259 M
Environmental
Relative Humidity
0% to 90% non-condensing
Operating Temperature
0-40 °C
Power Requirements
Power Supply
Built-in power supply
PowerCON True1 input
PowerCON True1 output (loop-thru)
Power Consumption
15W
Voltage Range
100-240V, 50-60Hz (100-120V, 50-60Hz available with PowerCON/Edison Nema 5-15)
Courtesy Outlet
Max 10A, same voltage as input

Key Features

  • Built-in Power Supply with locking PowerCON input/output – no wall-warts
  • Courtesy AC Outlet to power nearby gear (up to 10A)
  • Stackable Design with magnetic alignment and non-slip base
  • Multiple Mounting Options: C-Clamp, wall, LCD, belt
  • Reclocked & Amplified Outputs for clean, strong signals
  • Zero Config Setup: No menus, buttons, or dipswitches
  • Status LEDs for real-time monitoring
  • Durable Enclosure: Sleek, rugged, and tour-friendly
  • Color-coded ID System for fast field identification
