SKU: 1942-249

TRIPP-LITE B126-1A1 HDMI OVER Cat5 Extender

$30.00

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Price
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The Tripp Lite B126-1A1 HDMI over Cat5 Extender is a professional HDMI signal extension system designed to transmit high-definition audio and video over a single Cat5e or Cat6 Ethernet cable. Consisting of a local transmitter and remote receiver, the extender allows HDMI sources such as computers, media players, Blu-ray players, and digital signage systems to be located up to 150 ft (45.7 m) away from an HDMI display using readily available network cabling. Supporting resolutions up to 1920 x 1080 (1080p) with embedded stereo audio, the B126-1A1 offers a cost-effective solution for conference rooms, classrooms, retail signage, control rooms, and professional AV installations. The compact metal housings provide reliable operation and easy integration into existing AV systems. Read more

Features

  • Extends HDMI signals over a single Cat5e/Cat6 cable.
  • Supports transmission distances up to 150 ft (45.7 m).
  • Maximum video resolution of 1920 x 1080 @ 60 Hz (1080p).
  • Supports embedded digital audio.
  • Includes transmitter and receiver units.
  • Plug-and-play installation with no software required.
  • Compact metal enclosures for commercial AV installations.
  • HDCP compatible.

Business Financing Options Avaiable

View Available Financing

The Tripp Lite B126-1A1 HDMI over Cat5 Extender is a professional HDMI signal extension system designed to transmit high-definition audio and video over a single Cat5e or Cat6 Ethernet cable. Consisting of a local transmitter and remote receiver, the extender allows HDMI sources such as computers, media players, Blu-ray players, and digital signage systems to be located up to 150 ft (45.7 m) away from an HDMI display using readily available network cabling. Supporting resolutions up to 1920 x 1080 (1080p) with embedded stereo audio, the B126-1A1 offers a cost-effective solution for conference rooms, classrooms, retail signage, control rooms, and professional AV installations. The compact metal housings provide reliable operation and easy integration into existing AV systems. Read more

Features

  • Extends HDMI signals over a single Cat5e/Cat6 cable.
  • Supports transmission distances up to 150 ft (45.7 m).
  • Maximum video resolution of 1920 x 1080 @ 60 Hz (1080p).
  • Supports embedded digital audio.
  • Includes transmitter and receiver units.
  • Plug-and-play installation with no software required.
  • Compact metal enclosures for commercial AV installations.
  • HDCP compatible.

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the TRIPP-LITE B126-1A1 HDMI OVER Cat5 Extender

The Tripp Lite B126-1A1 is a two-piece, active HDMI over Cat5e/Cat6 extender kit designed to push high-definition video and audio signals far beyond the strict 50-foot distance limitation of standard HDMI cables. Used frequently in digital signage setups, house of worship IMAG (image magnification), and corporate conference rooms, it consists of a box-style transmitter and a receiver that work in tandem to pass A/V data over a single run of standard networking cable.

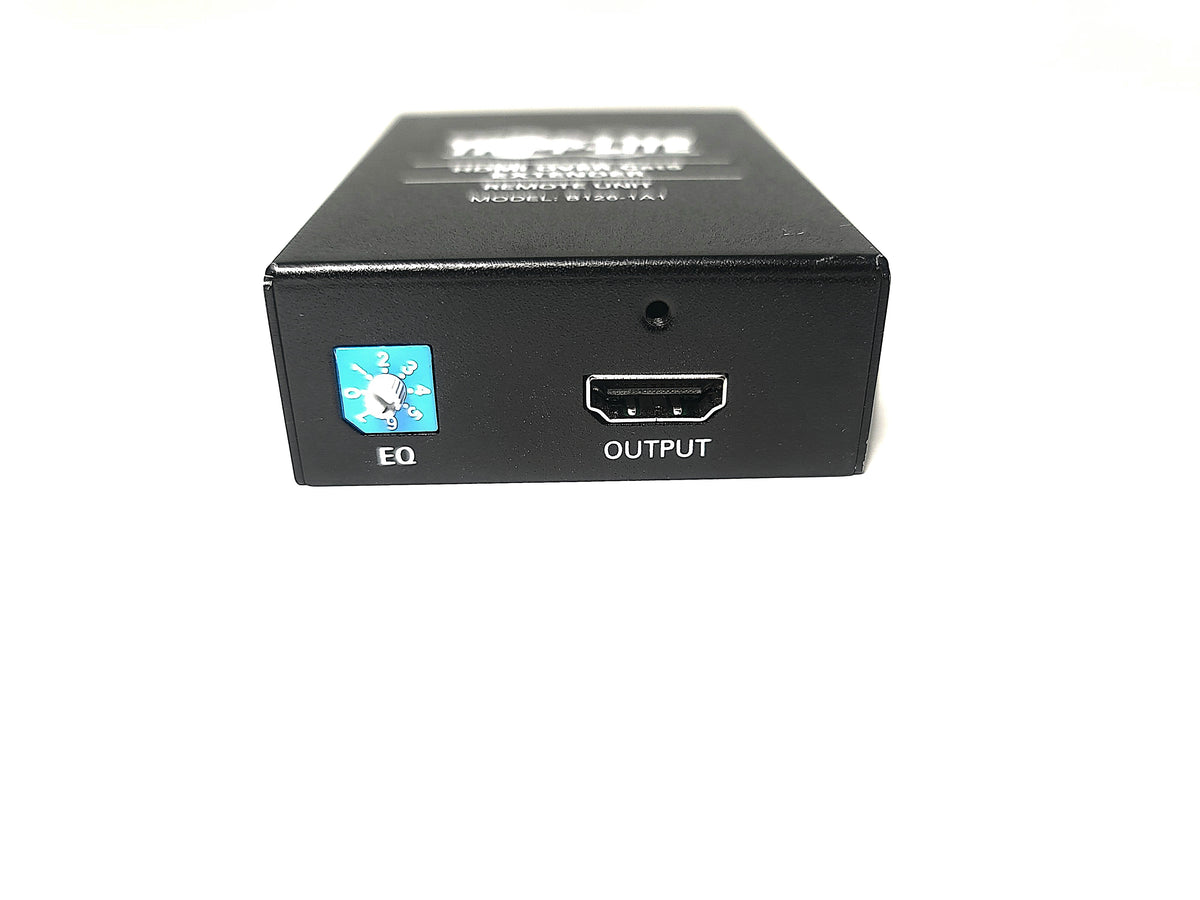

By utilizing 24 AWG solid-wire Cat5e or Cat6 cabling, this active kit can successfully push a 1080p (60Hz) signal up to 150 feet, or a 1080i signal up to 200 feet. The transmitter features a local HDMI loop-out port so an AV technician can monitor the video feed at the source, while the remote receiver unit features a built-in rotary equalization dial to manually fine-tune the image sharpness and compensate for signal degradation over longer cable runs.

Key Features

  • Extends HDMI signals over a single Cat5e/Cat6 cable.
  • Supports transmission distances up to 150 ft (45.7 m).
  • Maximum video resolution of 1920 x 1080 @ 60 Hz (1080p).
  • Supports embedded digital audio.
  • Includes transmitter and receiver units.
  • Plug-and-play installation with no software required.
  • Compact metal enclosures for commercial AV installations.
  • HDCP compatible.

Already own this item and want to sell it?

Click here to sell your item

TRIPP-LITE B126-1A1 HDMI OVER Cat5 Extender Specs

Device Type
Active HDMI over Cat5e/Cat6 Extender Kit (Tx + Rx)
Transmission Medium
1x Cat5e / Cat6 cable (24 AWG solid-wire recommended)
Maximum Resolution
1920 x 1080 (1080p at 60Hz)
Maximum Distance (1080p)
150 feet (45.7 meters)
Maximum Distance (1080i/720p)
200 feet (61 meters)
Audio Support
Stereo and 7.1-channel surround sound (Multi-channel or PCM)
Local Loop-Out
Yes (1x HDMI output on the transmitter unit)
Image Adjustment
Built-in manual equalization control on the receiver
HDCP Compliance
HDCP 1.4
Power Requirements
2x External AC Power Adapters (5V, 2A) included

Key Features

  • Extends HDMI signals over a single Cat5e/Cat6 cable.
  • Supports transmission distances up to 150 ft (45.7 m).
  • Maximum video resolution of 1920 x 1080 @ 60 Hz (1080p).
  • Supports embedded digital audio.
  • Includes transmitter and receiver units.
  • Plug-and-play installation with no software required.
  • Compact metal enclosures for commercial AV installations.
  • HDCP compatible.

Already own this item and want to sell it?

Click here to sell your item
