Turbosound

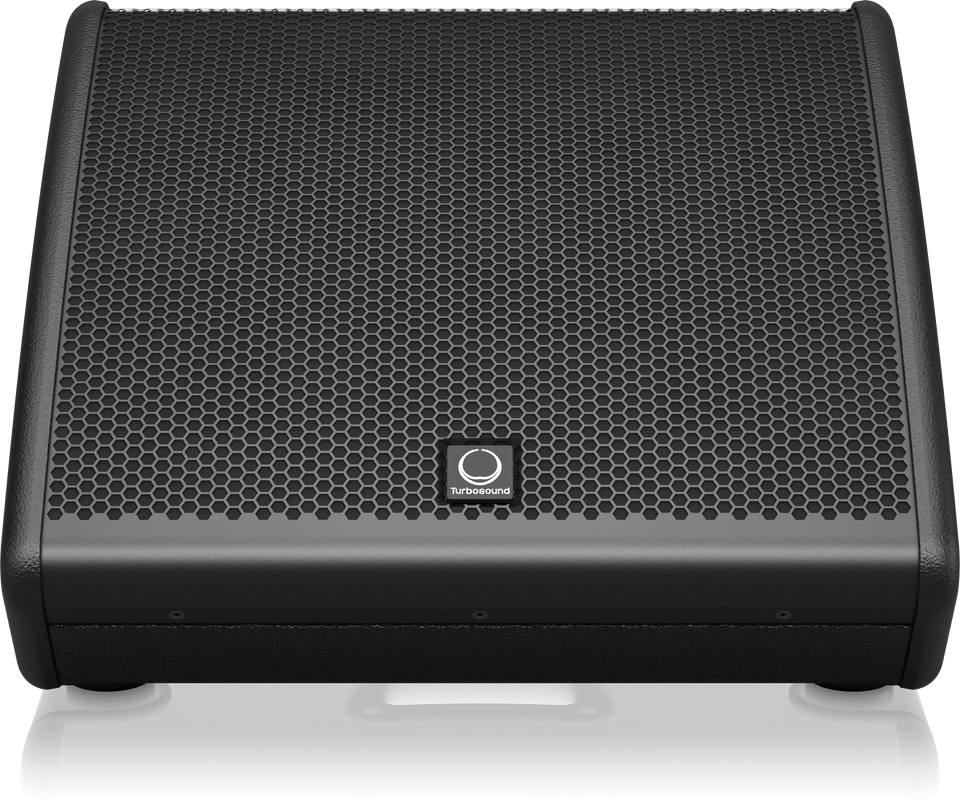

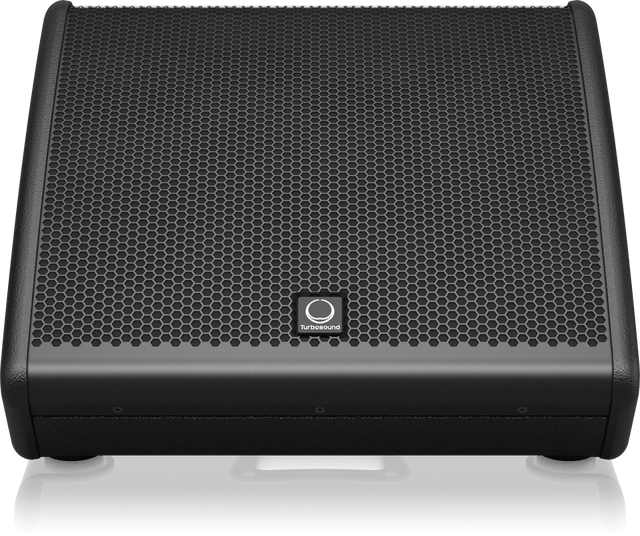

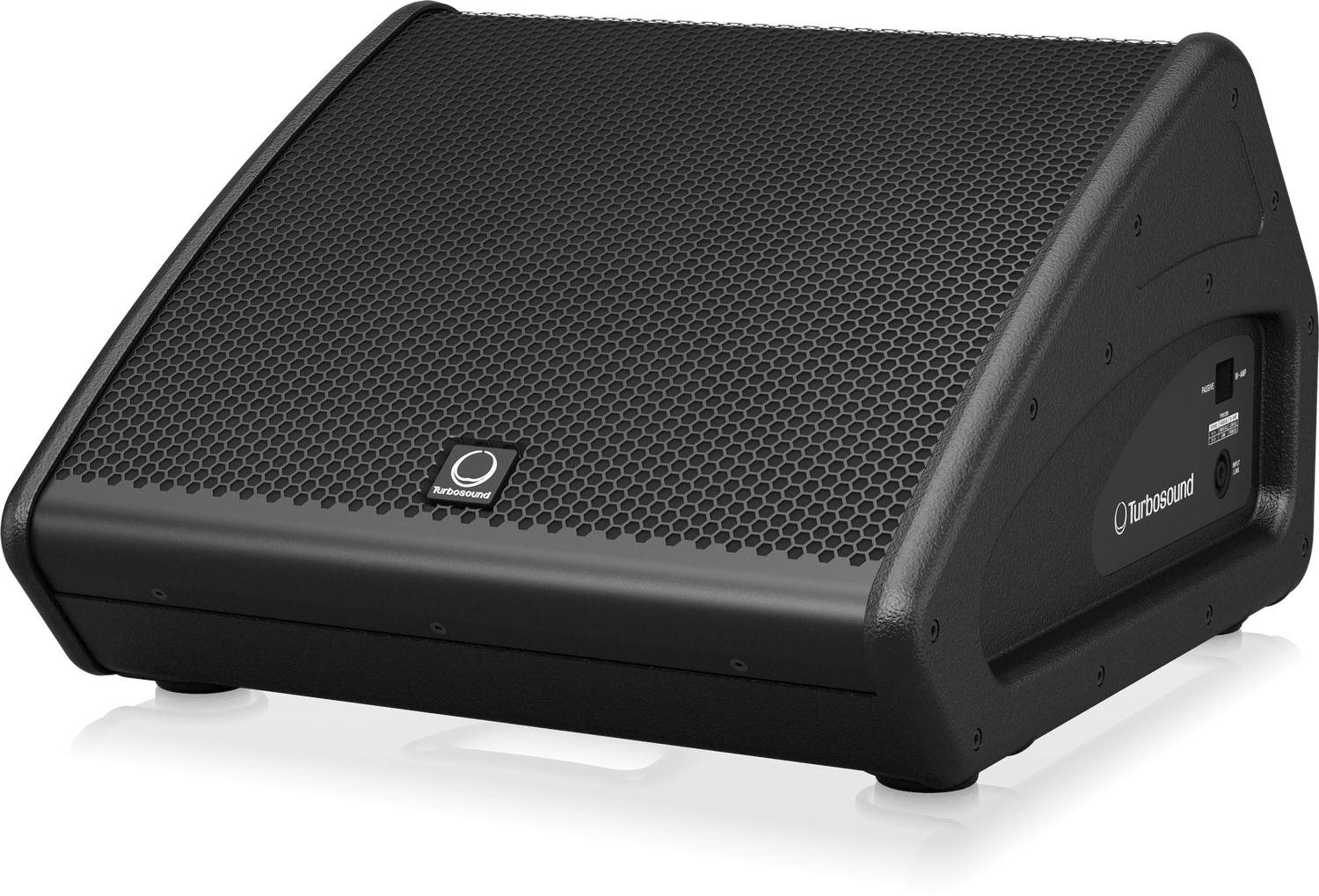

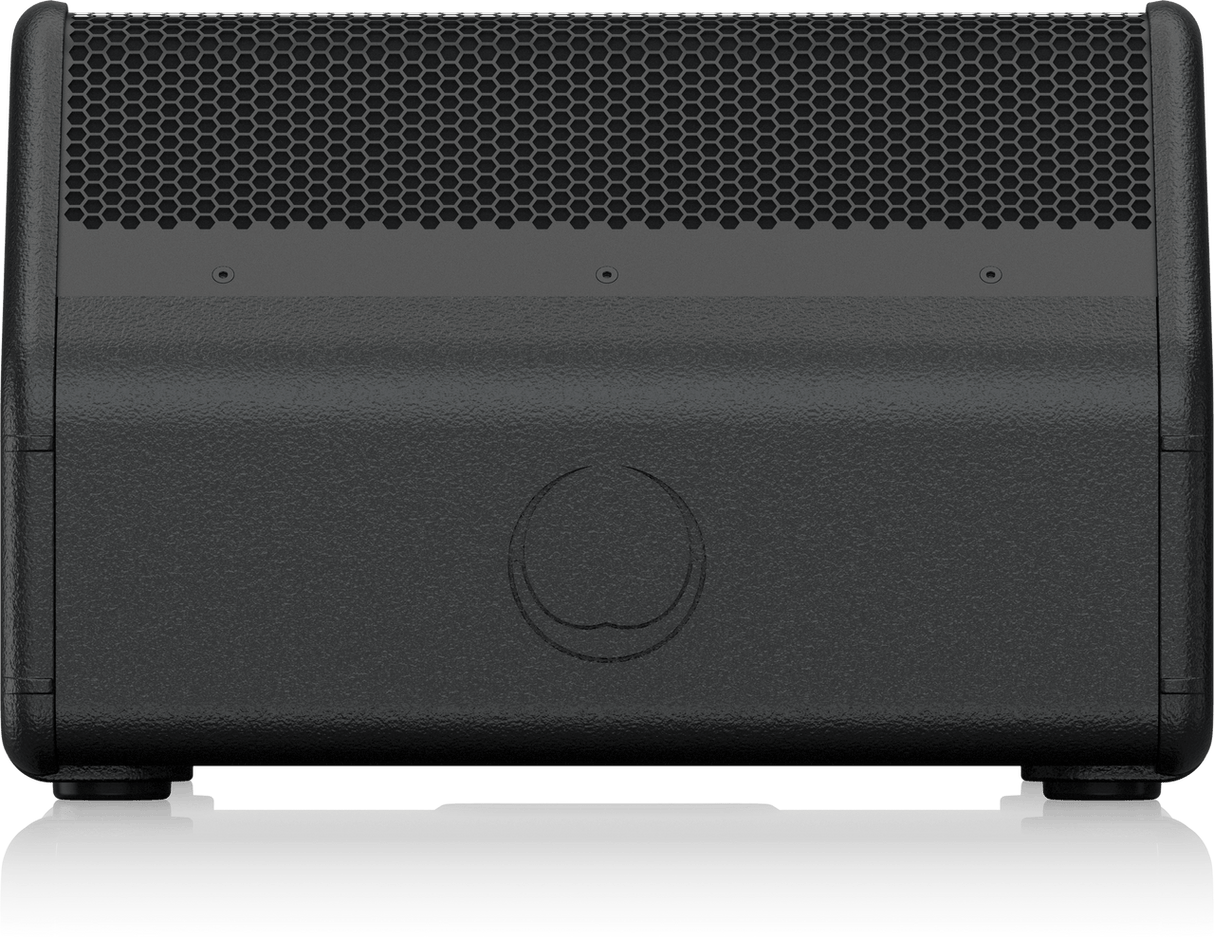

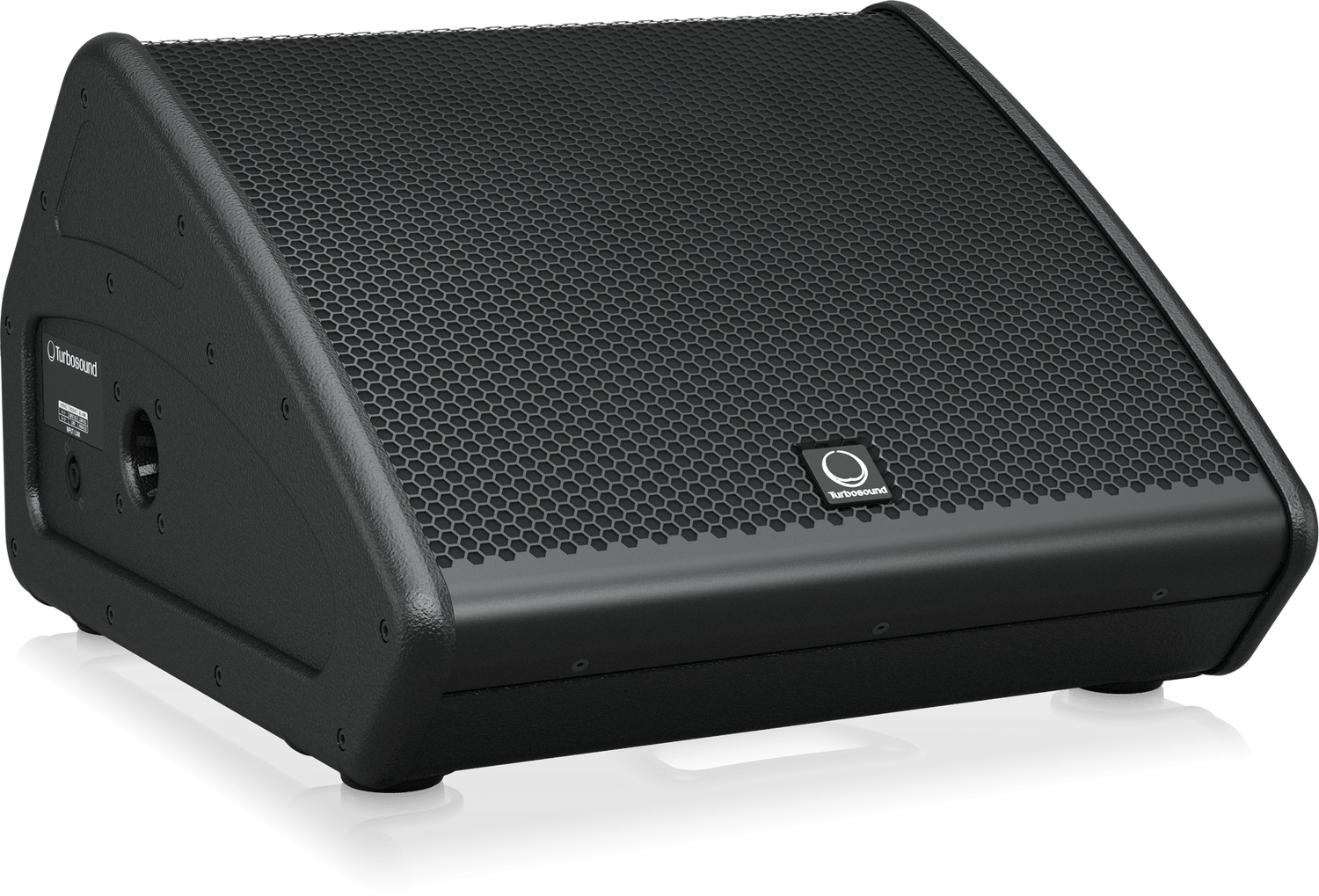

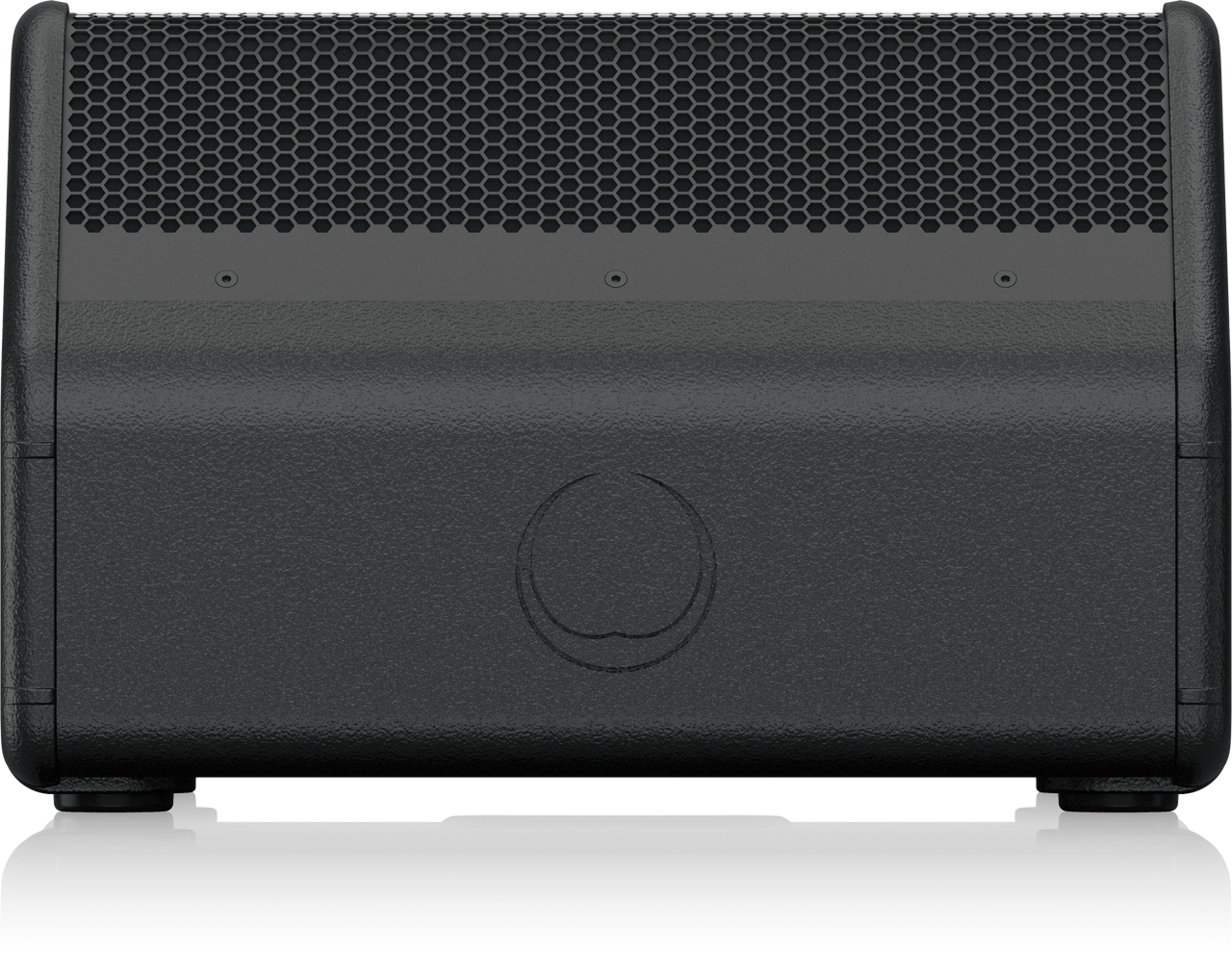

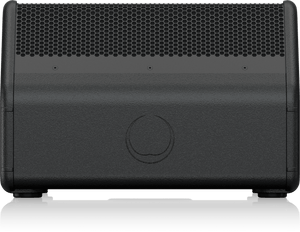

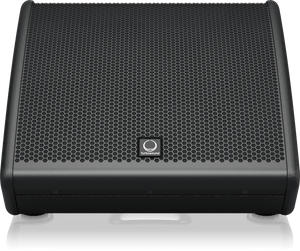

Turbosound TFM122M Co-axial 2-Way 12" Stage Monitor for Touring Applications

$0.00

The Turbosound TFM122M is a compact yet powerful two-way coaxial stage monitor engineered for live sound reinforcement and touring artists. Delivering precise vocal and instrument reproduction, it combines high output with controlled dispersion for superior on-stage clarity.

View Product Features

  • Two-way coaxial 12-inch stage monitor design
  • High output and clarity for live performance
  • Compact, low-profile wedge for stage visibility
  • Rugged birch plywood enclosure for durability
  • Passive or bi-amp operation flexibility
  • Optimized dispersion for focused on-stage sound
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Turbosound TFM122M Co-axial 2-Way 12" Stage Monitor for Touring Applications

The Turbosound TFM122M is a professional coaxial stage monitor designed to deliver exceptional clarity, accurate sound reproduction, and wide dispersion for performers on demanding tours and live stages. It features a 12-inch low-frequency driver with a large voice coil, over which a 1.4-inch exit compression driver is mounted on a coaxial horn. This true coaxial design ensures the acoustic centers of the low and high-frequency drivers are aligned in the same vertical and horizontal plane, resulting in perfect phase coherence, a consistent frequency response across a broad listening area, and the elimination of the off-axis lobing issues common in traditional two-way monitor designs. This provides performers with a wider, more stable "sweet spot," allowing for greater onstage movement without losing critical elements of their mix.

Built to endure the physical demands of touring, the enclosure is constructed from rugged 18mm multi-ply birch plywood and finished with a tough, textured coating. The angled baffle is specifically designed to project sound upward toward the artist while minimizing stage wash and bleed into the front-of-house microphones. With high sensitivity and substantial power handling, the TFM122M can produce very high sound pressure levels with low distortion, providing the necessary headroom for loud stages without compromising audio fidelity. Its robust construction includes integrated handles and steel-reinforced corners, ensuring durability and ease of handling during frequent setup and breakdown.

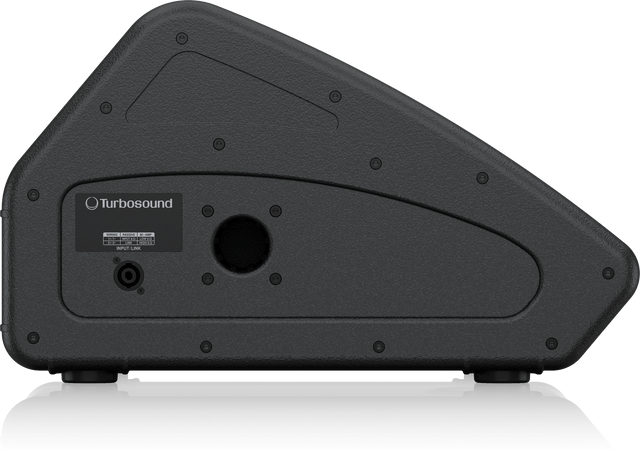

Connectivity is facilitated through dual NL4 SpeakON connectors wired in parallel for simple daisy-chaining from a single amplifier output. The internal passive crossover is meticulously engineered for optimal driver integration and protection. The combination of advanced coaxial technology, road-ready construction, and high-output capability makes the TFM122M an excellent choice for touring musicians, monitor engineers, and rental companies who require a reliable, sonically precise stage monitor that delivers consistent, detailed sound night after night across diverse performance environments.

Key Features

  • Two-way coaxial 12-inch stage monitor design
  • High output and clarity for live performance
  • Compact, low-profile wedge for stage visibility
  • Rugged birch plywood enclosure for durability
  • Passive or bi-amp operation flexibility
  • Optimized dispersion for focused on-stage sound

Turbosound TFM122M Co-axial 2-Way 12" Stage Monitor for Touring Applications Specs

Transducer Configuration
LF Driver Size
12 inch
LF Voice Coil
3 inch
HF Driver
1.4 inch exit compression driver
Design
Coaxial 2-Way
Power & Sensitivity
Power Handling (Continuous)
600 Watt AES
Power Handling (Peak)
2400 Watt
Sensitivity (1W/1m)
99 dB
Maximum SPL
136 dB peak
Nominal Impedance
8 ohms
Dispersion & Coverage
Dispersion Pattern
Coaxial Controlled
Typical Tilt Angle
45 degrees
Physical & Construction
Enclosure Material
18mm Birch Plywood
Finish
Black Texture Coat
Corners
Protective Steel
Handles
Integrated (2)
Weight
24 kg (52.9 lbs)
Connections
Input Connectors
Dual NL4 SpeakON
Wiring Mode
Parallel, 1+/1-
Dimensional Specifications
Height
460 mm (18.1 in)
Width
500 mm (19.7 in)
Depth
540 mm (21.3 in)

Key Features

  • Two-way coaxial 12-inch stage monitor design
  • High output and clarity for live performance
  • Compact, low-profile wedge for stage visibility
  • Rugged birch plywood enclosure for durability
  • Passive or bi-amp operation flexibility
  • Optimized dispersion for focused on-stage sound
