Turbosound

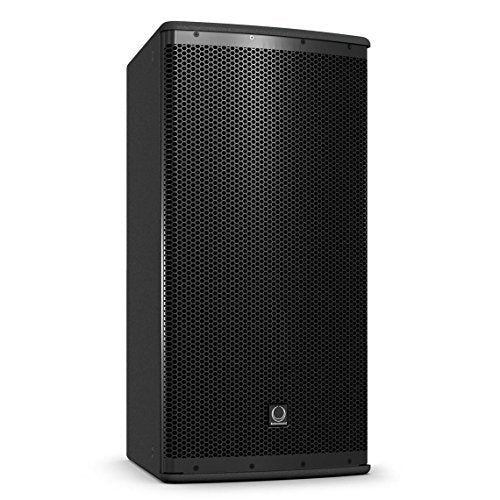

Turbosound TMS152 2-Way 15" Full Range Loudspeaker for Portable PA and Installation Applications

$0.00

The Turbosound Madrid TMS152 is a 2-way, 15-inch full-range passive loudspeaker suitable for both portable sound reinforcement and permanent installations. It is designed for use in a variety of settings, such as front-of-house (FOH), side fill, and drum fill applications. The speaker features an advanced low-distortion waveguide for optimized coverage and a switchable passive or bi-amp operation mode, offering installation flexibility. Constructed from durable birch plywood with a hard-wearing black finish, it is built to withstand the rigors of touring and live sound.

View Product Features

  • Dual-mode operation allows for passive or bi-amp use.
  • Carbon fiber 15" driver for enhanced low-end transient response.
  • 1.4" titanium dome compression driver delivers crisp high frequencies.
  • Low-distortion waveguide provides 75° H x 50° V sound dispersion.
  • Dual-angle pole mount for versatile and accurate audience coverage.
  • Multiple M10 rigging points for flexible permanent installation.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Turbosound TMS152 2-Way 15" Full Range Loudspeaker for Portable PA and Installation Applications

The Turbosound TMS152 is a high-performance two-way full-range loudspeaker engineered to deliver powerful and articulate sound reinforcement for demanding portable PA and permanent installation applications. This system integrates a robust 15-inch low-frequency driver with a high-frequency 1.4-inch exit compression driver, coupled to a precision constant-directivity waveguide. This combination is designed to produce a wide, even dispersion pattern with substantial low-end output and crisp, detailed highs, making it suitable as a primary main speaker for live music, DJ performances, and speech reinforcement in mid to large-sized venues. Its ability to produce high sound pressure levels with clarity and headroom makes it a versatile choice for rental companies, touring sound providers, and installers.

The cabinet is constructed from durable 18mm birch plywood with a rugged textured coating, built to withstand the physical demands of both touring and long-term installation. It includes multiple integrated handles and a comprehensive array of M10 threaded rigging points, providing extensive deployment flexibility. The speaker can be pole-mounted on a compatible subwoofer, flown using a dedicated yoke, stacked, or securely installed on walls or ceilings. The internal passive crossover network is meticulously engineered for optimal driver integration and protection, ensuring reliable performance and a smooth, coherent frequency response even when driven hard.

Designed for straightforward system integration, the TMS152 features dual Neutrik NL4 connectors wired in parallel for easy daisy-chaining and amplifier connectivity. Its high sensitivity and significant power handling allow it to convert amplifier power into acoustic output with high efficiency, making it an excellent choice for systems where output and reliability are paramount. The TMS152 represents a professional workhorse loudspeaker, offering a powerful combination of output capability, sonic fidelity, and rugged construction to meet the needs of a wide range of professional audio reinforcement scenarios.

Key Features

  • Dual-mode operation allows for passive or bi-amp use.
  • Carbon fiber 15" driver for enhanced low-end transient response.
  • 1.4" titanium dome compression driver delivers crisp high frequencies.
  • Low-distortion waveguide provides 75° H x 50° V sound dispersion.
  • Dual-angle pole mount for versatile and accurate audience coverage.
  • Multiple M10 rigging points for flexible permanent installation.

Turbosound TMS152 2-Way 15" Full Range Loudspeaker for Portable PA and Installation Applications Specs

Transducer Configuration
LF Driver Size
15 inch
LF Voice Coil
3 inch
HF Driver
1.4 inch exit compression driver
Crossover Frequency
1.6 kHz
Dispersion & Coverage
Horizontal Coverage
90 degrees
Vertical Coverage
60 degrees
Waveguide Material
Fiberglass Composite
Power & Sensitivity
Power Handling (Continuous)
600 Watt AES
Power Handling (Peak)
2400 Watt
Sensitivity (1W/1m)
99 dB
Maximum SPL
135 dB peak
Nominal Impedance
8 ohms
Physical & Enclosure
Enclosure Material
18mm Birch Plywood
Finish
Black Duraflex
Rigging Points
8 x M10
Weight
28.5 kg (62.8 lbs)
Connections & Electrical
Input Connectors
2 x NL4 SpeakON
Wiring
Parallel, Pin 1+/1-
Recommended Amplifier
600 - 1200 Watts @ 8Ω
Dimensional Specifications
Height
718 mm (28.3 in)
Width
462 mm (18.2 in)
Depth
445 mm (17.5 in)

Key Features

  • Dual-mode operation allows for passive or bi-amp use.
  • Carbon fiber 15" driver for enhanced low-end transient response.
  • 1.4" titanium dome compression driver delivers crisp high frequencies.
  • Low-distortion waveguide provides 75° H x 50° V sound dispersion.
  • Dual-angle pole mount for versatile and accurate audience coverage.
  • Multiple M10 rigging points for flexible permanent installation.
