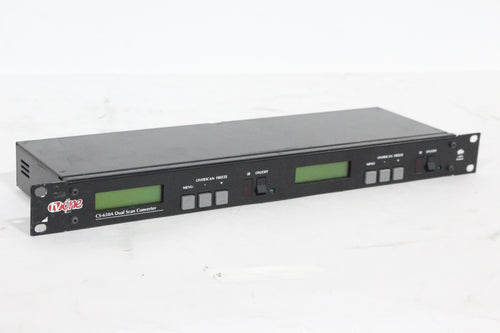

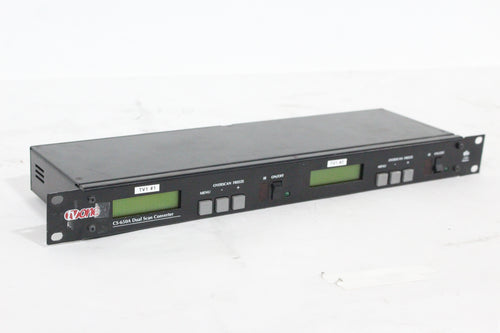

The TV One CS-650A is a professional-grade scan converter from the Pro SG Series, designed to bridge the gap between computer video signals and standard video display systems. Its primary function is to convert high-resolution, high-frequency analog RGB signals from computers, workstations, or graphics cards into standardized video formats such as NTSC, PAL, or interlaced SDI. This process, known as scan conversion or down-conversion, was essential in broadcast, post-production, and presentation environments where computer-generated graphics, text, or user interfaces needed to be integrated into a standard-definition video workflow, recorded to tape, or distributed via broadcast channels. The unit employs sophisticated digital processing to perform this conversion while minimizing artifacts like flicker, jagged edges, and loss of detail.

The CS-650A handles a wide range of input resolutions and timings, automatically locking onto the source signal and providing a stable, broadcast-quality output. Key to its performance is advanced processing that includes adaptive interpolation, edge smoothing, and flicker reduction to produce a clean, viewable image from the inherently different scanning methods of computer graphics (progressive scan) and standard video (interlaced scan). It often features multiple output formats simultaneously, such as composite video, S-Video, and component YUV, along with serial digital interface (SDI) options in later models, offering flexibility for connection to various monitoring, recording, and distribution equipment. Additional functions typically include genlock capability for synchronizing the output with other video sources in a production switcher, and basic image adjustment controls for positioning and sizing.

Housed in a rugged, rack-mountable enclosure, the CS-650A was built for 24/7 operation in technical facilities. Its front panel provides status indicators and basic controls, while more detailed configuration is accessible via on-screen menus or external software. As a professional tool from an era when computer-to-video conversion was a common and critical task, the TV One CS-650A Scan Converter represents a reliable and high-quality solution for integrating digital content into analog video infrastructures, ensuring compatibility and maintaining image integrity throughout the signal chain.
